BLDC 72V 3000W Brushless Motor Kit with 50A Controller, Throttle, Pedal

3000W Brushless Motor

• This 72V motor 3000W boasts a peak power of 6KW, paired with a rated speed of 4900RPM and a maximum speed of 6700RPM. Delivering robust power output, handling steep climbs and heavy loads with ease. With 5.4N·m torque and a 150KG load capacity, it balances power and load-bearing capability, Forward and reverse rotation can be achieved by adjusting wiring connections or operating the forward/reverse switch. Capable of handling high-intensity off-roading and long-distance high-speed rides, it is the good choice for enthusiasts pursuing extreme power

HIGH SPEED 4900 - 6700RPM

High-speed Brushless electric motor

Rated Speed: 4900r/min, No-load test max speed up to 6700r/min, use 50A controller full charge.

The load speed is affected by other factors, please refer to the actual test results.

POSITIVE & NEGATIVE ROTATION DESIGN

All aluminum body copper movement, High-Quality Rator with 6 pair magnet, Electric Motor with Forward and Reverse Design, Motor clockwise Running is the correct direction, counterclockwise is the recersing.

T8F 11T SPROCKET, AND WITH RADIATING HOLES

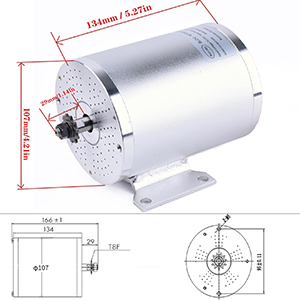

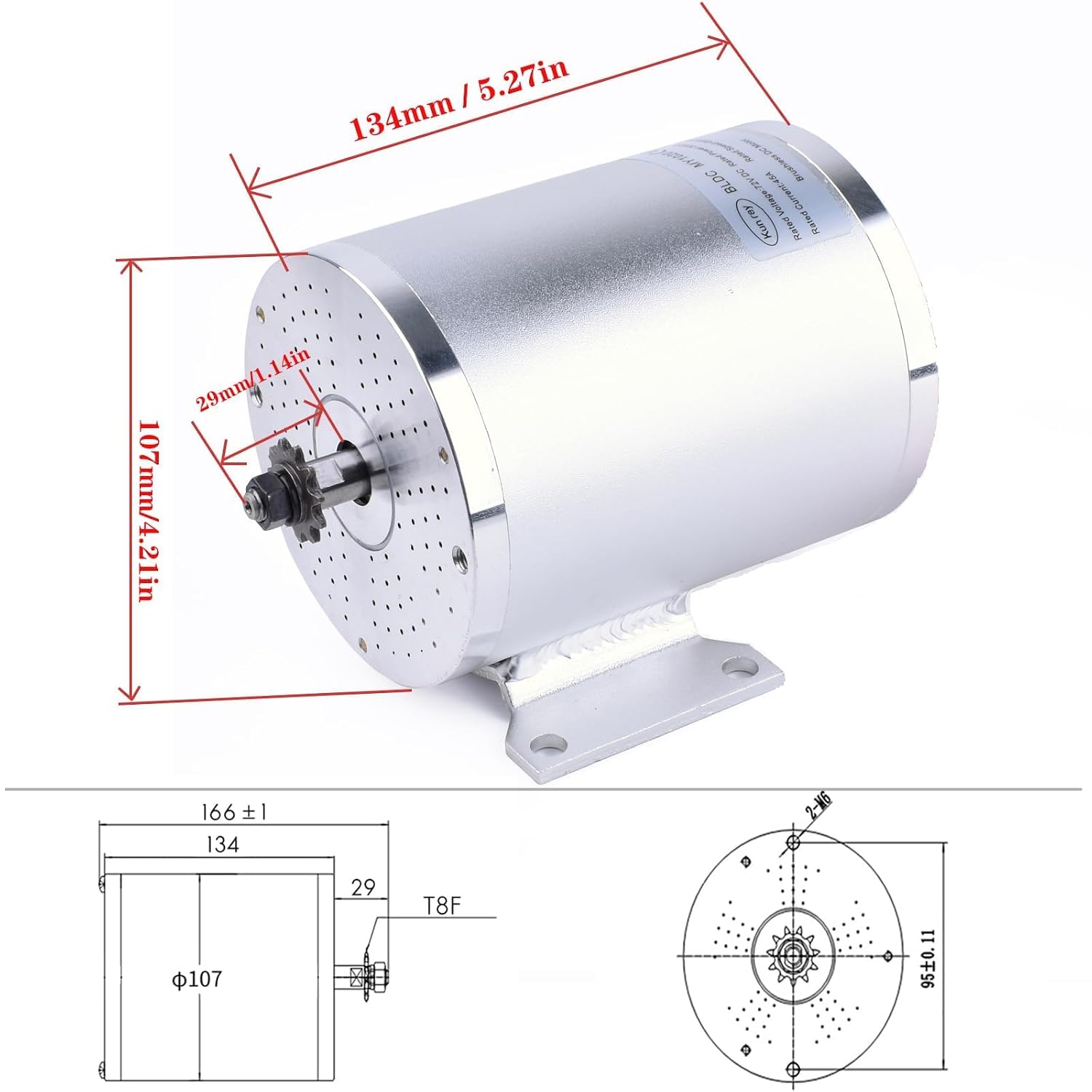

THE Electric Brushless DC Motor Wit 8/10mm axle, And With T8F Model 11 teeth Sprocket, it Fit With T8F Chain, the axle is also fit with 25H Sprocket , but must be changed by yourself.

THE Mid motor Face and Rear face with some radiating holes for motor cooling.

High Quality Motor, All copper movement

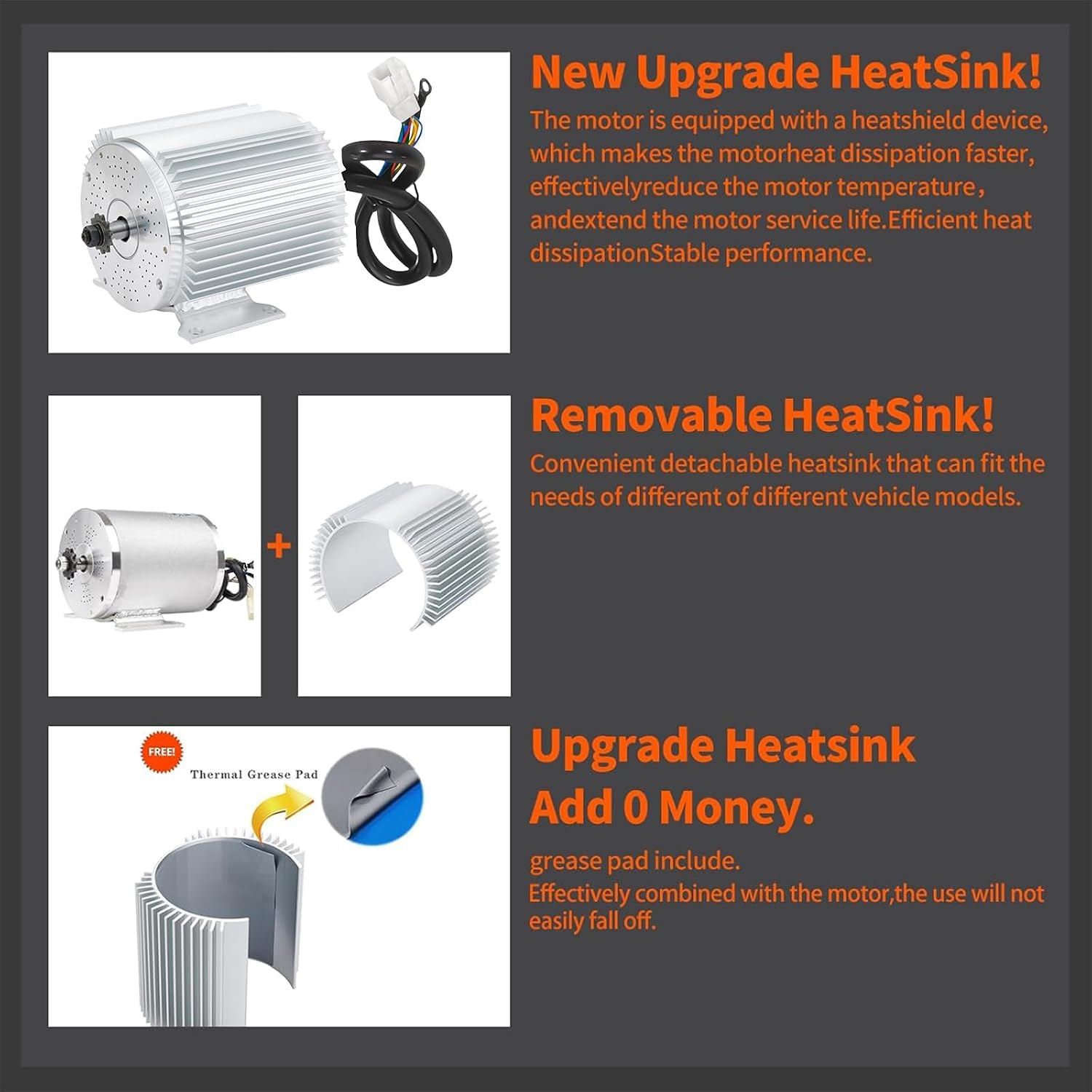

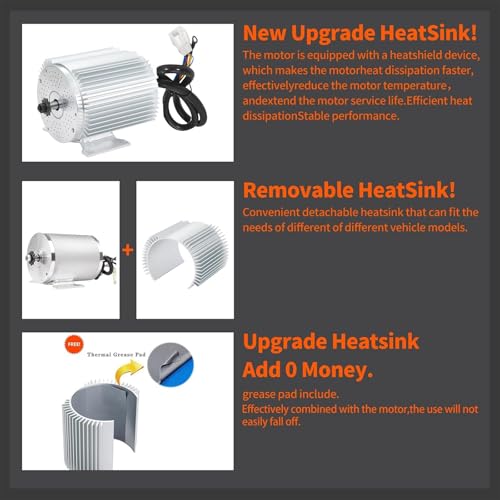

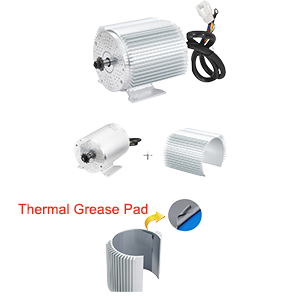

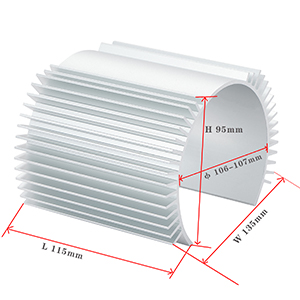

Featuring a full-copper coil and aluminum heat dissipation housing, the 72 volt motor boosts conductivity by 20%. Combined with heat dissipation holes, its core temperature remains within a reliable range even when operating continuously under 40℃ direct sunlight. With an IP57 waterproof and dustproof rating, it effectively blocks moisture and debris during rainy rides or muddy road travel, preventing short circuits. A reliable companion for outdoor adventures and suburban commuting.

• Sprocket: T8F 11T
• Magnet Poles: 6 pairs / 12 pieces

DEDICATED CONTROLLER

The dedicated brushless controller achieves 1:1 precise matching with electric brushless motor parameters, providing accurate control support for 3000W ebike motor operation. It increases operating efficiency by an additional 15% and reduces power output fluctuation by 40%, eliminating issues like power cuts during climbing or lag during acceleration.

• Rate Voltage: 48 - 72V
• Rate Power: 3000W
• Rate Current: 50A
• Rate Speed: 4900rpm/min
• Max Speed: 6700rpm/min
• Torque: 5.4N.m
• Load Weight: about 150-200KG

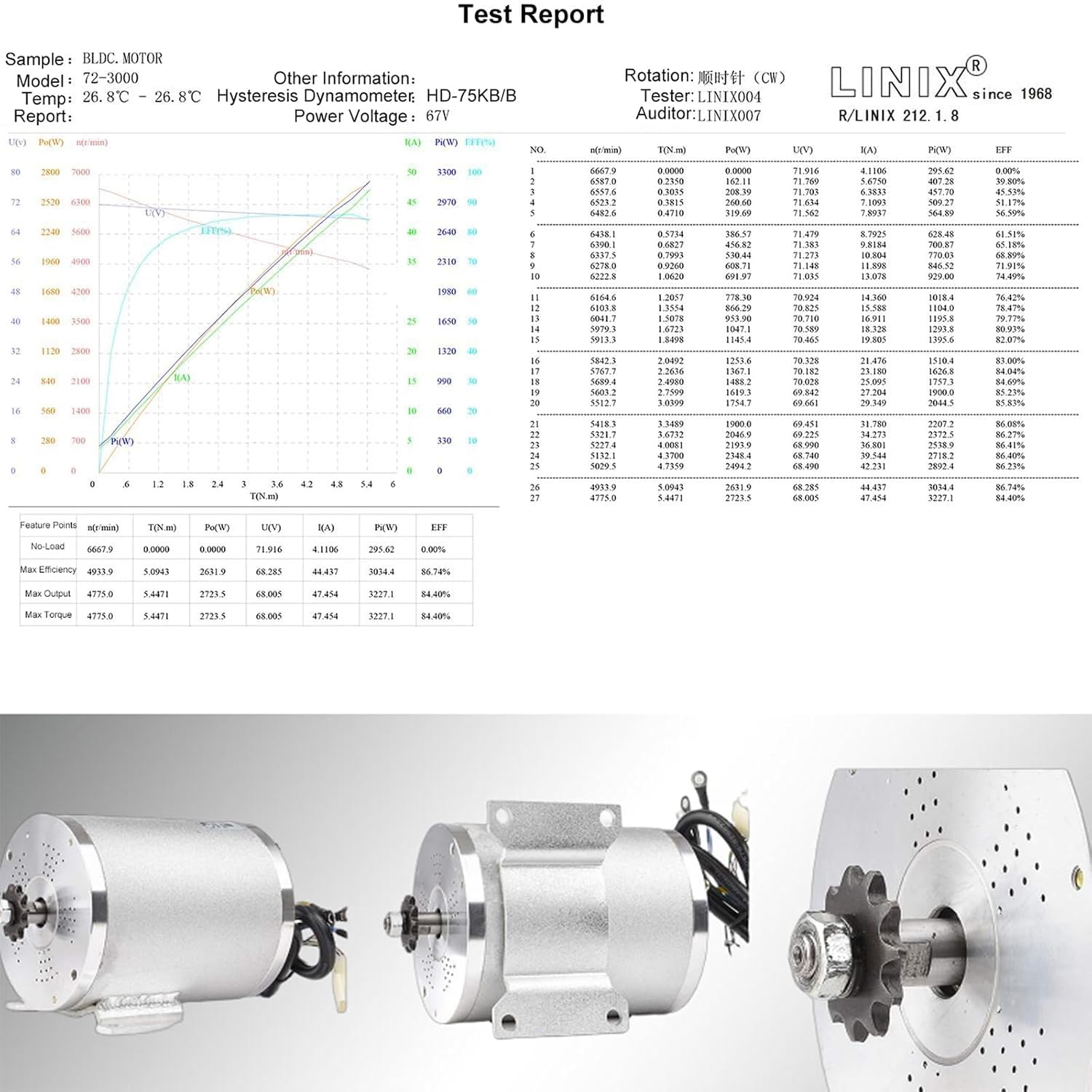

Kunray 3000W Motor Testing Report

Kunray 3000W motor Testing,

We will strictly complete the test for each motor when it leaves the factory to ensure that there is no problem with the quality.

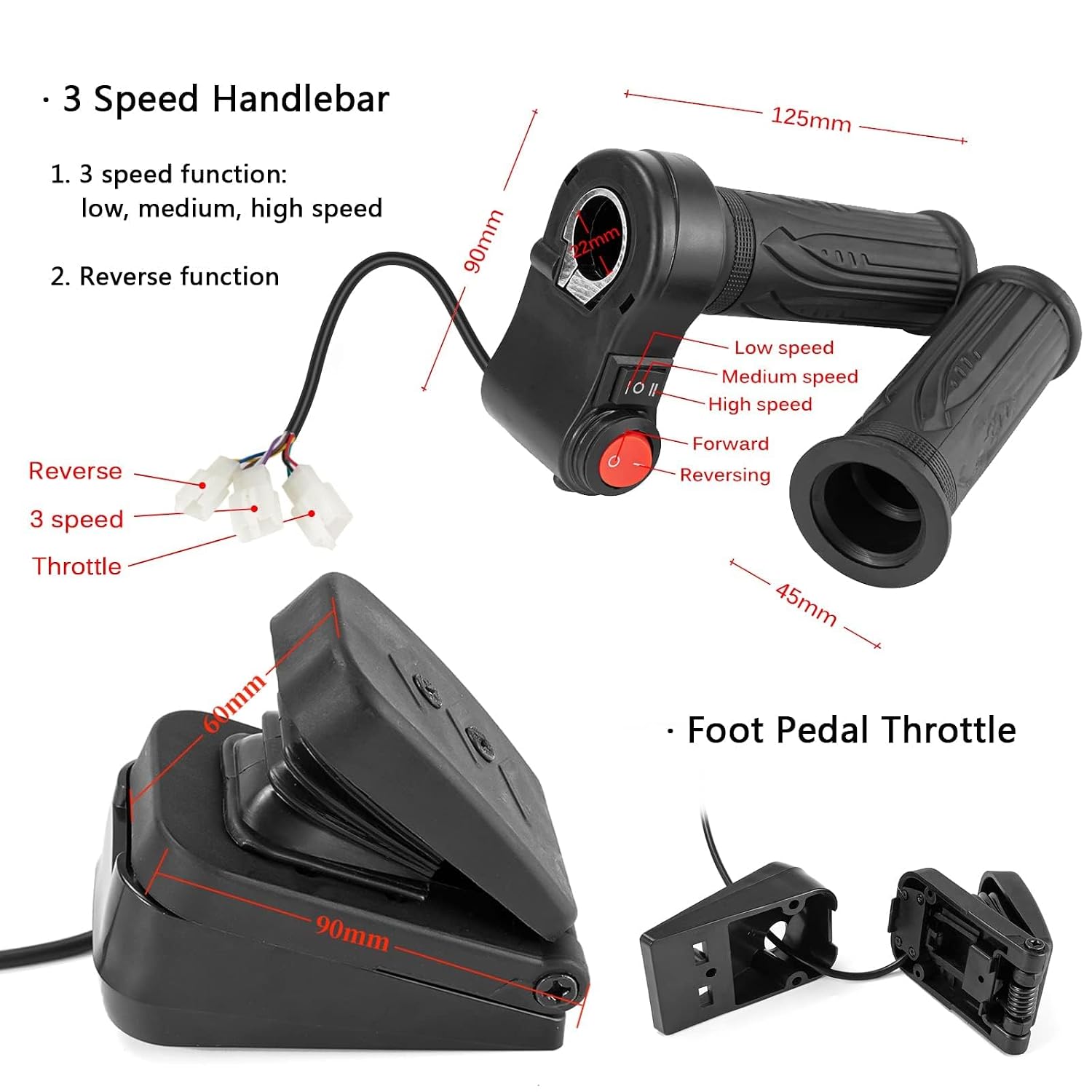

3 Speed Handlebar & Foot Pedal Throttle

• 3 Speed handlebar:（The button color of the handle is either red or black, and it will be dispatched randomly.）
• low - mid - high speed switch,
• forward & reverse switch,
• 3 functions in 1 throttle.
• Foot pedal throttle:
• Pedal with base, more suitable for karts, more convenient to operate.

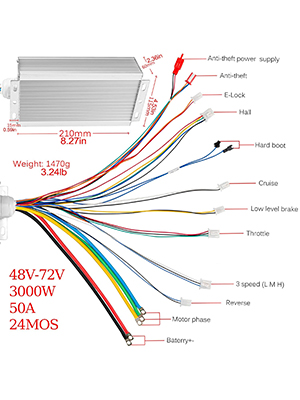

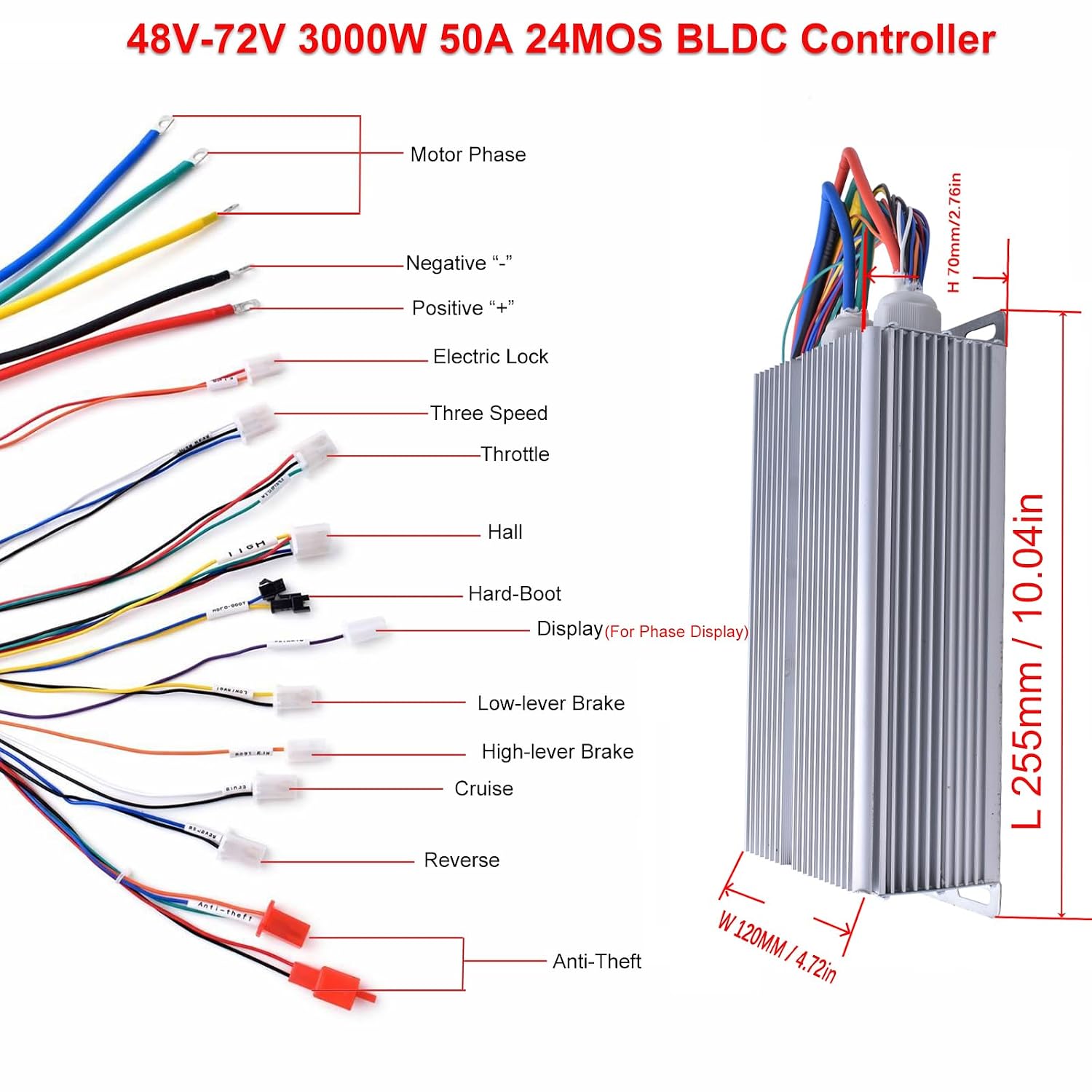

24MOS 50A 3000W BRUSHLESS CONTROLLER

Brushless motor controller 50A,

the controller can fit with 48-72V battery, 3000W rated power.

but for the motor suggest you use the 72V motor, it can let motor put-out full power.

Phase Degree: 120°, Smart Controller Can Work With Hall Sensor And Without Hall Motor, Brushless Motor Speed Controller, E-Brake, 3-Speed (Low Mid High Speed）, Reverse Functions, Indicator Light And Power Lock Functions.

HARD-BOOT FUNCTION

For the sake of safe start-up, the controller defaults to soft stard, with a delay of 0.1 to 1 second for the handlebar. If you don't want a delay, you can connect the hard start cable of the controller. Two small wiring "hard boot" on the controller are connected by two thin white wires.

If you find that the product appears after receiving the product

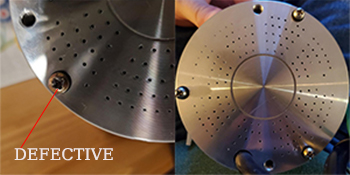

• If you find that the product appears after receiving the product: there are scratches, rust stains, the product has missing parts, there is damage, etc., there are any defects. Please tell us, we will be happy to solve your problem.
• Inform: In the process of your return, if we find that the returned product is inconsistent with the received product, we will reserve the responsibility of the buyer!

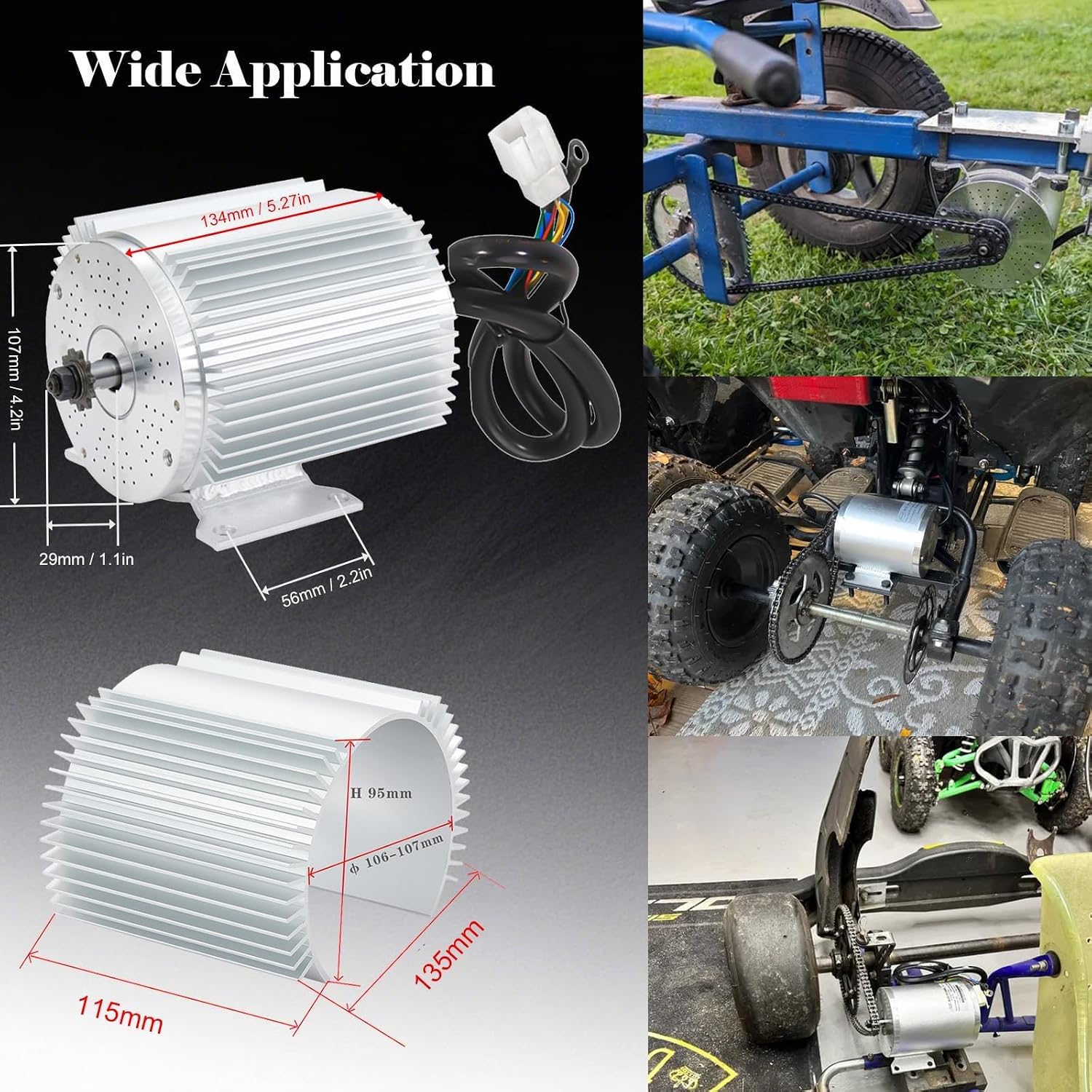

Mid Drive Motor Applications Wide

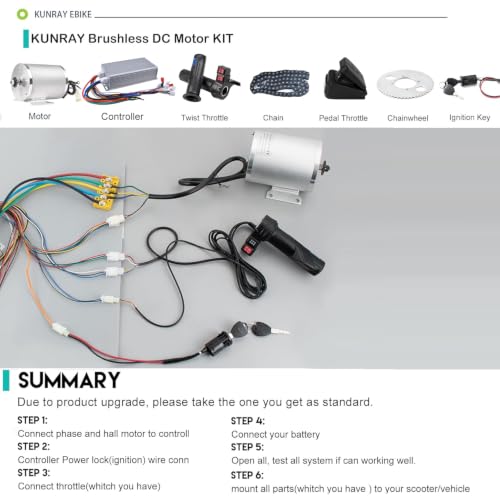

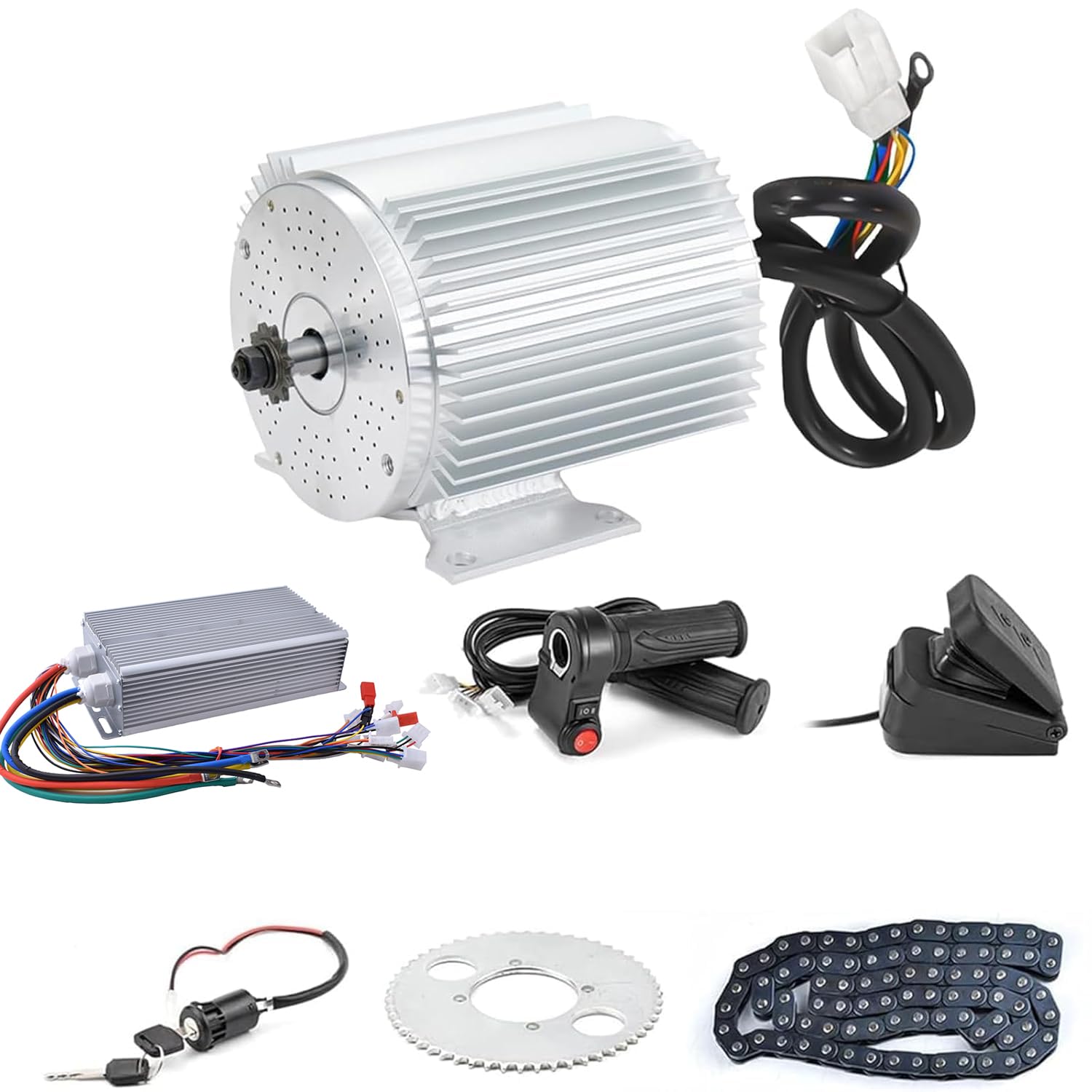

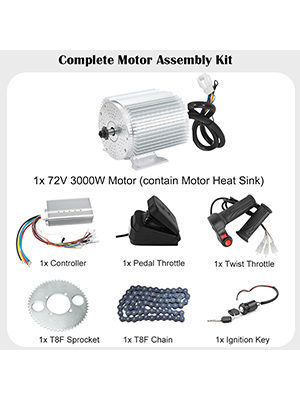

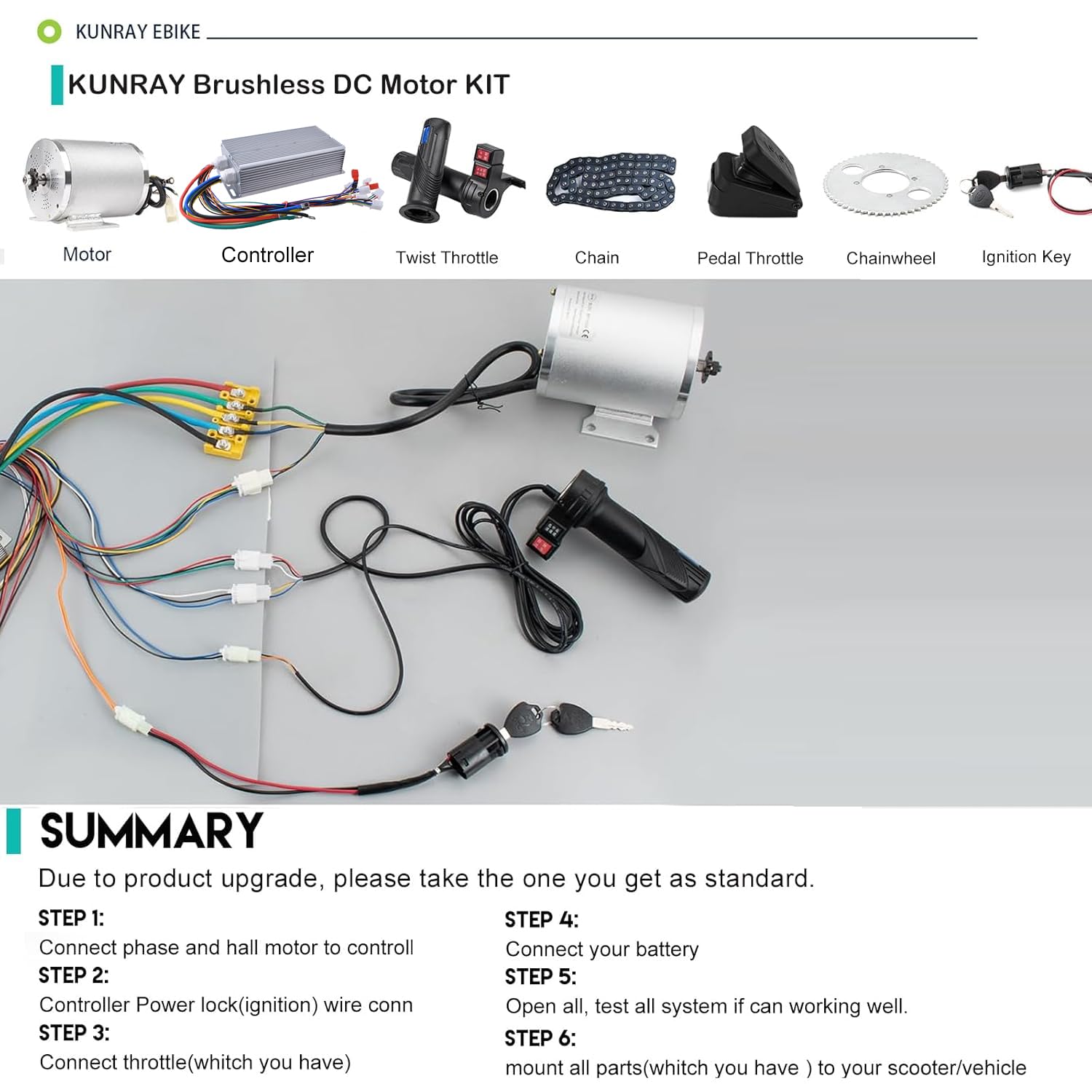

• The electric brushless motor kit includes: electric brushless dc motor, brushless motor controller,3 Speed Handlebar & Foot Pedal Throttle, ignition lock with key, T8F 54-tooth sprocket, and T8F chain.
• This product does not come with a battery or a charger.

• This device is not a toy. Please keep it away from children.
• Please do not touch the motor with your body during use to avoid burns.
• Please read the installation instructions carefully before use to avoid damaging your device.
