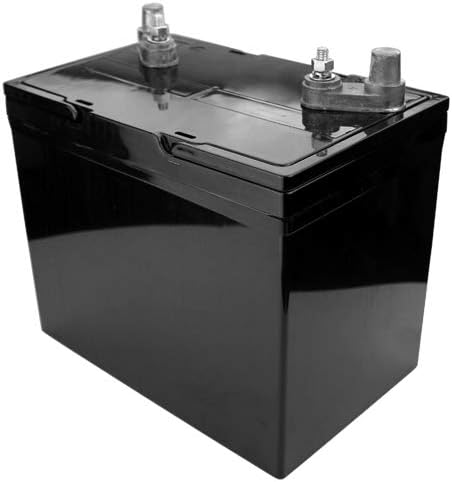

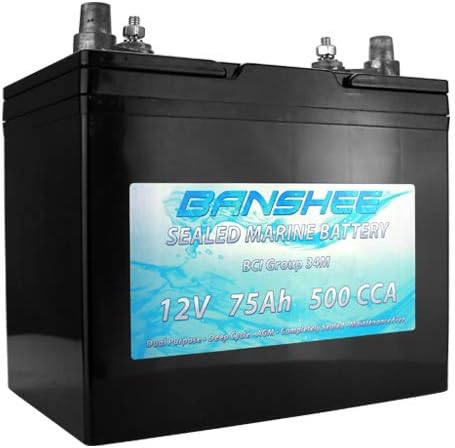

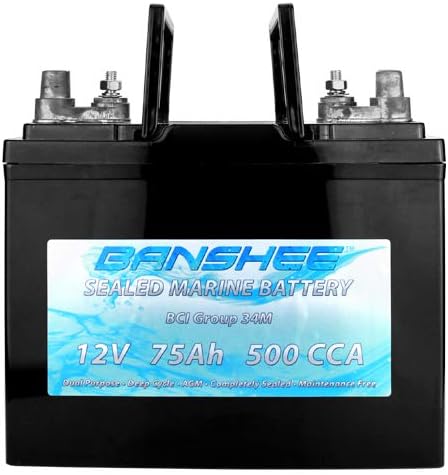

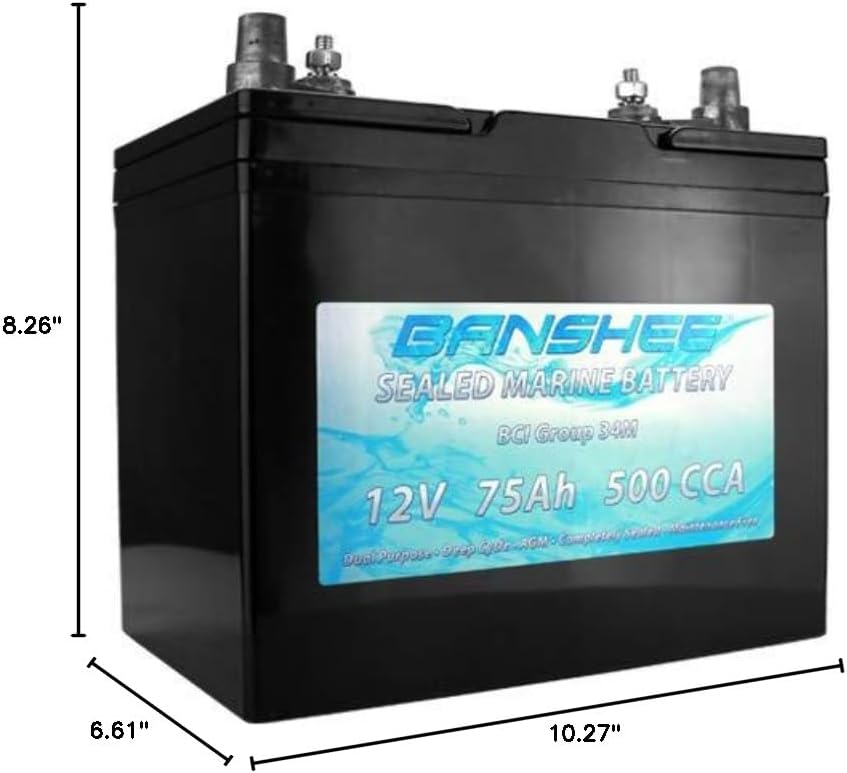

Banshee Deep Cycle Sealed AGM Marine Battery Group 34

Banshee Battery General Features Sealed Construction

Banshee's unique construction and sealing technique ensure that no electrolyte leakage can occur from the terminals or case of any Banshee battery. This feature insures safe, efficient operation of Banshee's batteries in any position. Banshee batteries are classified as "Non-Spillable" and will meet all requirements of the International Air Transport Association.

Absorptive Glass Mat System (AGM System)

Banshee batteries make use of fine mat separators (glass fiber) wherein sufficient electrolyte is absorbed to provide the longest life and steady service. This system prevents escape of electrolyte from the separator which causes leakage.

Gas Recombination

Banshee batteries incorporated unique design that effectively controls generation of gas and allows recombination of over 90% of gas generated during the normal use.

Maintenance-Free Operation

During the expected floating service life of Banshee batteries, there is no need to check the specific gravity of the electrolyte or add water, which means they require no maintenance service. In fact, there is no provision for these maintenance functions.

Position-Free and Leakage-Free

The combination of the sealed construction and the use of absorptive mat separators permit operation off Banshee batteries in any position without loss of capacity, electrolyte and service life. Banshee batteries are made to operate in any position.

Stable Quality & High Reliability

The Banshee SLA battery has stable and reliable performance. It can be easily maintained to permit proper operation of the equipment that it powers. The battery can withstand overcharge, over discharge, vibration, and shock, and is capable of extended storage.

Long Service Life, Float or Cyclic

The Banshee SLA battery has long life in float or cyclic service. The expected life of float service is shown on Figure10 and life of cyclic service figure 11.

Low Pressure Venting System

Banshee batteries are equipped with a safe, low-pressure venting system which operates at 1psi to 6psi, designed to release excess gas and reseal automatically in the event that gas pressure rises to a level above the normal rate. Thus, there is no excessive build up of gas in the batteries. This low pressure venting system, coupled with the extraordinarily high recombination efficiency, make Banshee batteries the safest sealed lead-acid batteries available.

Heavy-Duty Grids

The heavy-duty lead calcium-alloy grids in Banshee batteries provide an extra margin of performance and service life in both float and cyclic applications, even in conditions of deep discharge.

Low Self Discharge

Because of the use of Lead Calcium grids alloy, Banshee SLA battery can be stored long periods of time without recharge.

High Recovery Capability

Banshee batteries have an excellent charge acceptance and recovery capability even after deep discharge.

U. L. Component Recognition

AII of our Banshee SLA batteries have already passed UL.

Fits & Replaces:

Optima 8016-103 D34M, Optima RedTop 34, ACDelco 34AGM, AutoCraft 34FT-2, AutoCraft 34/78-4, Delphi BU9034, DieHard 38232, Exide Edge FP-AGM34, NorthStar NSB-AGM34, Odyssey 34M-PC1500, VMAXTANKS XTR34-75, and more.
