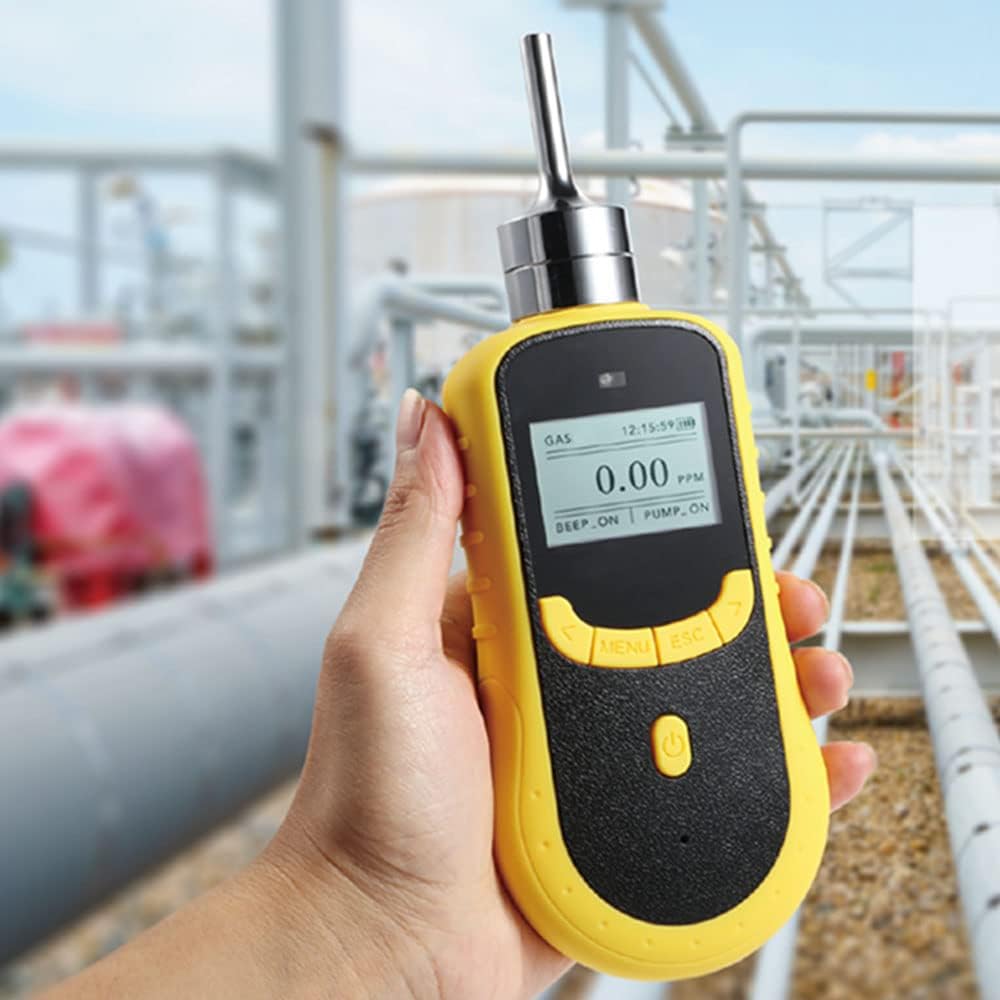

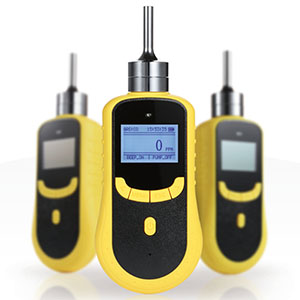

Handheld carbon monoxide (CO) detector use high accuracy sensor, pump suction type, compact size and light weight, long working time, easy to carry and operation

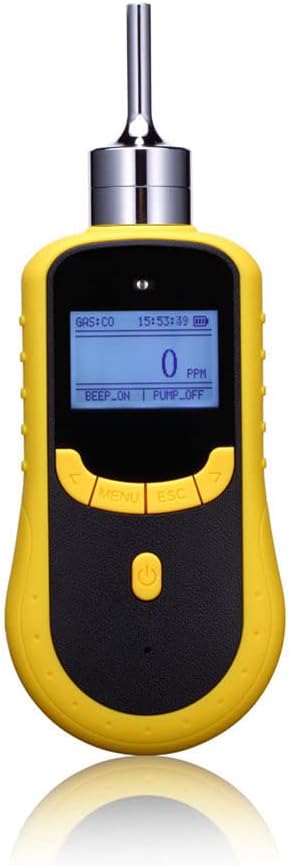

CO Gas Analyzer, LCD dot matrix display, direct readout of gas type, unit, concentration, local time, etc.
Carbon monoxide meter, With self-calibration and zero calibration functions, makes the detection more accurate and reliable.One key to restore factory setting, free from maloperation
【Applications】ATO CO detectors widely use in the confined space like tunnel, sewer, undergroud shaft, mines, cement plant, thermal power plants, agriculture, refinery and other industries, to measure the CO concentration and give an alarms
【Note】If you need a CO gas detector with other measuring ranges unlisted in above table, please contact us to inform your operating environment, so as to help you choose an appropriate one for your application
UPC
782948074373
Upc
782948074373
Style
Thermal
Unit Count
1 Count
Manufacturer
ATO
Model Number
GD200-CO
Power Source
Battery Powered
Product Style
Thermal
Mfr Part Number
ATO-GAS-CO
Power Source Type
Battery Powered
Operating Humidity
95 percent
Item Depth Width Height
1.26"D x 2.95"W x 8.07"H
Upper Temperature Rating
50 °C
Item Dimensions D x W x H
1.26"D x 2.95"W x 8.07"H
ATO Handheld Carbon Monoxide Gas Detector:
Gas Detector Functions:
With self-calibration and zero calibration functions, makes the detection more accurate and reliable
One key to restore factory setting, free from maloperation
With temperature and pressure compensation
Two-stage alarm with sound and light, and alarm point is settable
Rechargeable lithiumpolymer battery with large capacity
with anti-slip, waterproof, dustproof and explosion-proof
Dimension: 8"*3"*1.3"
Weight: 0.7 lbs
Features:
LCD dot matrix display, direct readout of gas type, unit, concentration, local time, etc.
Support English/Chinese operation, easy to shift.
Gas concentration unit PPM and mg/m3 can be shift quickly.

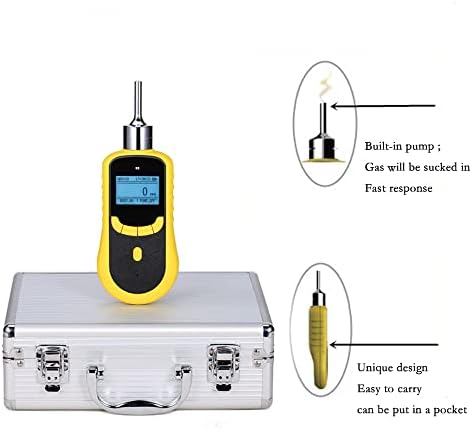

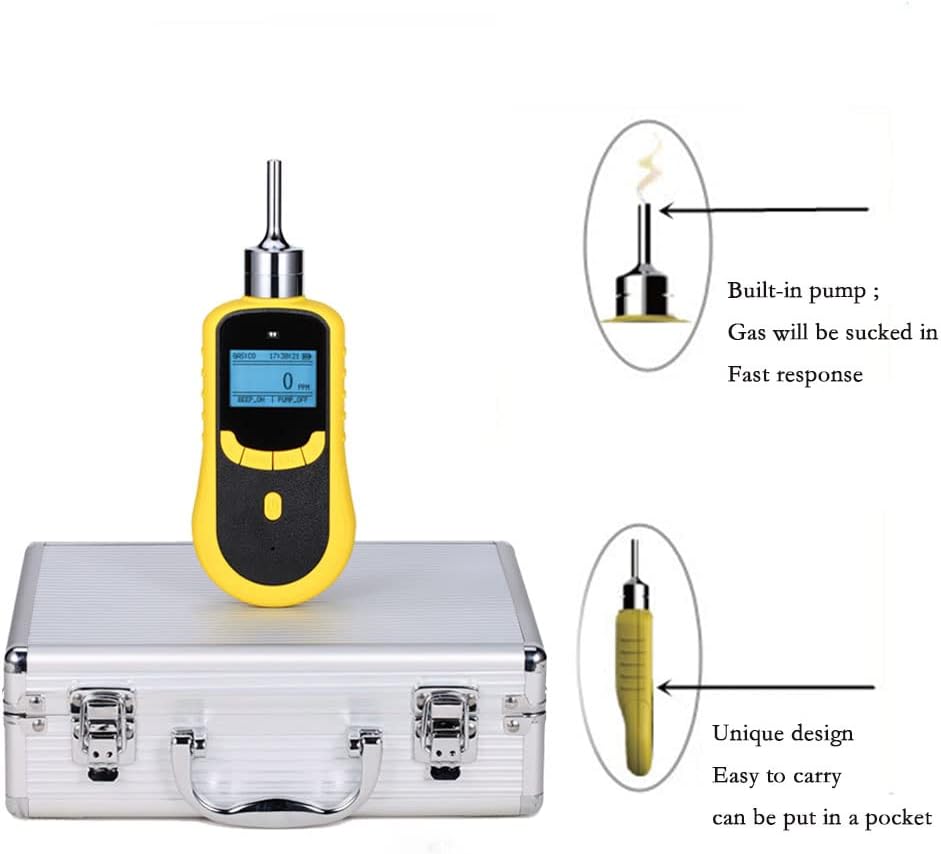

Built-in micro-sampling pump, 10 grades of suction are available.
Explosion-proof certificatio

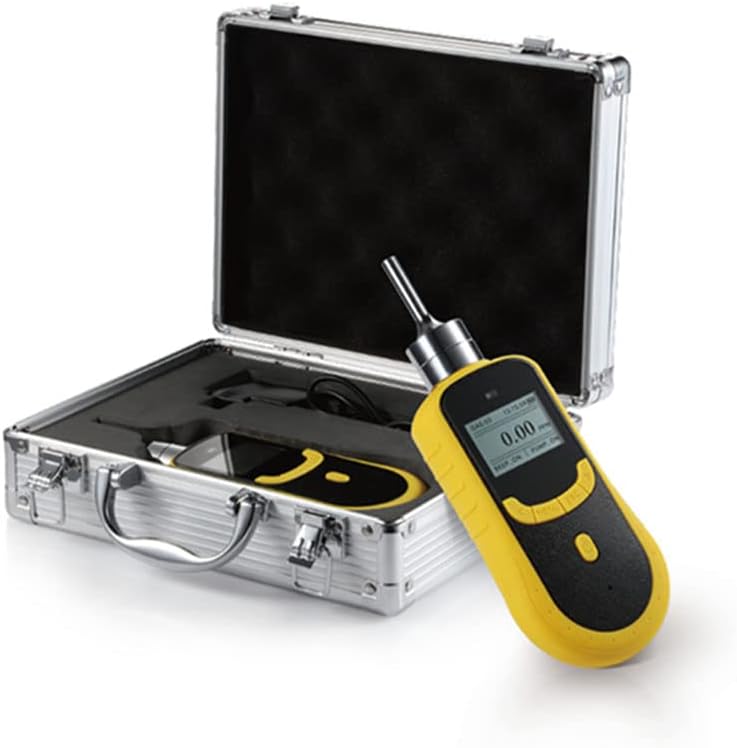

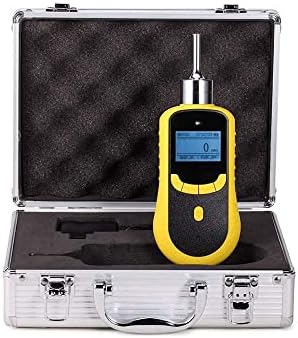

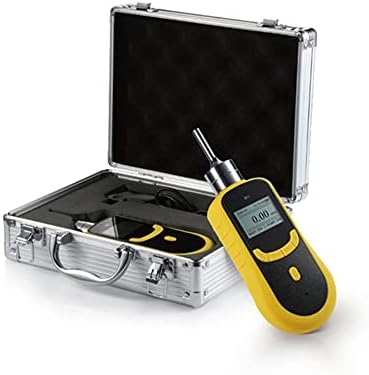

Packing List Include:
1 × CO Gas Detector

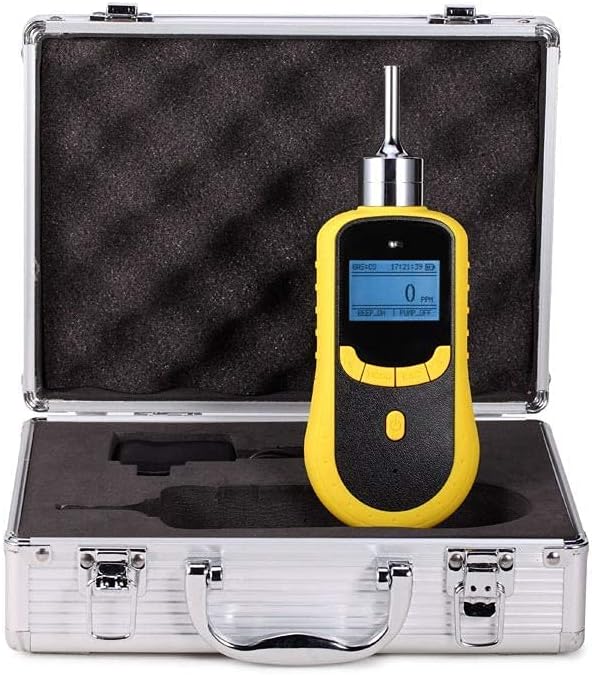

1 × Carrying Case
1 × AC Adapter
1 × User Manual
ATO CO Gas Detector Specification:
Sampling Method
Pump type, flow rate can be up to 750ml/min
Gas
Carbon Monoxide (CO)
Range (Optional)
0.1ppm (0-500ppm) or 1ppm (0-1000ppm)
Accuracy
≤±3% F.S.
Responce Time
≤10s
Repeatability
≤±1%
Recovery Time
≤10s
Linearity Error
≤±1%
Zero Shift
≤±1% (F.S./year)
Alarms
Sound, light and vibration
Display
LCD dot matrix display
Language
Chinese/English
Battery
3.7V rechargeable lithium battery, 3.7 Watt
Operating Time
100h (Pump off)
Communication
Mini USB interface supports standard MODBUS communication protocol
