| Power Source | Battery Powered |
|---|---|
| Minimum Operating Voltage | 1.5 volts |

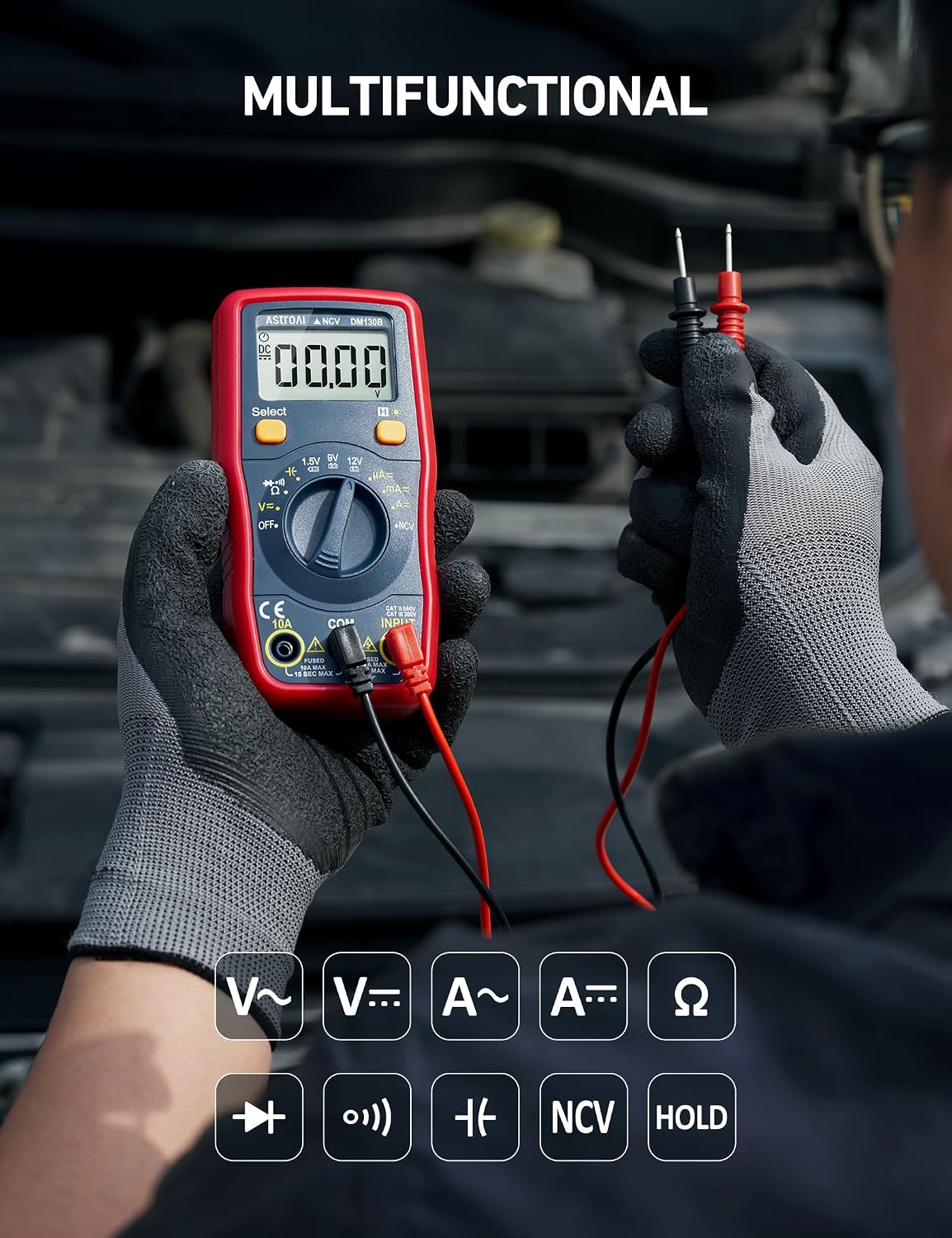

| Measurement Type | Multimeter |
| Compatible Devices | all appliances with electrical components |
| Style Name | DM130B |
| Color | Red |
| Item Dimensions | 6.3 x 4.53 x 1.57 inches |
| Specification Met | CE |
| Model | ASIDM130B |
| Unit Count | 1 Count |
| UPC | 810074980067 |
| Number of Items | 1 |
| Manufacturer | AstroAI |
| Number of Packs | 1 |

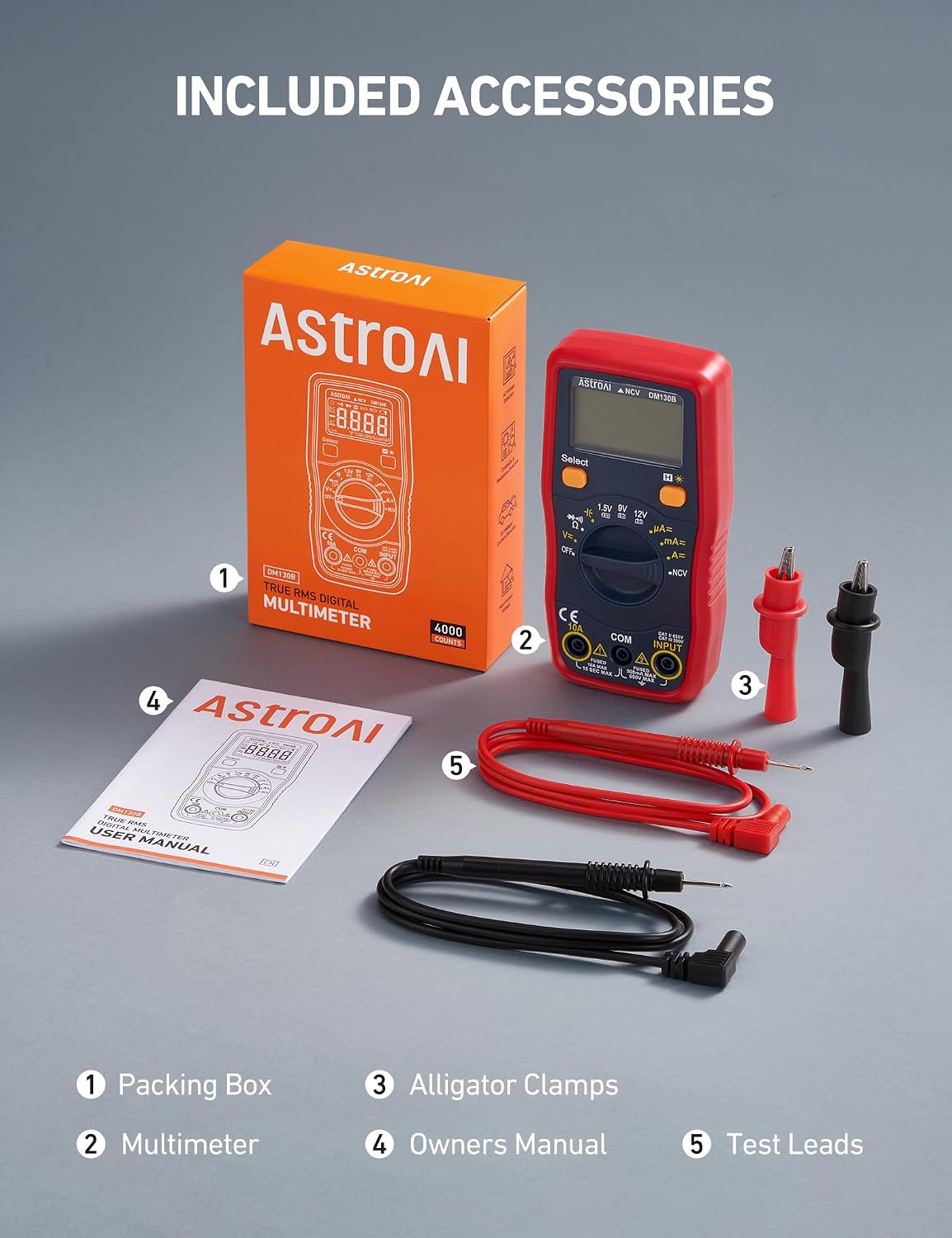

| Included Components | User Manual, Pairs of Test Leads, Pairs of Alligator Clips, Multimeter |
| Part Number | ASIDM130B |
| Power Source Type | Battery Powered |
| Style | DM130B |
| Digital Display | 3999 |
| Sampling Speed | 2 times per second |
| Range Selection | Auto and Manual |
| Operating Environment | 32°F~104°F (0°C~40°C); <80% RH |
| Storage Temperature | 14°F~122°F (-10°C~50°C); <85% RH |
| Power | 1.5V x 3, AAA size |
| Dimensions | 145×73×34mm |
| Weight | Approximately 185g with battery |

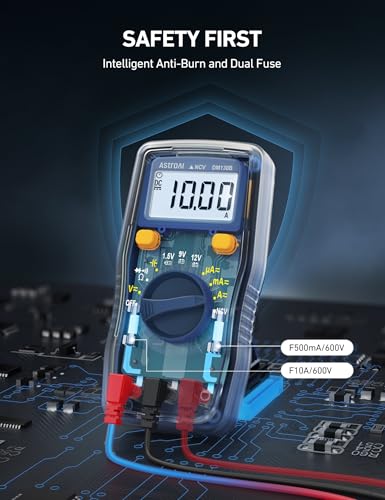

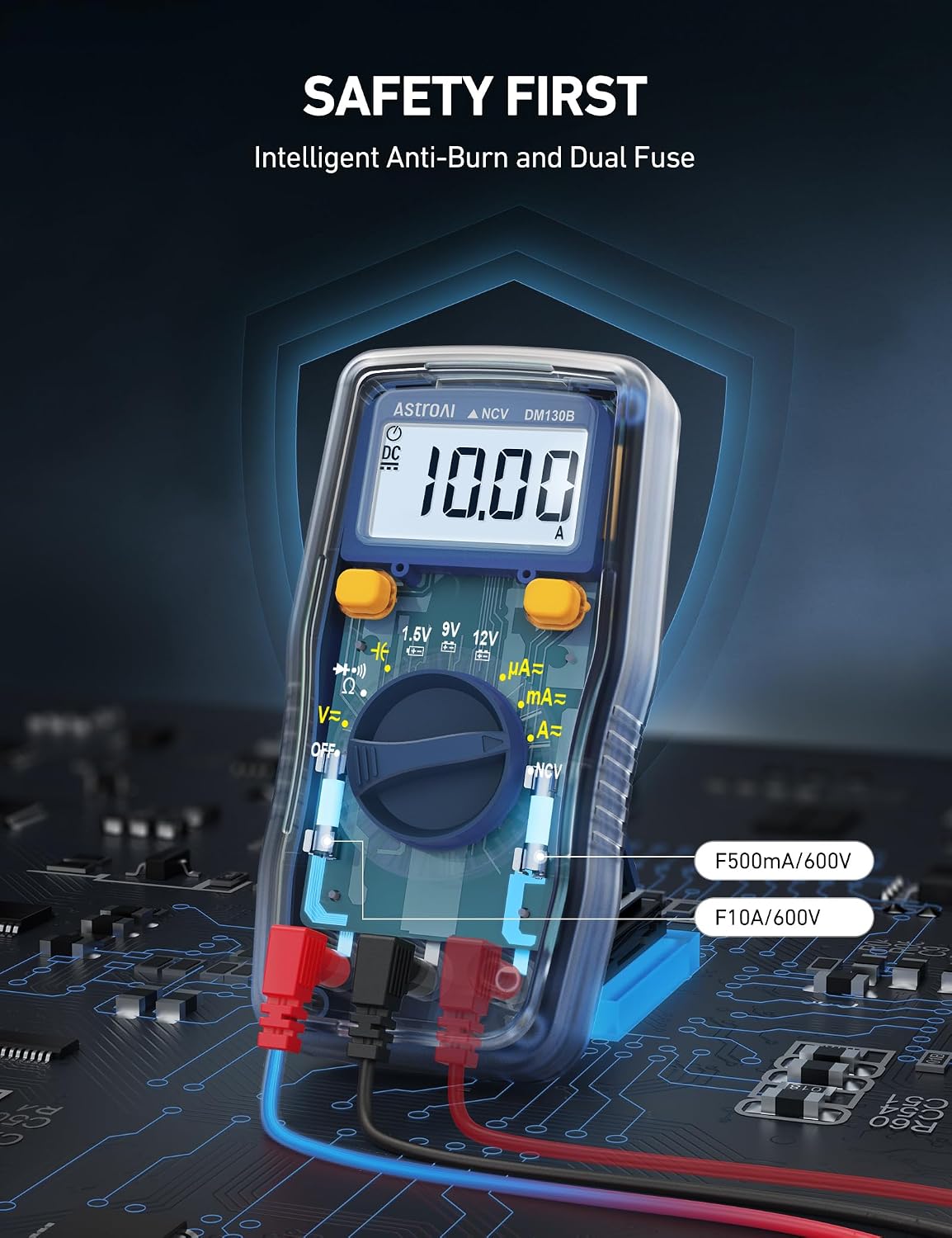

| Safety/Compliances | EN 61010-1 CAT III 600V |

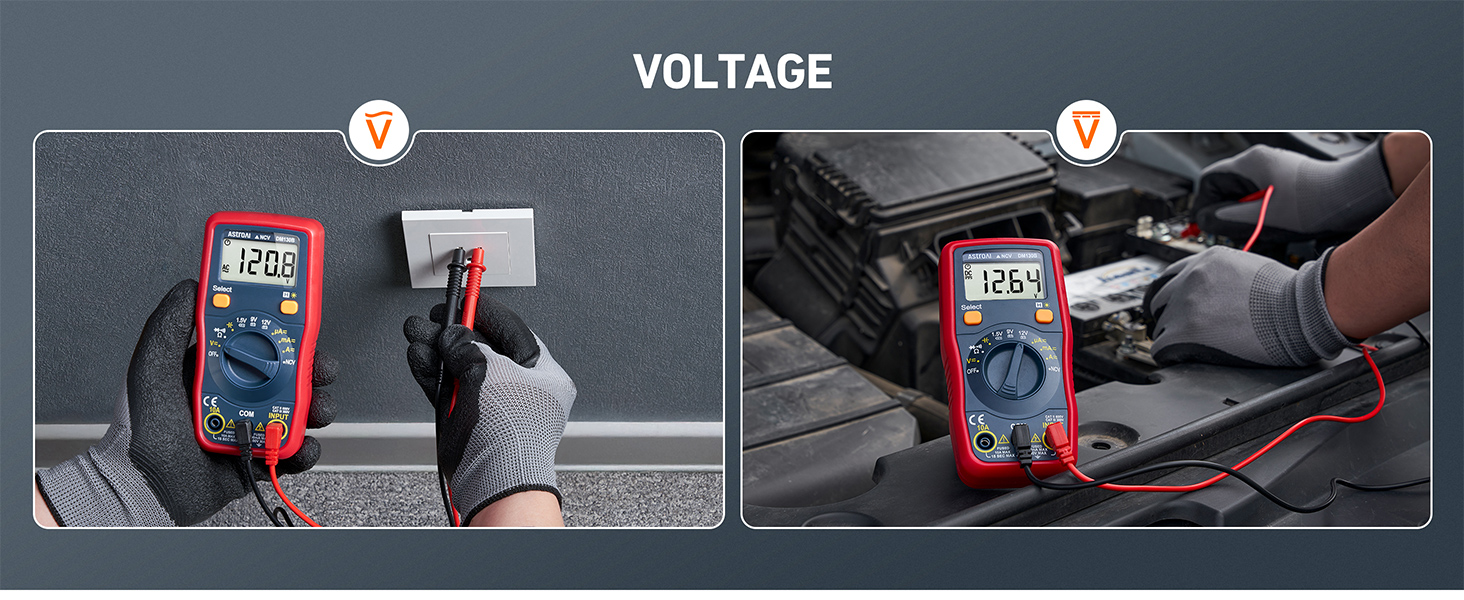

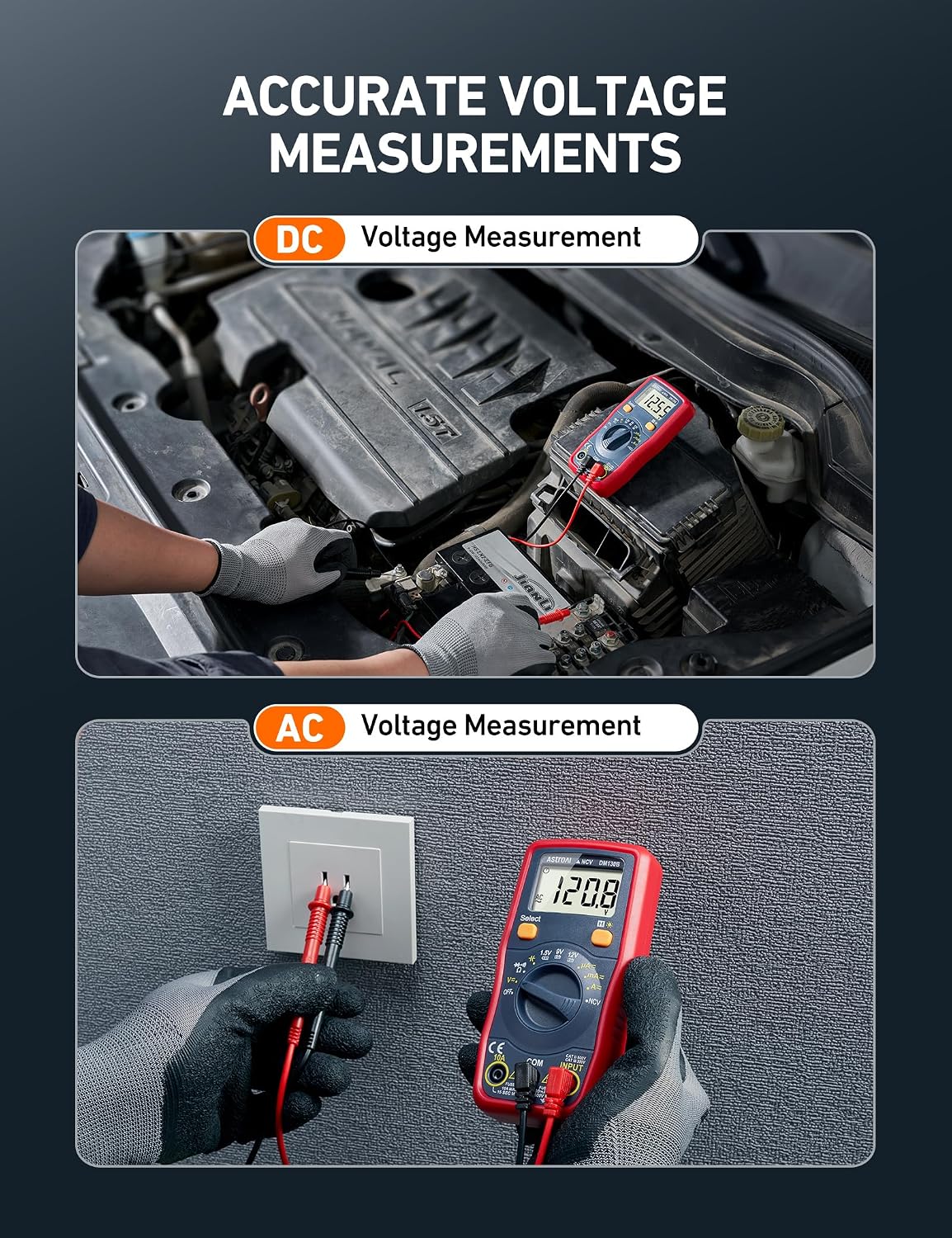

| DC Voltage | 400mV ±(0.8%+5), 4V/40V/400V ±(0.8%+3), 600V (1%+5) |
| AC Voltage | 400mV ±(1.2%+5); 4V/40V/400V ±(1.0%+8); 600V ±(1.2%+8) |

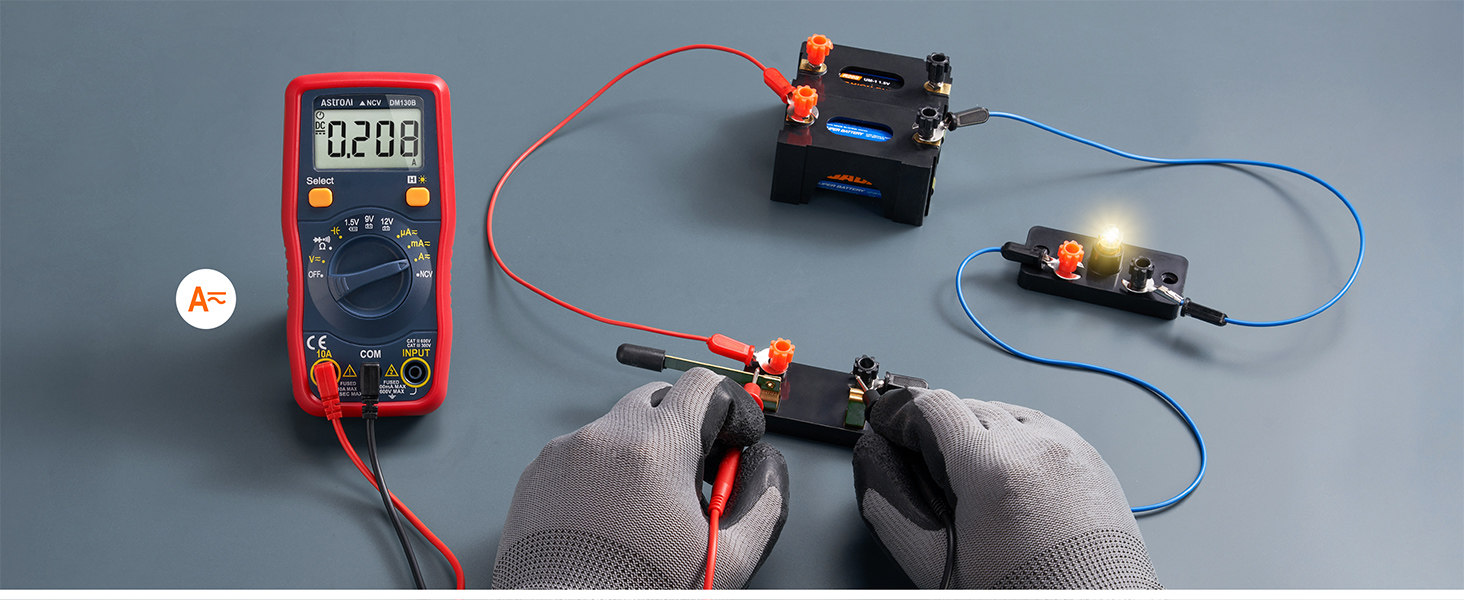

| DC Current | 400μA/4000μA/40mA/400mA/10A ±(1.2%+8) |
| AC Current | 400μA/4000μA/40mA/400mA/10A ±(1.5%+8) |

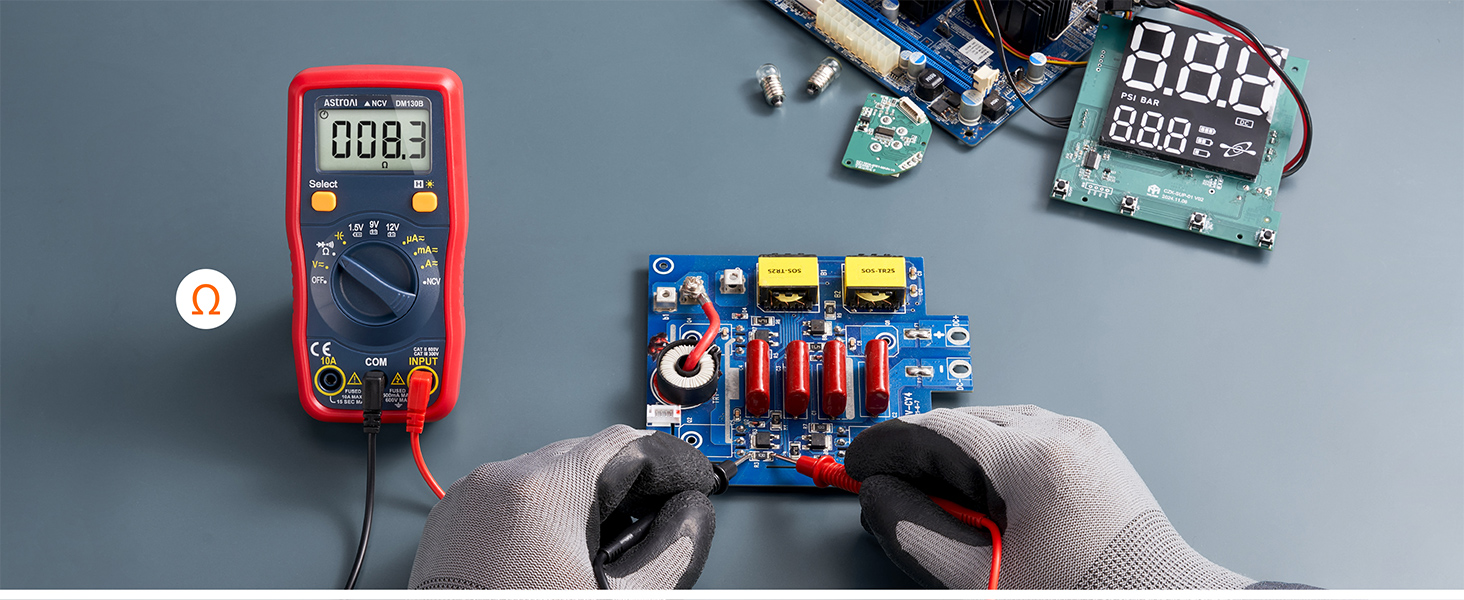

| Resistance | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ ±(1.5%+3); 40MΩ ±(3%+10) |
| Capacitance | 40nF±(8%+10); 400nF/4μF/40μF±(5%+5); 400uF±(8%+10) |
| Package Contents | 1 X Owners Manual；1 X Pair of Test Leads；1 X pair of Alligator Clips；1 x AstroAl 4000 Counts Multimeter |
