| Color | Black |
|---|---|
| Model | ABCMCM2KORBK-US |
| Style | Universal |
| Style Name | Universal |
| Part Number | ABCMCM2KORBK-US |
| Manufacturer | AstroAI |
| Power Source | Battery Powered |
| Item Dimensions | 8.46 x 4.53 x 1.77 inches |
| Number of Items | 1 |
| Power Source Type | Battery Powered |
| Specification Met | EMC, EN 61010-1, FCC, IEC 61010-1:2000-1, IP 40, RoHS, UKCA |

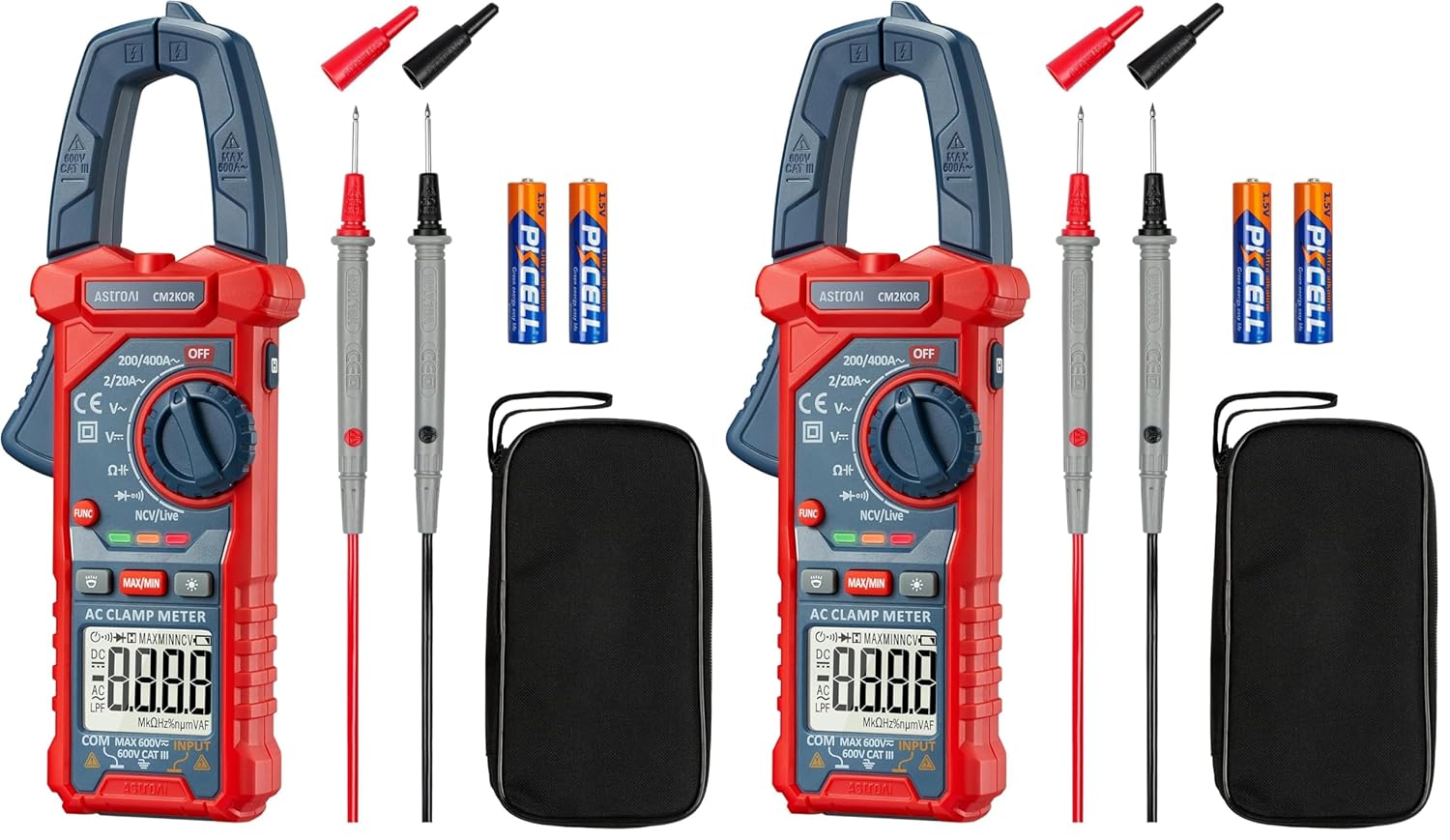

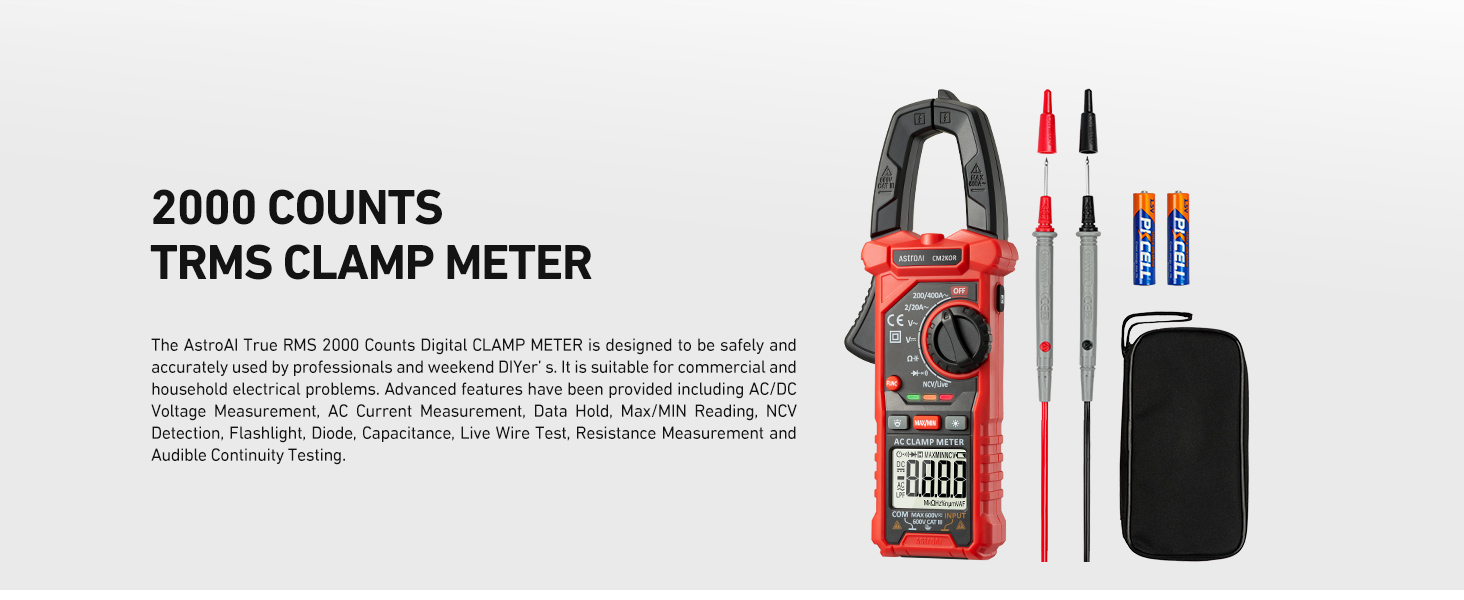

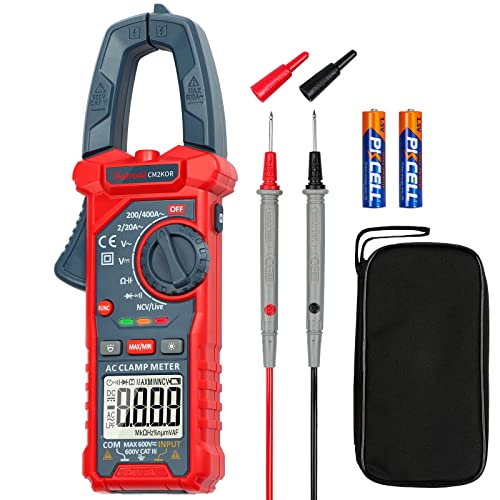

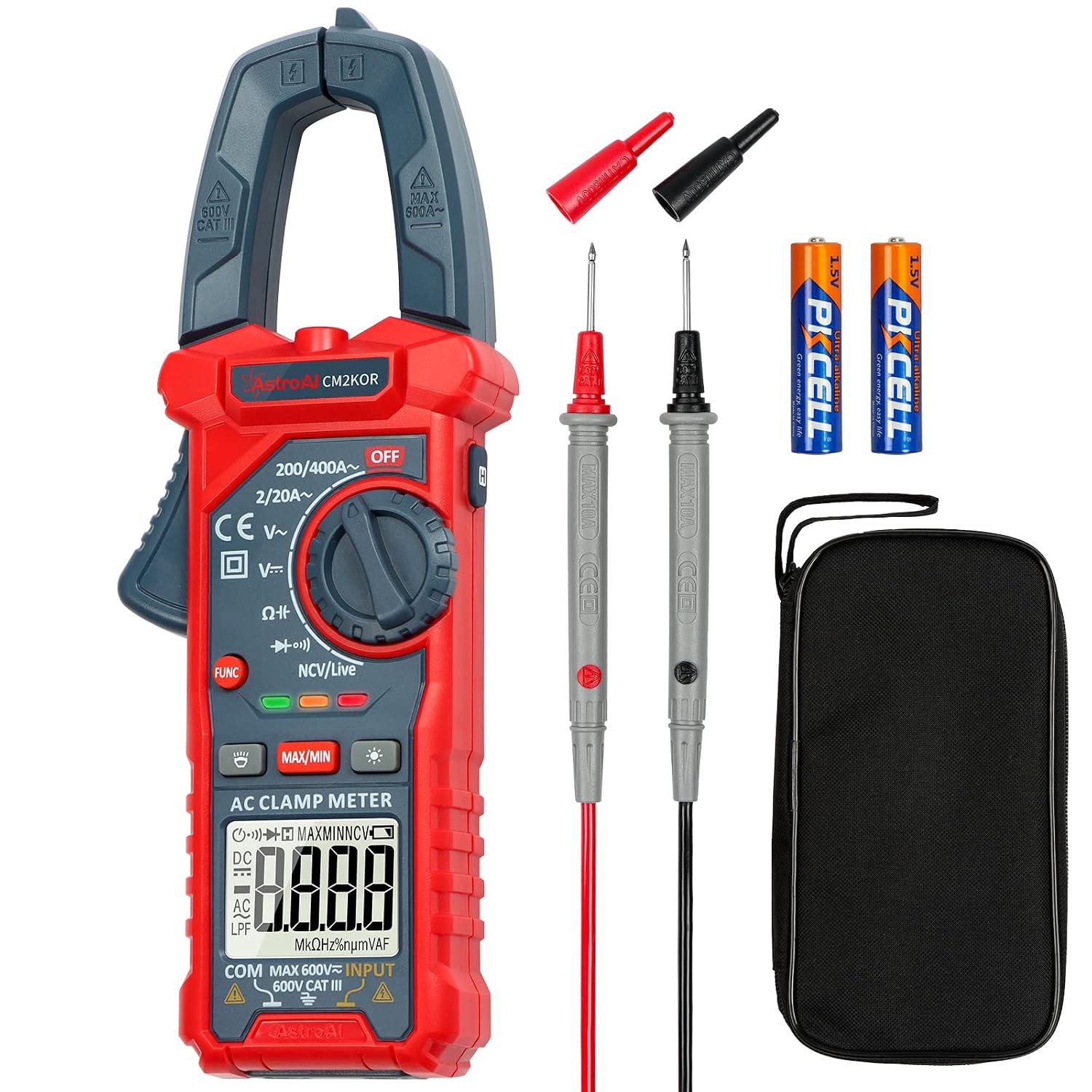

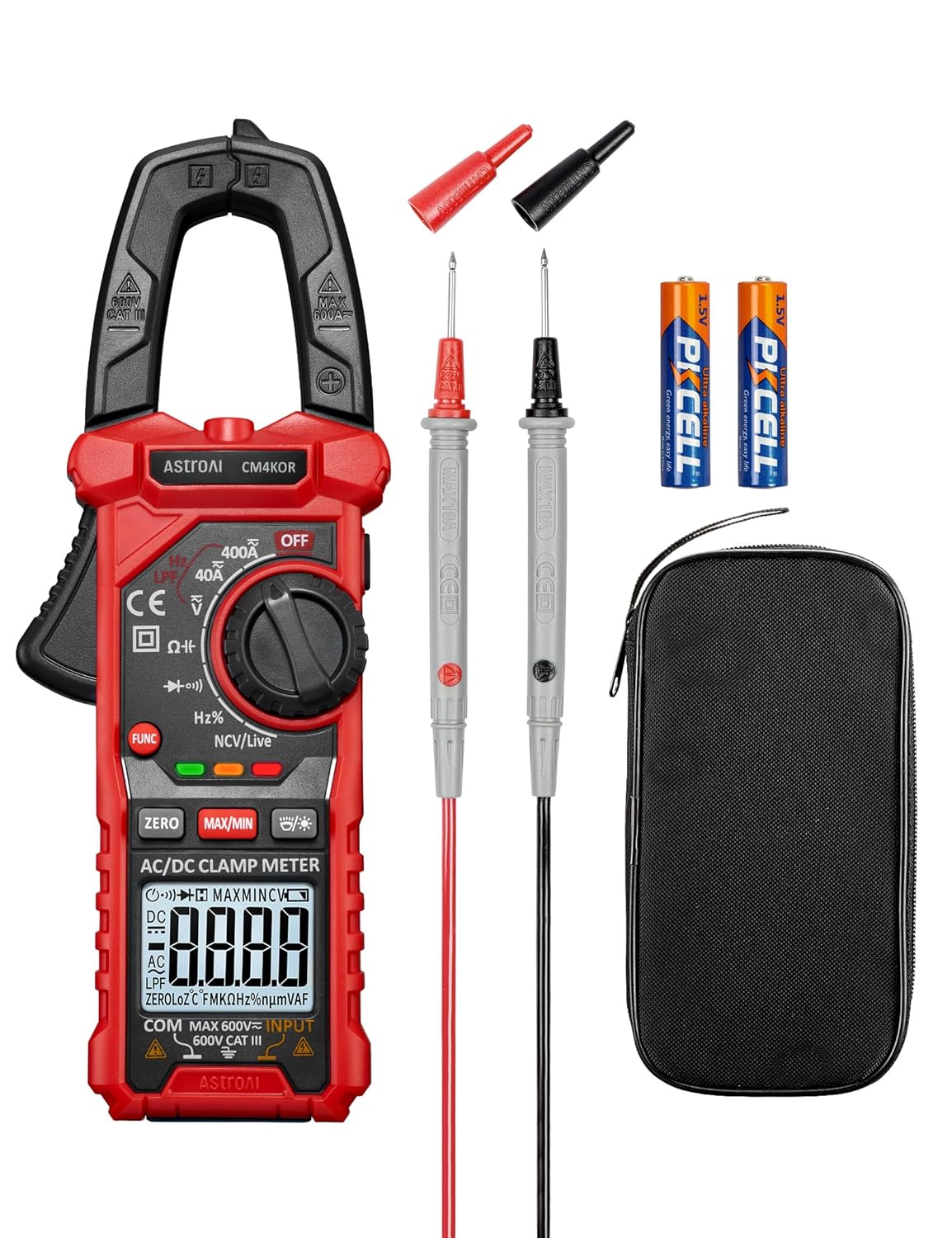

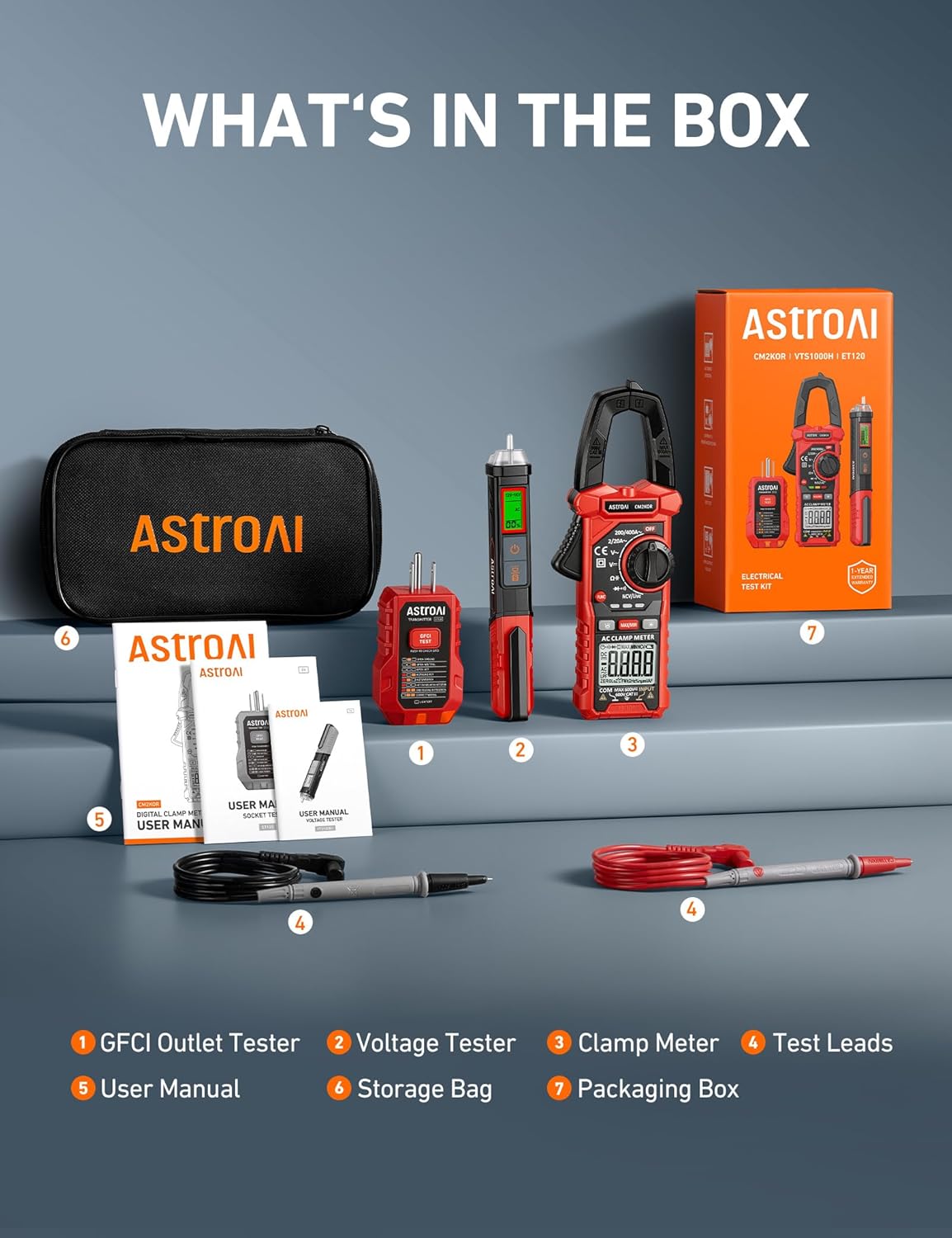

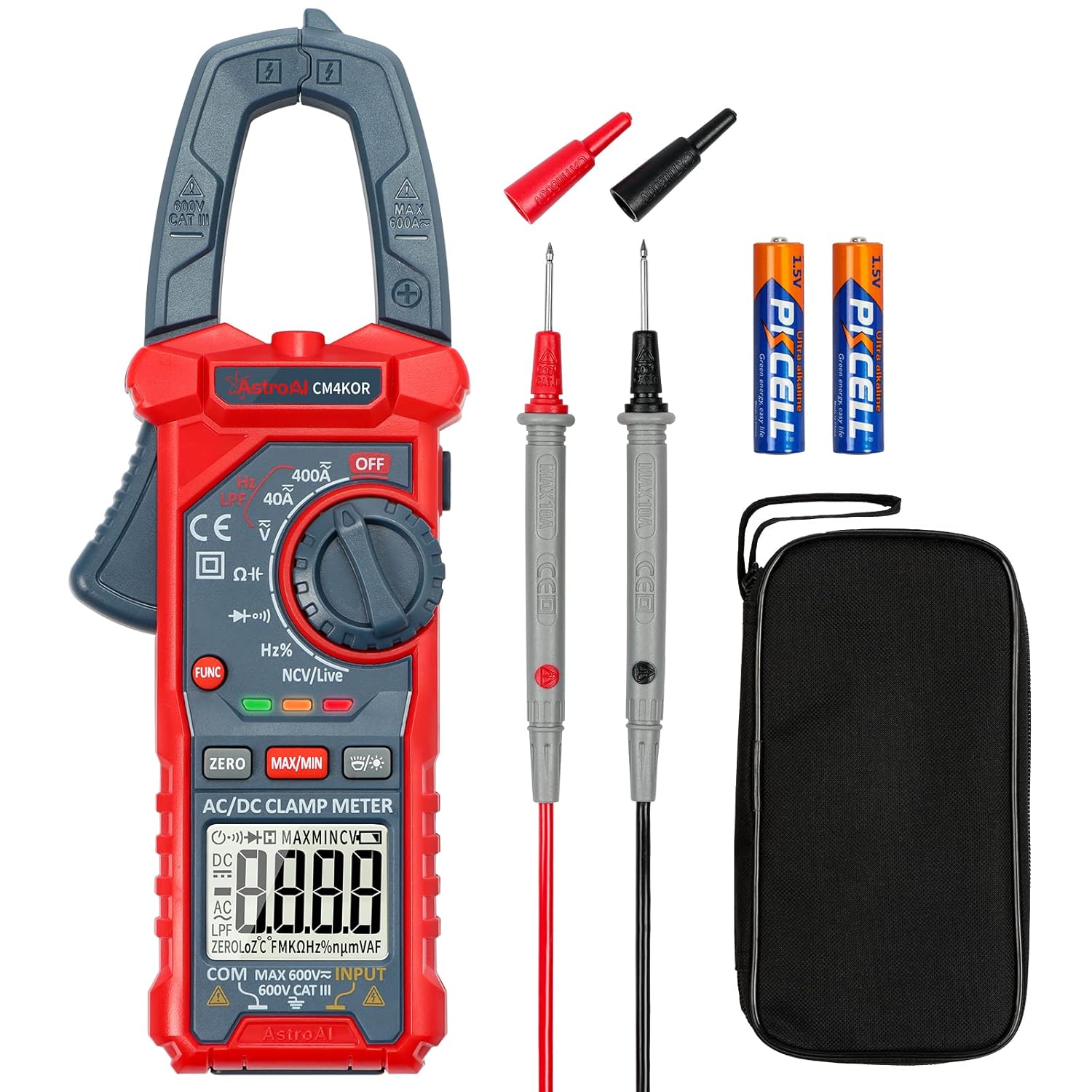

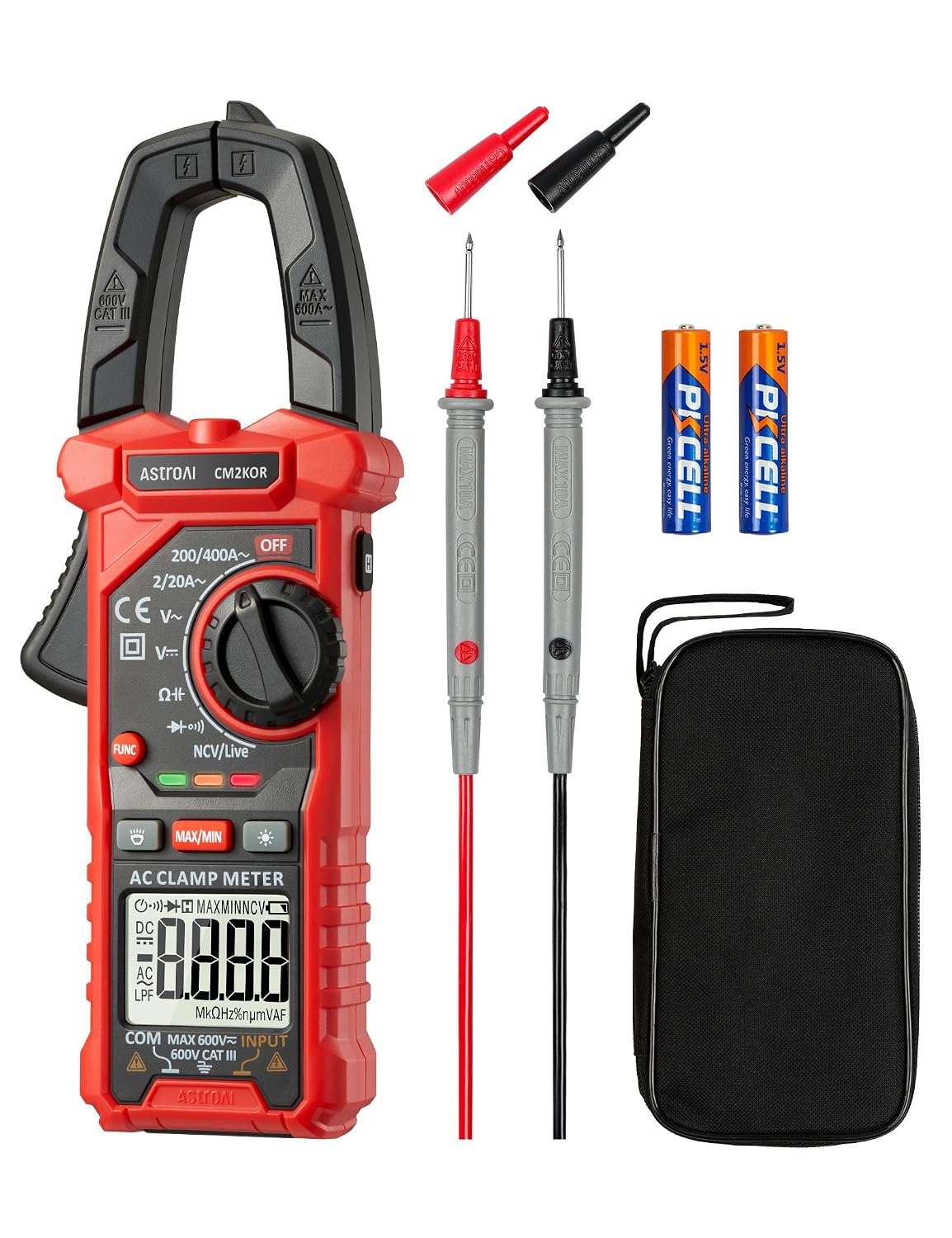

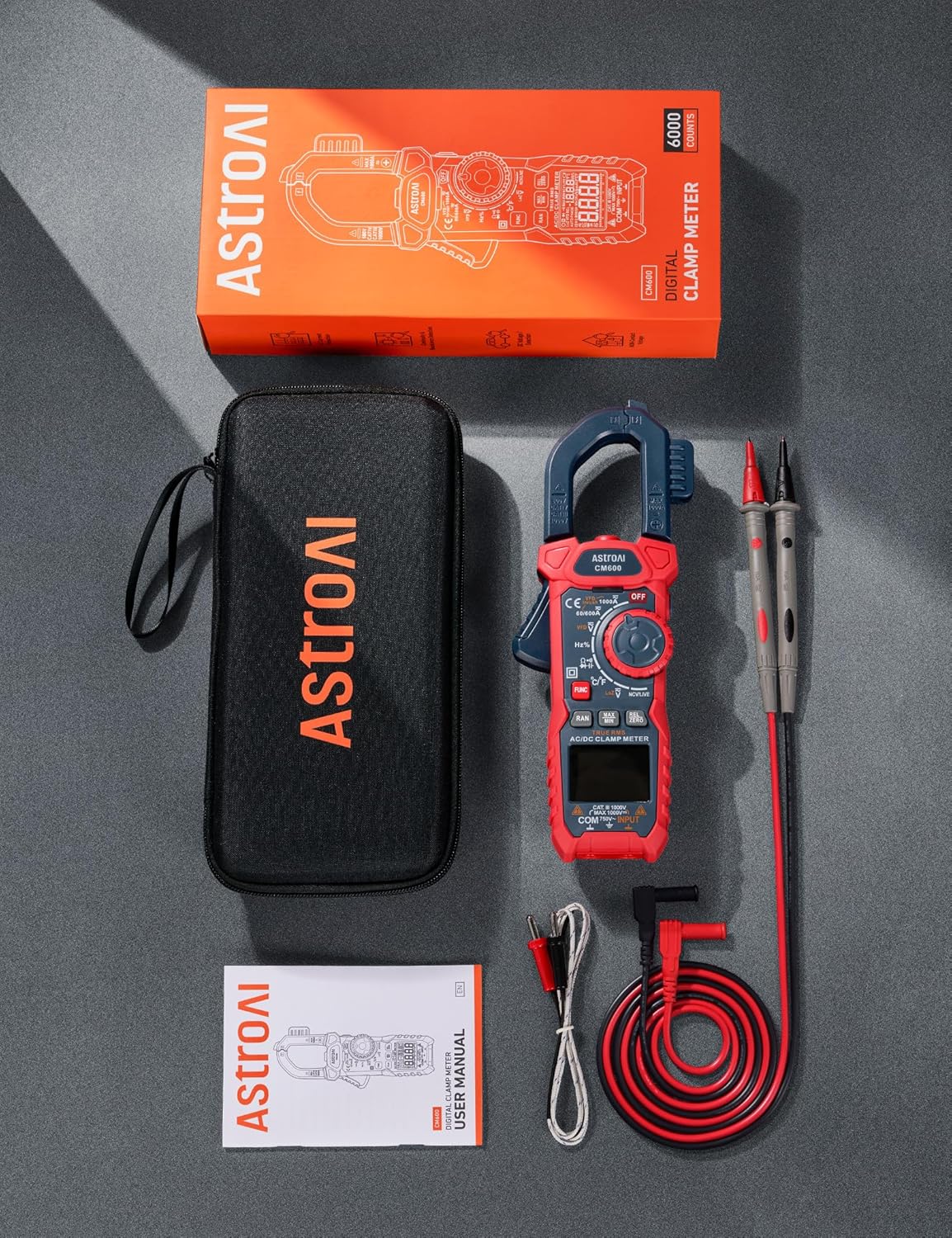

| Included Components | 2000 Counts Clamp Meter, Test Leads (Pair), User Manual, Storage Bag |

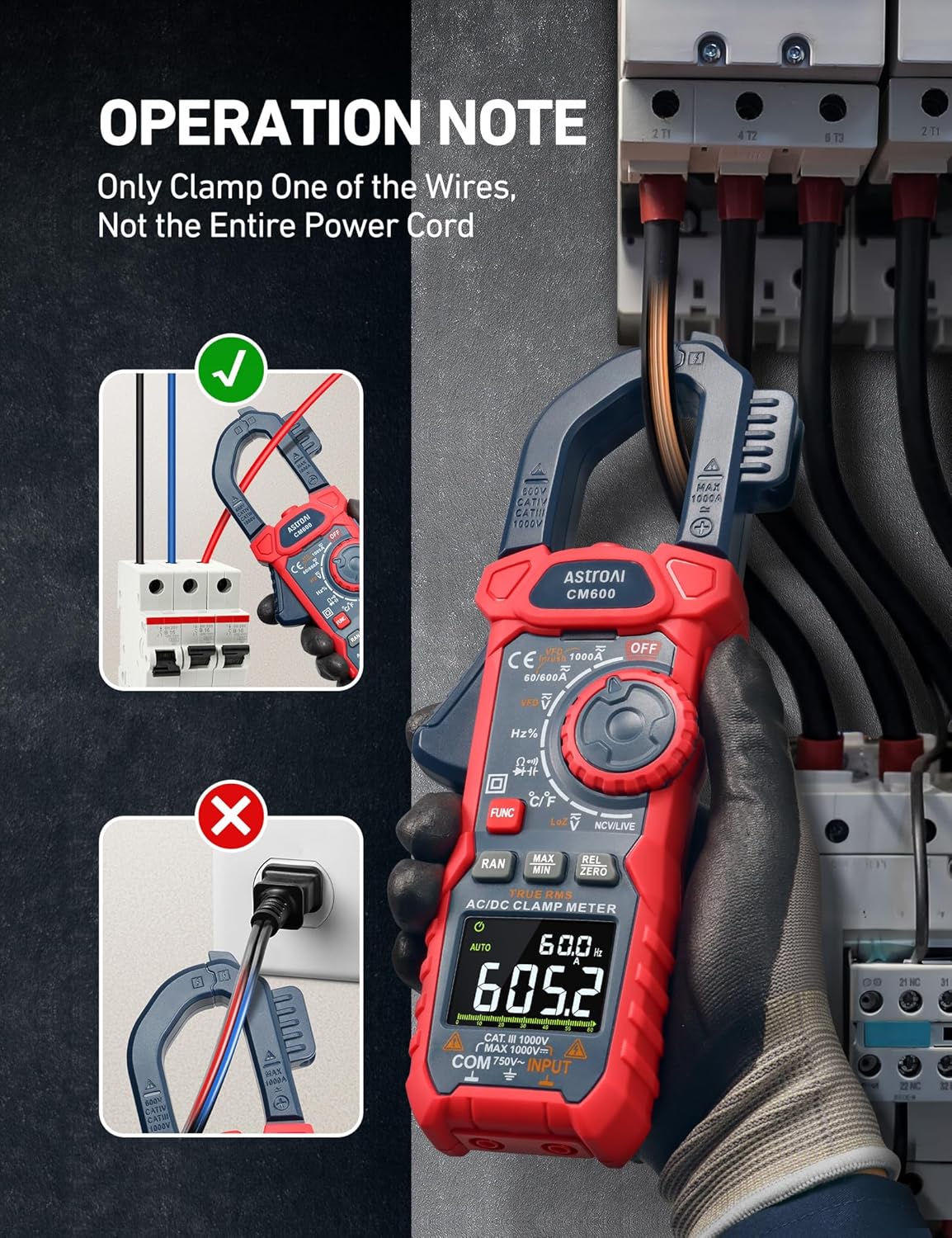

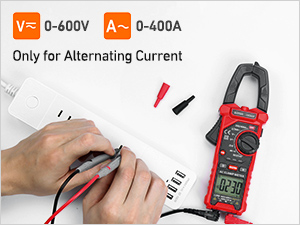

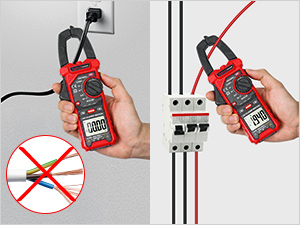

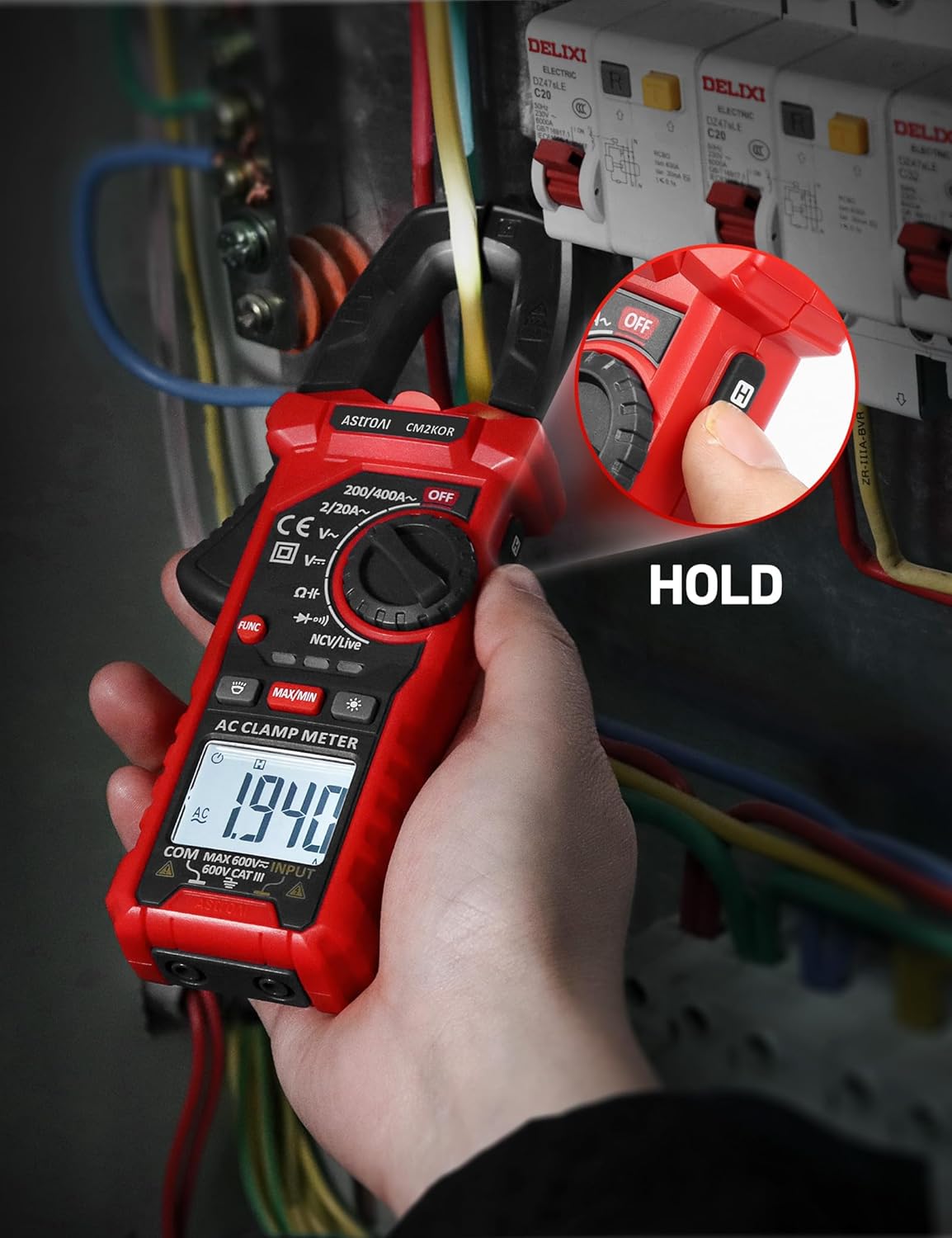

Note: To measure the current you need to clamp the meter around one of the wires and not the whole power cord. The power cord contains two wires carrying current and ground wire. The current in two wires always flows in opposite directions, so the magnetic fields from two wires cancel each other, therefore the meter reads 0 A.

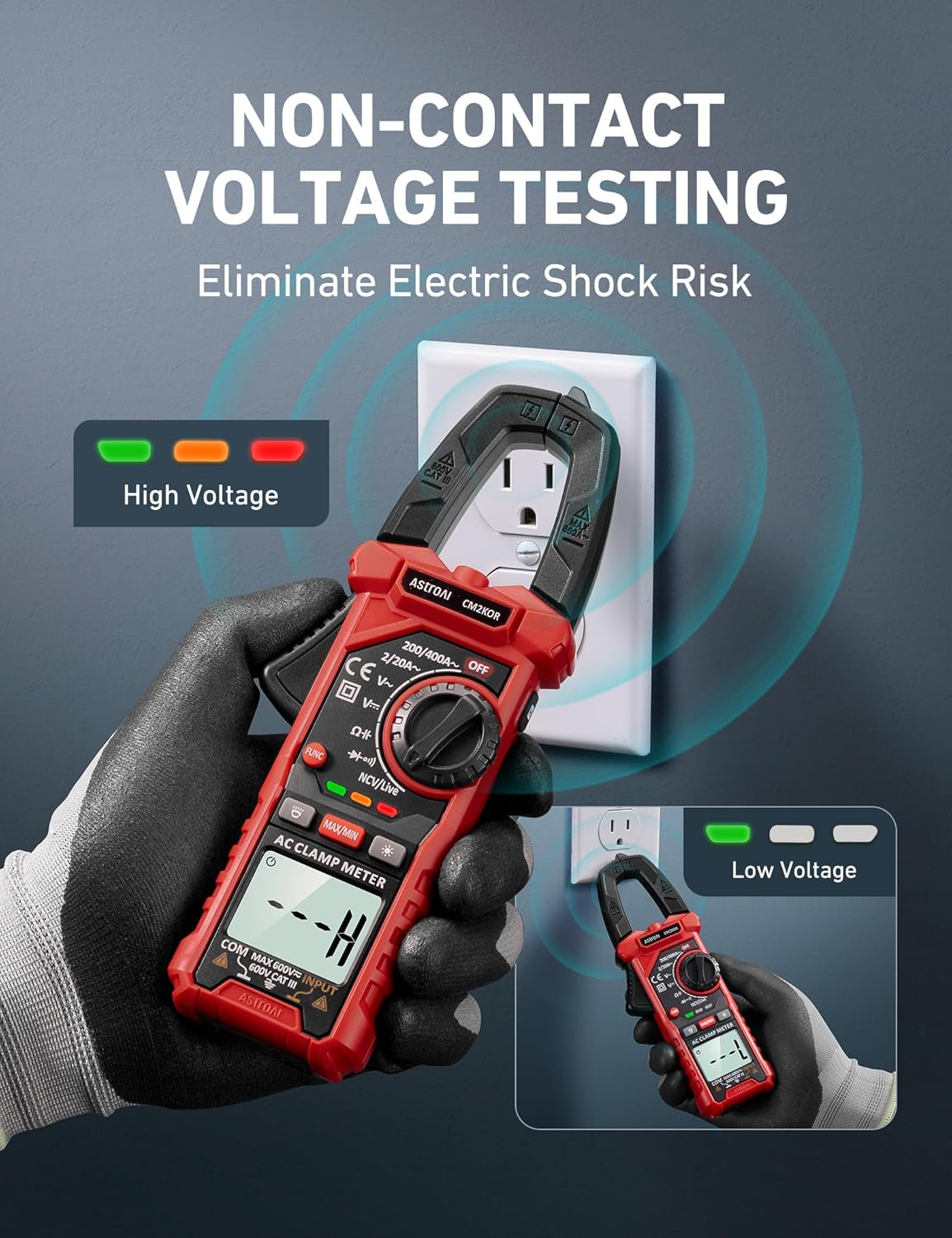

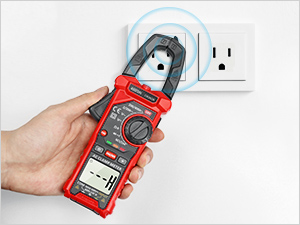

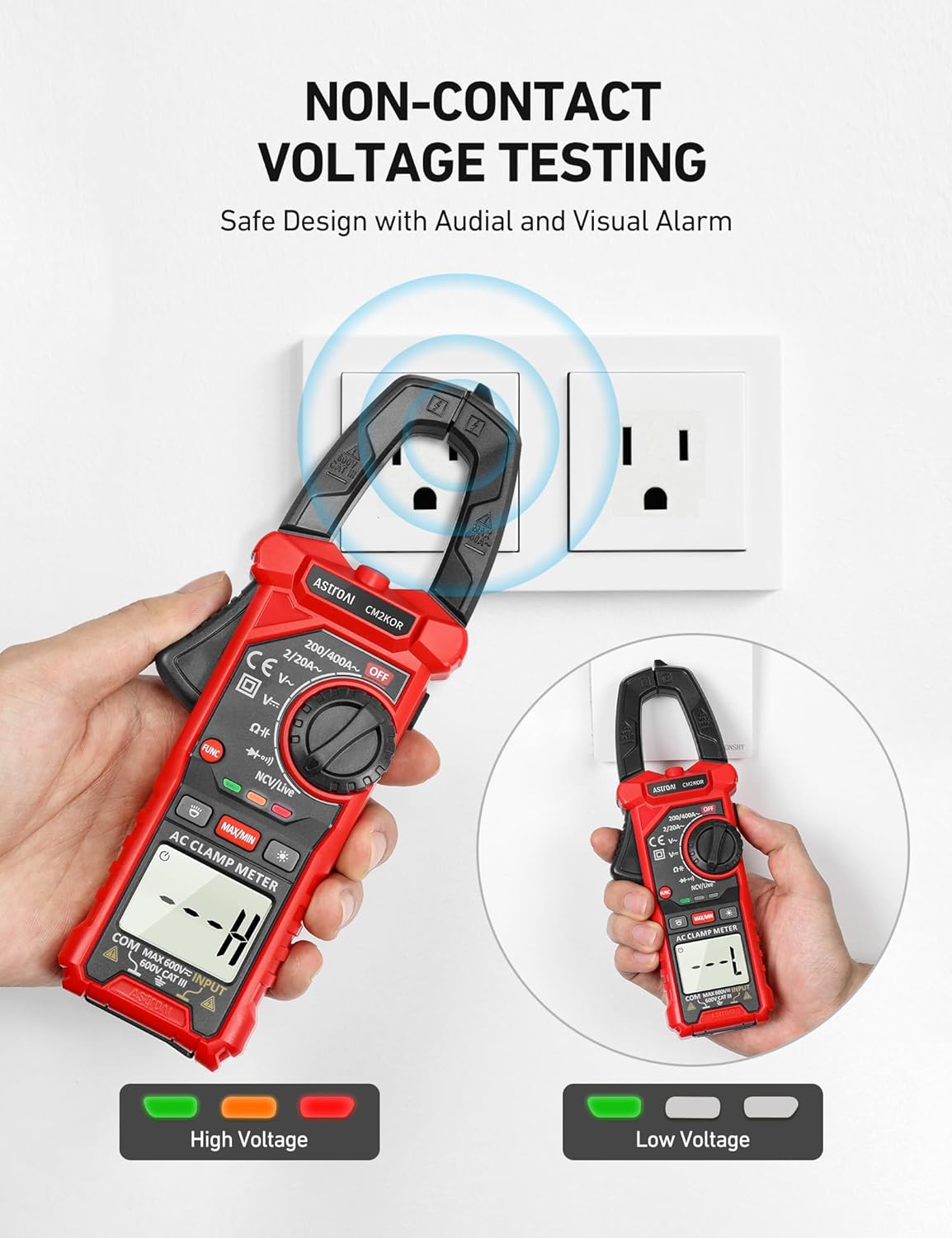

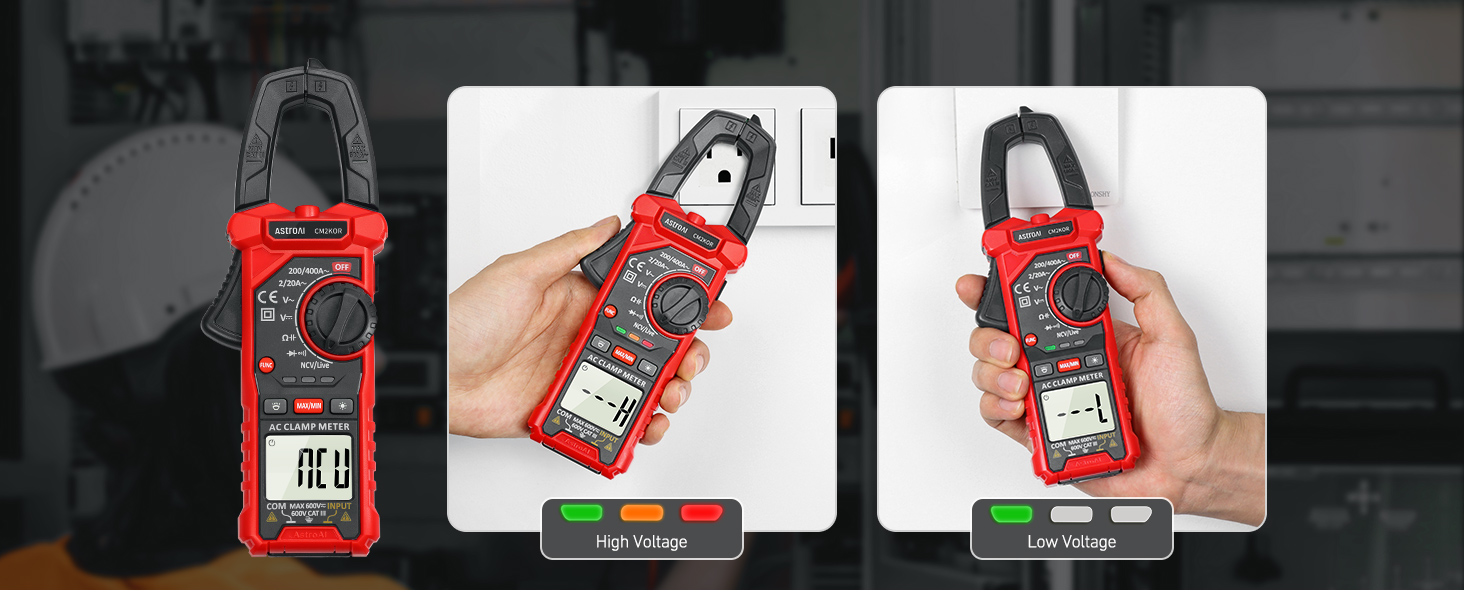

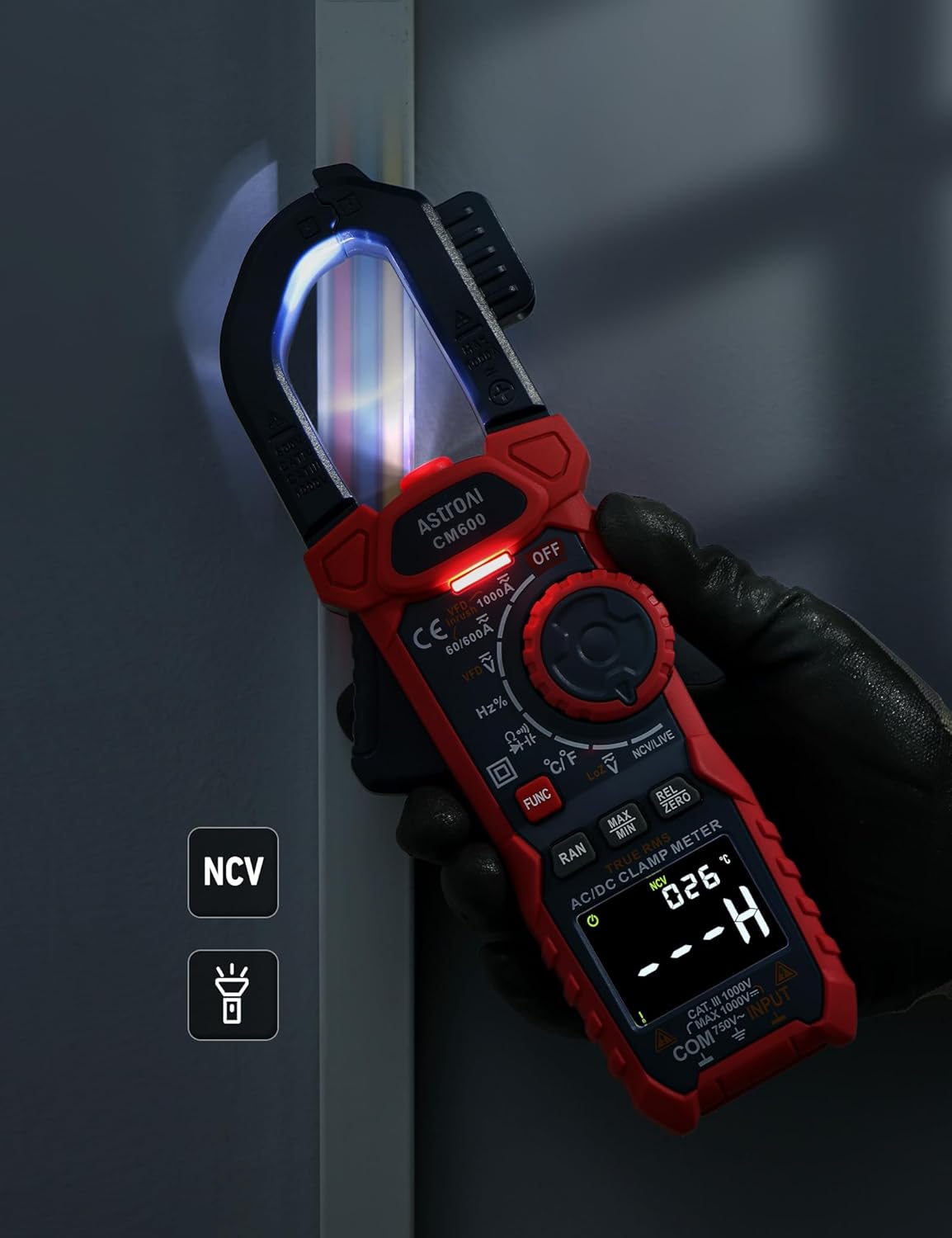

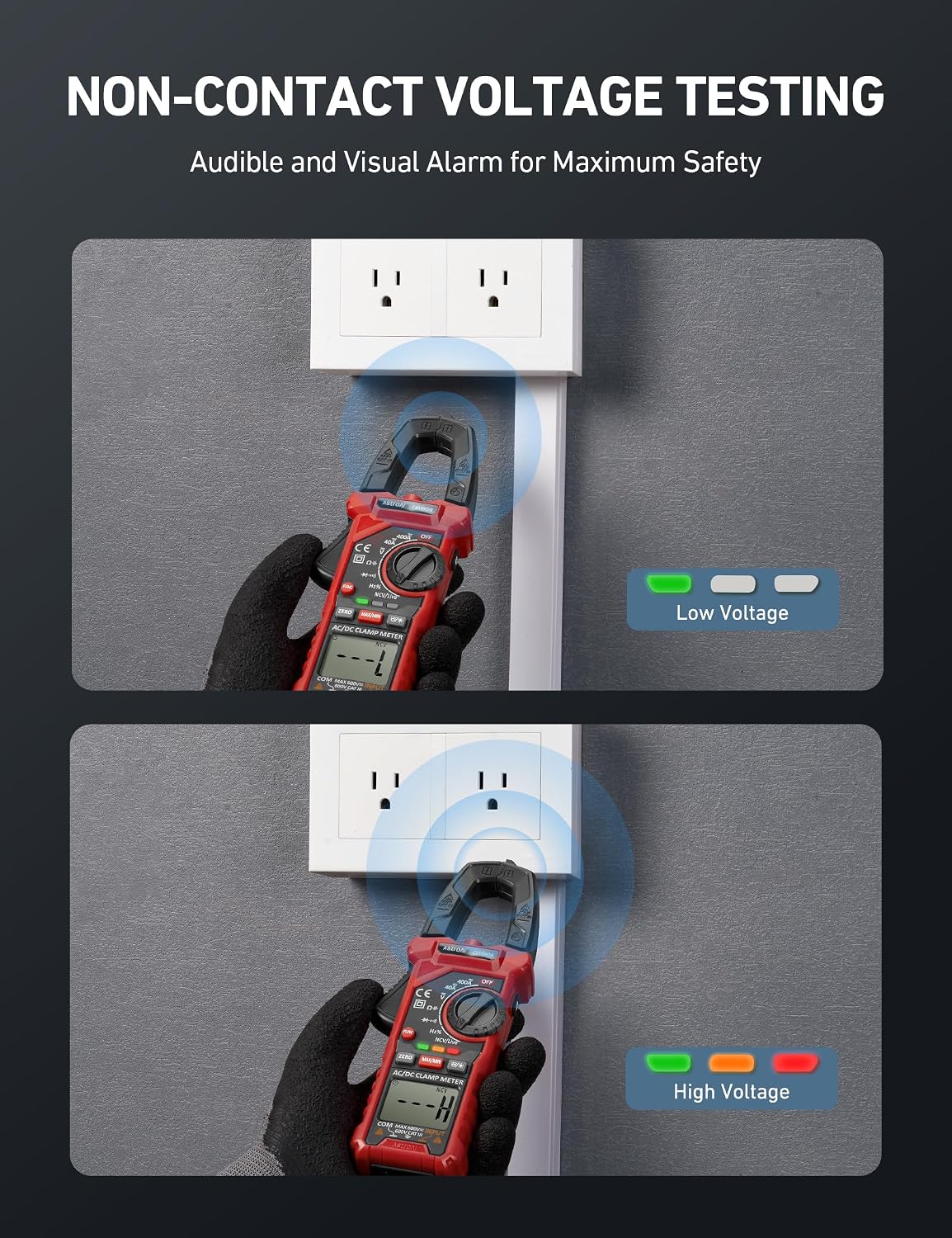

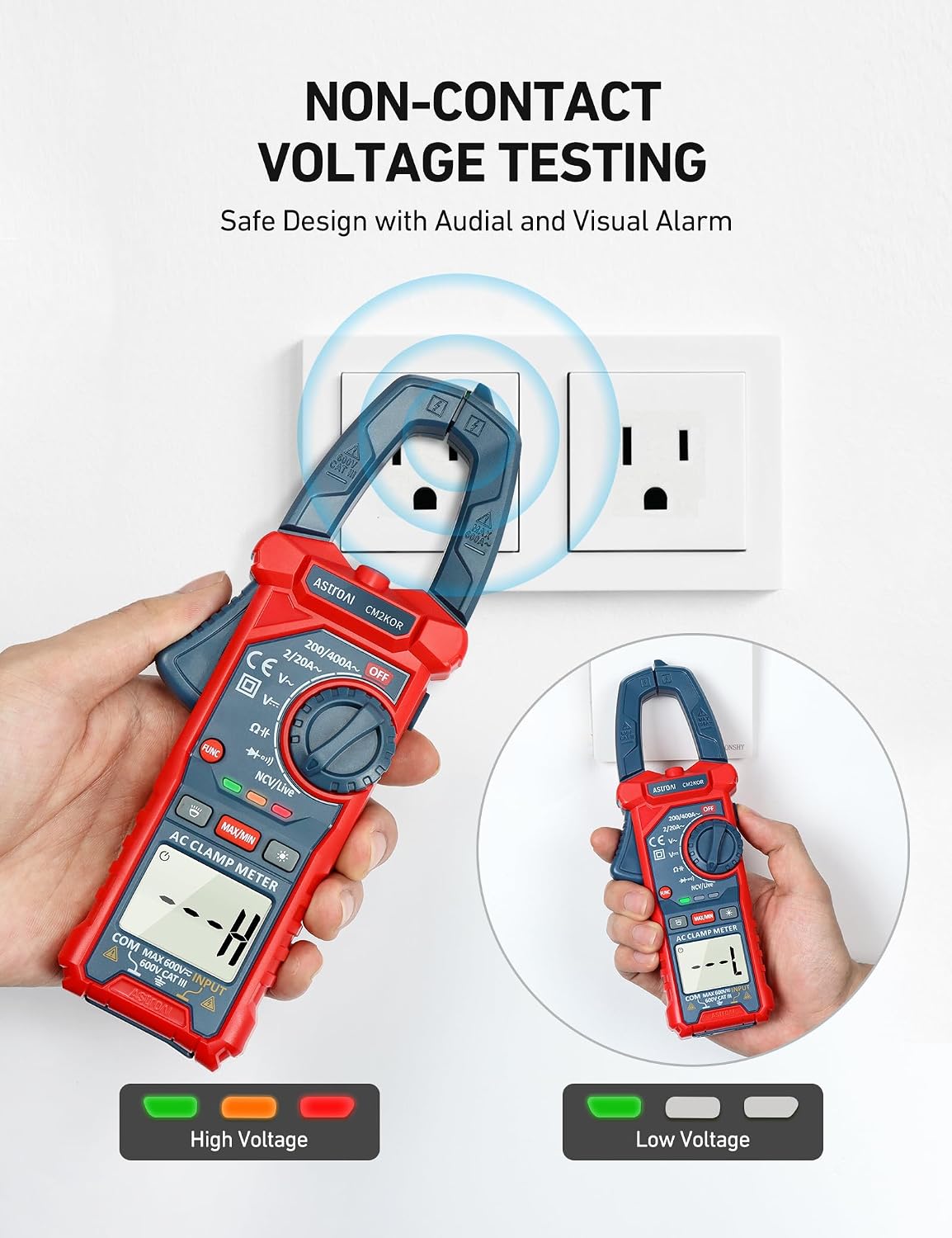

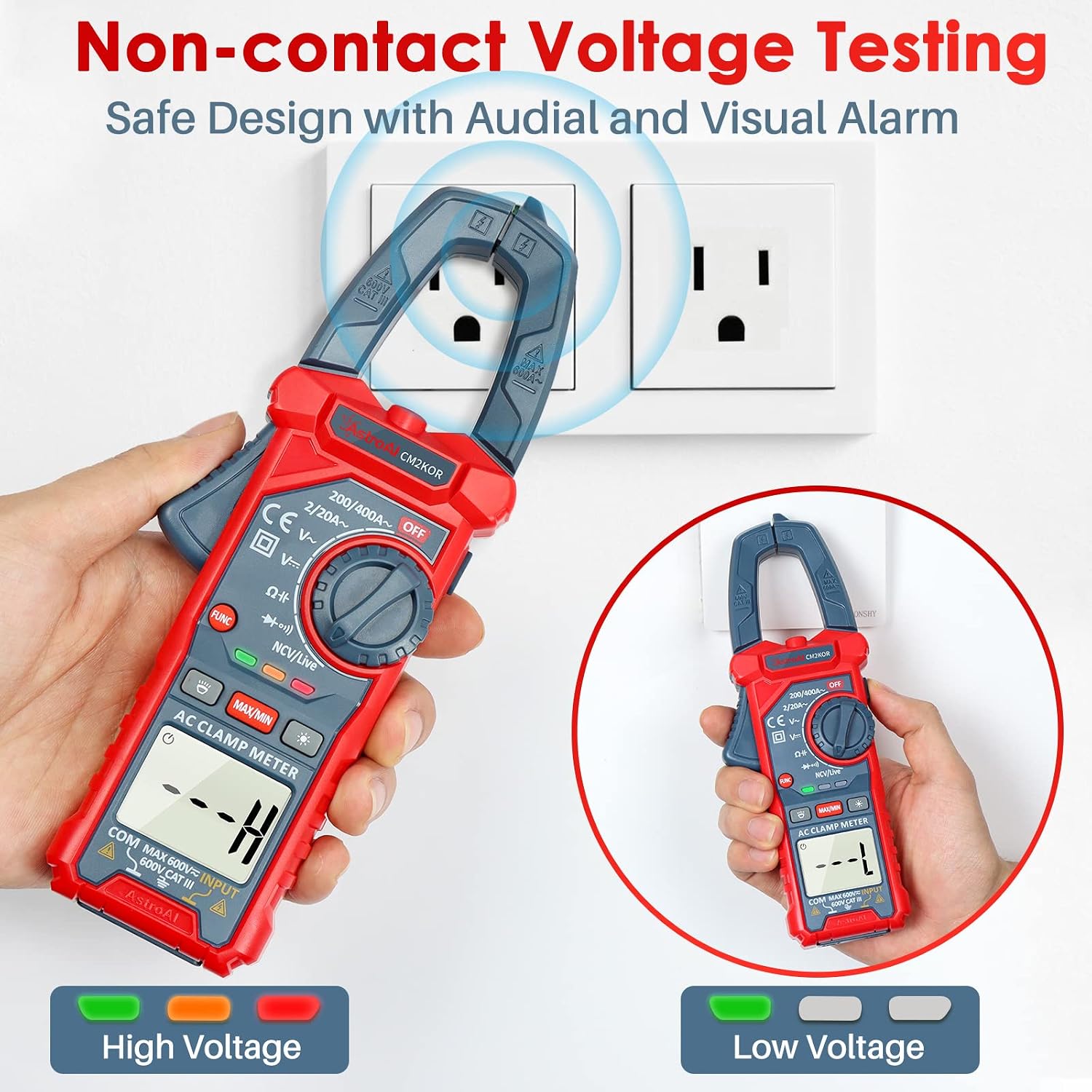

The NCV function can test the voltage without contact. When the Meter senses a weak AC signal, the green indicator light will be on and the buzzer will emit a slow, audible beep. When the Meter senses a strong AC signal, the red indicator light will be on and the buzzer will emit a quick beep.

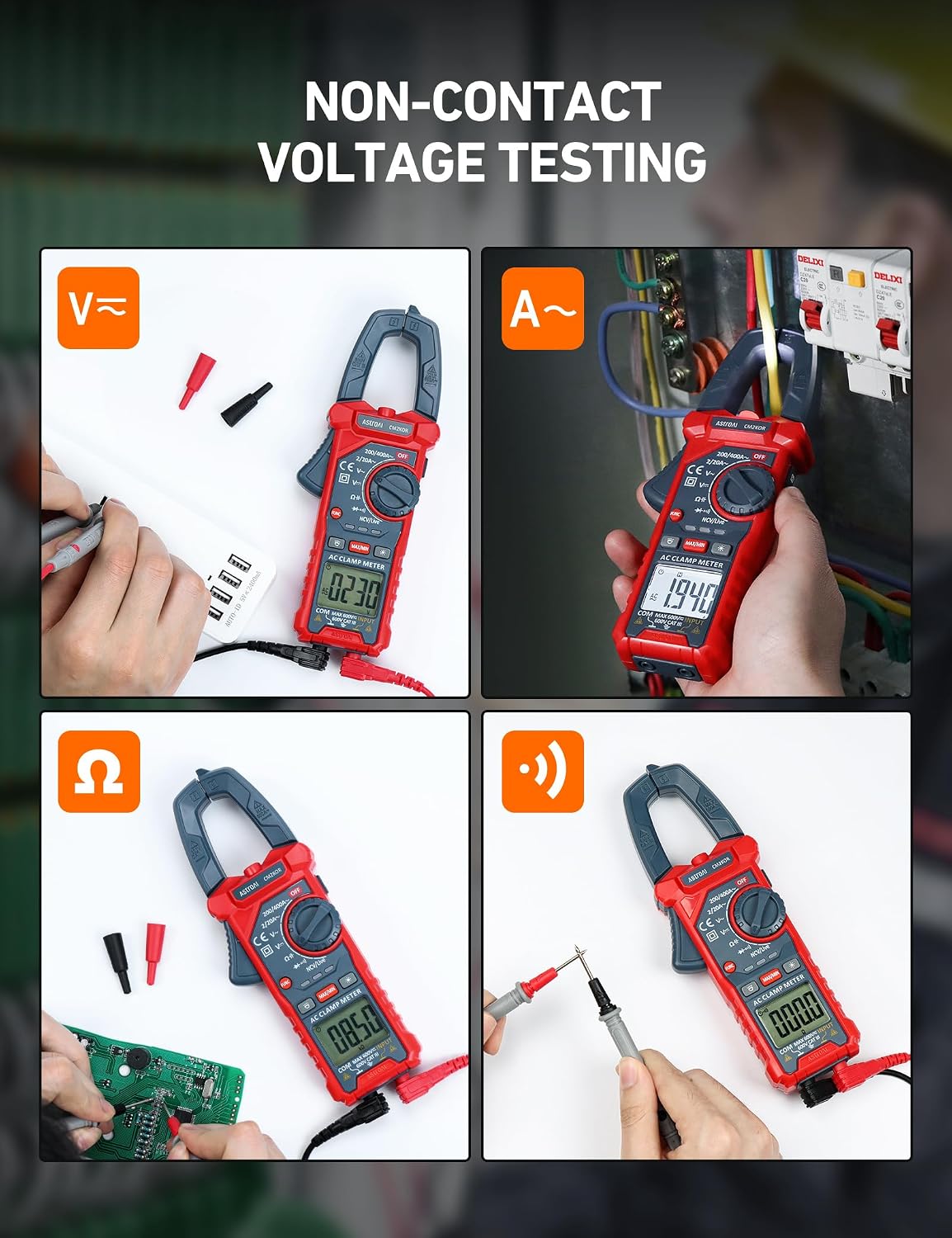

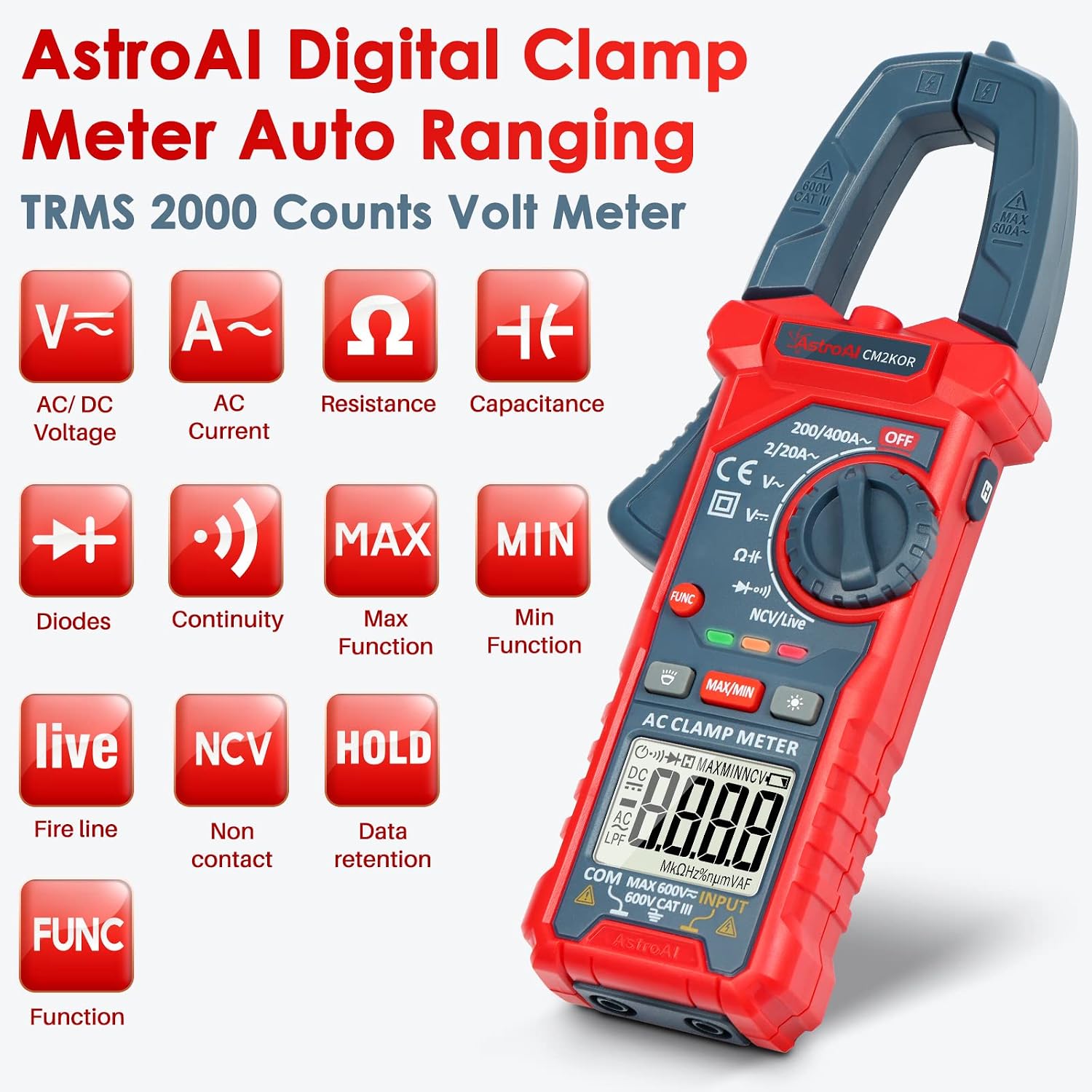

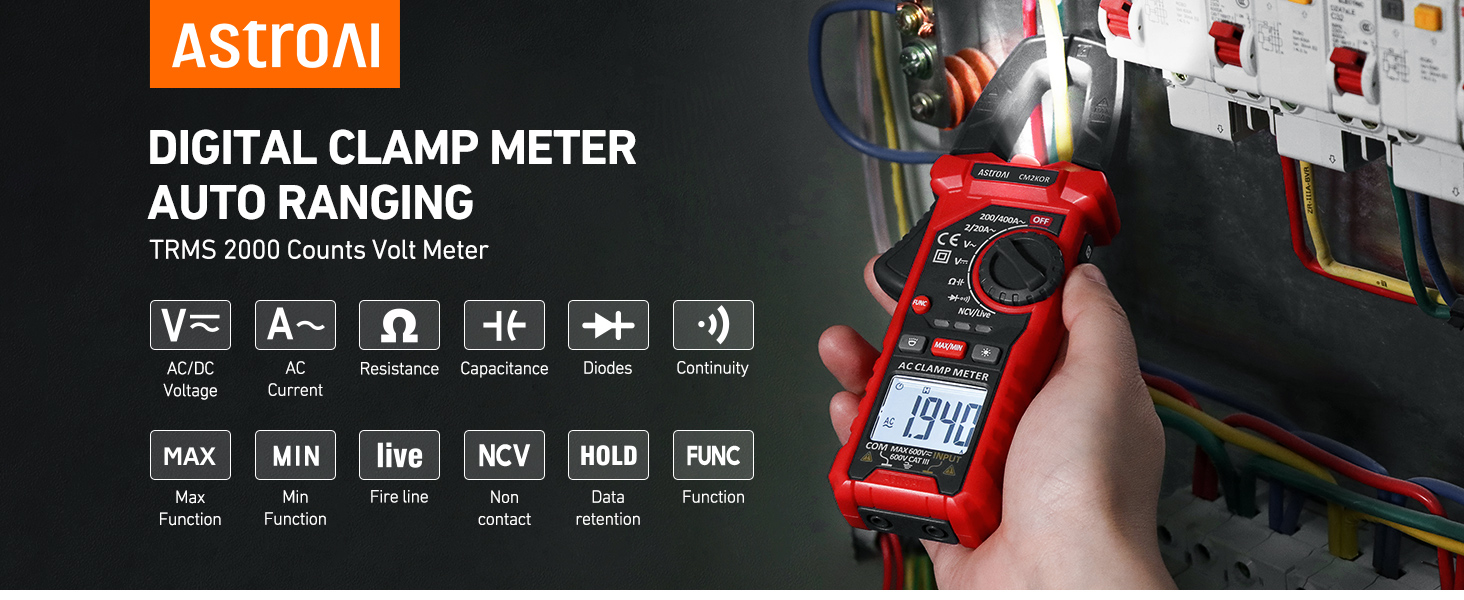

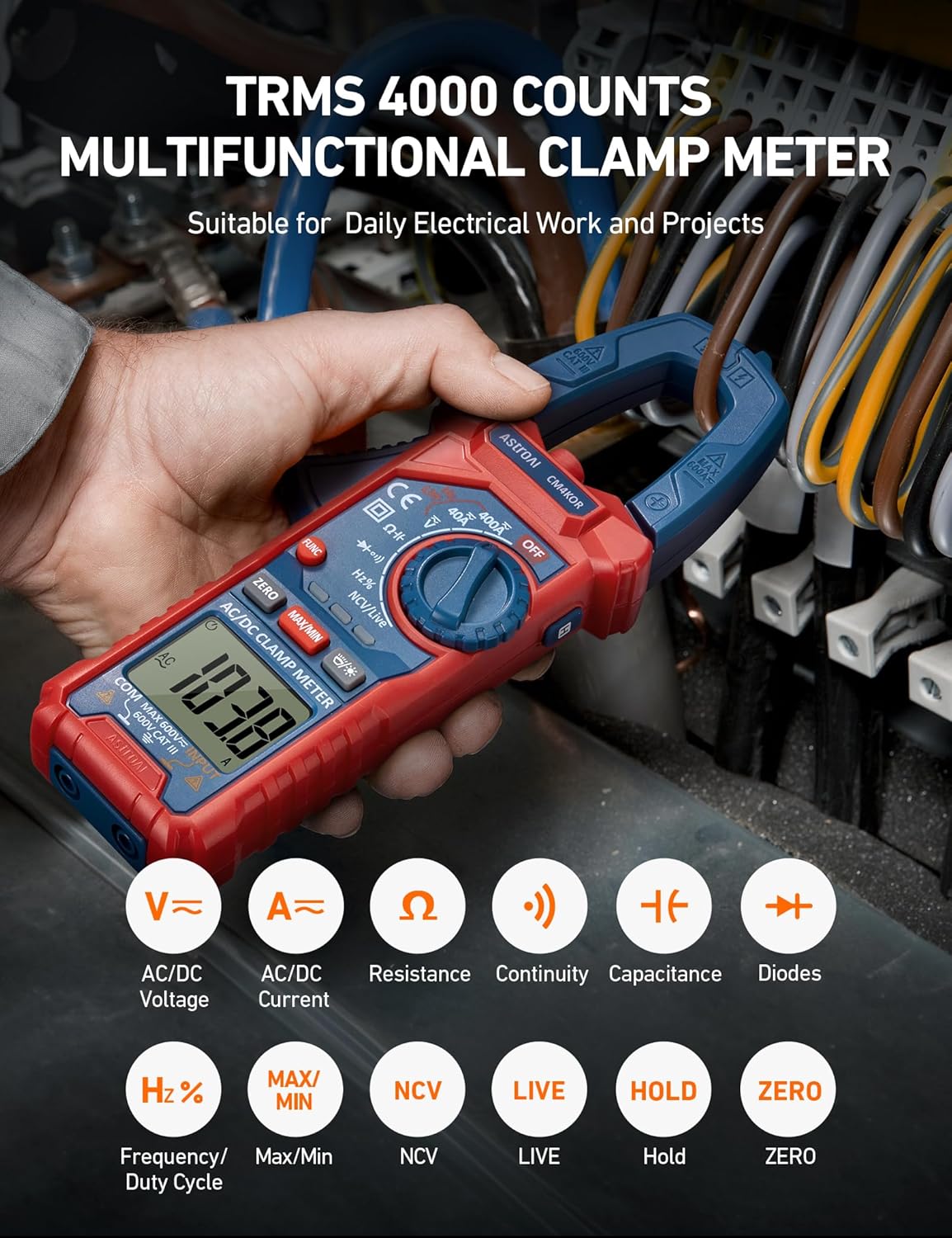

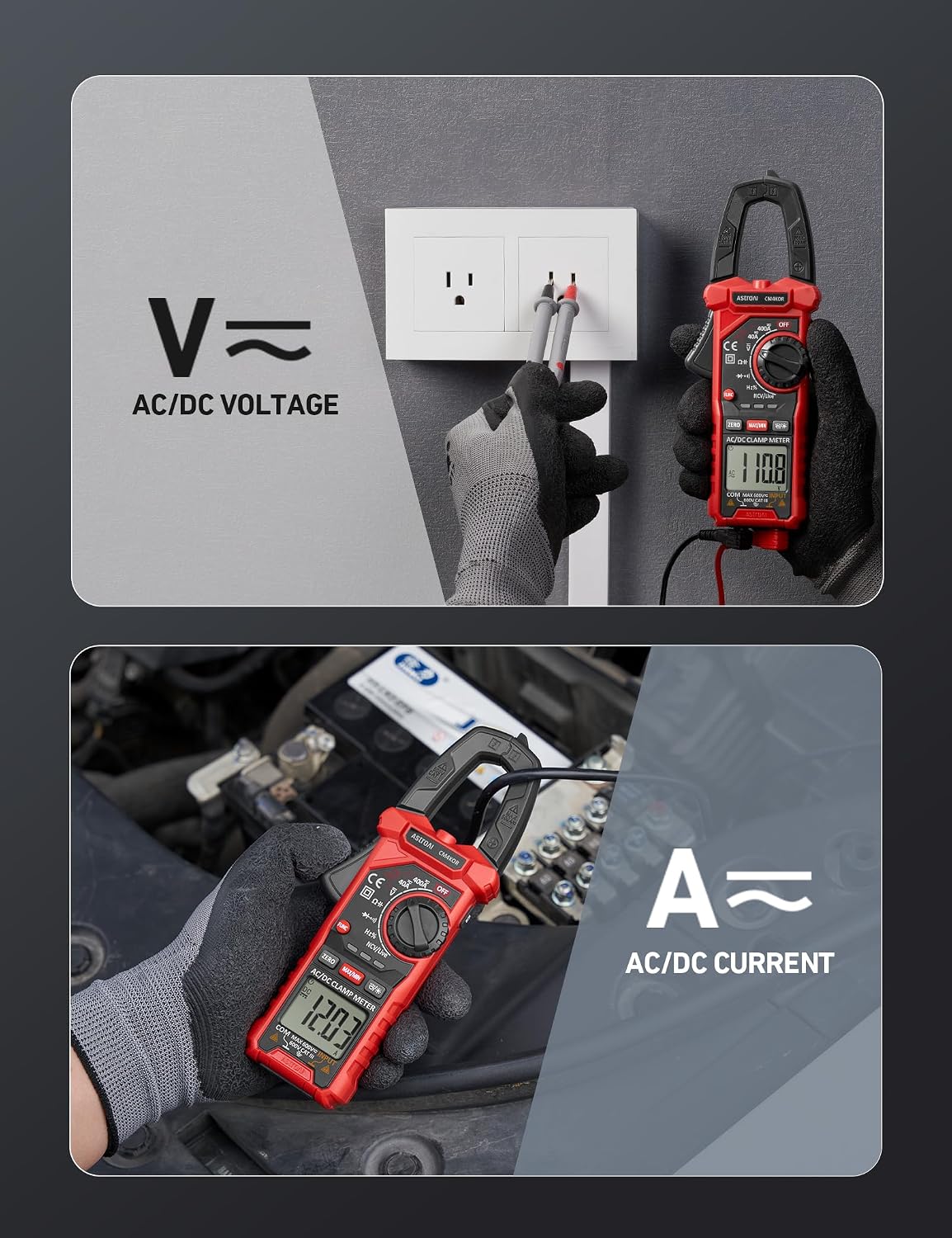

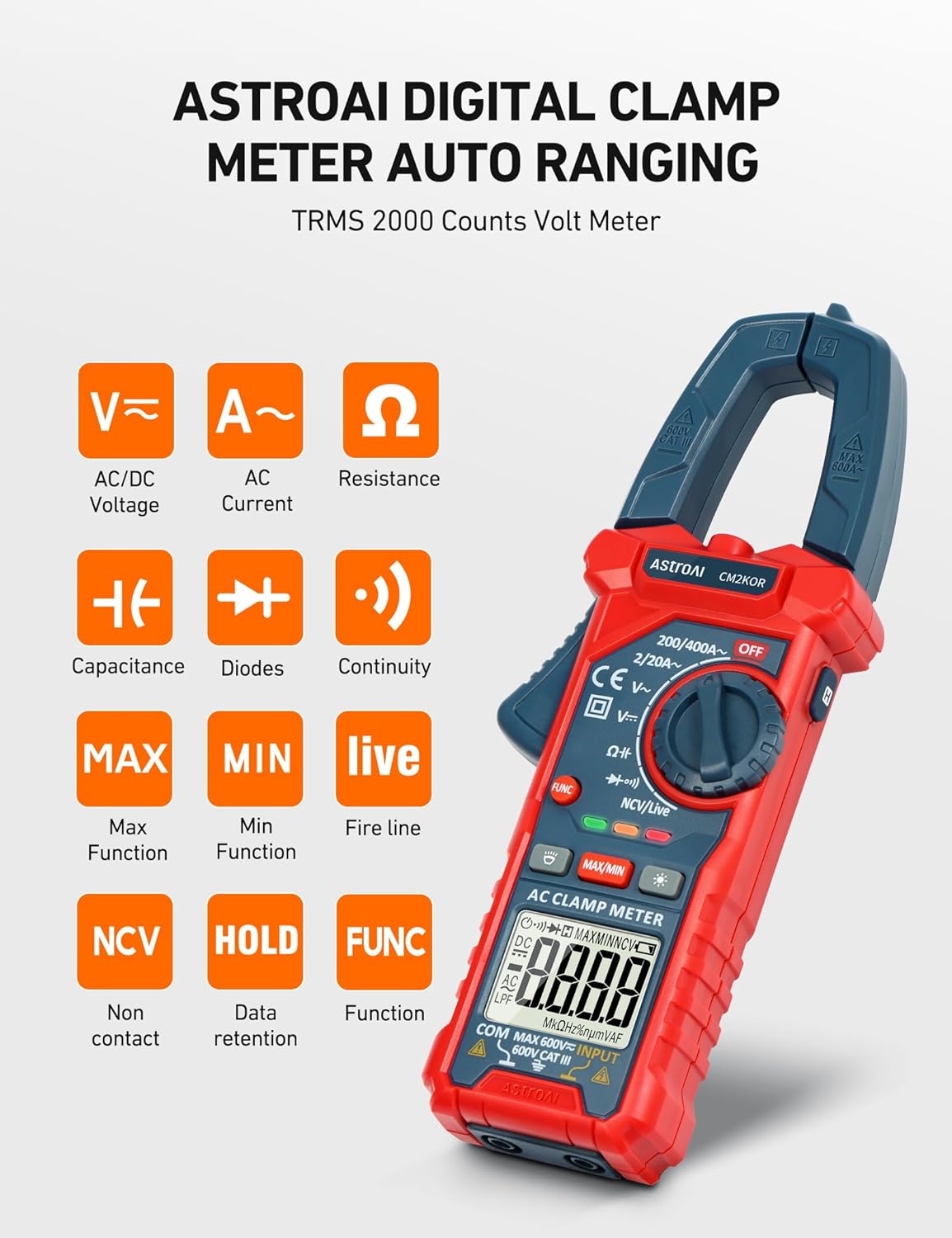

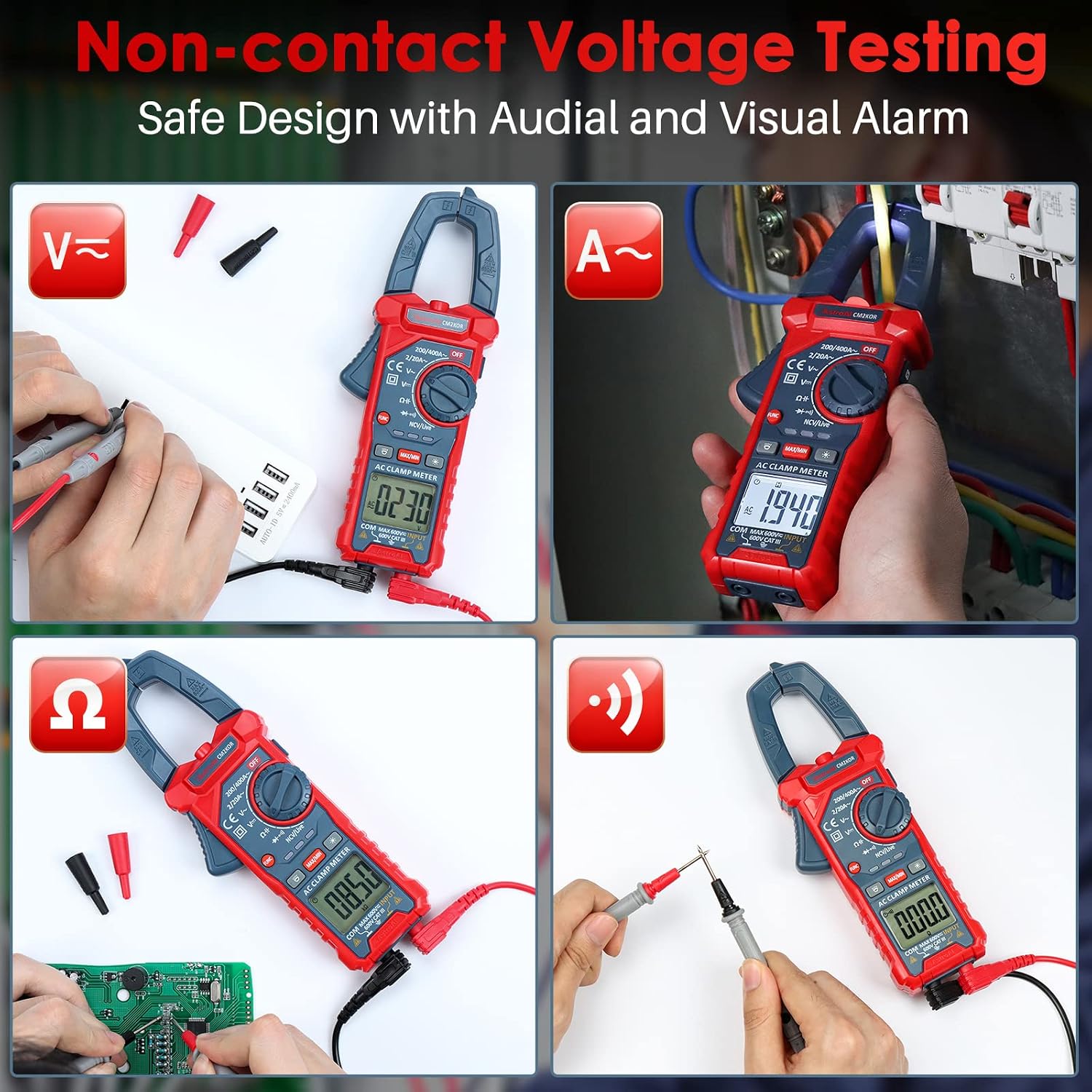

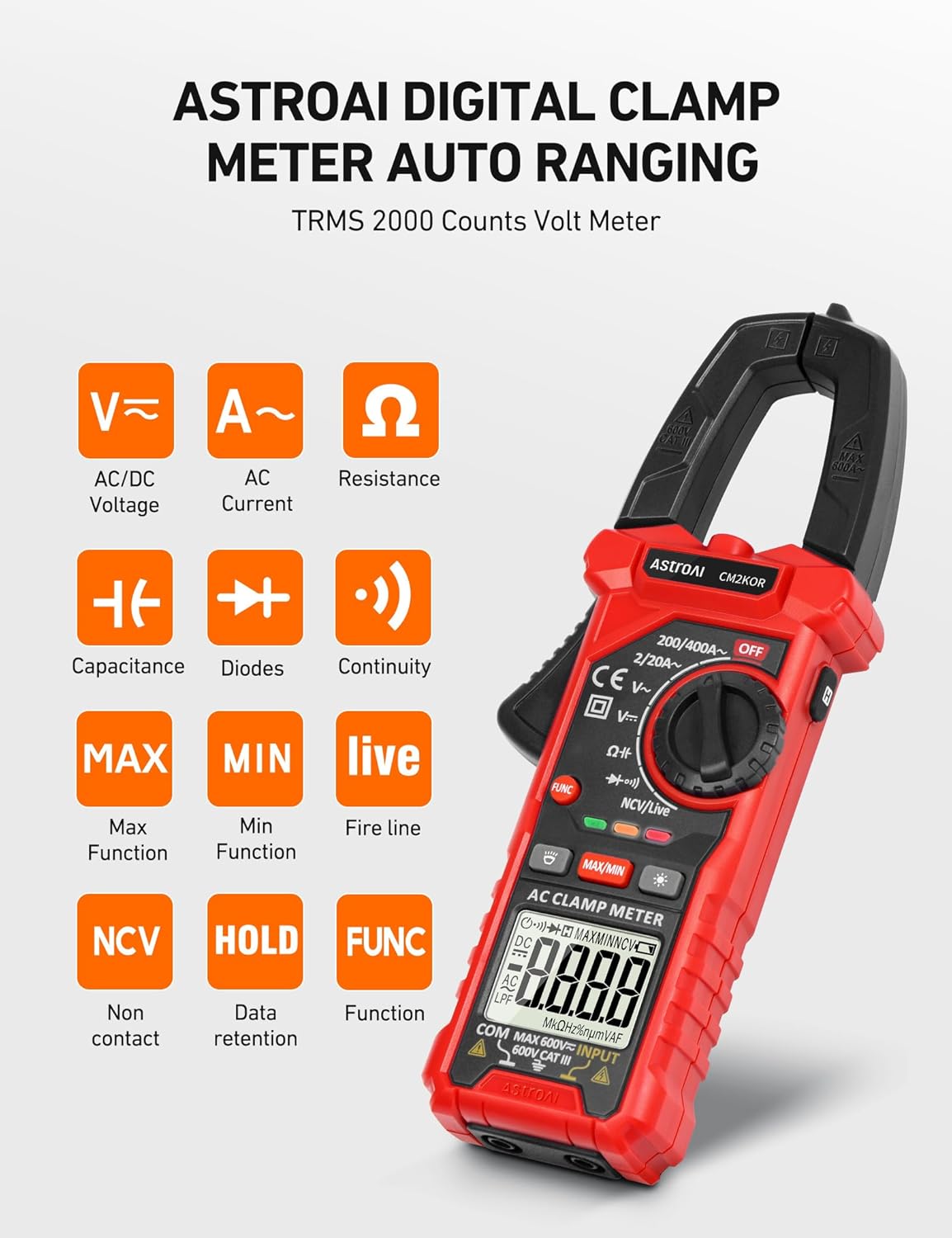

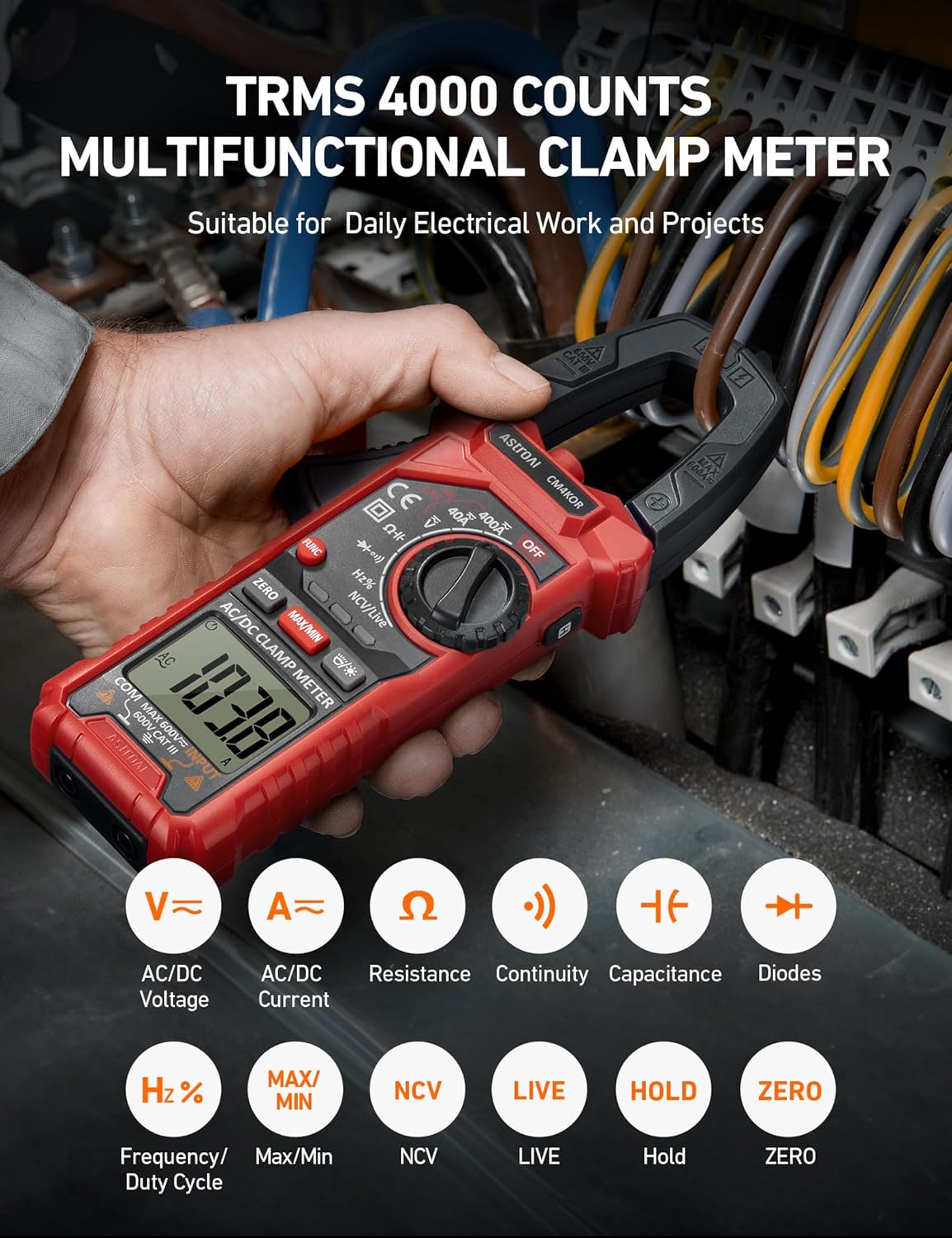

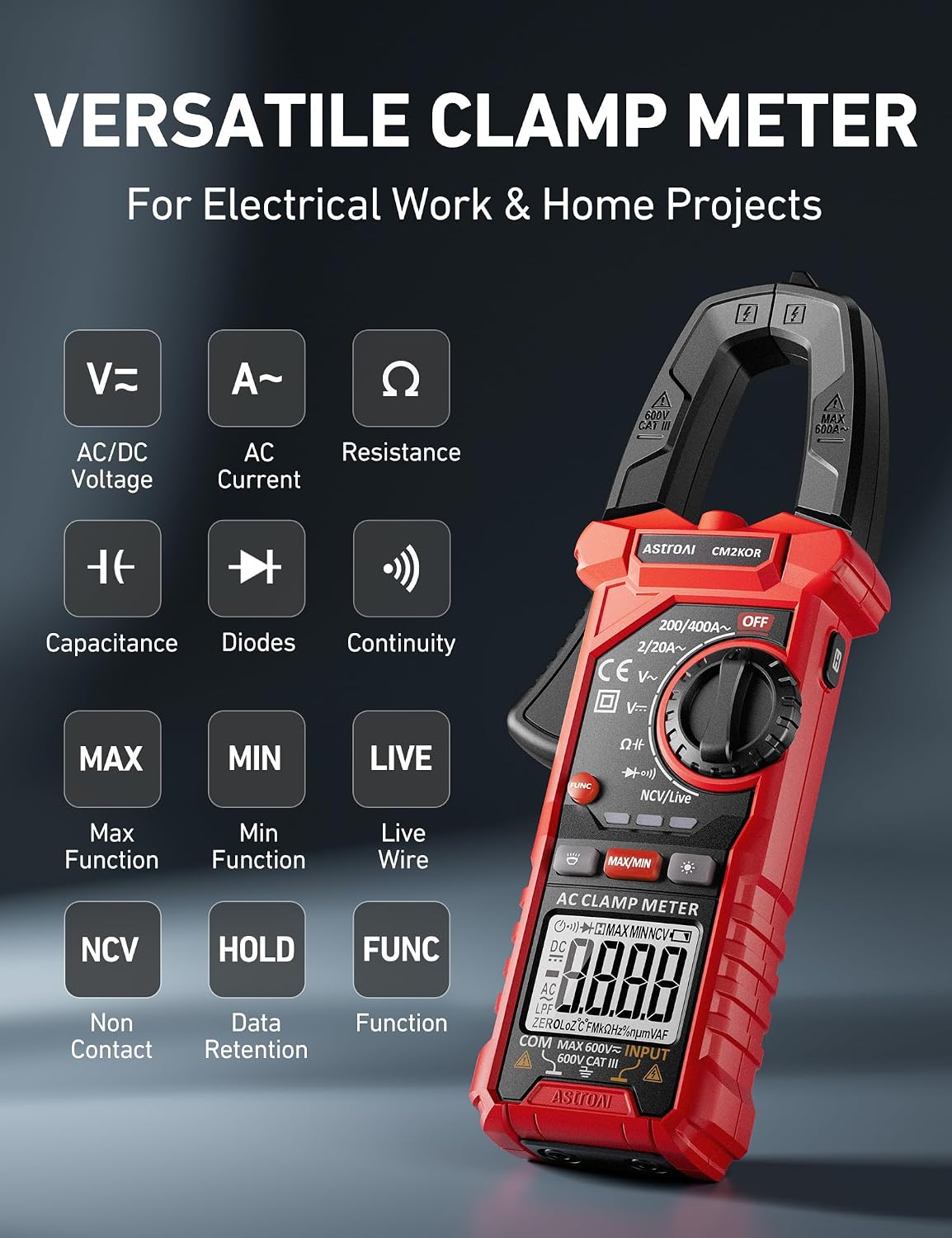

CM2KOR Clamp Meter can accurately measure AC/DC Voltage, AC Current, Resistance, Capacitance etc.

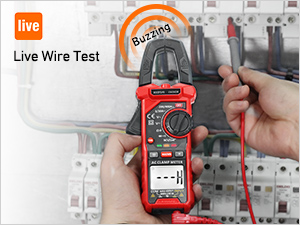

Live wire testing with the red test lead. When it detects a live wire, the clamp meter will reflect with the audio alarm

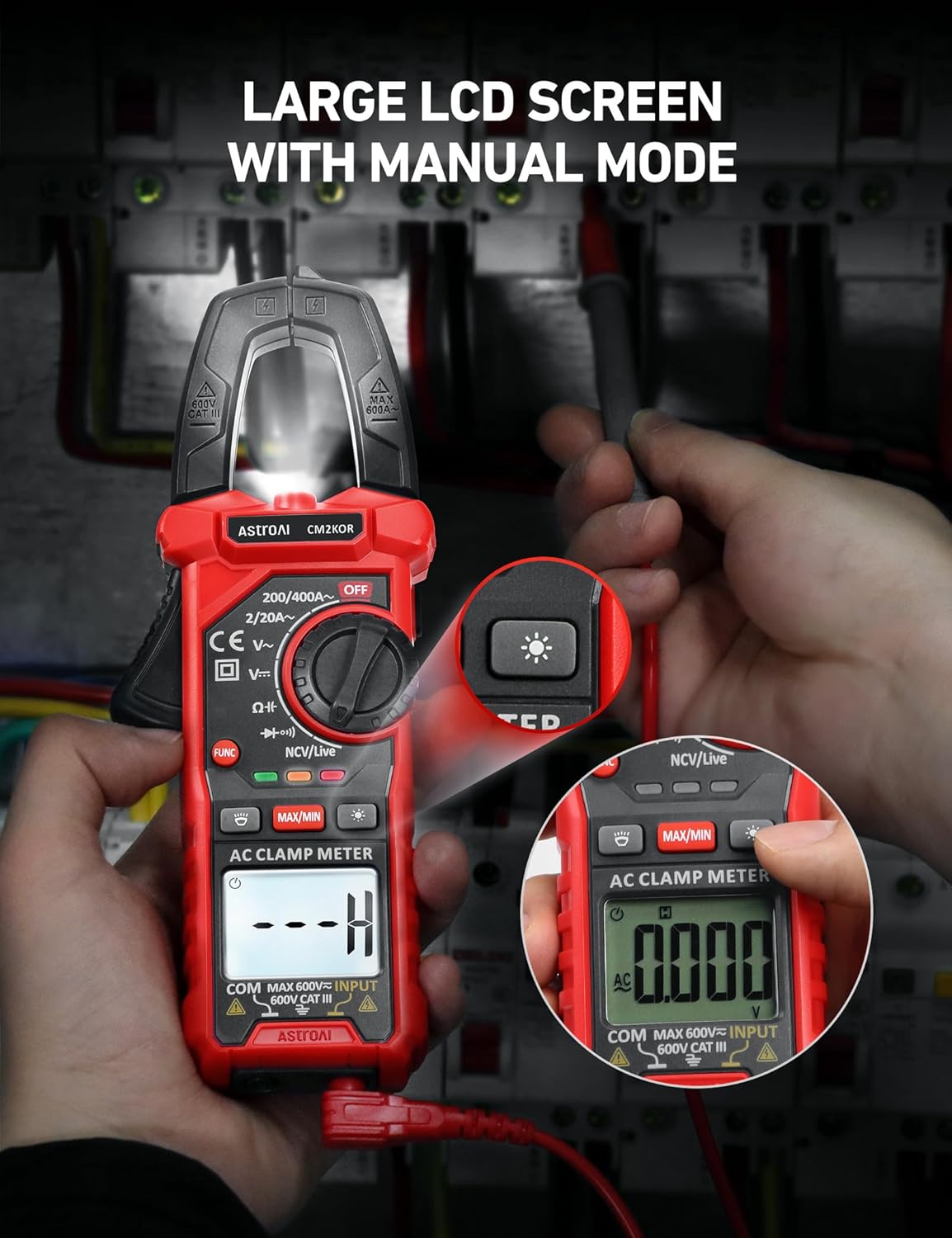

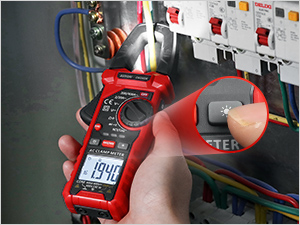

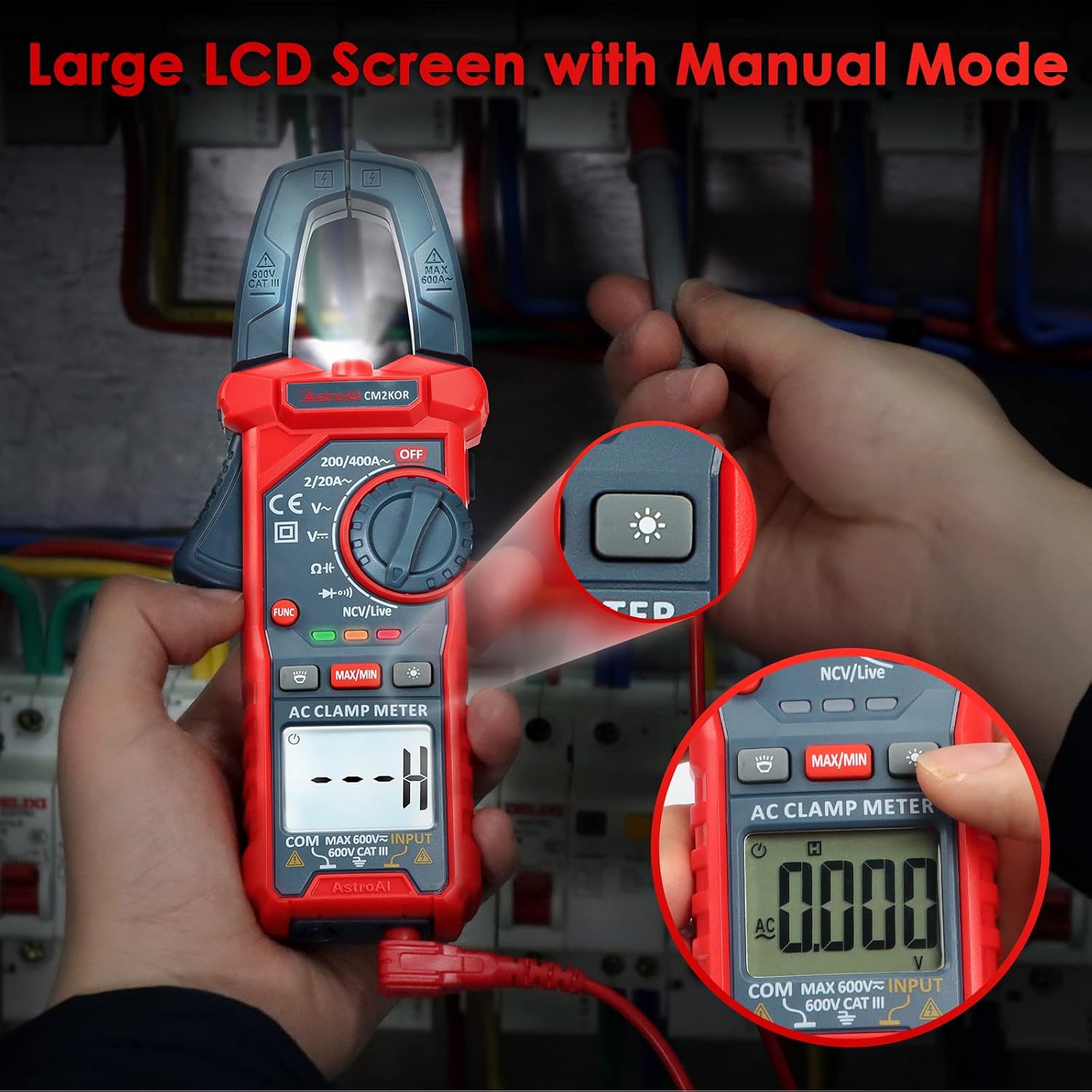

The Backlit LCD and Flashlight ensure clear measuring in a dimly area.
Please measure in the correct way, otherwise the readings will not be accurate.
It features NCV testing with a sound and light alarm. When the indicator light is on, it means there is voltage, please pay attention to your safety.

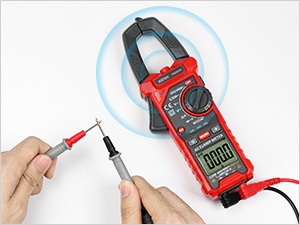

Connect test leads to the circuit, the buzzer inside the Meter will beep if the resistance<50Ω

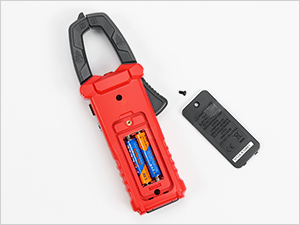

Built-in 2×AAA (1.5V) batteries, it can last longer and provide convenient battery replacement.

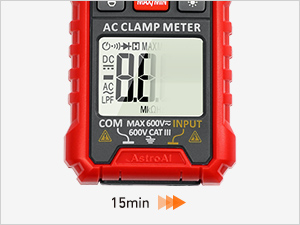

If the meter is not in operation for 15 minutes, it will turn off automatically.
| Digital Display | 3,½, 2000 |
| Sampling Speed | 3 times per second |
| LCD Size | 35 x 25mm |
| Range Selection | Auto or Manual |
| Overload Indication | “OL” Displayed |
| Working Environment | 32°F~104°F (0°C~40°C); <80% RH |
| Storage Temperature | 14°F~122°F (-10°C~6°C); <70% RH |
| Power | 1.5V AAA Batteries x 2 Included |

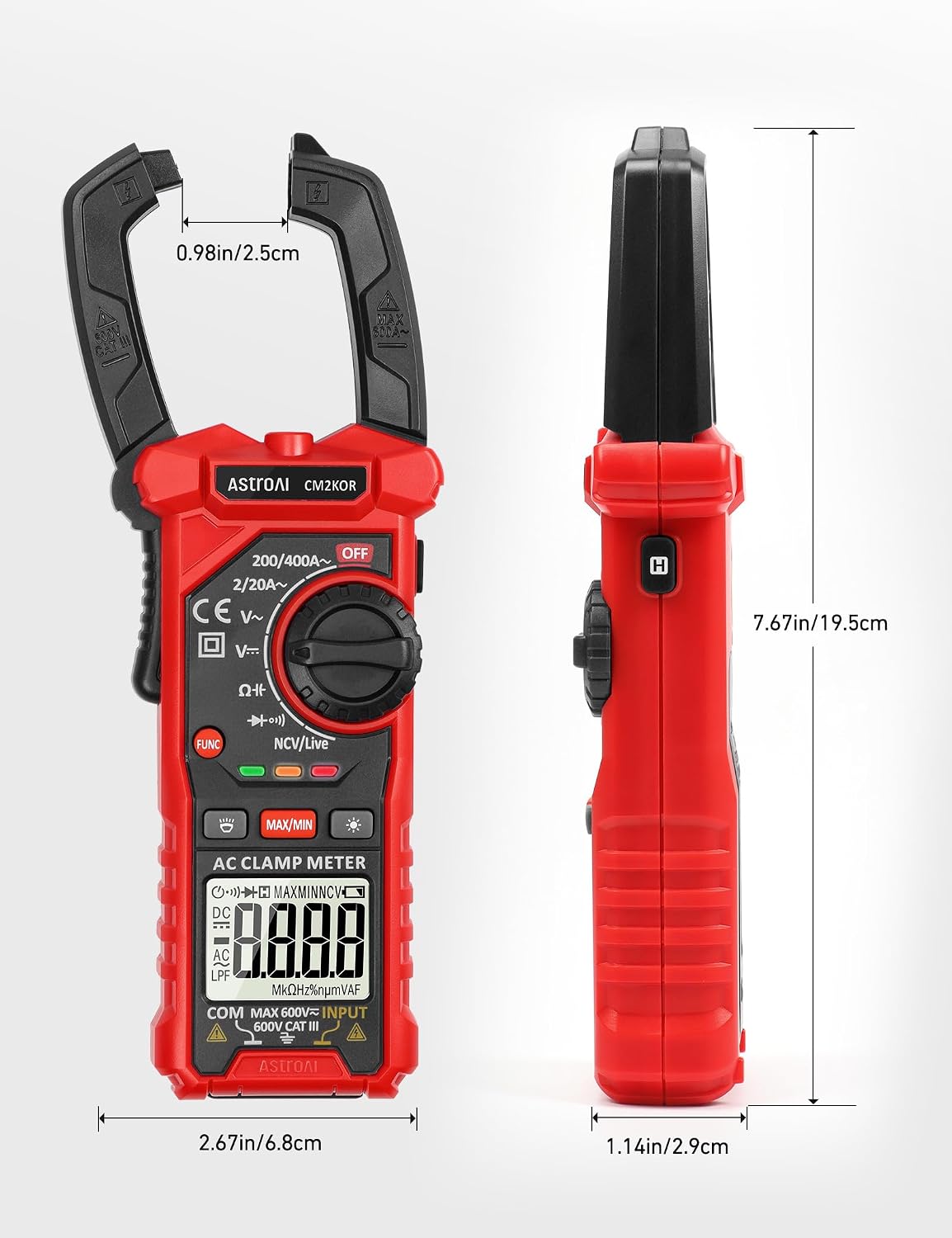

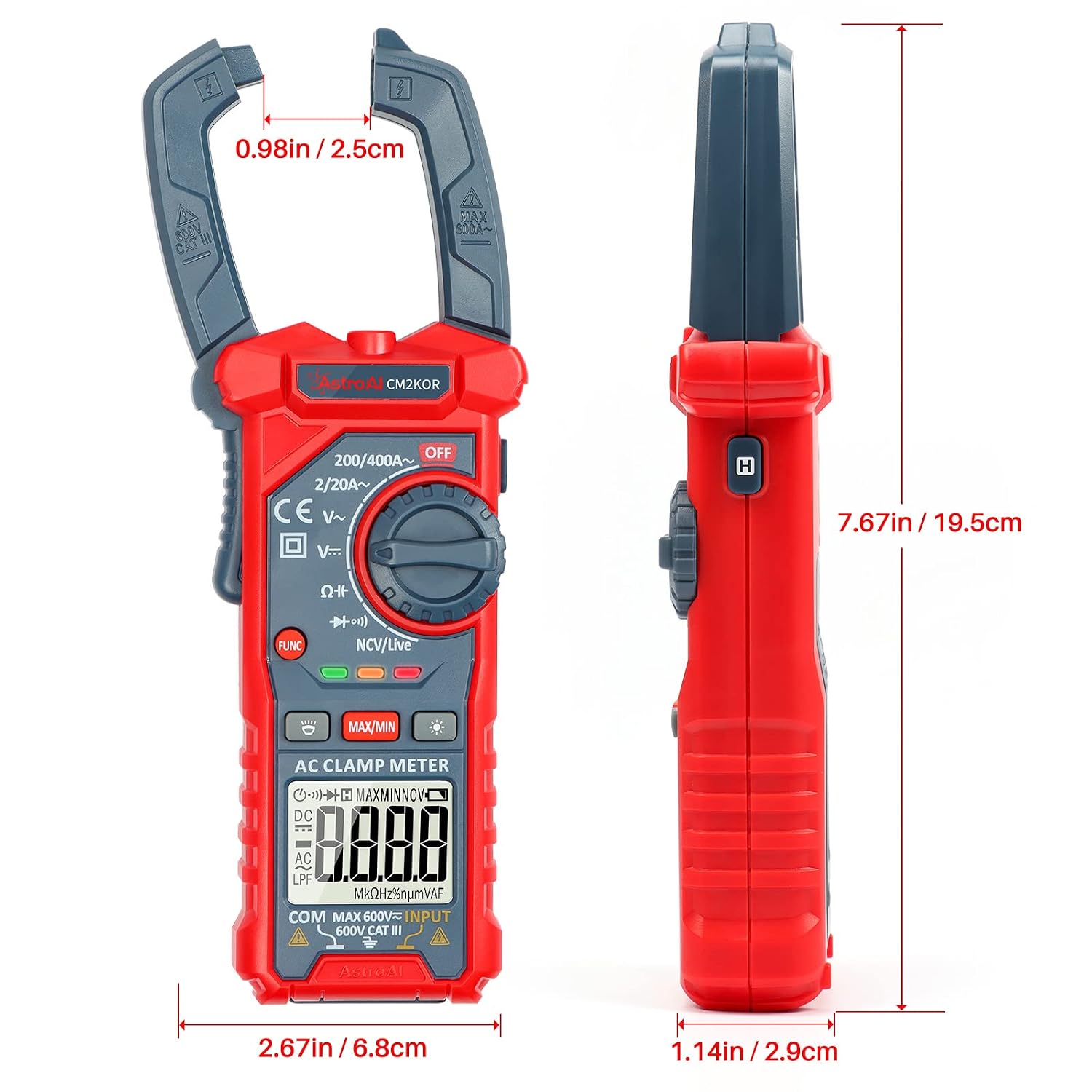

| Dimensions | 195x68x29mm |
| Weight | Approx. 203g |
| Safety/Compliances | CAT.III 600V; Pollution Level: 2; Altitude <2000m |
| DC Voltage | 2V/20V/200V/600V ±(0.5%+5) |
| AC Voltage | 2V/20V/200V/600V ±(1.0%+5) |
| AC Current | 2A/20A/200A/400A, 50~60Hz : ±(2.5 +5), Other : ±(3.0% +10) |
| Resistance | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ ±(1.0%+5) |
| Capacitance | 2nF/20nF/200nF/2μF/20μF/200μF/2mF ±(4.0%+5) |
