| Controller Type | Push Button |
|---|---|
| Additional Features | Separate heating and cooling swing (Cycle Rate) |
| Specific Uses For Product | Heat Pump |
| Temperature Control Type | Manual |
| Connectivity Technology | Wired (BACnet MS/TP) |
| Power Source | Battery Powered |
| Voltage | 24 |
| Display Type | LCD |
| Control Type | Button Control |
| Control Method | Push Button |
| Connectivity Protocol | BACnet MS/TP |
| Mounting Type | Wall Mount |
| Color | White |
| Shape | Rectangular |
| Product Style | Modern |
| Material Type | Plastic |
| Finish Types | Matte |
| Model Name | AW711 Thermostats |
| Included Components | 1 x Non-programmable Thermostat, 2 x screws and anchors, 1 x Operation Manual, 1 x Installation Manual, 1 x Cable Label |
| Model Number | AW711 |
| UPC | 711731901619 |
| Manufacturer | Aowel |
| Number of Items | 1 |
| Unit Count | 1 Count |
| Number of Packs | 1 |
| Manufacturer Part Number | AW711 |
| Item Dimensions D x W x H | 0.98"D x 4.92"W x 3.74"H |
| Item Weight | 5.92 ounces |
| Item Depth Width Height | 0.98"D x 4.92"W x 3.74"H |
| Special Feature | Separate heating and cooling swing (Cycle Rate) |
TECHNICIAN SETUP

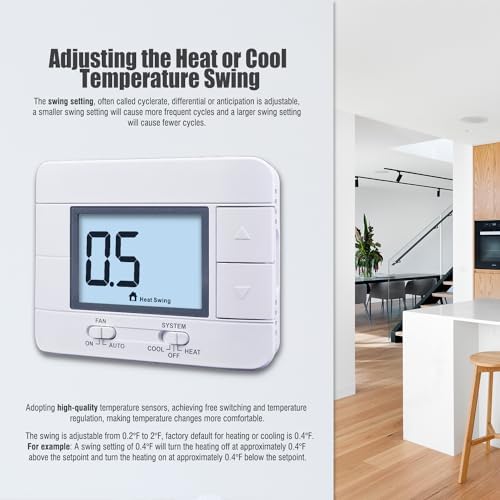

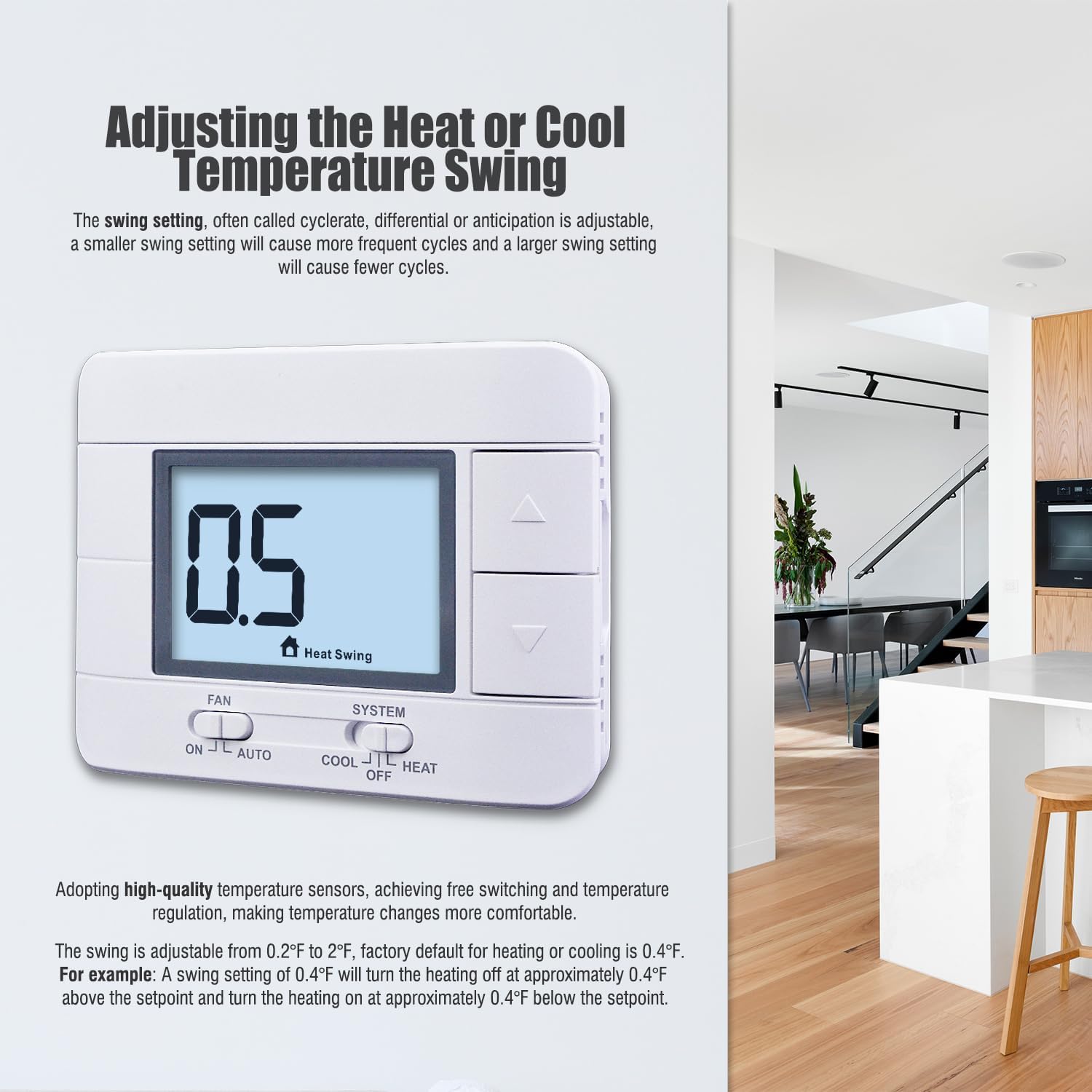

- Heating Swing (cycle rate or differential): is adjustable from 0.2°F to 2.0°F
- Cooling Swing (cycle rate or differential): is adjustable from 0.2°F to 2.0°F
- Temperature Calibration --- (is adjustable from -4°F to +4°F)
- Fahrenheit/Celsius Display --- (selectable °F or °C)

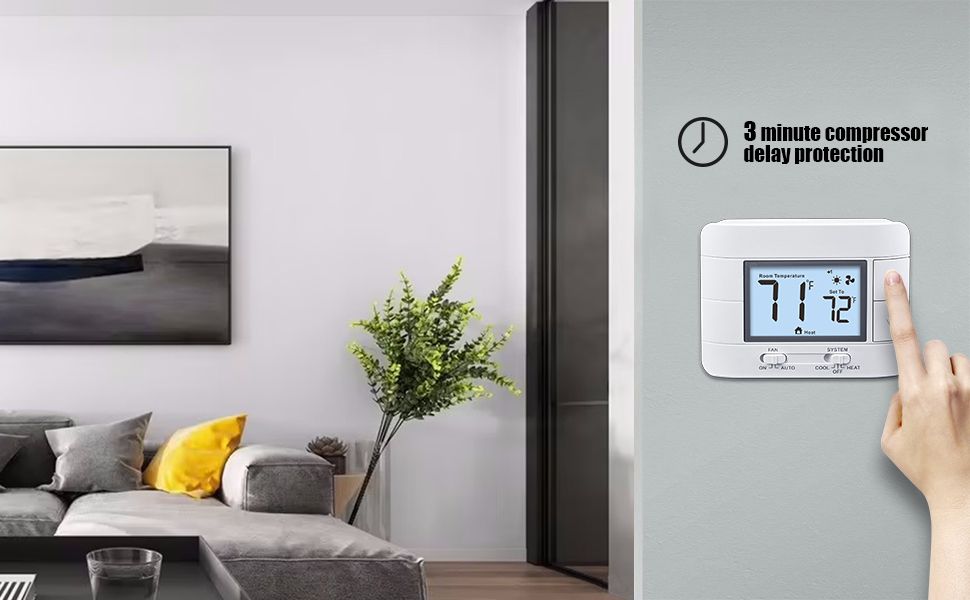

- 3 Minutes Compressor Delay --- (selectable on or off)
- Display Humidity --- (selectable on or off)

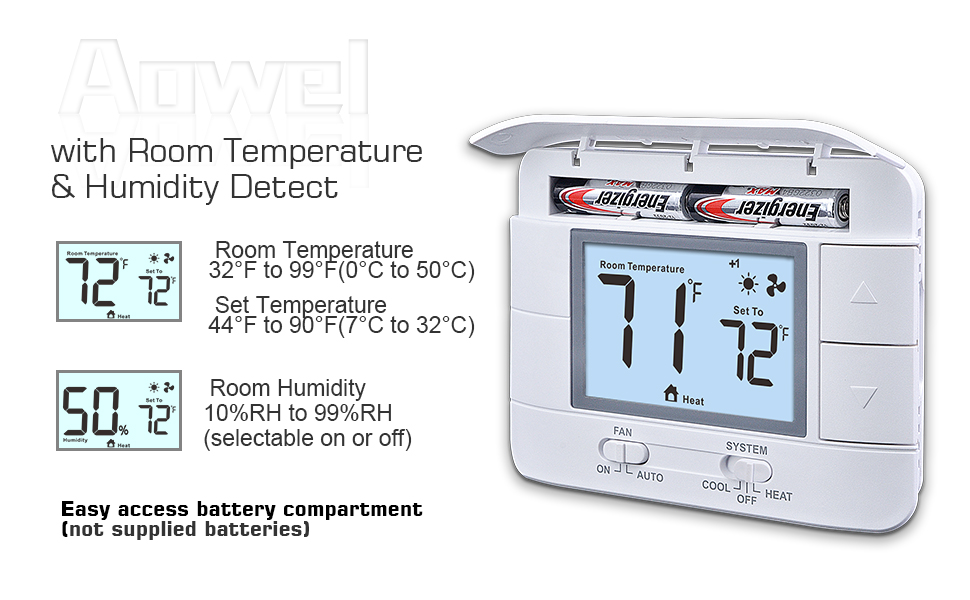

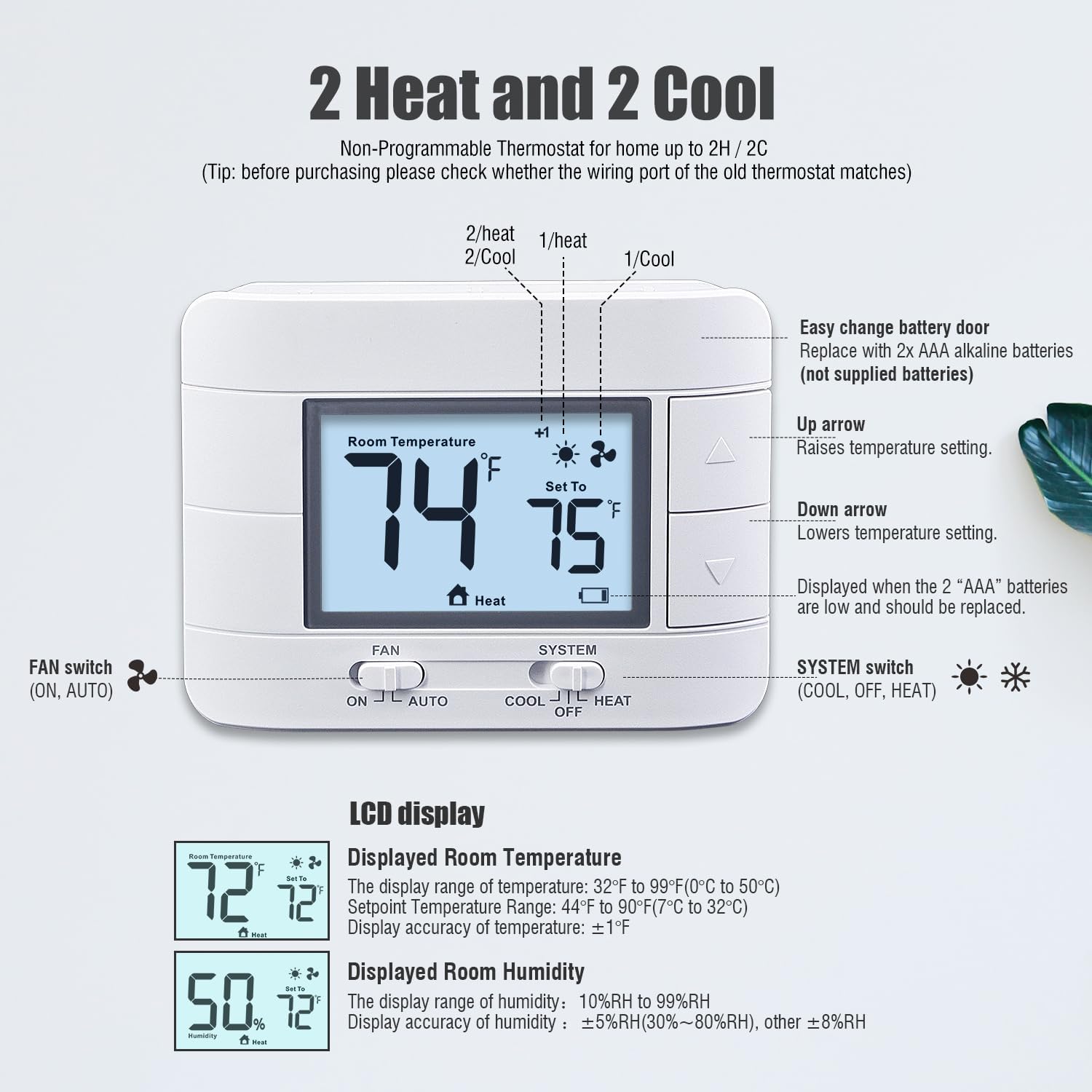

The display range of temperature.........32°F to 99°F(0°C to 50°C)
Setpoint Temperature Range...................44°F to 90°F(7°C to 32°C)
Display accuracy of temperature .............±1°F
The display range of humidity..................10%RH to 99%RH
Display accuracy of humidity ....................±5%RH(30%~80%RH), other ±8%RH
Operating ambient ......................................32°F to +105°F (0°C to +41°C)
Operating humidity ......................................90% (non-condensing)

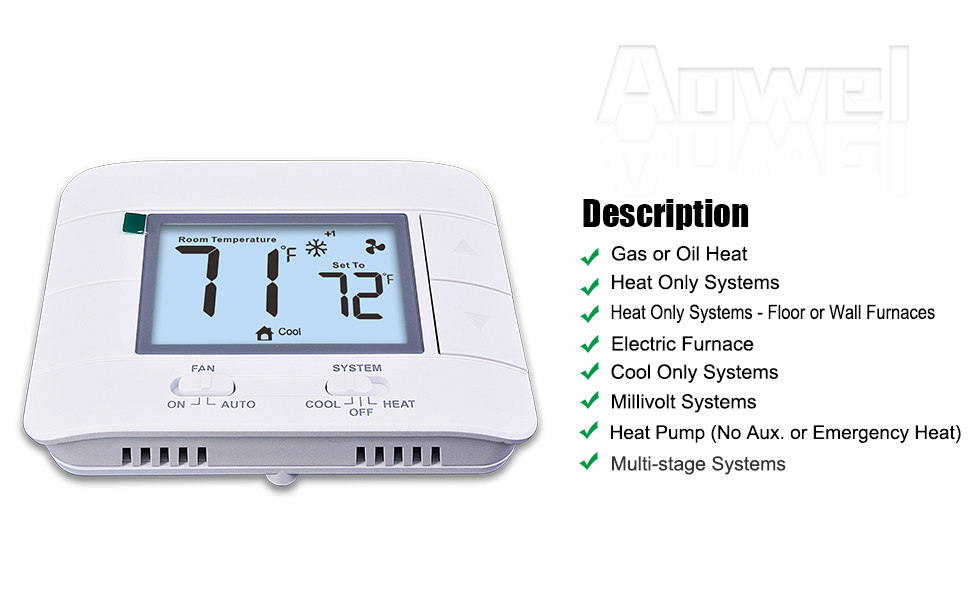

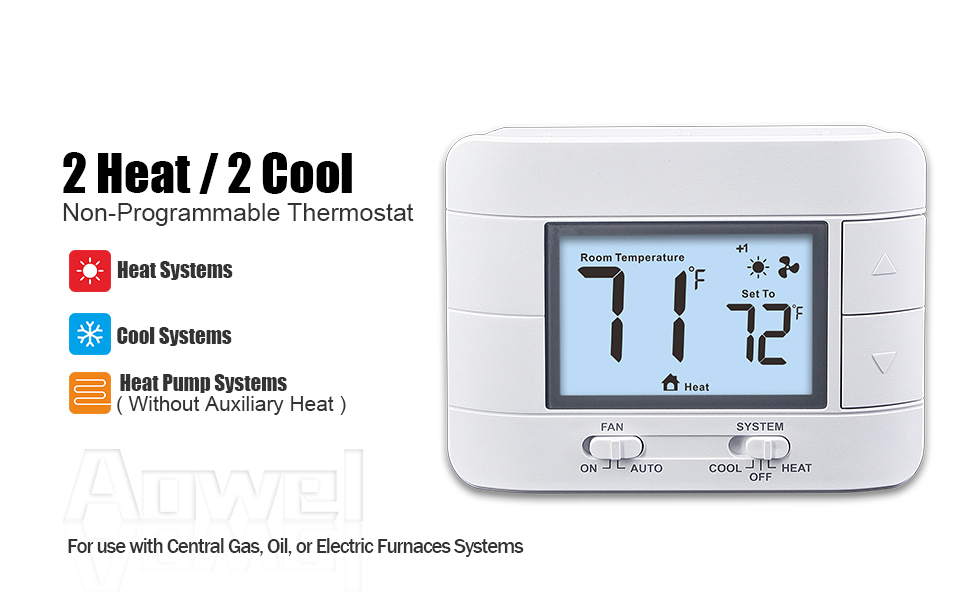

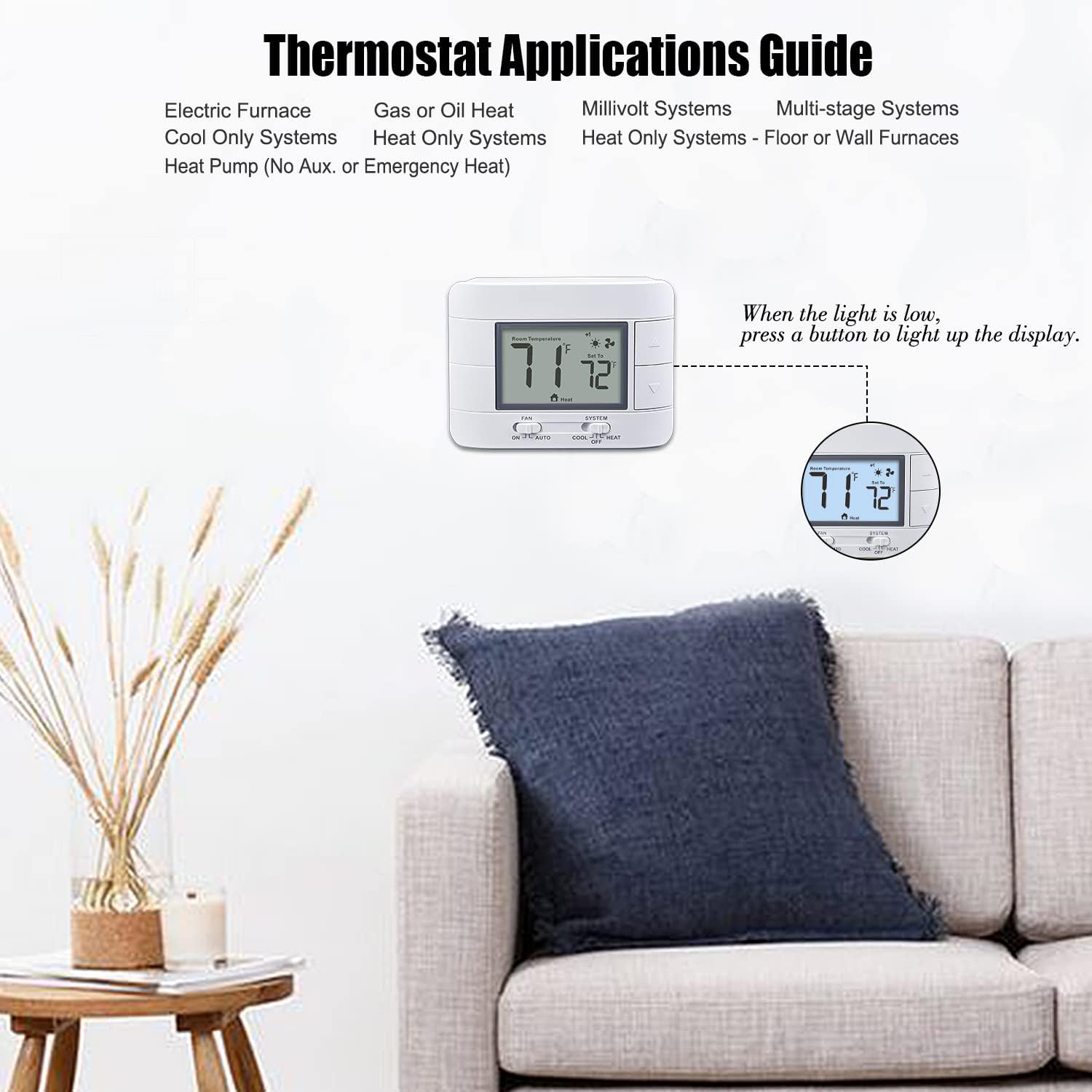

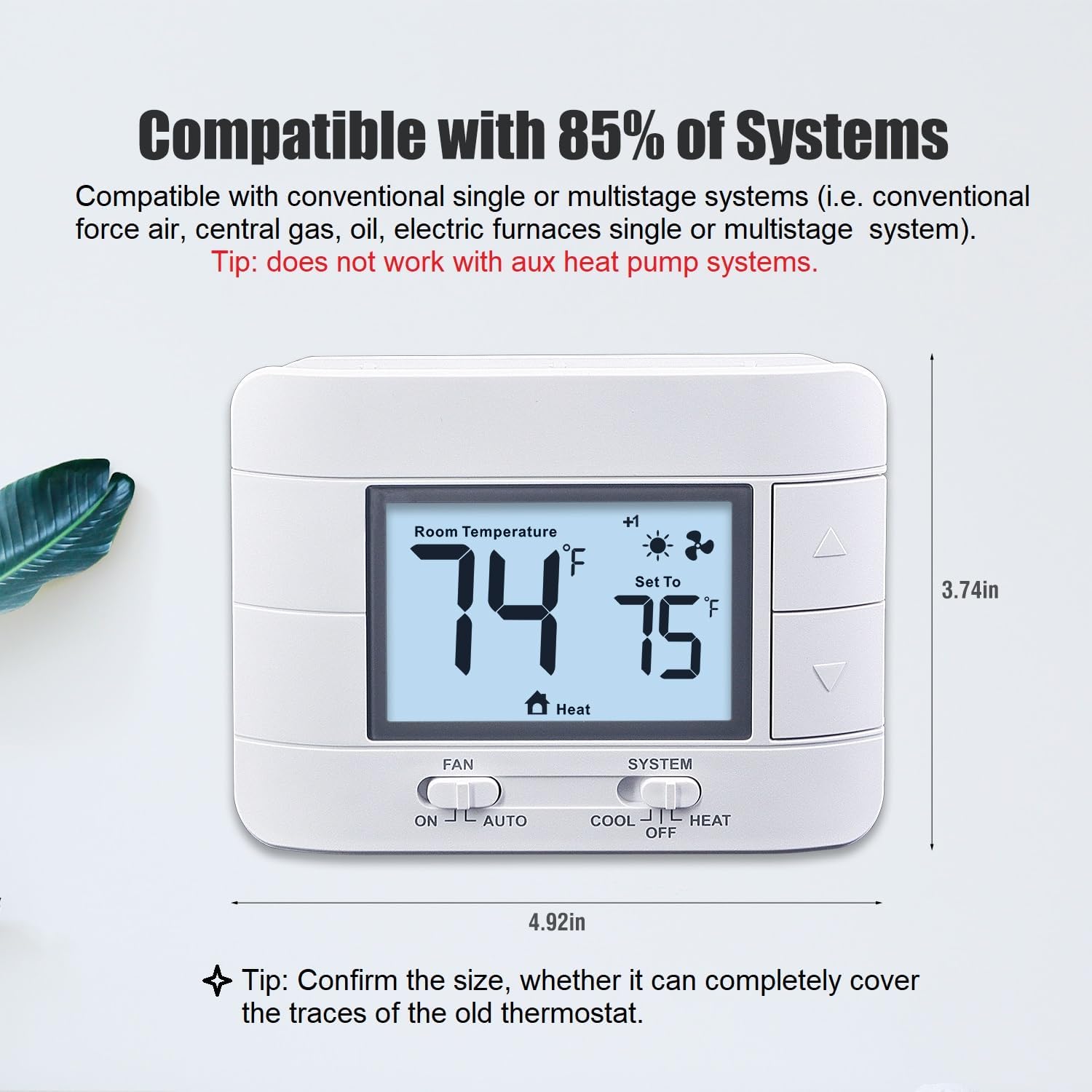

For use with Central Gas, Oil, or Electric Furnaces single or multistage systems, up to 2 Heat/ 2 Cool
1. Does not work with conventional multistage systems, heat pump systems, mini split systems and 12v rv thermostats.
2. Not compatible with 110-240V electric heat systems (like electric baseboard heat, line voltage, convectors, radiant-ceiling heat.

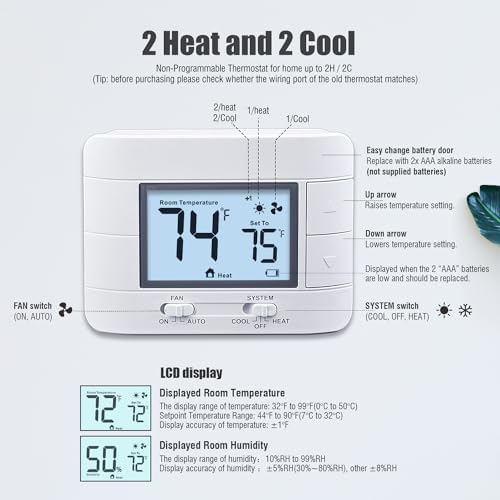

Features
- Large display and characters are easy to read
- Simple menu and big buttons for easy operation
- Fan switch with ON and AUTO functions

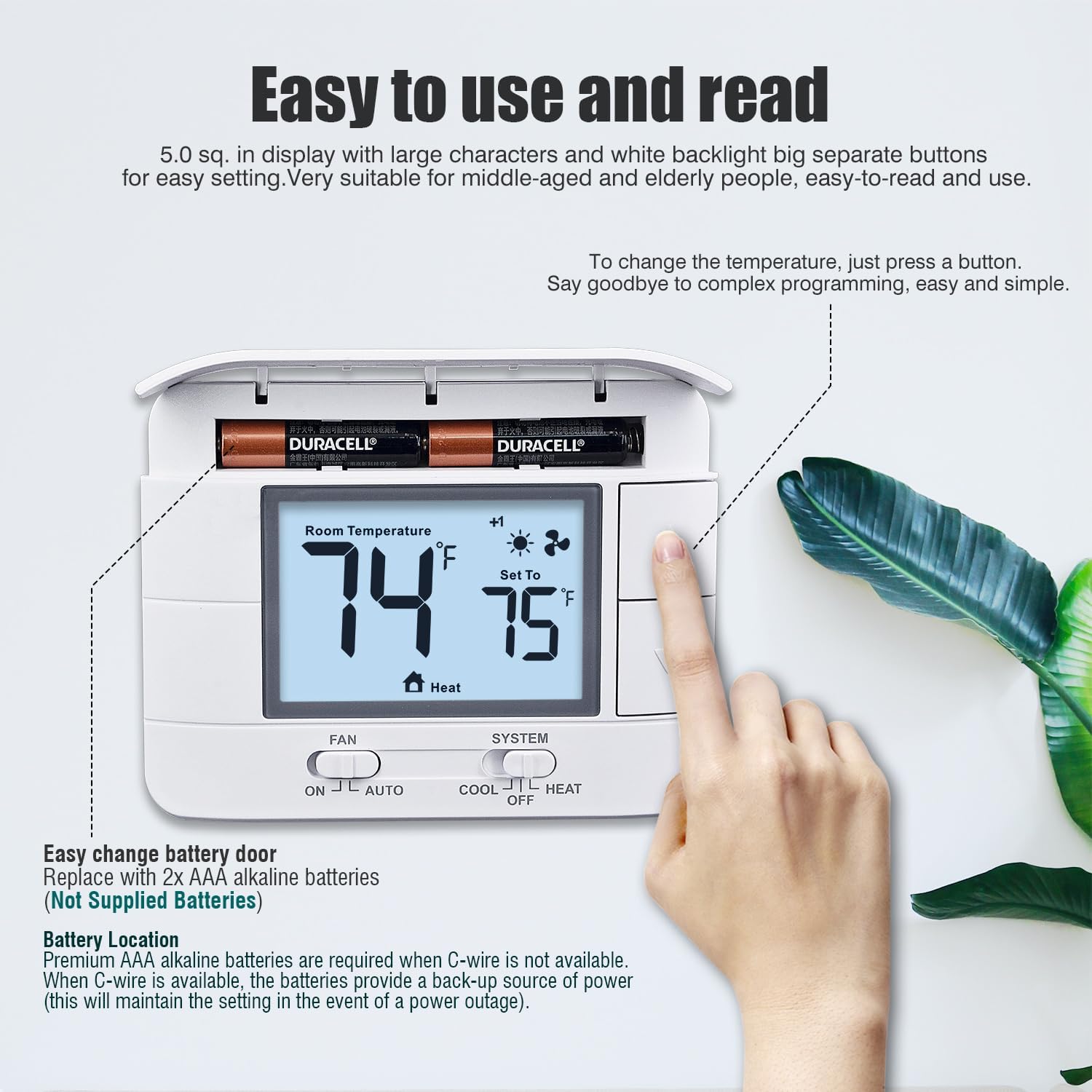

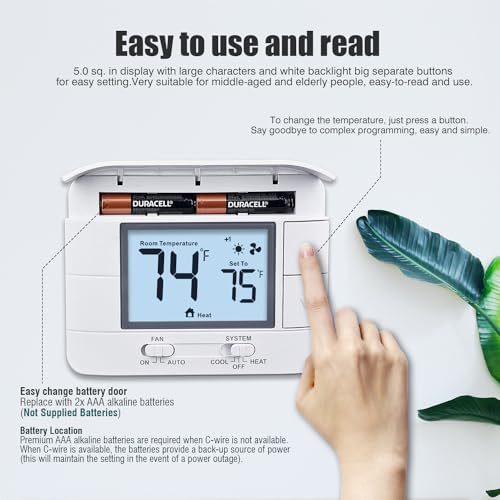

- Easy access battery compartment
- Low battery indication

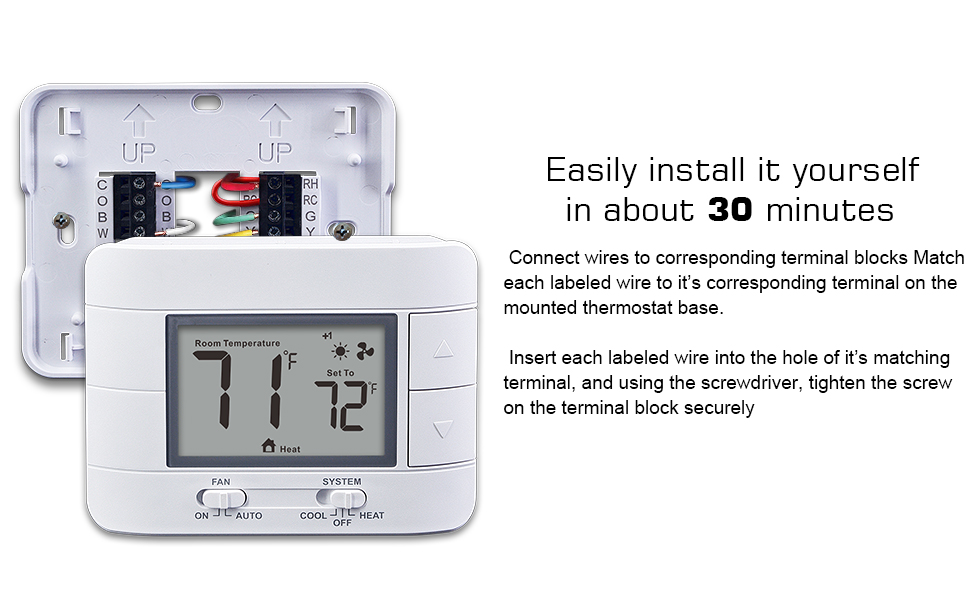

- Easy wire coded terminal blocks
- Separate heating and cooling swing (cycle rate) adjustments
- Separate B & O terminals

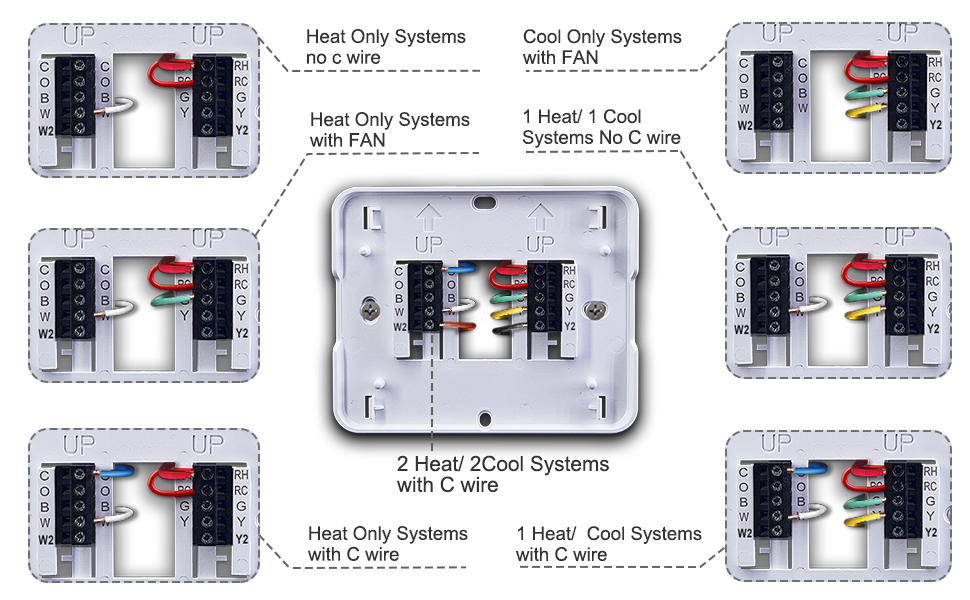

- Terminal Designations: RH, RC, G, Y, Y2, C, O, B, W, W2
- Universal sub-base, mounts on wall or junction box

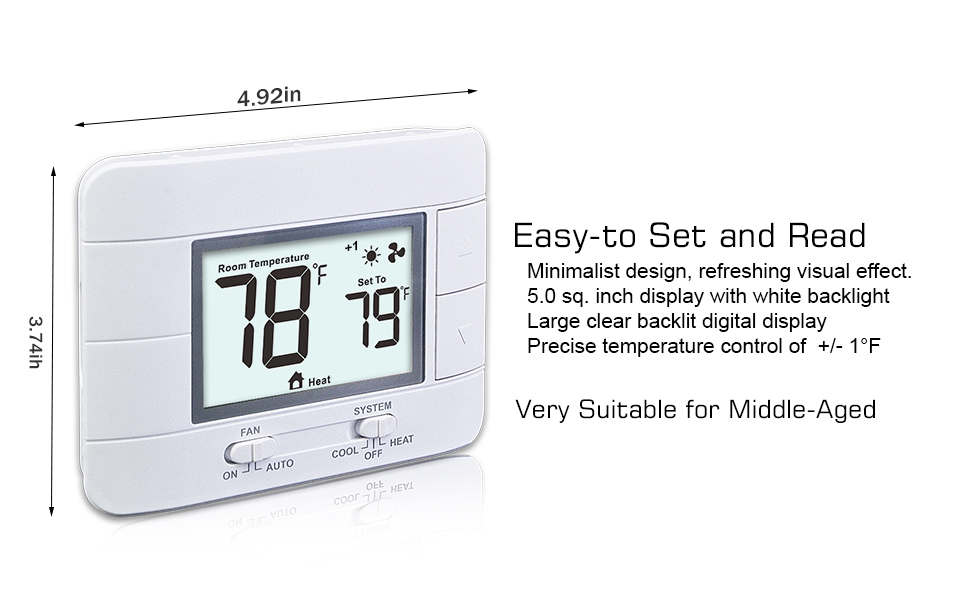

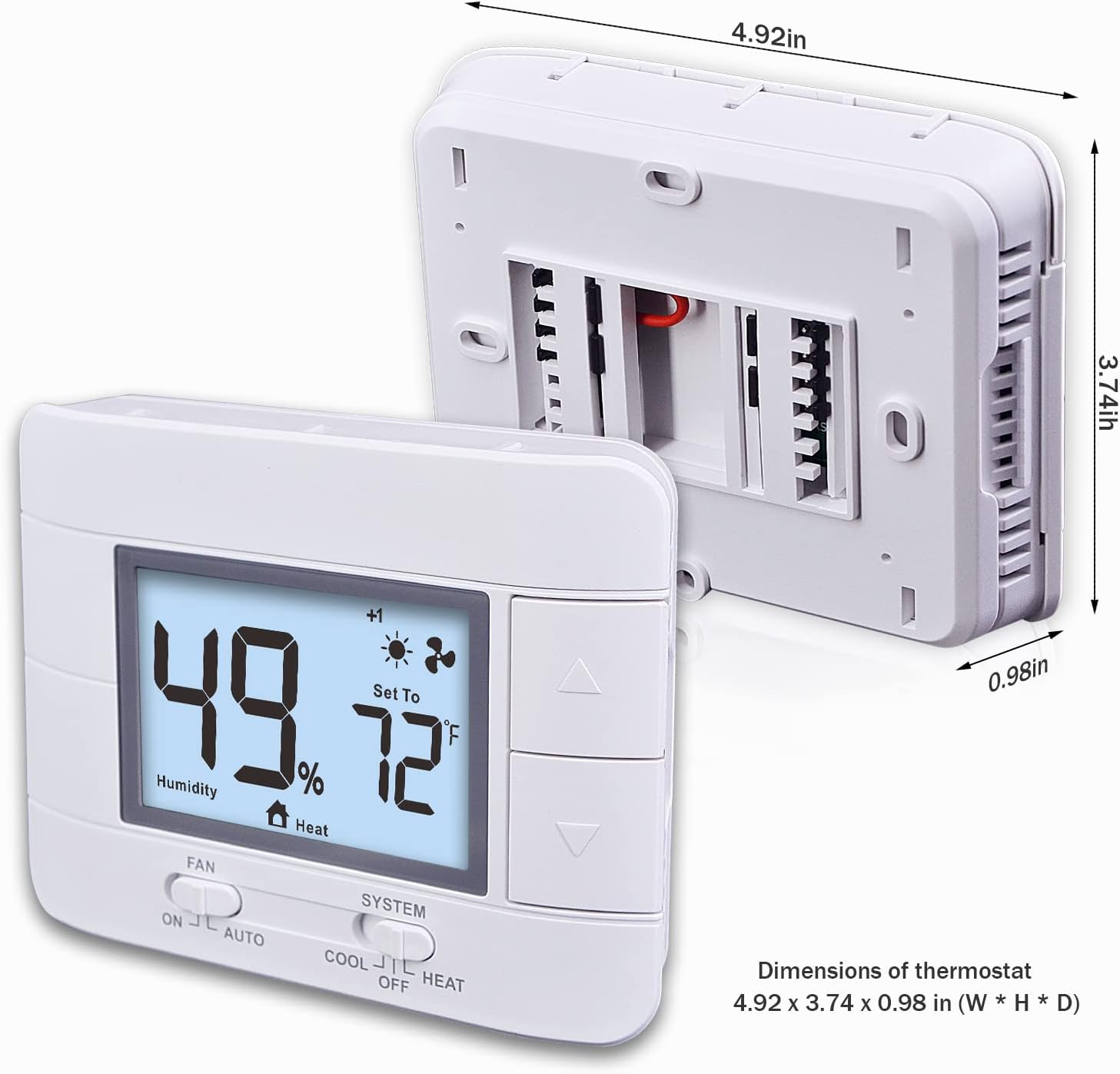

- Dimensions of thermostat: 4.92 x 3.74 x 0.98 in (W * H * D)

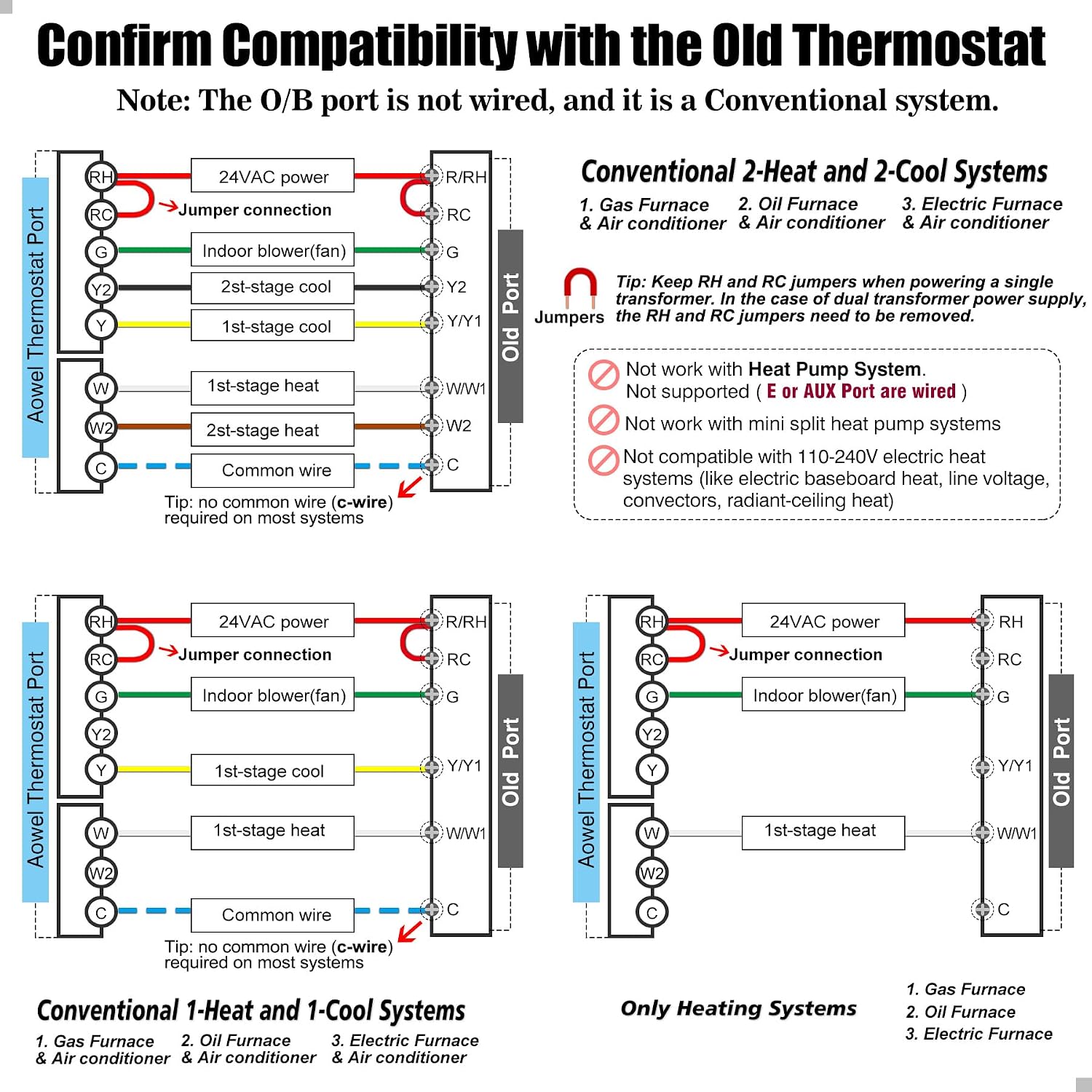

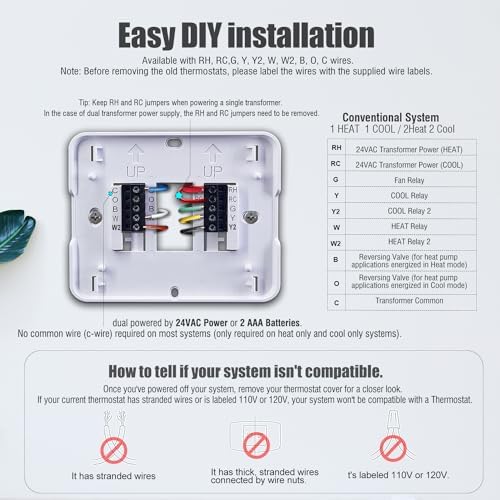

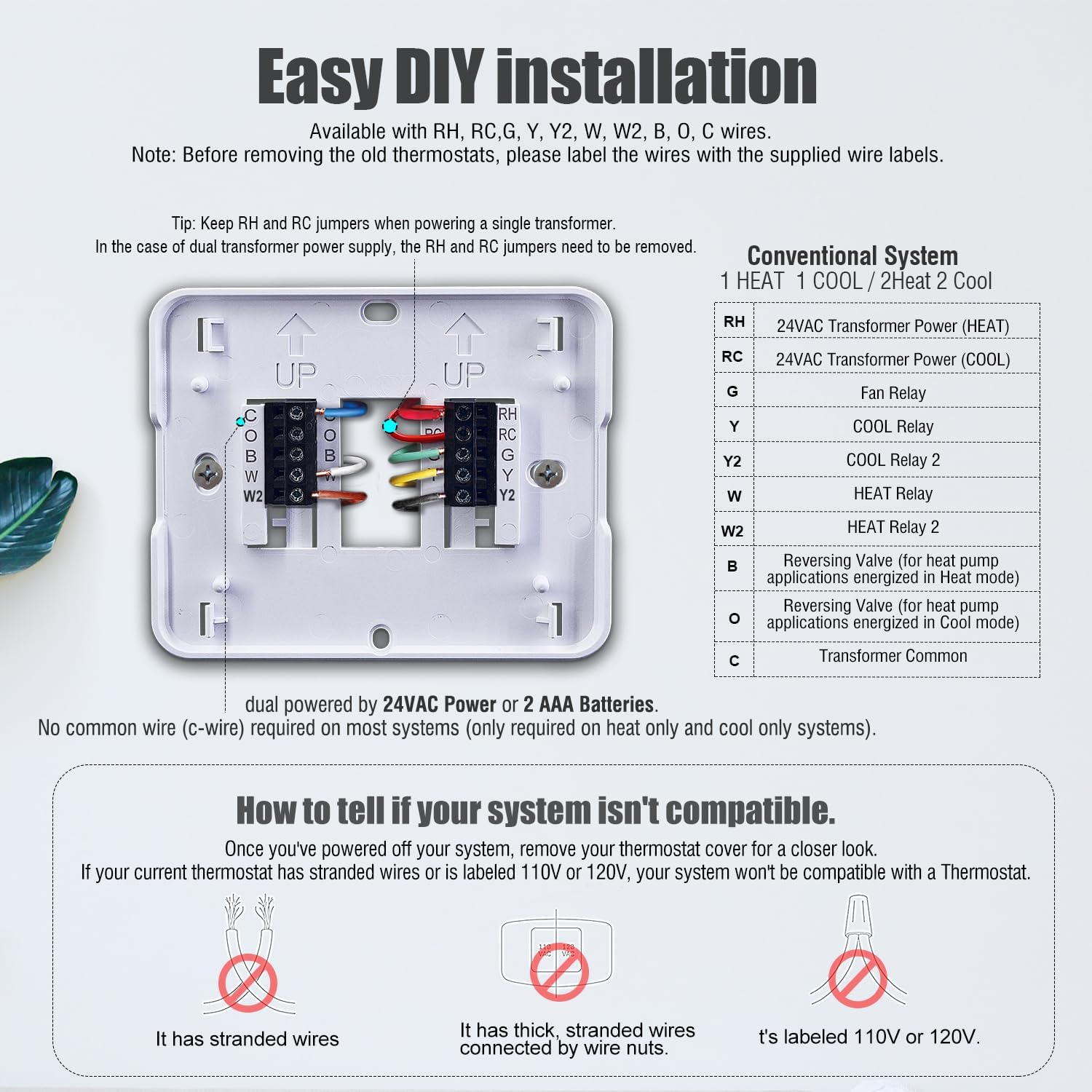

Terminal labeling reference
RH, (or R, R5, 5 ) ---------------- 24V Power (Heating)
RC -------------------------------- 24V Power (Cooling)
W, ( or W1, 4 ) ------------------- Heating Relay 1
W2 ------------------- Heating Relay 2
Y, ( or Y1 ) ----------------------- Cooling Relay 1
Y2 ----------------------- Cooling Relay 2
G --------------------------------- Fan Relay
O --- Reversing Valve (for heat pump applications energized in Cool mode)
B ---- Reversing Valve (for heat pumpapplications energized in Heat mode)
C --------------------------------- Common Wire
The C terminal does not have to be connected when the thermostat is powered by batteries.
Package Contents
1 x Digital Thermostat, 2 x Screws & Anchors, 1 x Installation Manual, 1 x Cable Label
