| Number of Channels | 758 |
|---|---|
| Additional Features | Emergency Alarm |
| Frequency Range | 144-148 MHz, 420-450 MHz |
| Talking Range Maximum | 16 kilometer |
| Voltage | 13.8 volts_of_direct_current |
| Water Resistance Level | Not Water Resistant |
| Tuner Type | UHF, VHF |
| Item Weight | 4.1 pounds |
| Waterproof Rating | IP67 |
| Color | Black |
| Model Number | AT5888UV |
| Built-In Media | Lighted full keypad microphone, Optional suitable Dualband Antenna |
| Unit Count | 1 Count |
| Manufacturer | Qixiang |
| UPC | 628586667990 |
| Mfr Part Number | AT-5888UV |
| Number Of Channels | 758 |
| Special Feature | Emergency Alarm |
| Talk Range Maximum | 16 kilometer |
| Included Components | Lighted full keypad microphone, Optional suitable Dualband Antenna |

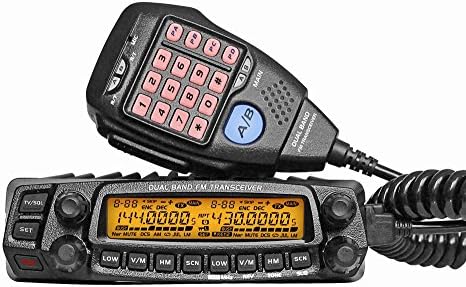

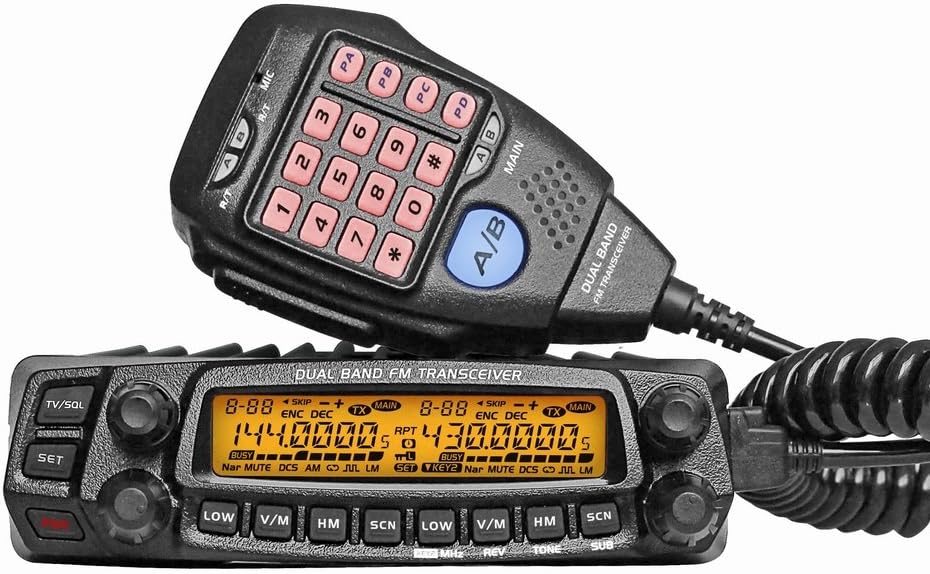

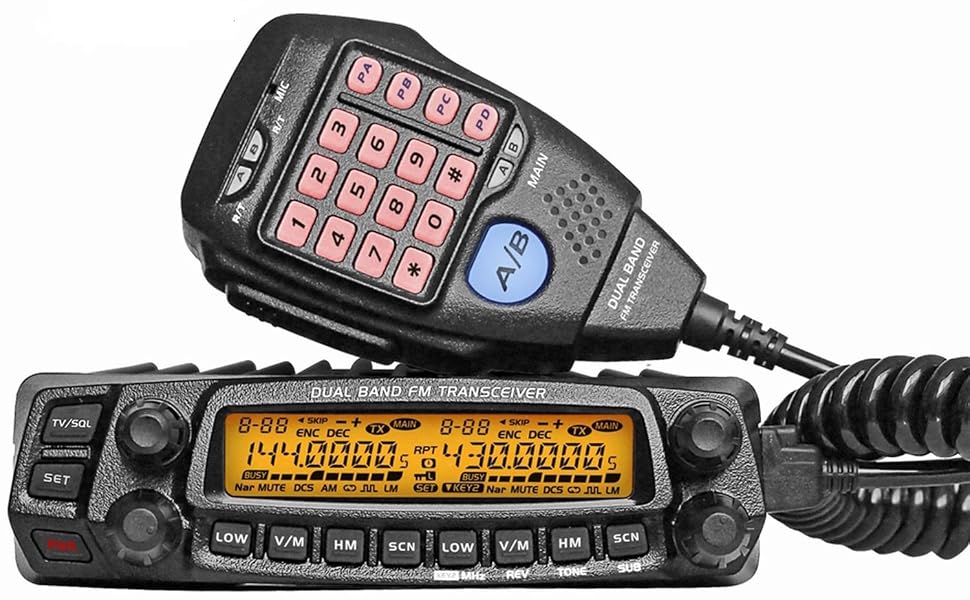

Dual Band Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable. This mobile radio
especially designs for drivers and it pursues company philosophy of innovation and practicality. More functions as follows:
758 memory channels, full duplex operation with independent volume and squelch controls 50 Watts of power output on the VHF band and 40 Watts on the UHF band with cross band repeat function. Four independent receiving bands, consist of UU, UV,VU,VV for dual receive and dual output, plus receiving for AM/FM signal of air band,marine band, PMR, etc; able to receive FM/TV radio and analogue TV signal (Optional). Display on a large LCD with adjustable brightness, convenient for nighttime use. Distribute buttons reasonably, convenient for operation. Adopt superior quality material, better technology and direct-flow heat sink to ensure stable and durable operation. 758 programmable memory channels, identified by editing name. Programming different CTCSS, DCS, 2Tone, 5Tone per channel, rejecting extra calling from other radios. Various scan functions including CTCSS/DCS Scan function. Using 5Tone to send Message, Emergency alarm, Call all, ANI, Remotely kill, Remotely Waken, etc. Automatic calling ldentification function by DTMF--ANI or 5Tone--ANI . Multi groups of fixed scrambling and 2 groups of self defined scrambling. Compander function for decrease the background noise and enhance audio clarity, it can set compander ON/OFF per channel. Different band width per channel, 25K for wide band, 20K for middle band ,or 12.5K for narrow band. Theft alarm provides extra safety.
| Frequency Range | 144~146MHz (EXP:136~174MHz) 420~450MHz (EXP:400~490MHz) RX: 222~225MHz (FM) 400~490MHz (FM) |
| Number of Channels | 758 channels |
| Channel Spacing | 25KHz(Wide band) 20KHz(Middle band) 12.5KHz (Narrow band) |
| Phase-locked Step | 2.5KHz、5KHz、6.25KHz、10KHz、 12.5KHz、15KHz、20KHz、25KHz、 30KHz、50KHz |
| Operating Voltage | 13.8V DC ±15% |
| Squelch | Carrier/CTCSS/DCS/5Tone/2Tone/DTMF |
| Frequency Stability | ±2.5ppm |
| Operating Temperature | -20~+60℃ |

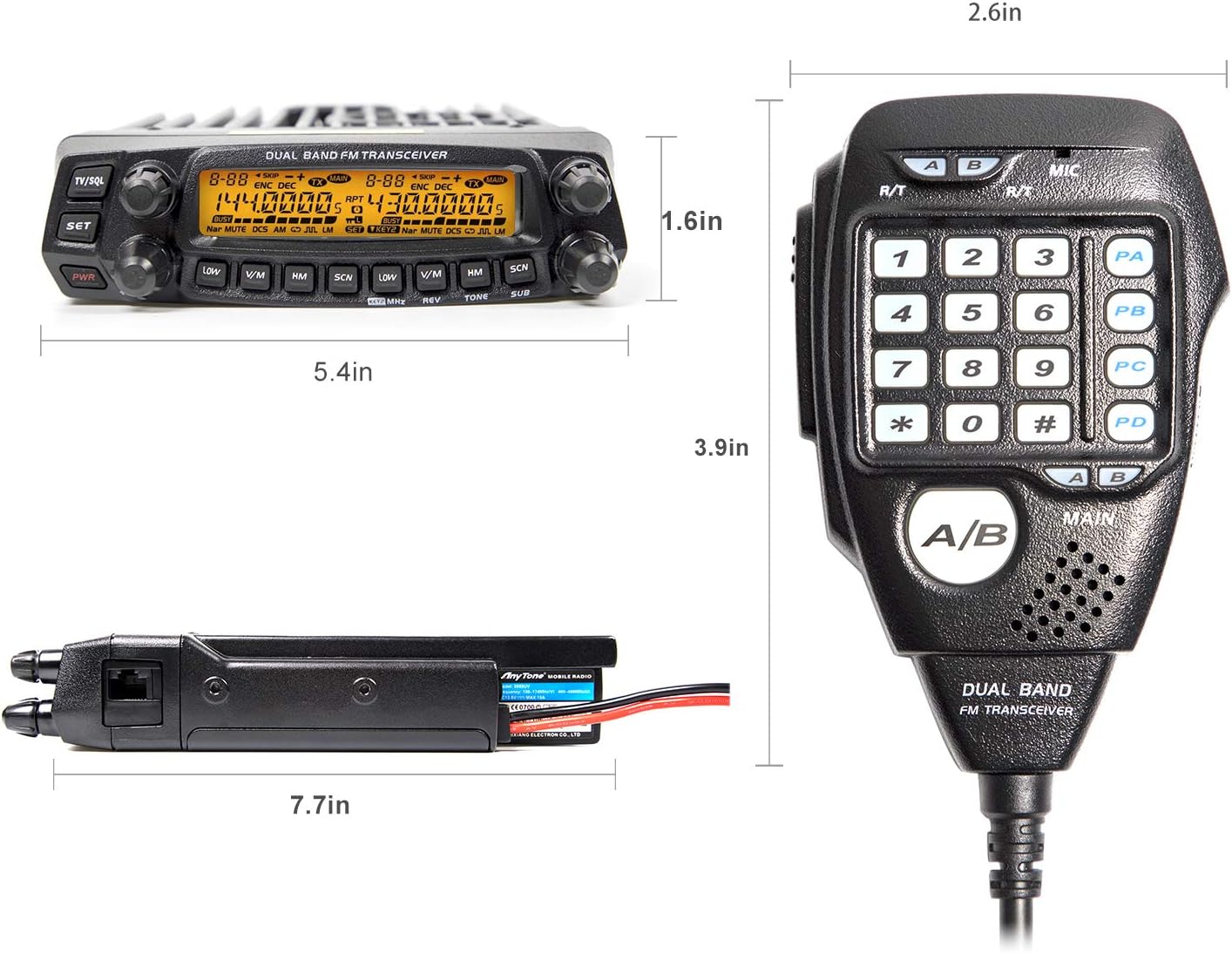

| Dimensions(WxHxD) | 139(W)x40(H)x212(D)mm |
| Weight | about 1.14kg |
| Sensitivity (12dB SINAD) | Wide band:≤0.25μV,Narrow band:≤0.35μV |
| Adjacent Channel Selectivity | Wide band:≥70dB Narrow band:≥60dB |
| Audio Response | Wide band:≥45dB Narrow band:≥40dB |
| Audio distortion | ≤5% |
| Audio power output | ＞2W@10% |
| Power Output | Wide band &Narrow band :50W/25W/10W/5W(VHF) 40W/25W/10W/5W(UHF), |
| Modulation | Wide band:16KΦF3E,Narrow band:11KΦF3E |
| Adjacent Channel Power | Wide band:≥70dB,Narrow band:≥60dB |
| Hum & Noise | Wide band:≥40dB Narrow band:≥36dB |
| Spurious Emission | Wide band:≥70dB Narrow band:≥70dB |
| Audio Response | Wide band:+1~-3dB(0.3~3KHz) Narrow band:+1~-3dB(0.3~2.55KHz) |
| Audio Distortion | Wide band &Narrow band :≤5% |

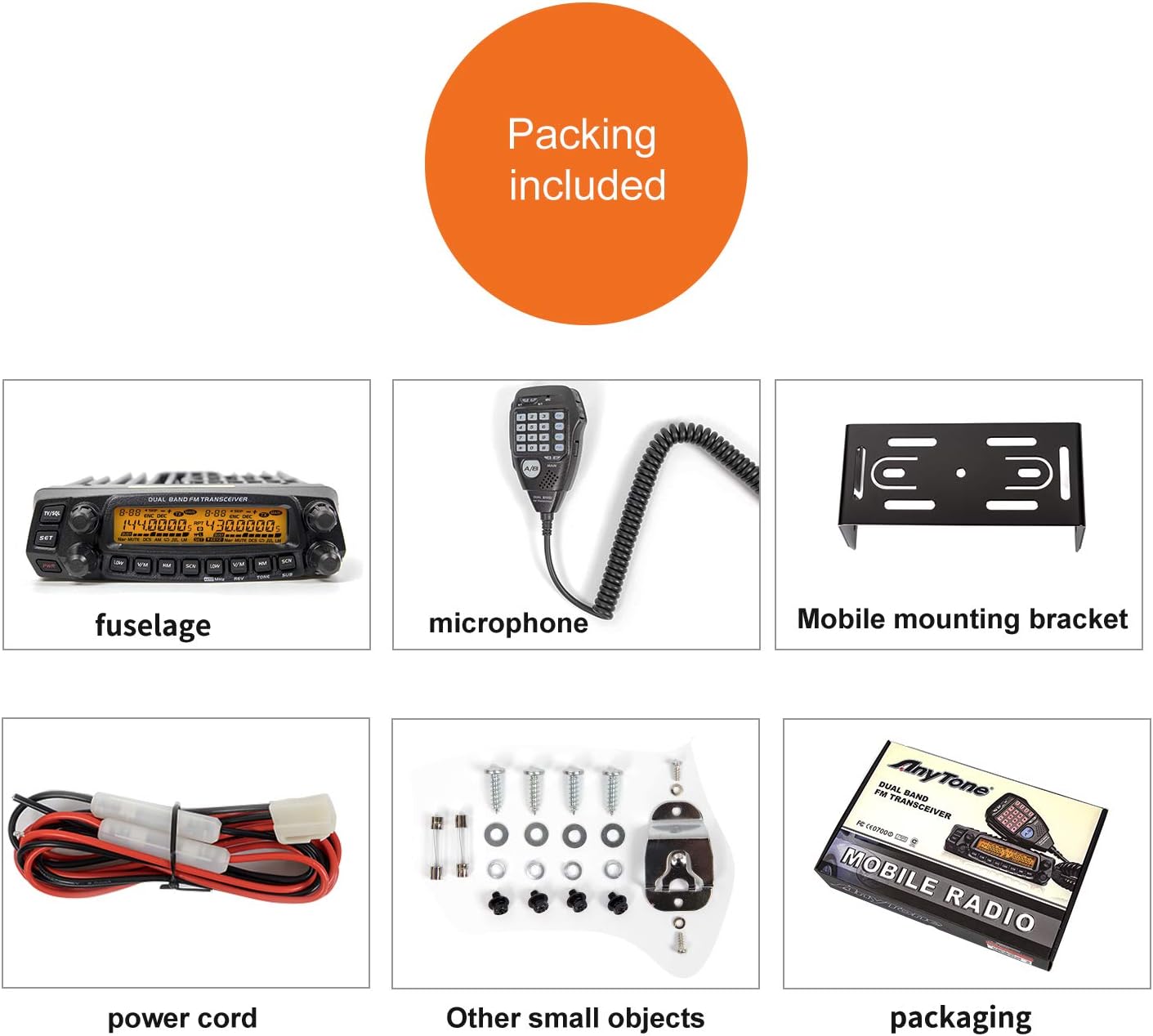

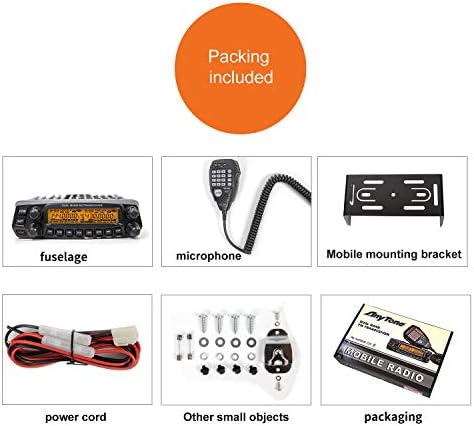

AT-5888UV (Dual Band Radio)*1
Microphone*1
Mobile mounting bracket*1
DC power cable with fuse holder*1
Screws for bracket*1
User manual*1
programming cable *1
