| Number of Channels | 200 |
|---|---|
| Additional Features | Long Range |
| Frequency Range | 144-148/420-450MHZ |
| Talking Range Maximum | 5 kilometer |
| Voltage | 13.8 volts_of_direct_current |
| Water Resistance Level | Not Water Resistant |
| Number of Batteries | Unknown batteries required. |
| Compatible Devices | Other AnyTone radios, compatible accessories |
| Connectivity Protocol | CTCSS, DCS |
| Tuner Type | UHF, VHF |

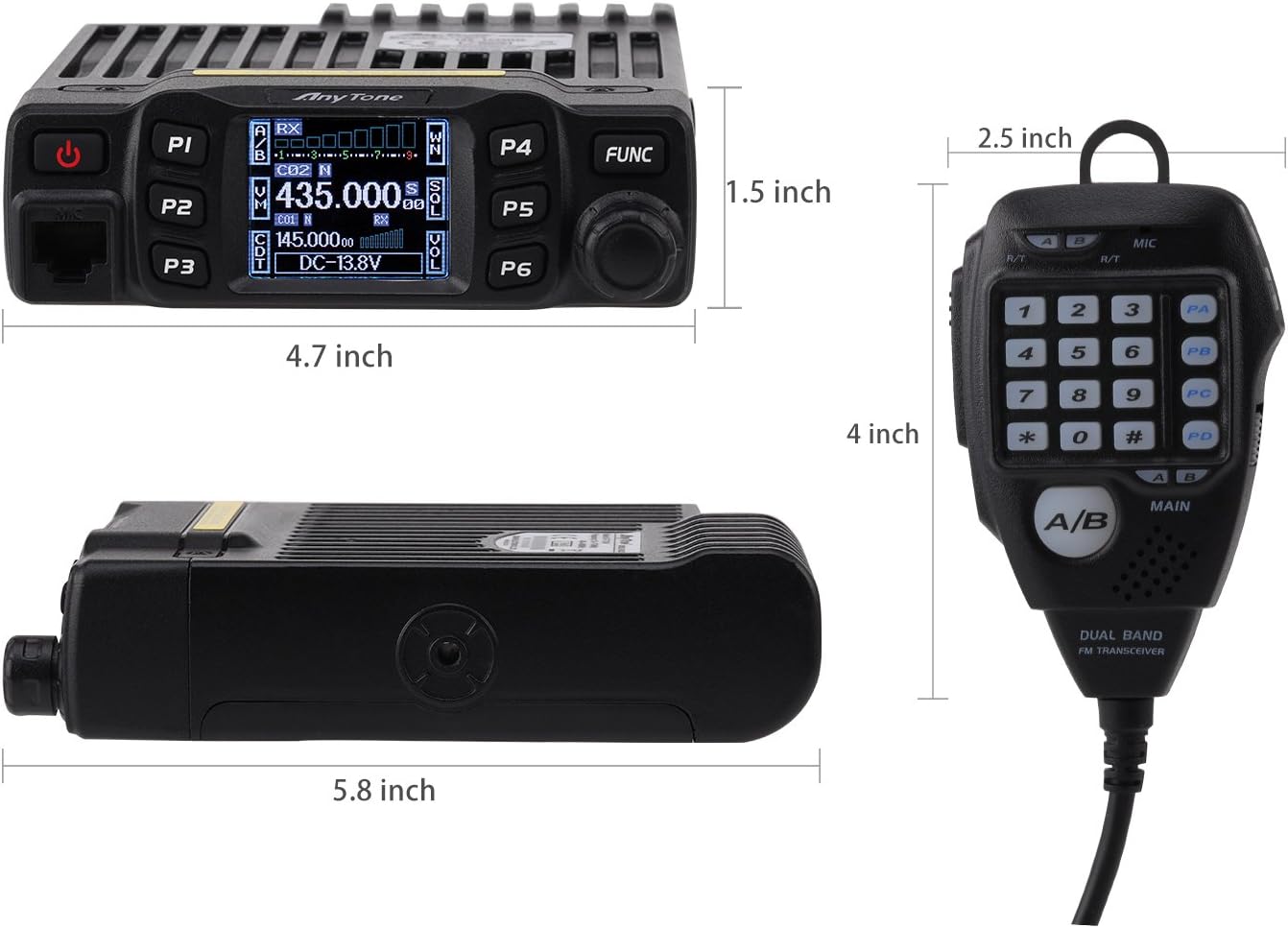

| Item Dimensions D x W x H | 4.7"D x 5.8"W x 1.5"H |
| Color | Black |
| Model Number | AT-778UV |
| Built-In Media | 1 piece radio |
| Global Trade Identification Number | 00799577000918 |
| Unit Count | 1 Count |
| Manufacturer | QIXIANG |
| UPC | 799577000918 |
| Mfr Part Number | AT-778UV |
| Warranty Description | 6 months from purchase date |
| Number Of Channels | 200 |
| Special Feature | Long Range |
| Talk Range Maximum | 5 kilometer |
| Item Depth Width Height | 4.7"D x 5.8"W x 1.5"H |
| Num Batteries | Unknown batteries required. |

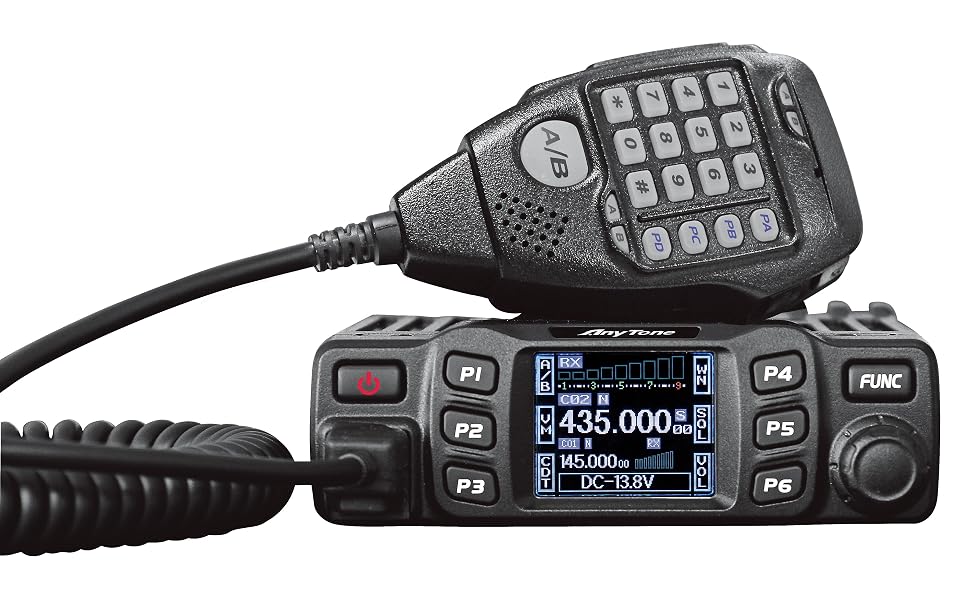

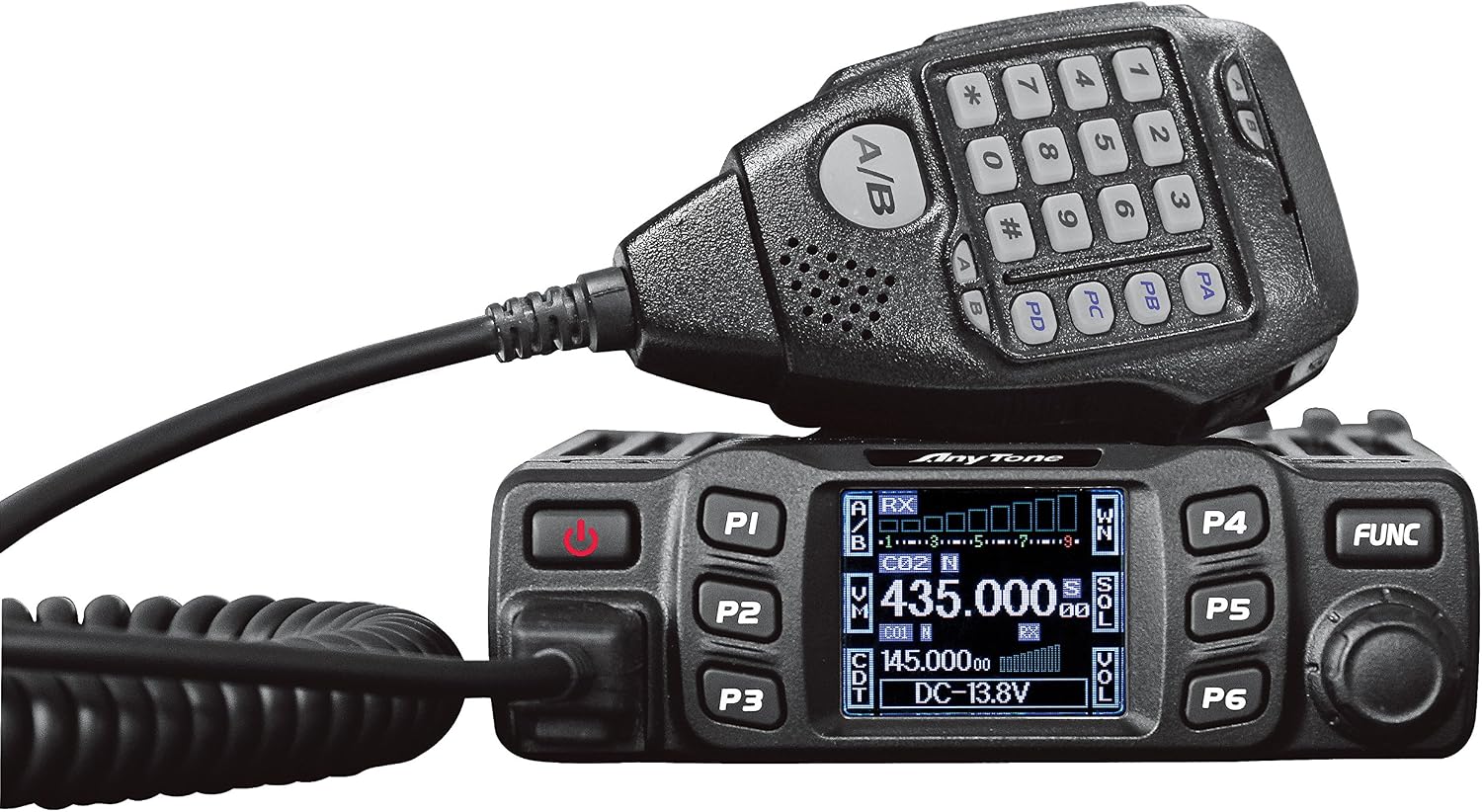

AnyTone AT-778UV Mobile Radio is complied with Federal Communications Commission (FCC) regulations. complies with Part 15B and Part 97 of FCC rule, FCC ID is T4K-778UV. AT-778UV Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable. This amateur mobile radio especially designs for drivers and it pursues philosophy of innovation and practicality. More functions as follows:
1.Adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation; 180 degree rotatable TFT LCD display Full alloy body for heat radiation;
2. louder speaker inside microphone and radio base; VOX function
3. Amateur mode and professional mode for different operation requirement;
4. Distribute buttons reasonably, convenient for operation;
5. Sperate band width setting for each single channel, Wide 25K, Middle 20K, arrow 2.5K;
6. 200 programmable memory channels, identiied by editing name;
7. Sperate CTCSS, DCS setting for each single channel, rejecting extra calling from other radios;
8. Various scan functions including CTCSS/DCS Scan function;
9. Smart menu control and PC programming control;
10. Voltage level protection;
11. LCD brightless control;
12. Automatic power on function;
13. Main unit and microphone key lock function;
Frequency Range: VHF:136-174MHz UHF:400-490MHz
Number of Channels:200 channels
Channel Spacing:25K(Wide Band) 20K(Middle Band) 12.5K(Narrow Band)
Phase-locked Step:2.5KHz, 5KHz,6.25KHz,8.33KHz,10KHz,12.5KHz,20KHz, 25KHz,30KHz,50KHz
Operating Voltage:13.8V DC ± 15%
Squelch:Carrier/CTCSS/DCS
Frequency Stability:±5ppm
Operating Temperature:-20℃~+60℃
Dimensions(W*H*D)112(W)*30(H)*14.2(L)mm
Weight:About 0.51Kg
Receiver:(ETSI EN 300086 standard testing)
Sensitivity(12dB Sinad): Wide band: ≤ 0.25μV Narrow band:≤ 0.35μV
Adjacent Channel Selectivity: Wide band: ≥60dB Narrow band:≥60dB
Audio Response Wide band: +1～-3dB(0.3～3KHz) Narrow band:+1～-3dB(0.3～2.55KHz)
Hum&Noise :Wide band:≥45dB Narrow band:≥40dB
Audio distortion:≤5%
Audio power output:>2W@8Ω
Transmitter:(ETSI EN 300086 standard testing)
Power Output: Wide band:25W/15W/5W Narrow band:25W/15W/5W
Modulation:Wide band:16KΦF3E Narrow band:11KΦF3E
Adjacent Channel Power:Wide band:≥70dB Narrow band:≥60dB
Hum&Noise:Wide band:≥40dB Narrow band:≥36dB
Spurious Emission:Wide band:≥60dB Narrow band: ≥60dB
Audio Response:+1～-3dB(0.3～3KHz) Narrow band:+1～-3dB(0.3～2.55KHz)
Audio Distortion:≤5%

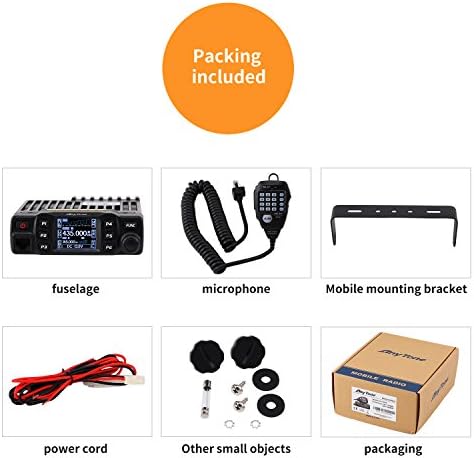

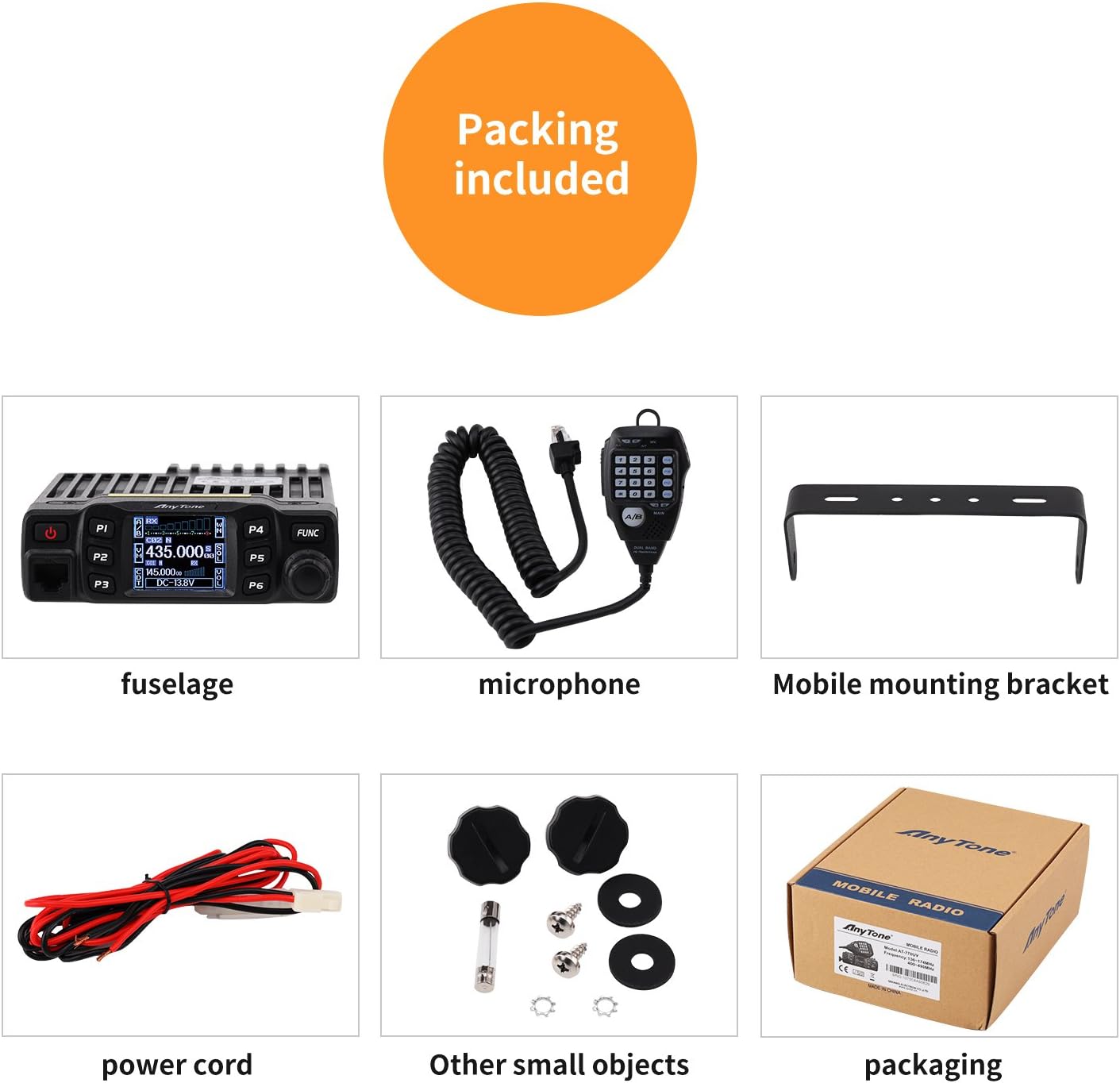

Transceiver *1 unit
Microphone *1 unit
Mounting Bracket *1 piece
Screws *2 pieces
Pads *2 pieces
Adjusting Screws *2 pieces
Microphone Hanger *1 piece
Fuse(10A 250V)
DC power cable with fuse holder *1 piece
