| Power Source | Battery Powered |
|---|---|
| Upper Temperature Rating | 122 °F |
| Style Name | AF-600: Ground Fault Locator |
| Color | Black, Red |
| Item Weight | 1.1 pounds |
| Item Dimensions | 31 x 27 x 4 inches |
| Specification Met | Iec 61010-1, Csa, Ul |
| Model | AF-600 |
| Unit Count | 1 Count |
| UPC | 095969873734 |
| Manufacturer | Amprobe (Fluke Electronics Corp) |
| Global Trade Identification Number | 00095969873734 |

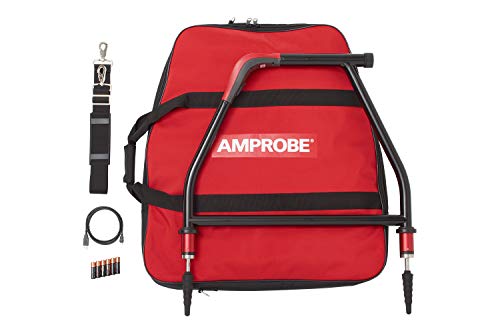

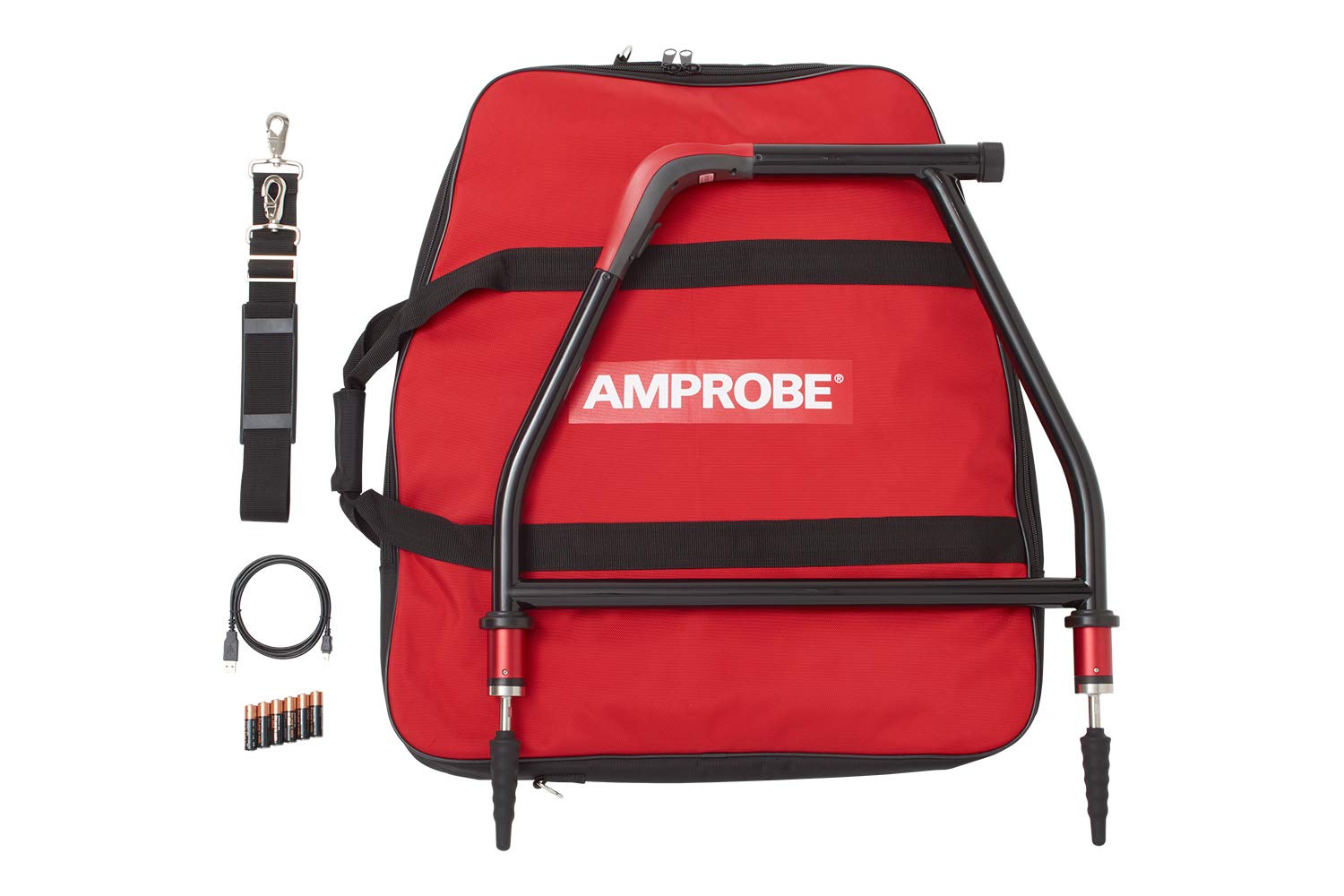

| Included Components | A-Frame Receiver, Batteries, Carrying Case, User Manual |
| Item Type Name | AF-600,A-FRAME FAULT LOCATOR,UAT-600 |
| Part Number | AF-600 |
| Power Source Type | Battery Powered |
| Style | AF-600: Ground Fault Locator |

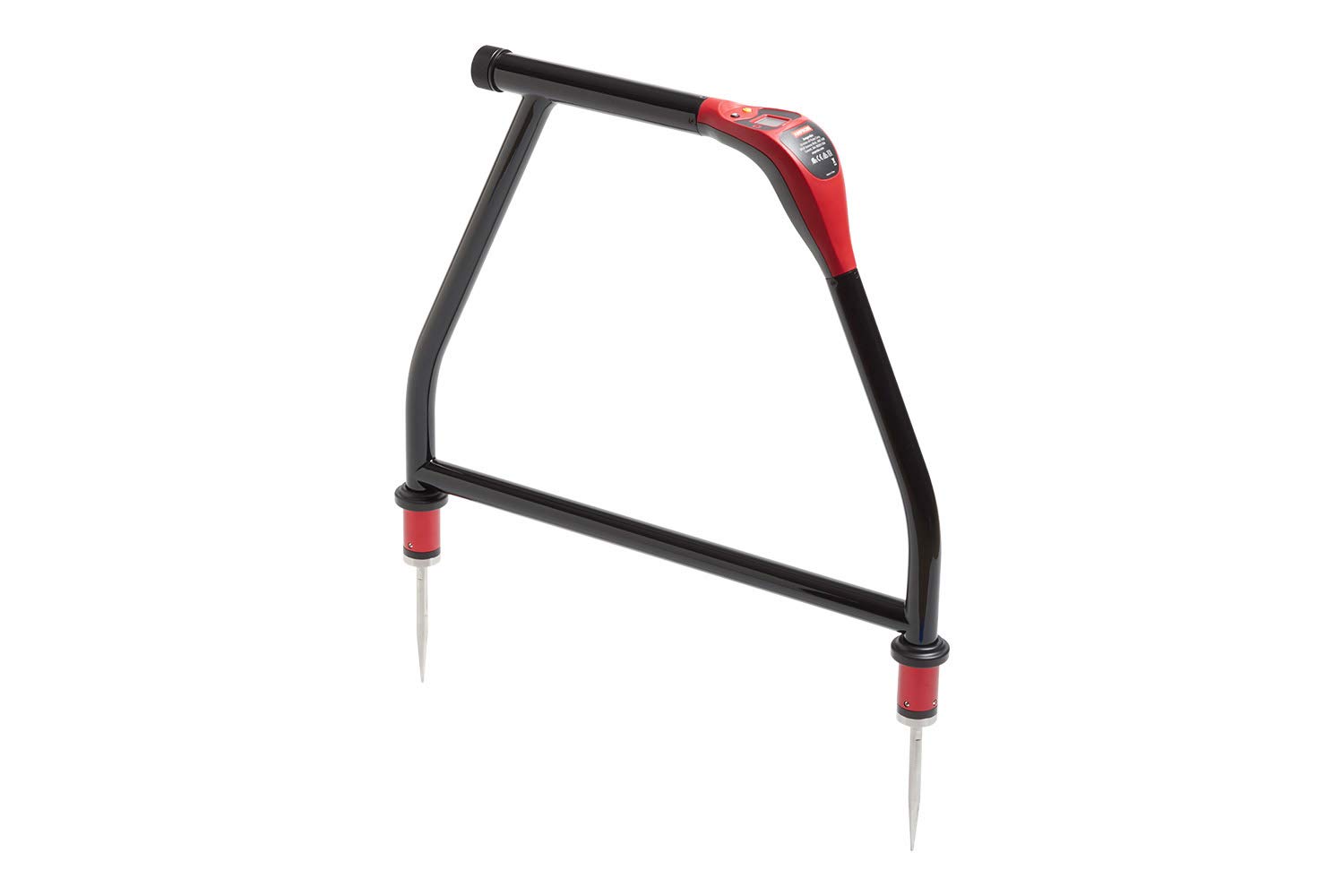

AF-600 A-Frame Ground Fault Locator
All Amprobe tools, including the Amprobe AF-600, are supported and designed by Fluke engineers with the customer in mind. Our products are built for safety, accuracy, reliability, and ruggedness to perform in a tough, professional environment for many years to come.

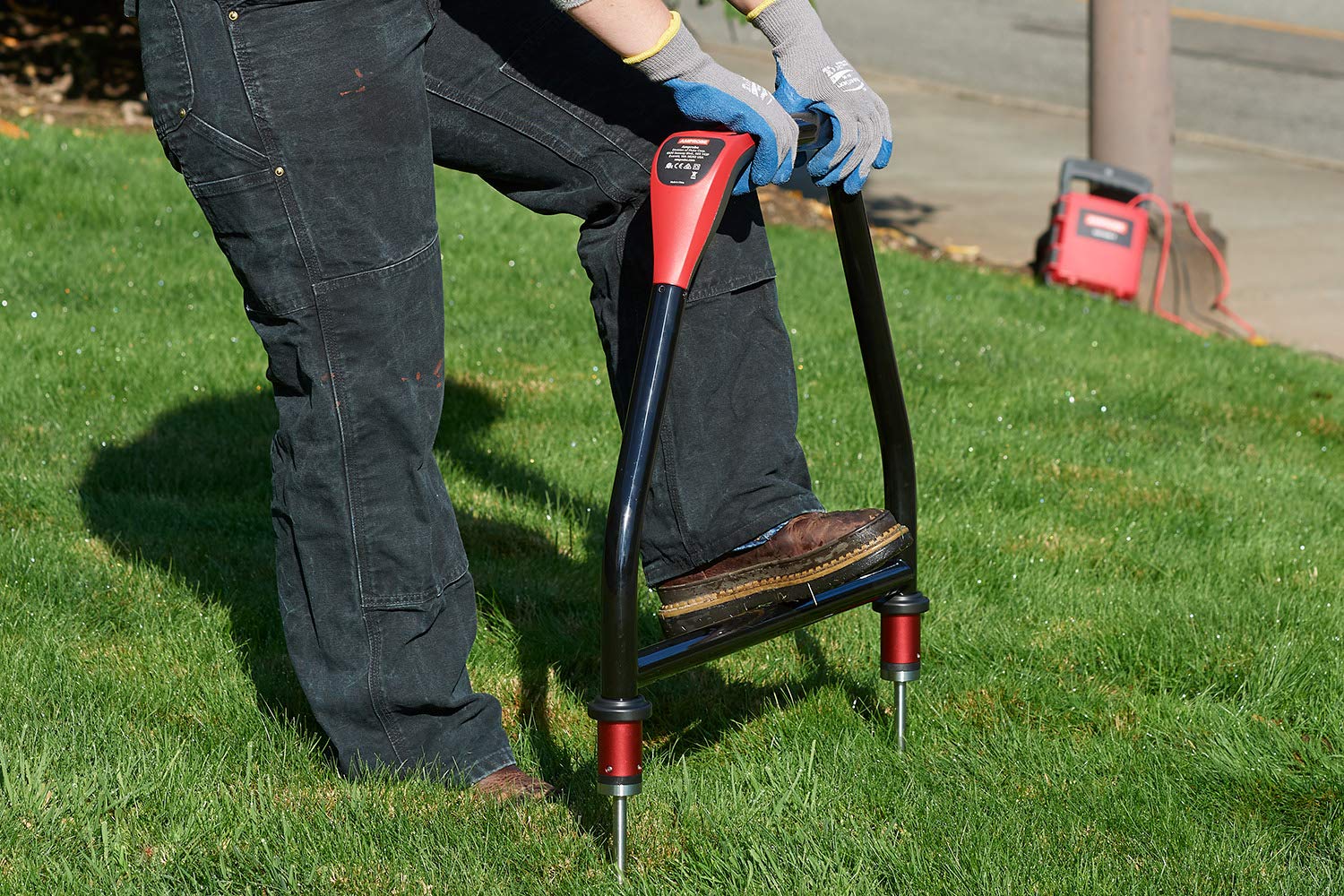

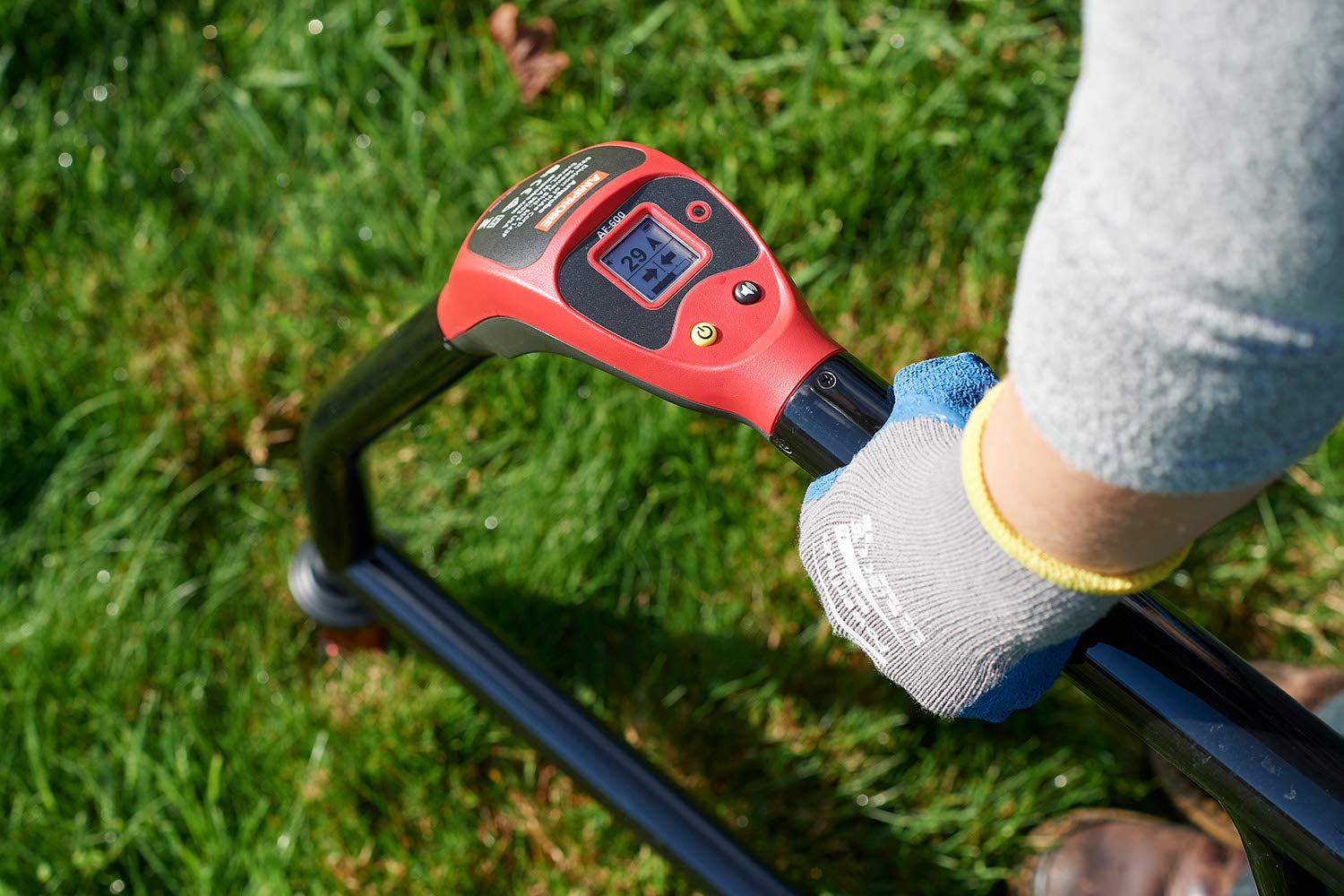

Ground faults are a common problem with electrical cables. Find any fault with the AF-600 A-Frame cable ground fault locator, specifically designed for use with the Amprobe UAT-600 Series. Set up the UAT-600-T Transmitter to apply a fault find signal to the utility under test, the AF-600 A-Frame receives the signal and locates the place of the fault.
Locate cable and wire ground faults, sheath faults or pipeline coating defects, where the utility is in direct contact with the ground.
Advanced technology and digital signal
processing makes pinpointing process fast, accurate and clear.
Find the exact point where metal is touching the ground and power is leaking, i.e., a shield is rusted or a rubber buffer is broken, creating noise on a cable.

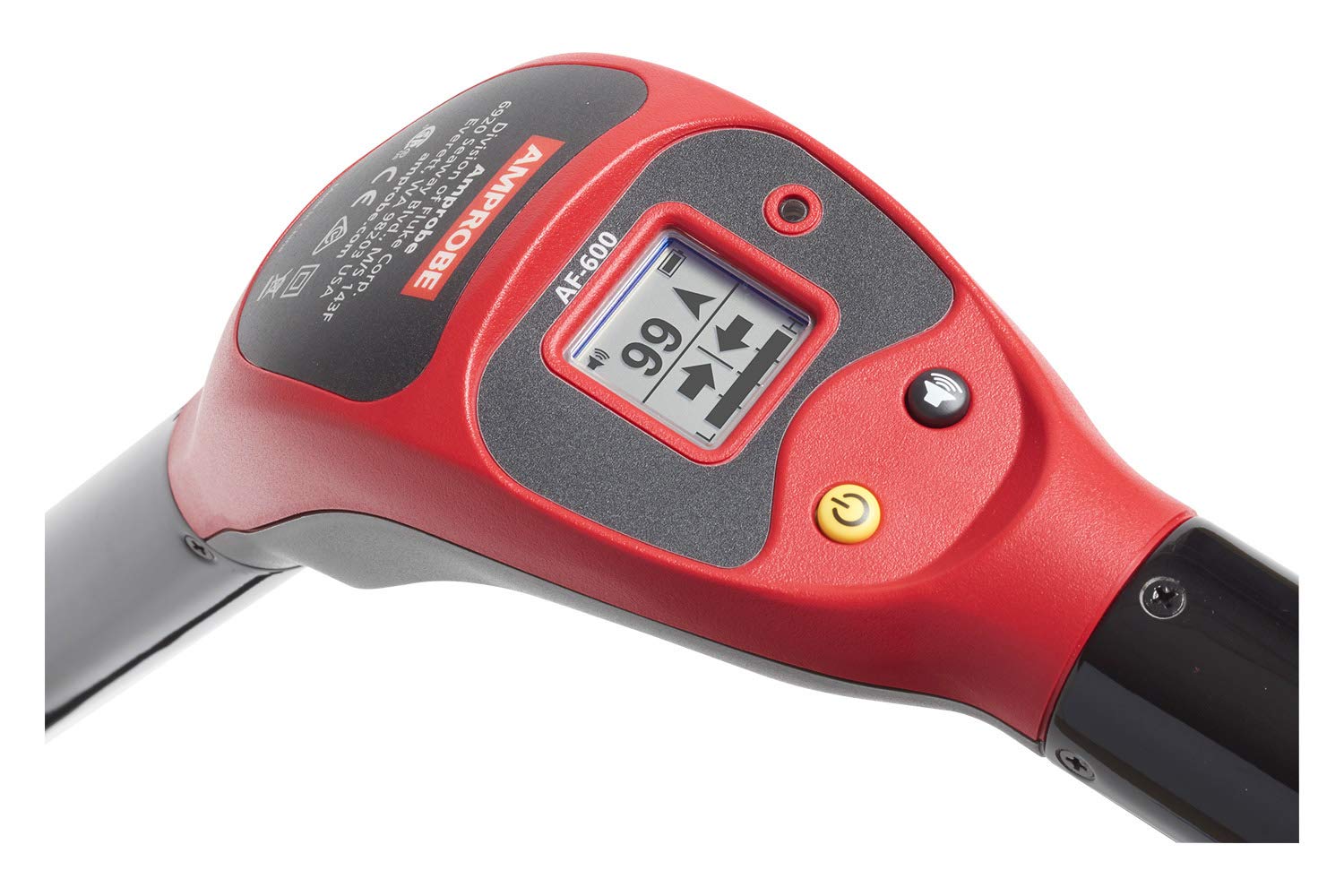

-Compass guidance with numeric fault field
strength indicates the direction of the fault
-Distance sensitive left and right arrows guides the user to precisely follow the path
of the buried utility
-Automatic gain control quickly detects tracing signal and precisely adjusts the
A-Frame sensitivity
-Adjustable volume controls
With over 500 products worldwide, Amprobe is a trusted manufacturer of electrical test tools for industrial, commercial and residential applications. Our products range from an extensive line of clamp meters and digital multimeters to industry-specific tools for residential/commercial electricians, HVAC/R technicians, utilities and industrial maintenance professionals. All Amprobe tools are designed and supported by Fluke engineers.
