| Compatible Devices | Cameras |
|---|---|
| Compatible Phone Models | Pixel,Sony |
| Mounting Type | Rear View Mirror |
| Additional Features | Cold Resistant, Heat Resistant |
| Water Resistance Level | Not Water Resistant |
| Compatible with Vehicle Type | FPV |
| Color | Black |
| Shape | Square |
| Enclosure Material | Aluminum |
| Model Name | AKK KC02 |
| Model Number | kc02 |
| Manufacturer | AKK |
| Mfr Part Number | K-C02 |

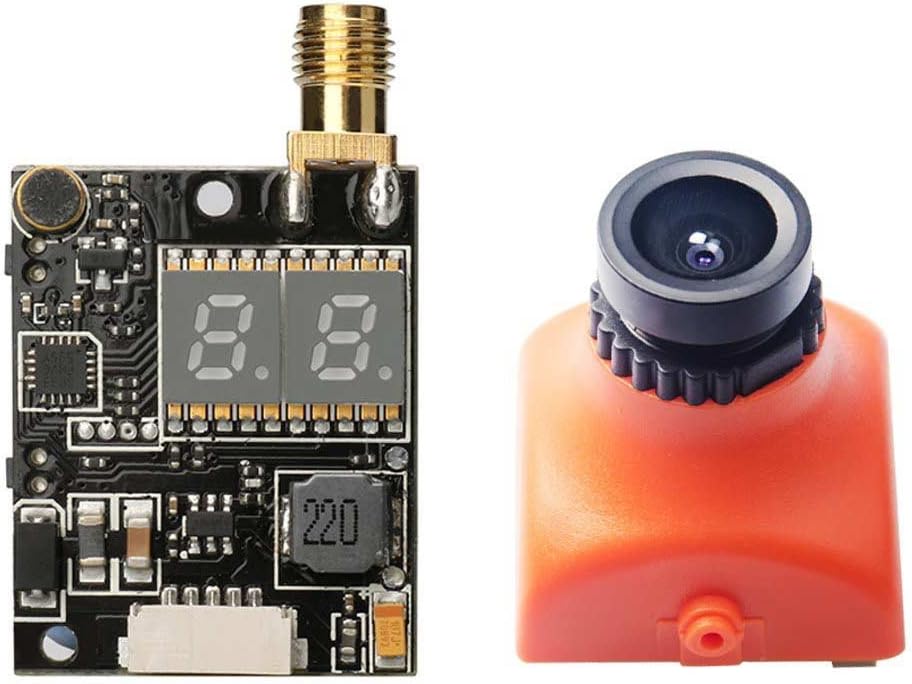

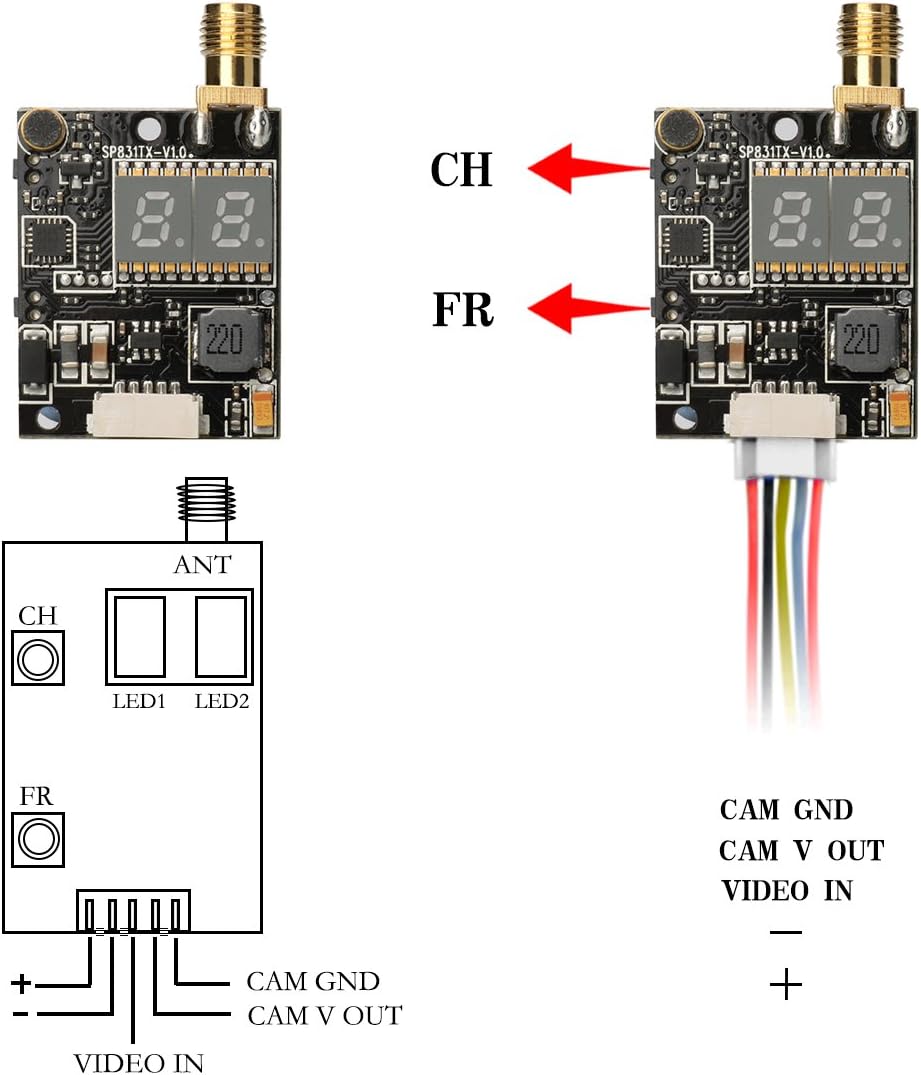

Video Format: NTSC, Output Impedance: 50 Ohm
Antenna connector: RP-SMA connector
Supply current: 280 mA, Operating Temperature: -10 +85℃
Video Band Width: 0-8.0 MHz, Audio carrier Frequency: 6.5 MHz
Video Input Level: 0.8,1.0,1.2 Vp-p, Video Input Impedance: 75 Ohm
Audio Input Level: 0.5,2.0 Vp-p, Audio Input Impedance: 10K Ohm
Operating Voltage: 7-20 V, VTX Size: 31mm*25mm*8mm

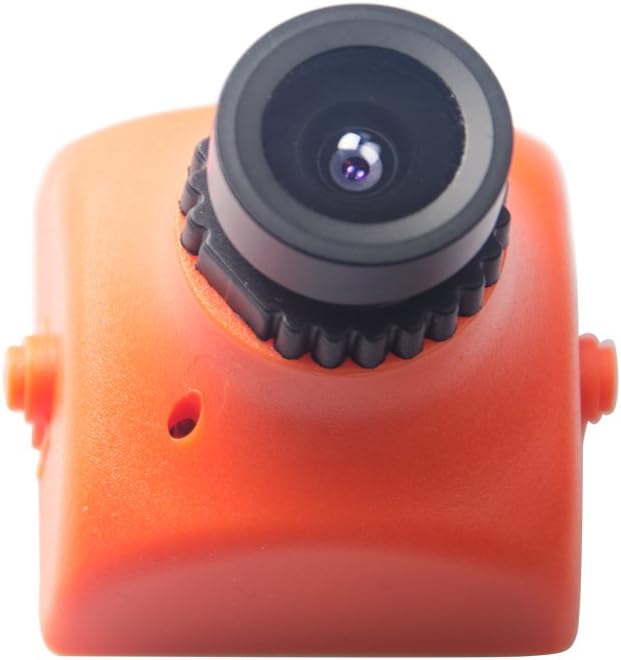

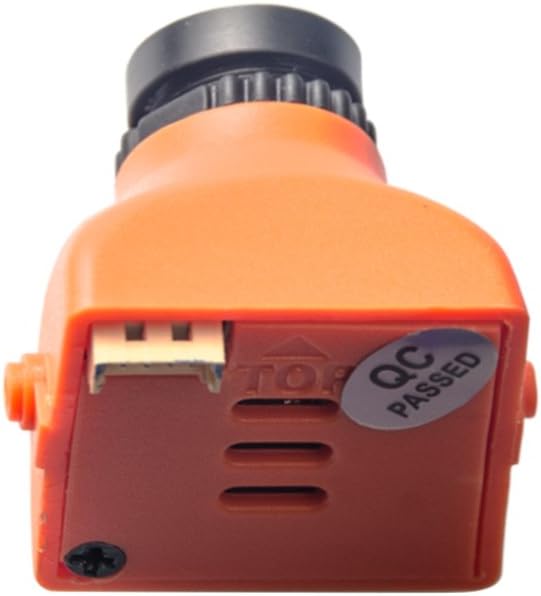

CCD: 1/3” Sony SUPER HAD II CCD
Pixel: NTSC: 768(H)×494(V),TV System: NTSC
Resolution: 650TVL(b/w), 600tvl(color)
Synchronization : internal synchronize
Shutter Speed: (CCD IRIS) NTSC: 1/60~1/100000 sec
Noise: > 60 (AGC OFF), Video Out: 75ohm, synchronize
Min. Illumination: 0.01Lux, Auto Gain: Off/Low/Mid/High
Back Light Compensation (BLC): Off /Back light compensation/ Strong light suppression
Private shading (PRIVACY): 1~8 private shading area
Motion Detection (MD): On/ Off (Multi level sensitivity settable)
Auto White Balance: Manual / Auto / Auto track
Mirror: Horizontal Mirror optional
Negative: Positive / Negative optional
Color to B&W: Auto, DNR: 2DNR; WDR: D-WDR
Day / Night Shift: Auto/ Color/ B&W
Menu (OSD): English menu, White Dot Repair: Support
Image Adjustment: Support, Camera Title: Support
Power Requirement: DC5V~22V, Working Humidity: 20~80%
Storage Temperature: -40 ℃ ~ +60 ℃
Storage Humidity: 20~95%
Dimensions(mm): 25X25(W*L)
Power Consumption: 70mA

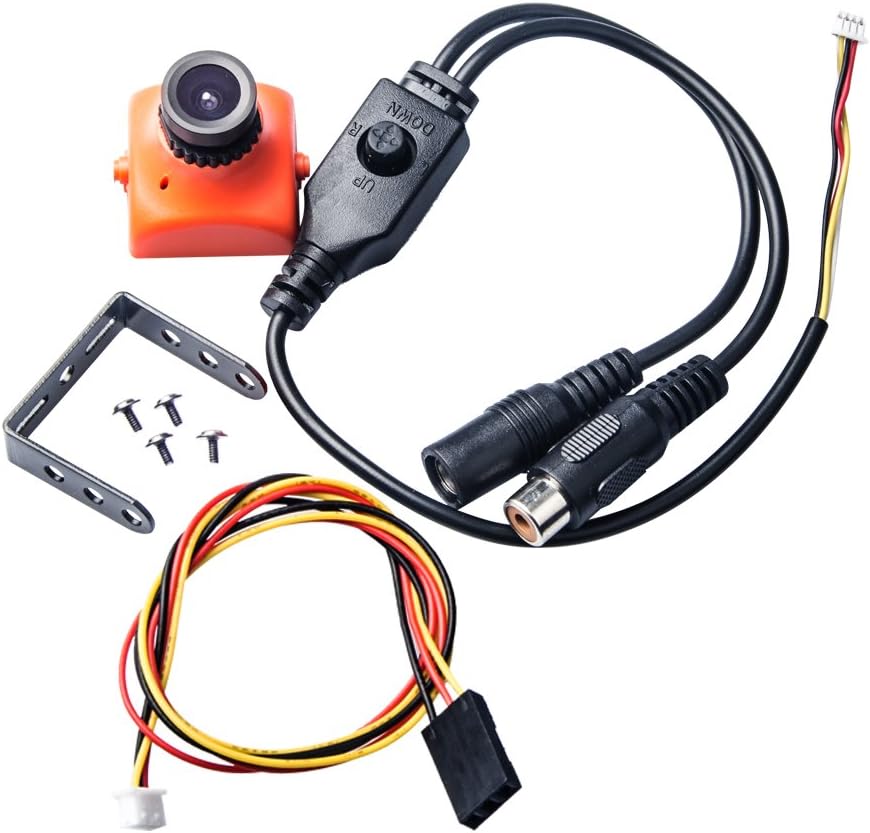

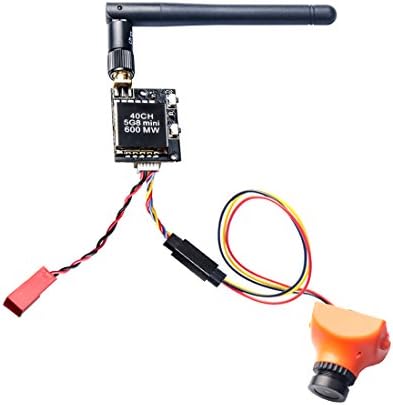

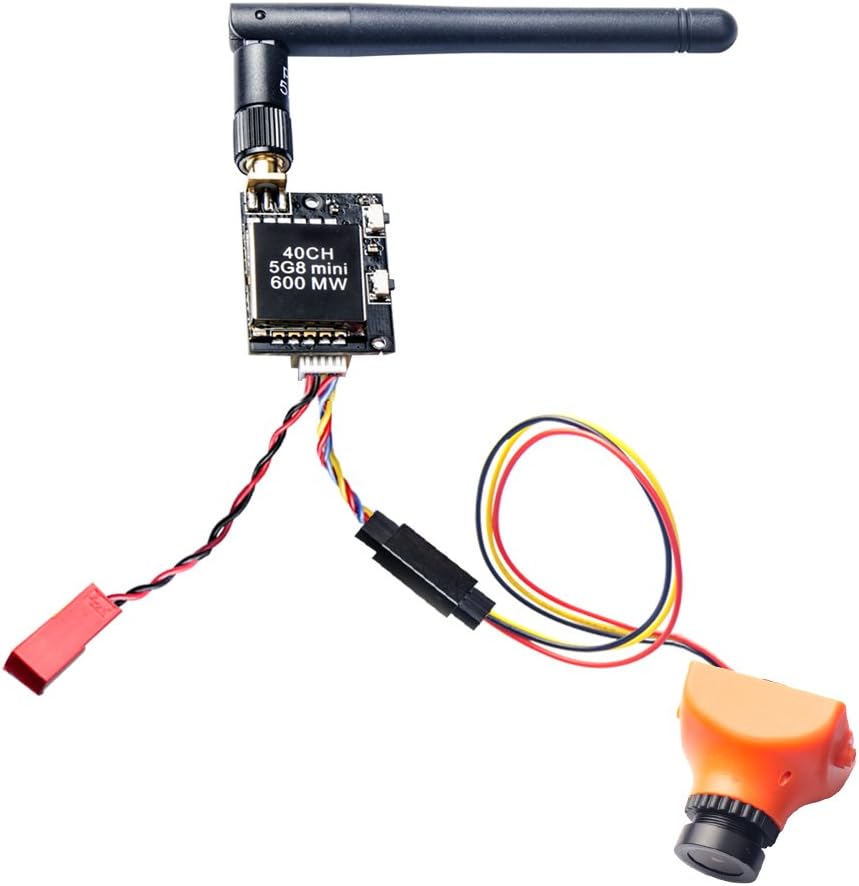

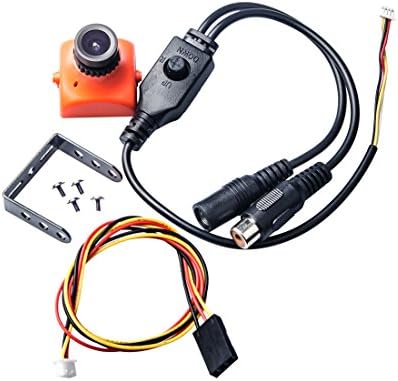

Package includes:
1x FPV transmitter
1x 600TVL Camera
2x Cables
1x Base bracket
1x antenna
1x Connector and cable set
1x Manual
