(52-A-490-0008B) Two-Stage Regulator Kit

$20.54 USD

Shipping fees will be calculated at checkout.

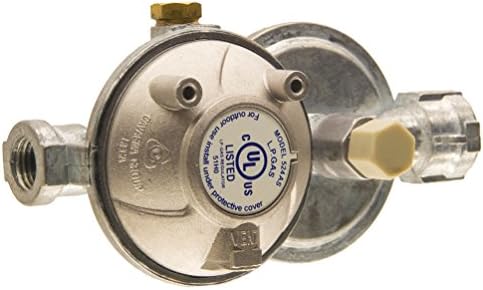

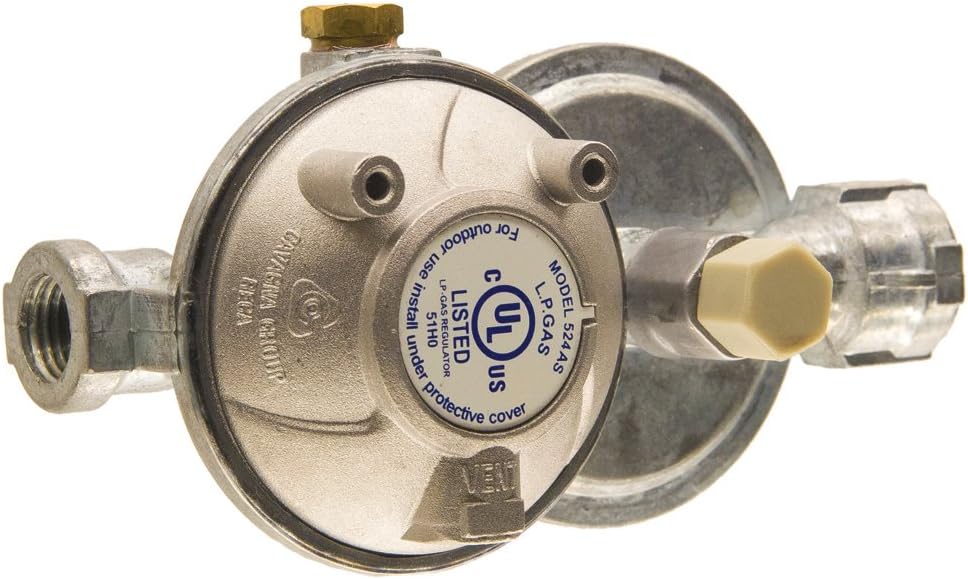

Cavagna Two-Stage Regulator Kit Horizontal Vent
A combination regulator; first stage reduces cylinder outlet pressure to 10 psi, and the second stage maintains a stable working pressure of 11 inch water column
Inlet: 1/4 inch Female Pipe Thread, Outlet: 3/8 inch Female Pipe Thread, horizontal vent, 160,000 BTU/hour
Kit includes the plastic vent covers required by RVIA

Exterior Finish	painted
Inlet Connection Type	National Pipe Tapered
Outlet Connection Type	FNPT
Maximum Pressure	10 psi
Number of Ports	2
Thread Size	1/4, 3/8
Thread Type	NPT
Valve Type	regulator
Item Dimensions	4.5 x 4.3 x 4.3 inches
Inlet Connection Size	0.25 inches
Outlet Connection Size	0.38 inches
Item Weight	12 ounces
Size	4.3 inches W x 4.5 inches L x 4.3 inches H
Material Type	Plastic
Model Number	52-A-490-0008B
Global Trade Identification Number	00677605080609
Unit Count	1 Count
Manufacturer	Cavagna
UPC	677605080609
Number of Pieces	2
Set Name	Cavagna Two-Stage Regulator Kit
Manufacturer Part Number	52-A-490-0008B
Specification Met	UL
Material	Plastic
Inlet	0.25 inches
Outlet	FNPT
Maximum Operating Pressure	10 psi
Number Of Ports	2
