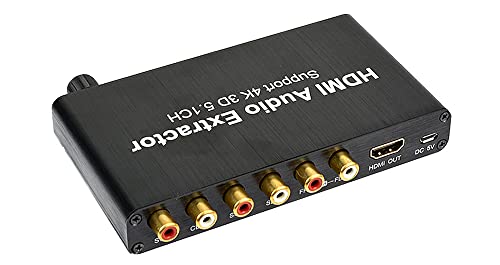

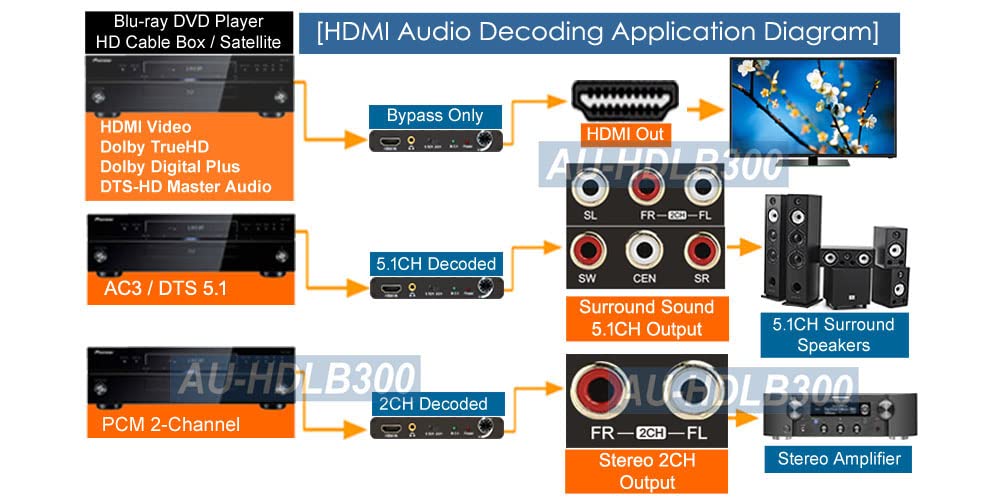

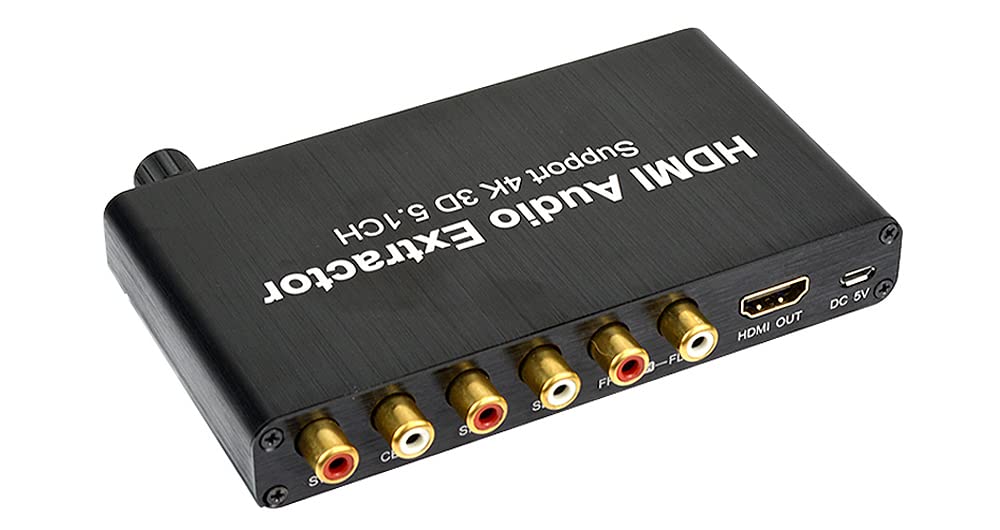

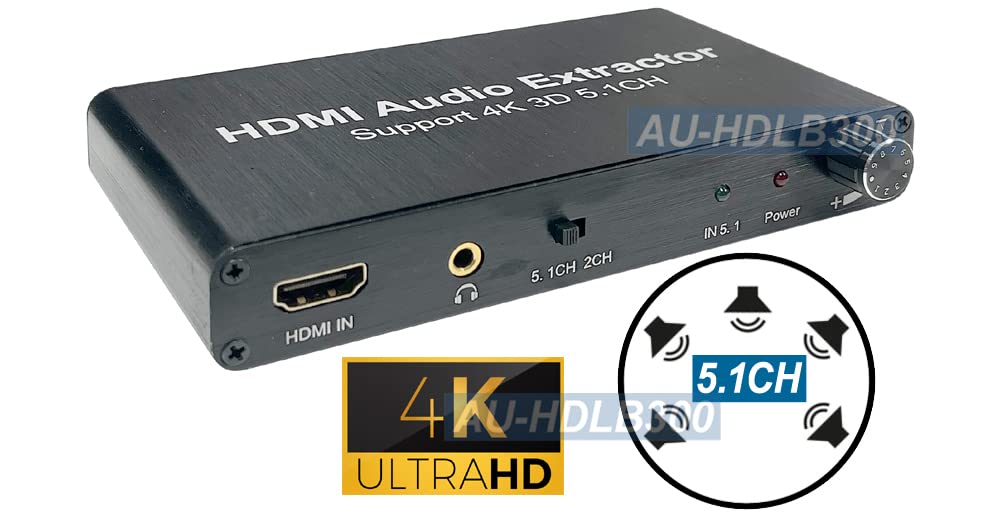

Premium HDMI multi-channel audio decoder and HDMI audio converter for bit-stream AC3, DTS audio and PCM 2CH type uncompressed audio. Decodes digital AC3 and DTS 5.1 audio embedded in HDMI feed into analog surround sound format for amp, receiver or powered speakers. Decodes digital PCM 2-channel audio embedded in HDMI feed into analog stereo sound.

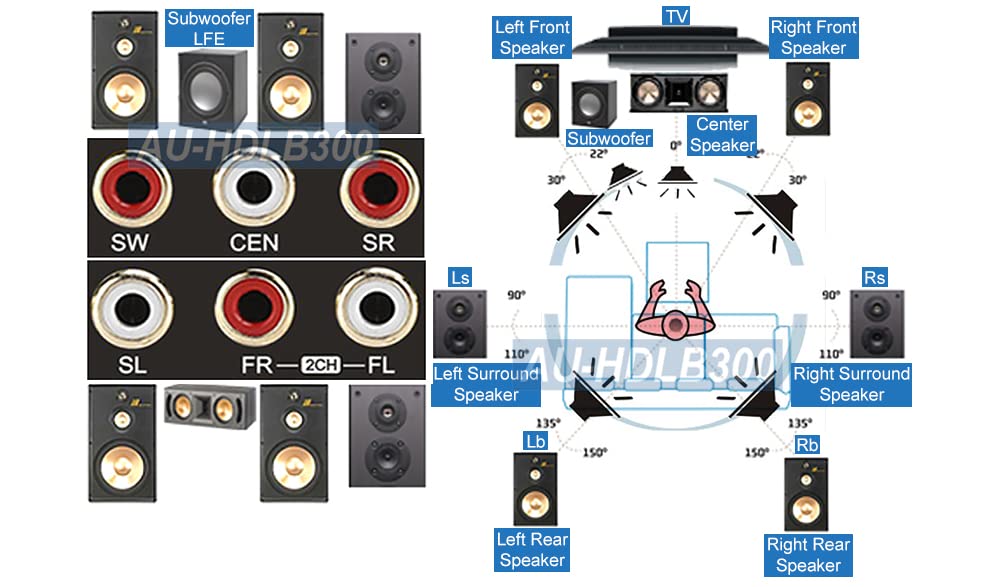

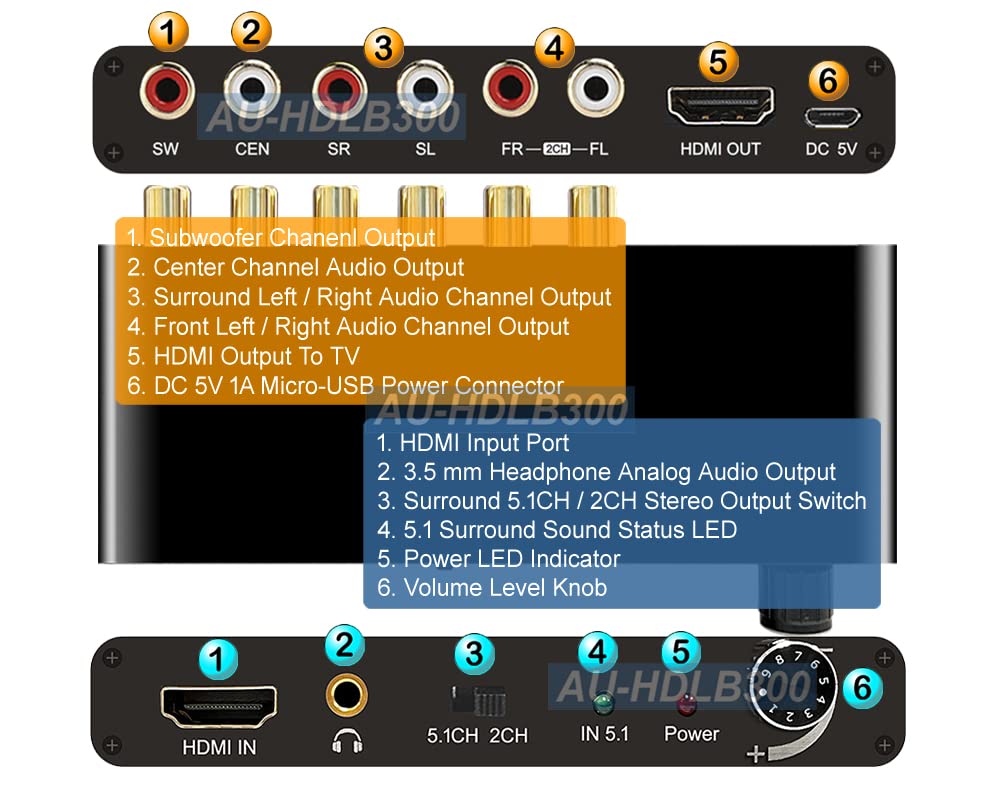

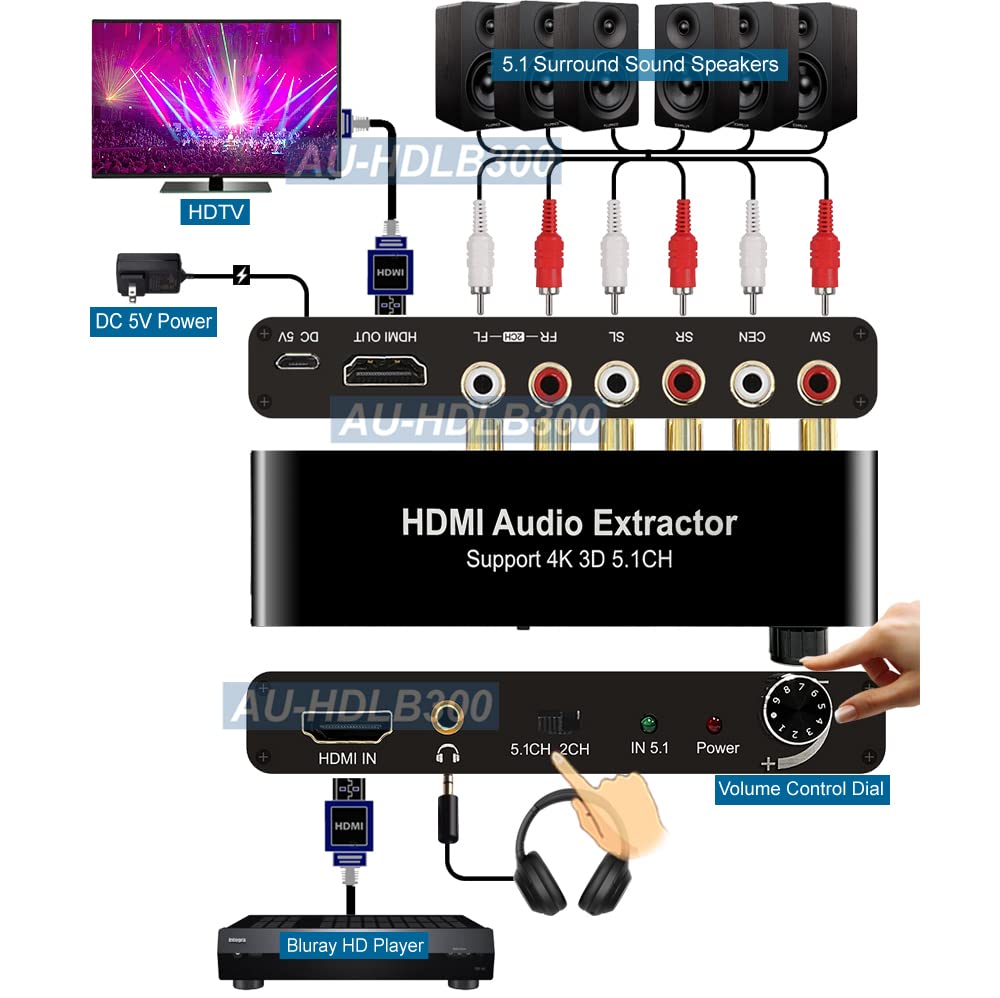

Cost-efficient solution for integrating the new HDMI-based AV equipment with analog amplifier, receiver or homesteader system. 3 simultaneous analog audio outputs including 6-channel surround sound RCA outputs, stereo 2-channel output and headphone/3.5mm audio output. Built with a 24-bit audio DSP with sampling rate up to 192 KHz for accurate bit-for-bit D to A conversion of sound.
The decoded analog audio output will retain an accurate duplicate of sound for true home cinema experience with rich and vibrant audio. Easy EDID dip switch for HDMI output audio format selection so users can switch among 2CH and 5.1CH surround sound.

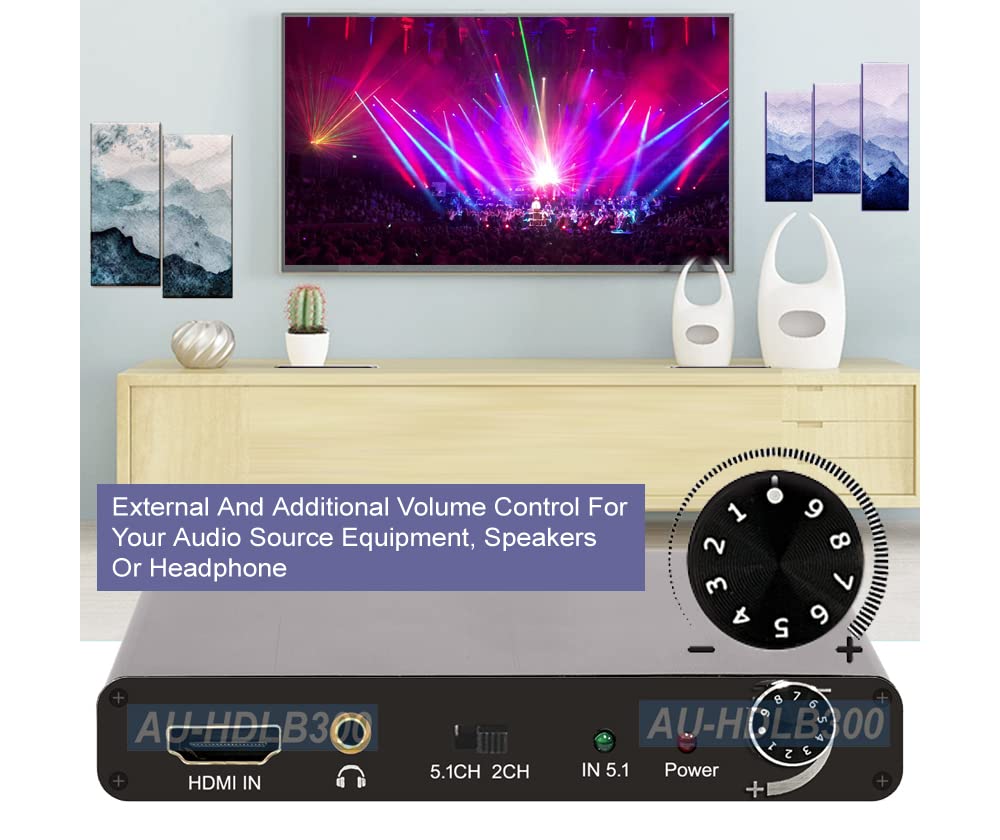

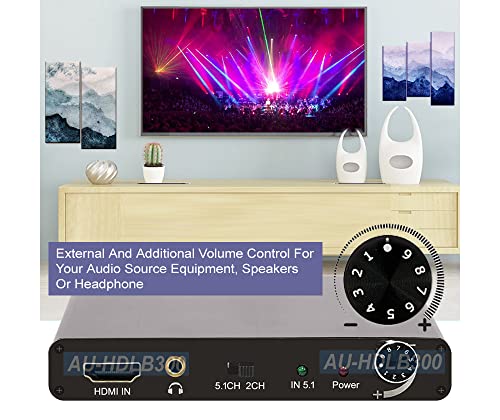

Automatically detect if the HDMI input has 5.1 sound with LED status indicator. The volume dial on the front panel can act as an external or additional volume control for the music output power/level adjustment for its RCA audio outputs and headphone port.
Supports HDMI input resolutions up to 3840x2160 and 4096x2160 pixels at 30Hz. Ultra high video amplifier bandwidth up to 2.25Gpbs/ 225 MHz to ensure sharp detailed images and fine audio quality. Supports new 36-bit digital video formats in deep color mode from 25MHz to 225MHz (12 bits/color).
