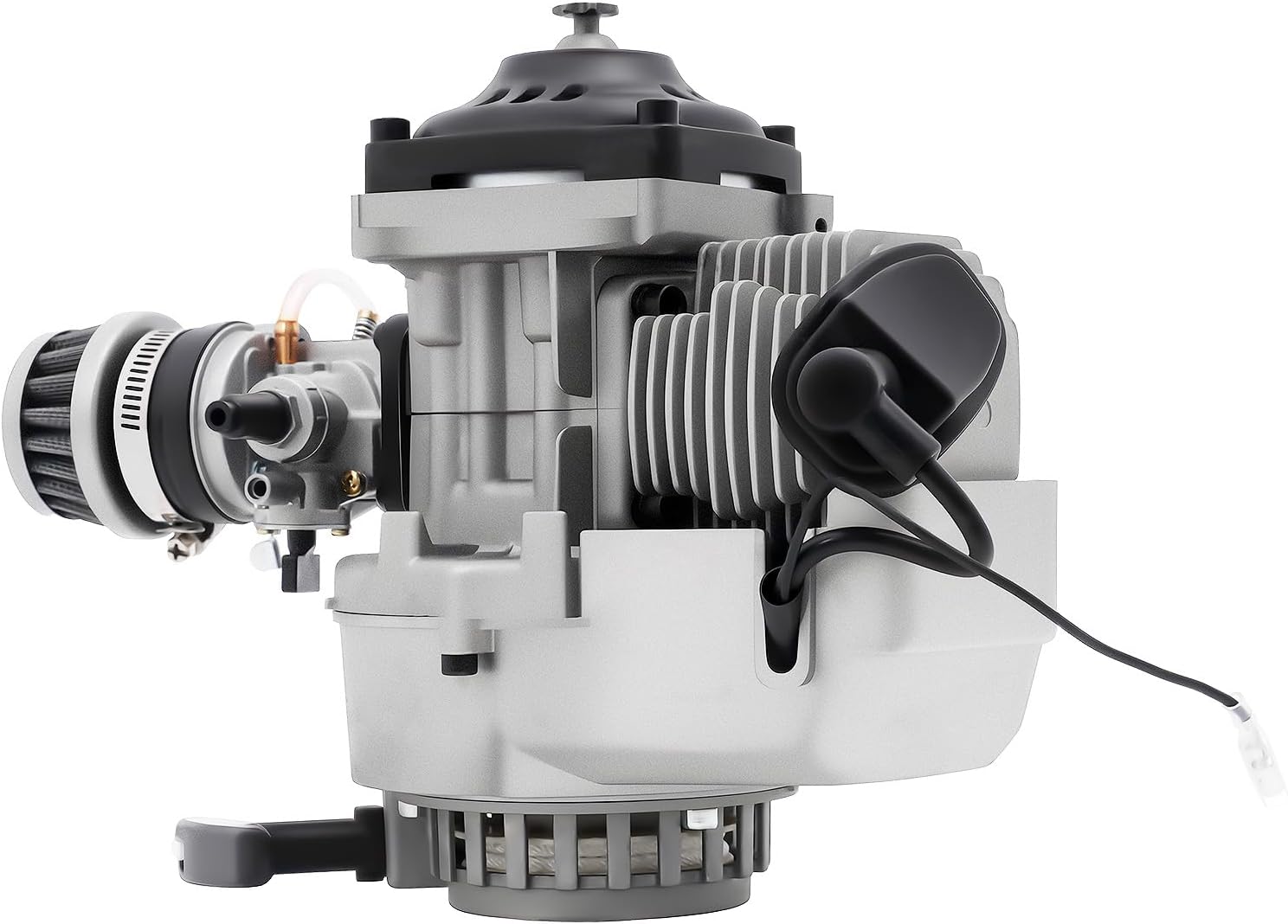

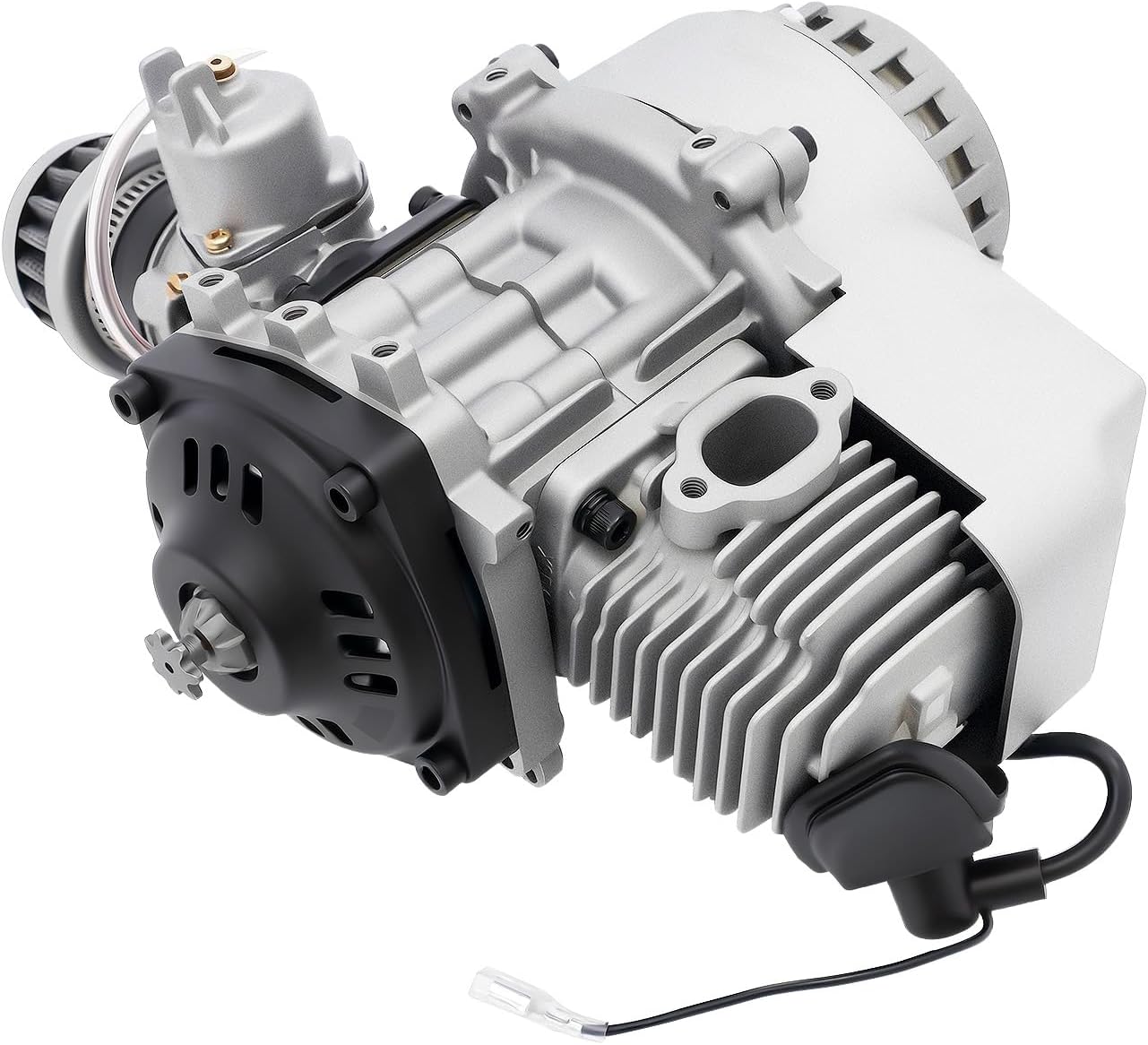

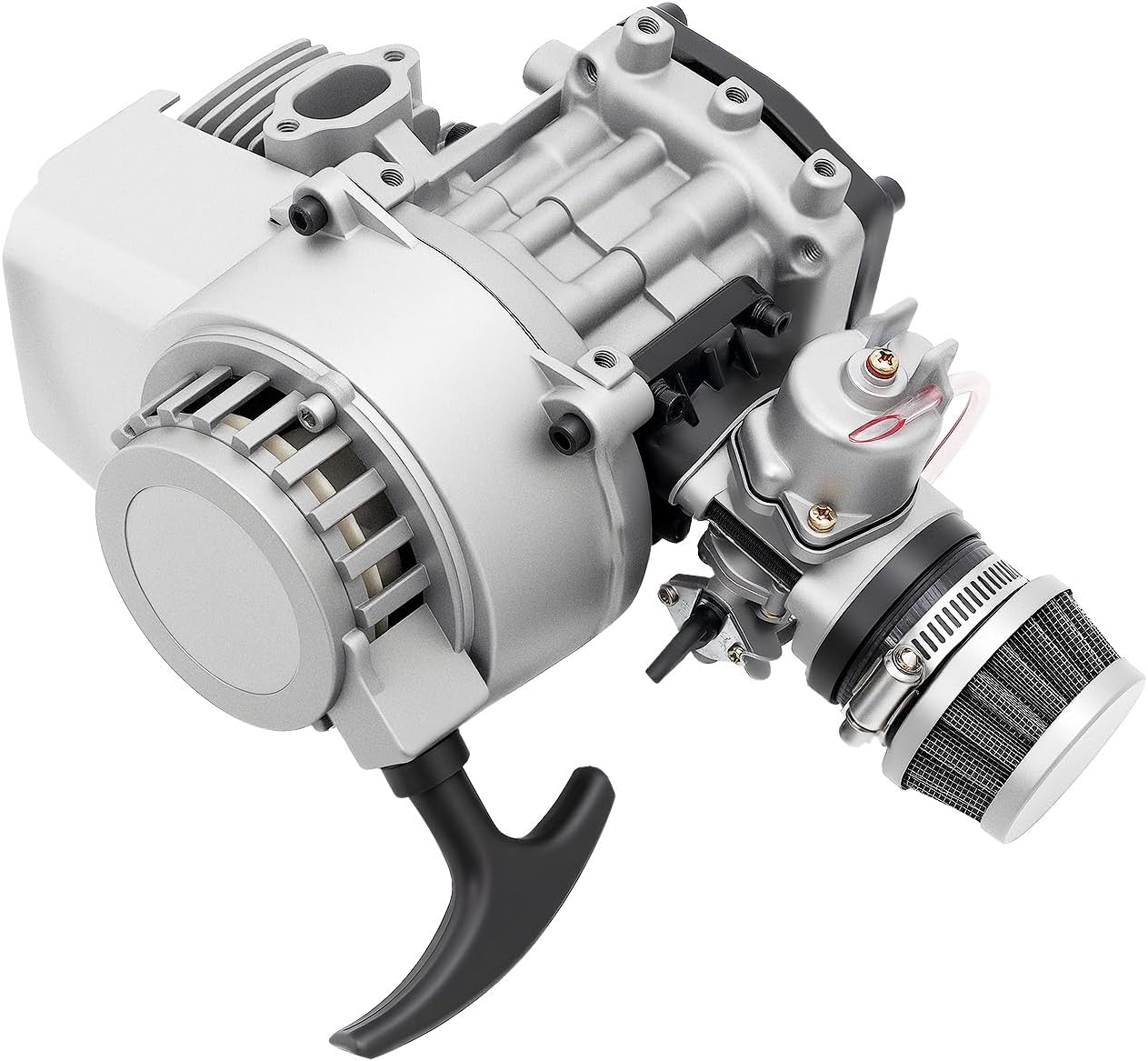

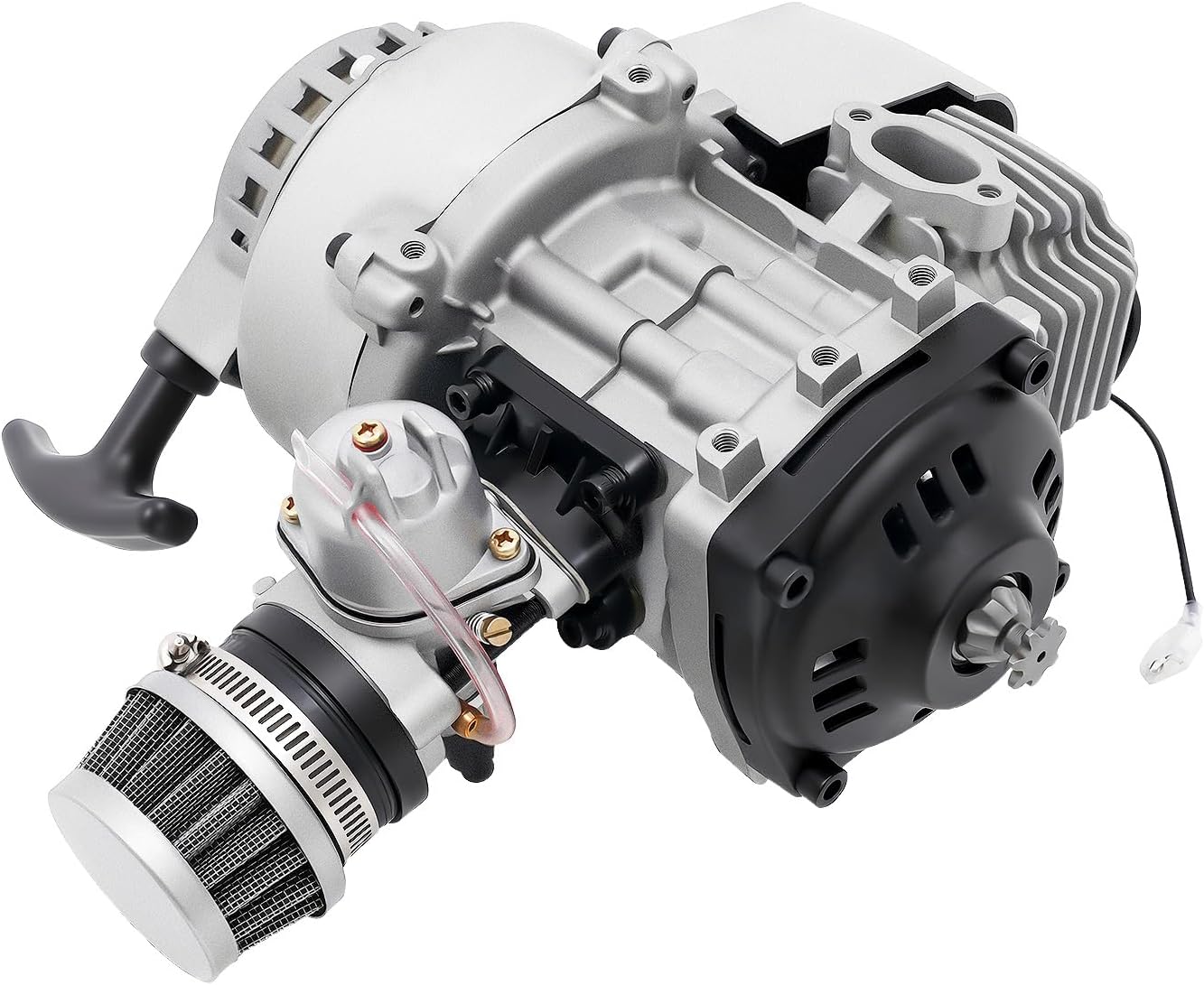

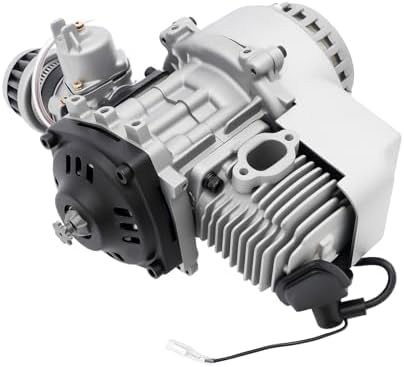

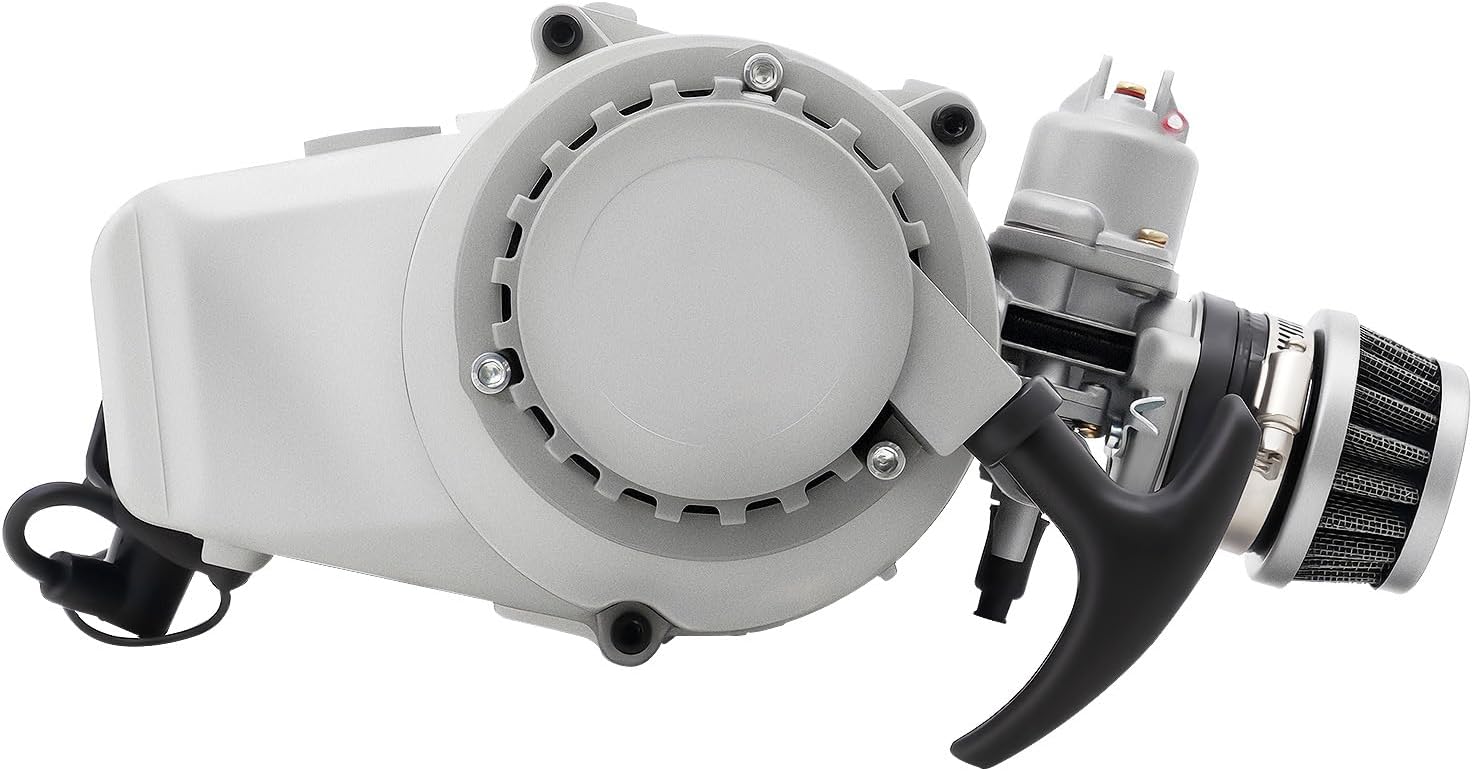

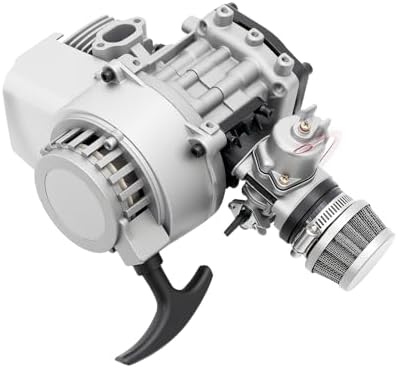

49CC 2-Stroke Air-Cooled Engine Motor | 7000RPM Gasoline Engine with Single Cylinder, CVT Gearbox, for Pocket Bike Mini Dirt Beach Bike ATV Scooter

$13.50 USD
Shipping fees will be calculated at checkout.
  • Free worldwide shipping

  • Free returns

  • Carbon neutral

  • Secure payments

  • 【Dirt Bike Engine Parameters】Max. Power: 1.9kw/7000rpm; Rated Power: 1.7kw/6000rpm; Max. Speed: 48km/h; Max. Torque: 2.7N.M/6500rpm.
  • 【Engine Compatibility】The engine motor is fit for 49cc 2-stroke pocket bike, mini dirt bike, beach bike, ATV or scooter.
  • 【Outstanding Performance】This dirt engine is constructed from high-quality aluminum alloy, ensuring exceptional durability. It is also equipped with an air-cooling system that quickly reduces engine temperature. This engine features an upgraded CVT transmission, which effectively enhances the overall system’s operational efficiency and responsiveness.
  • 【Powerful Engine】The 2-stroke engine can provide higher intake and exhaust efficiency, saving energy and fuel (Fuel Consumption: Min. ≤610g/kW.h). It can provide stronger power (Max. Power: 1.9kw/7000rpm) during driving and ensure that your drive will be very smooth and powerful.
  • 【Easy to Operate】The engine features a electronic ignition system, which leads to higher energy and ignition efficiency. So you can start the engine quickly and safely.
Manufacturer‎TBVECHI
Model‎49CC 2-Stroke Engine Motor
Item Weight‎8.16 pounds
Item model number‎49CC 2-Stroke Engine Motor
Manufacturer Part Number‎ASH4-0DLA2
49CC 2-Stroke Engine Motor

TBVECHI 49CC 2-Stroke Air-Cooled Engine Motor

Engine Motor

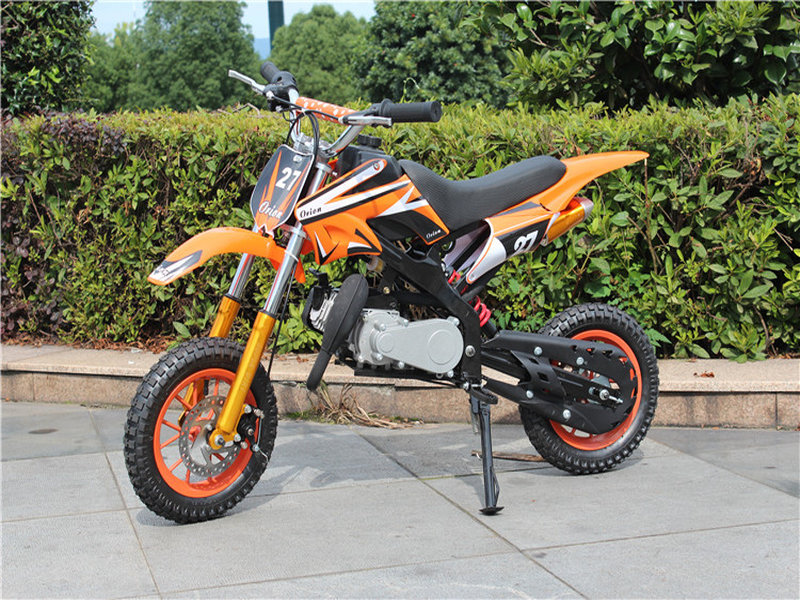

Fits (As a Reference)

For 49CC Two-stroke Pocket Dirt Bikes, Motorcycles, Quad Bikes, ATVs, etc.

The video showcases the product in use.The video guides you through product setup.The video shows the product being unpacked.

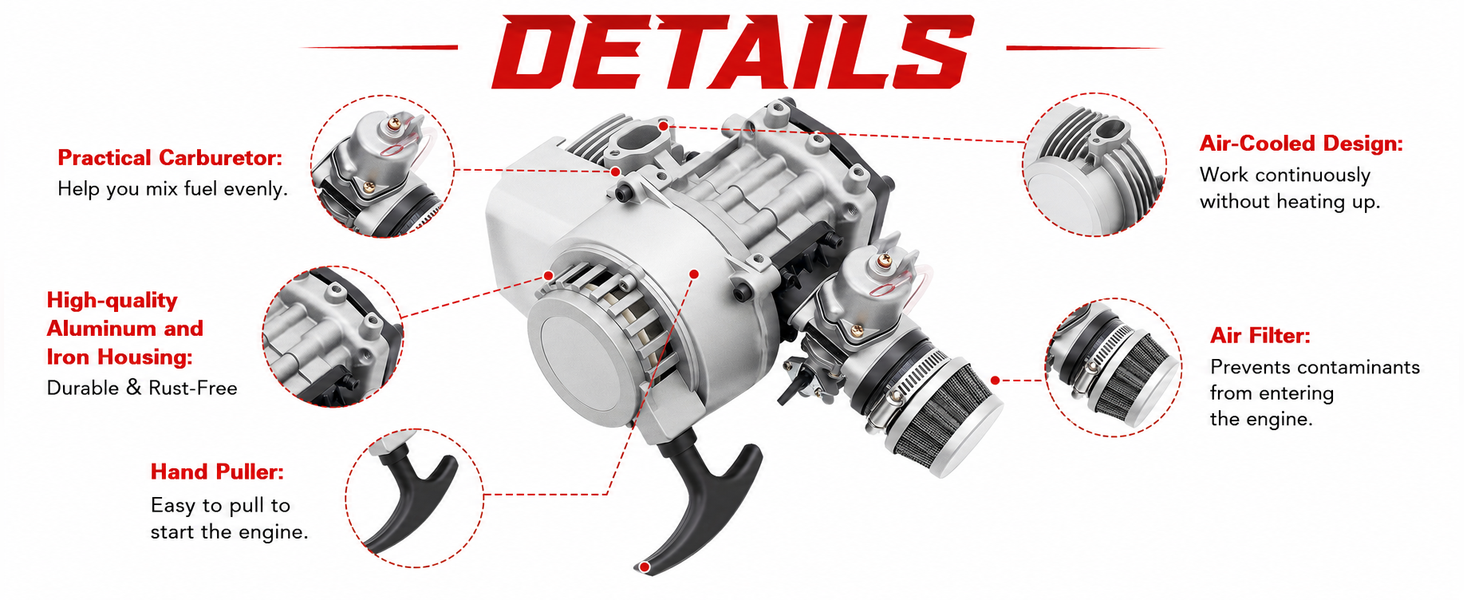

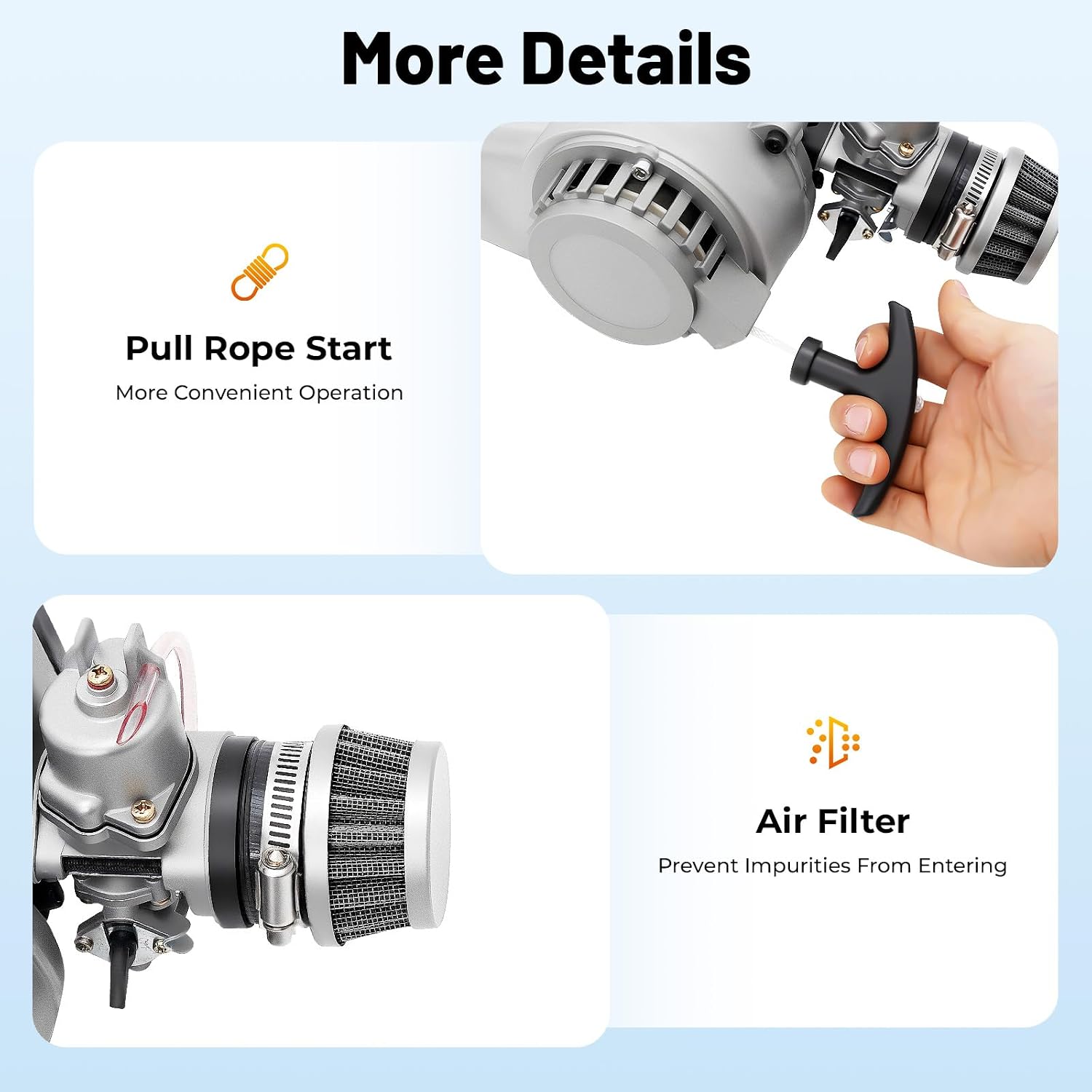

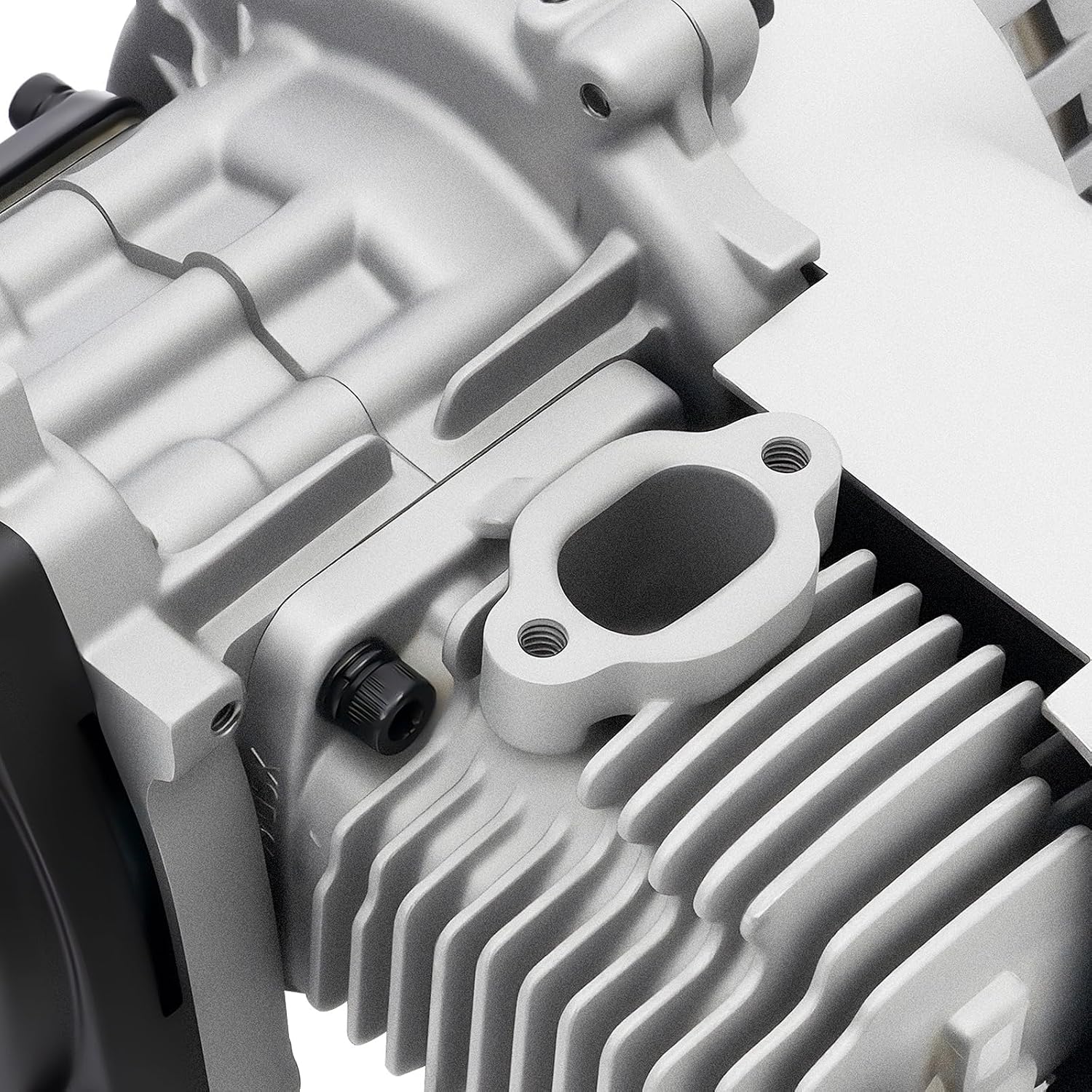

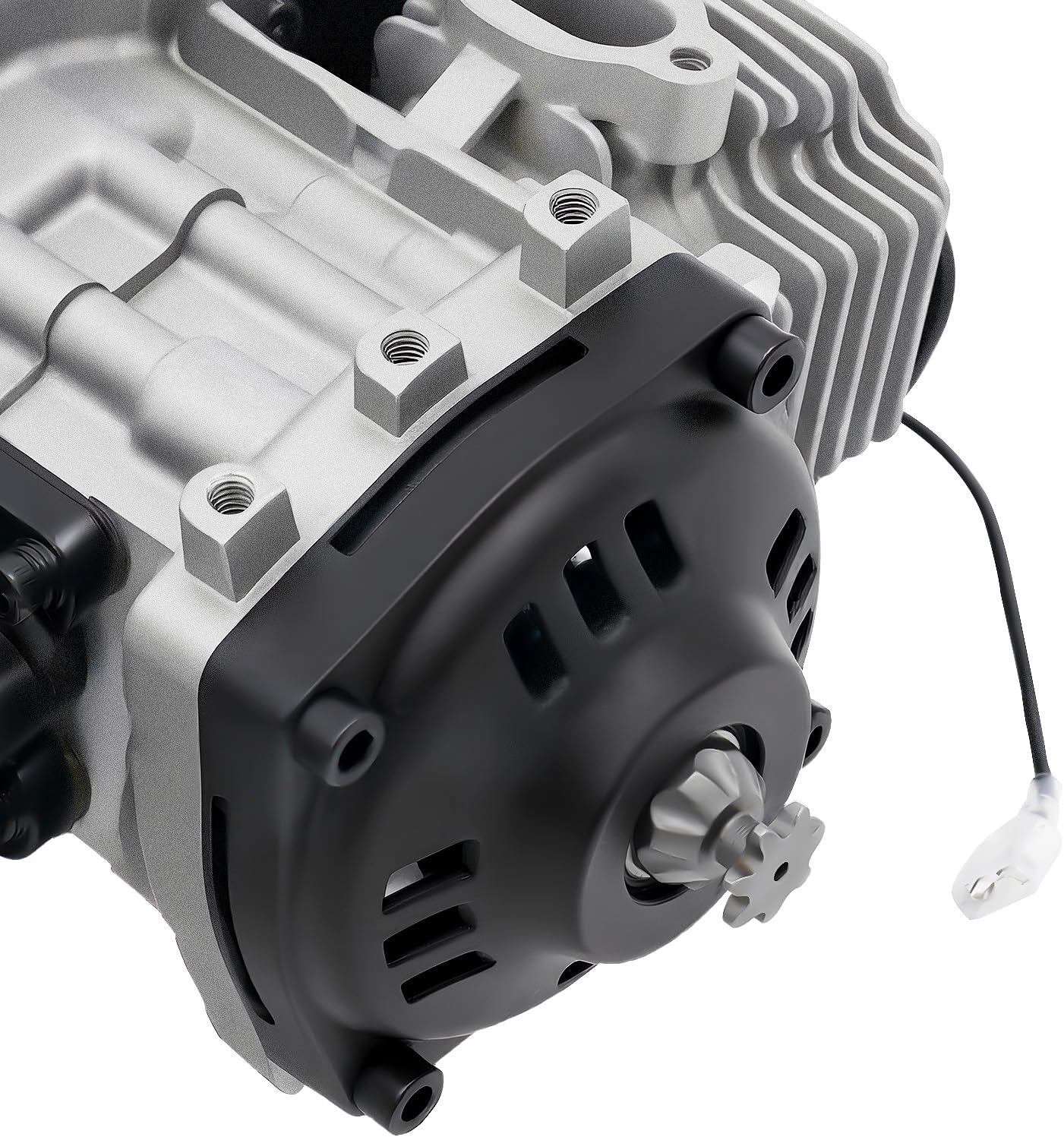

Engine Motor Details Showcase

49CC 2-Stroke Engine Motor
49CC 2-Stroke Engine Motor

Notes:Please check whether this item can fit in your car before purchasing.

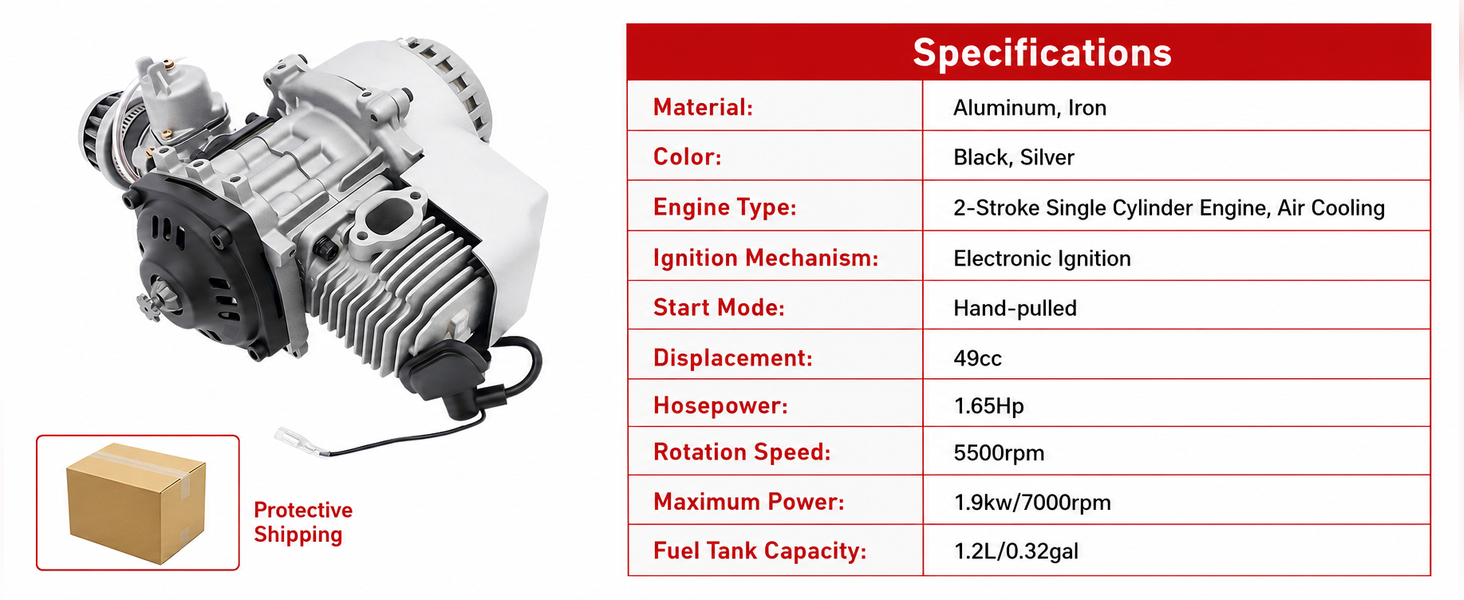

PARAMETERS

Rated Power 1.7kw/6000rpm
Continuous Power 1.6kw/5500rpm
Overload Power 1.83kw/6500rpm
Maximum Torque 2.7N.M/6500rpm
Maximum Horsepower 3PS
No-load Speed 12500rpm
Spark Plug Clearance 0.5mm/0.02in
Cylinder Diameter 44mm/1.73inch
Stroke 32.8mm/1.29in
Fuel 90# Gasoline(Not Included)
Minimum Fuel Consumption Rate <610g/1.34lbs/KW.h
Lubrication Oil FC Grade 2-stroke Gasoline Engine Oil(Not Included)
Gas to Oil Volume Mixing Ratio 25:1(Break-in Period), 30:1(Late Break-in Period)
