| Size | 10 Sq Ft (120 Volt) |
|---|---|
| Color | White |
| Shape | Square |
| Style | Modern |
| Usage | Electric Radiant Floor Heat |
| Voltage | 120 volts_of_alternating_current |
| Wattage | 120 watts |
| Material | Mesh, Neoprene, Plastic, Rubber, Silicone |
| Item Weight | 2.7 pounds |
| Part Number | 10-mat120-kt |
| Manufacturer | Warming Systems Inc |
| Power Source | corded electric |
| Display Style | Digital |
| Mounting Type | Under Floor |
| Special Features | Easy to Install |
| Amperage Capacity | 1 A |
| Item model number | 10-mat120-kt |
| Product Dimensions | 0.12 x 20 x 0.12 inches |

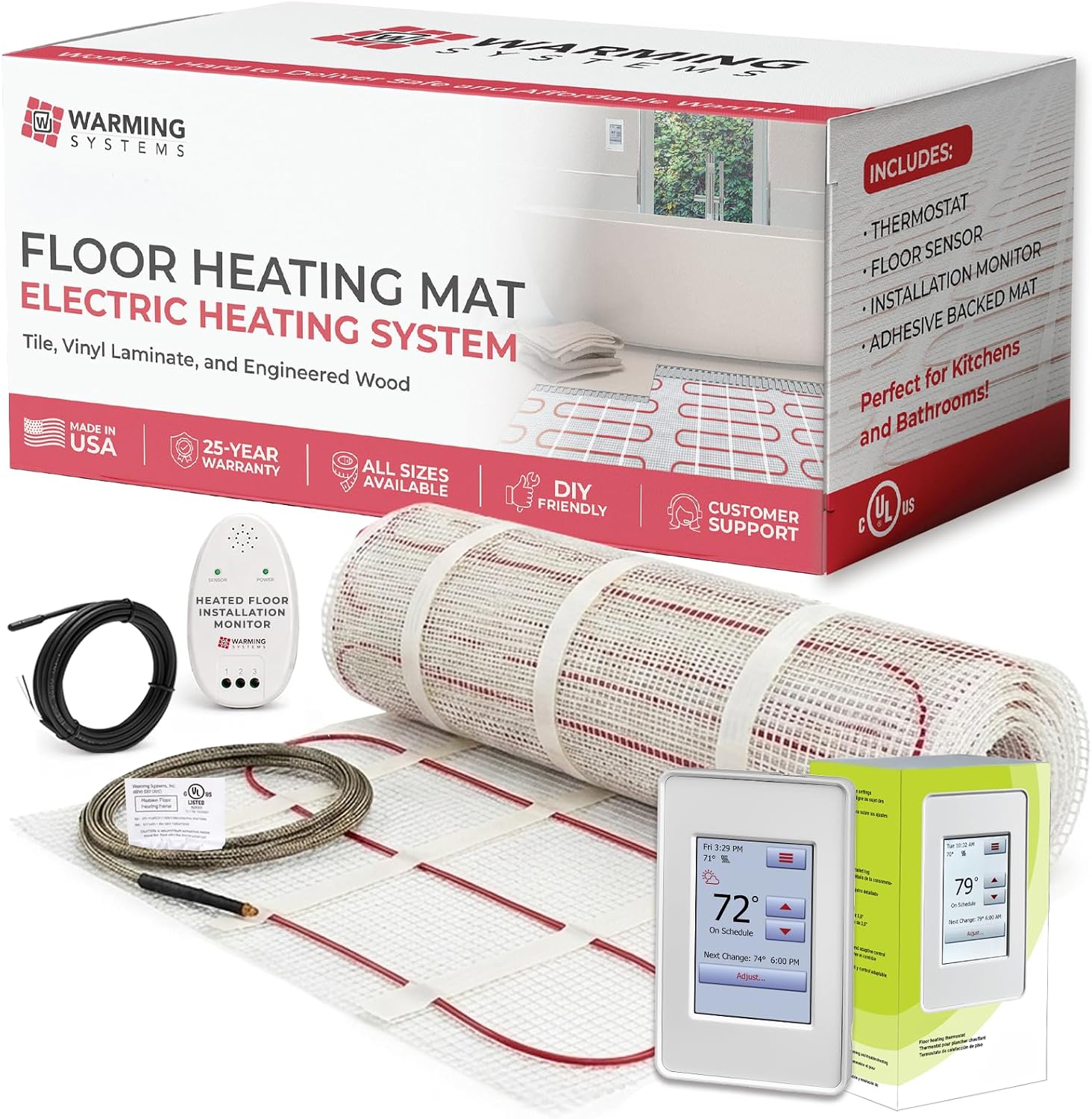

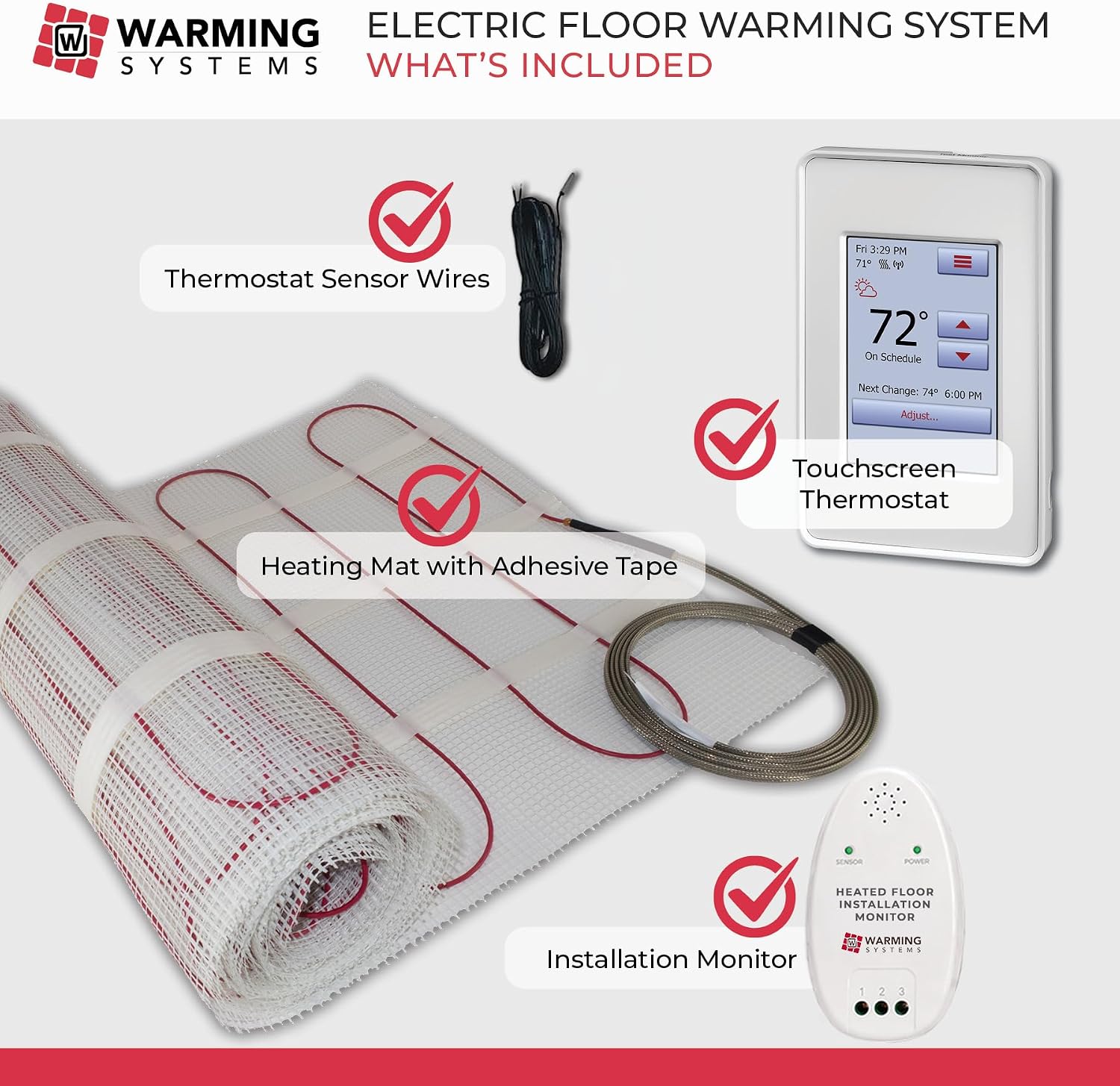

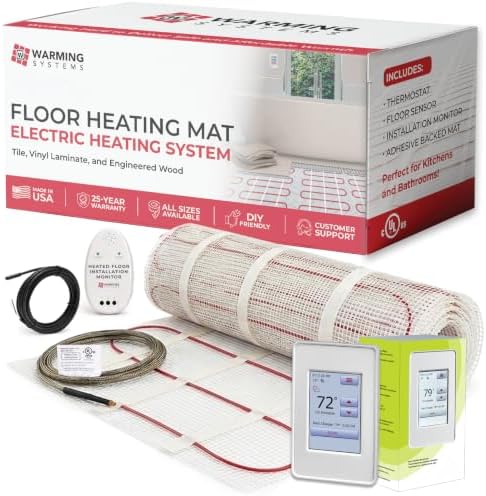

| Included Components | Engineering Support, Floor Heating Mat, Installation Monitor, Thermostat Floor Sensor, Touch Screen GFCI Protected Thermostat |
| Installation Method | Floor-Mounted |
| Item Package Quantity | 1 |

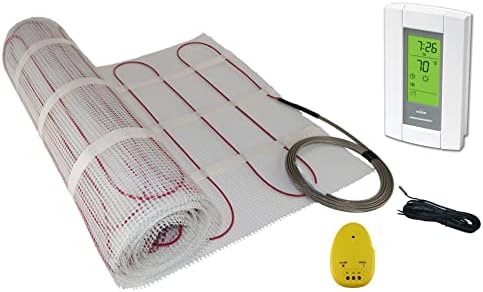

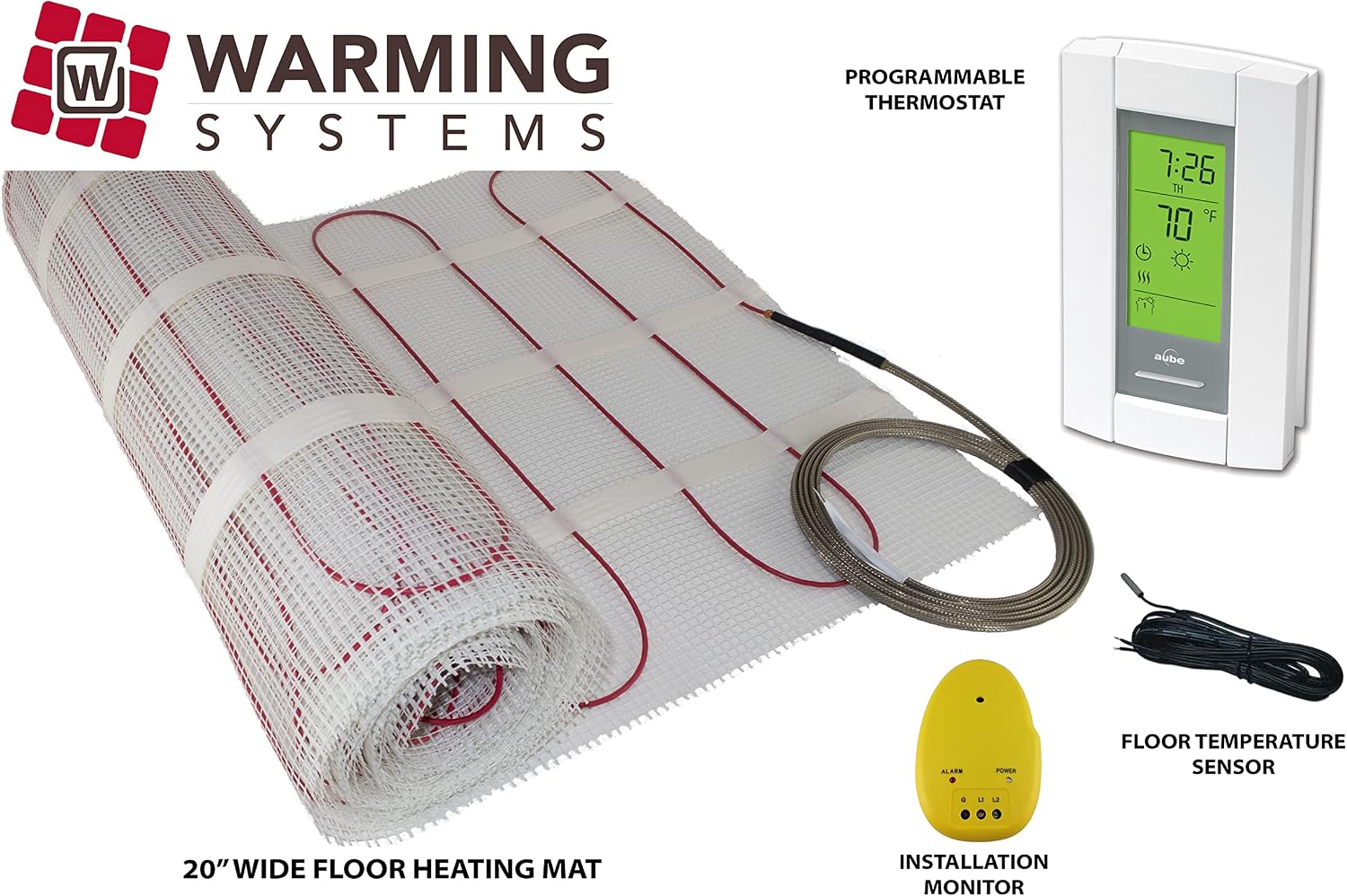

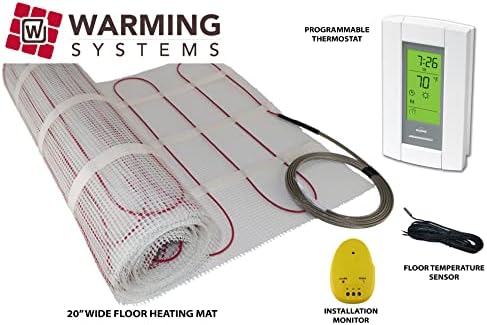

20" WIDE ELECTRIC FLOOR HEATING MAT

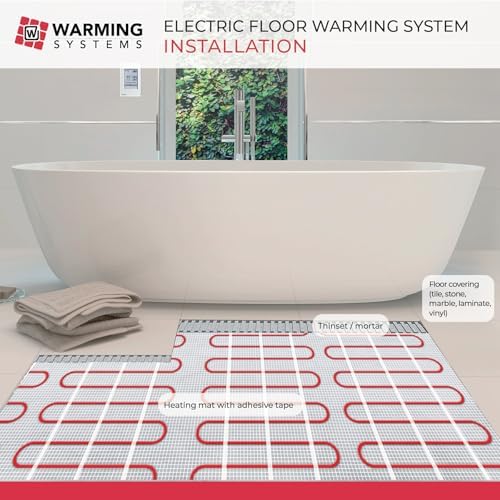

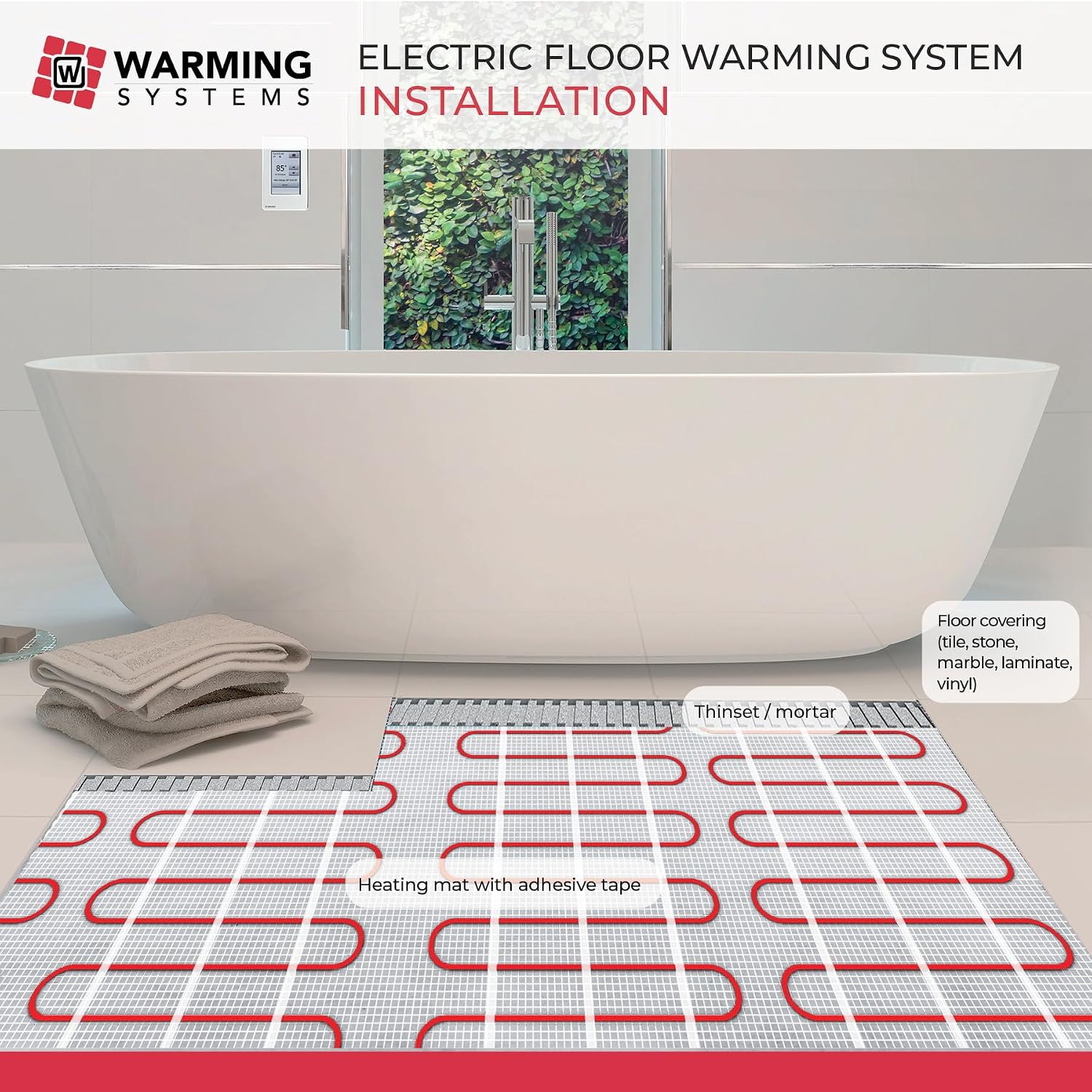

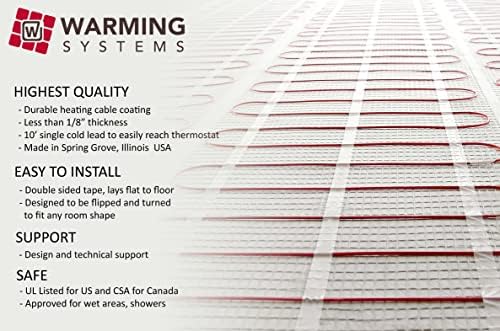

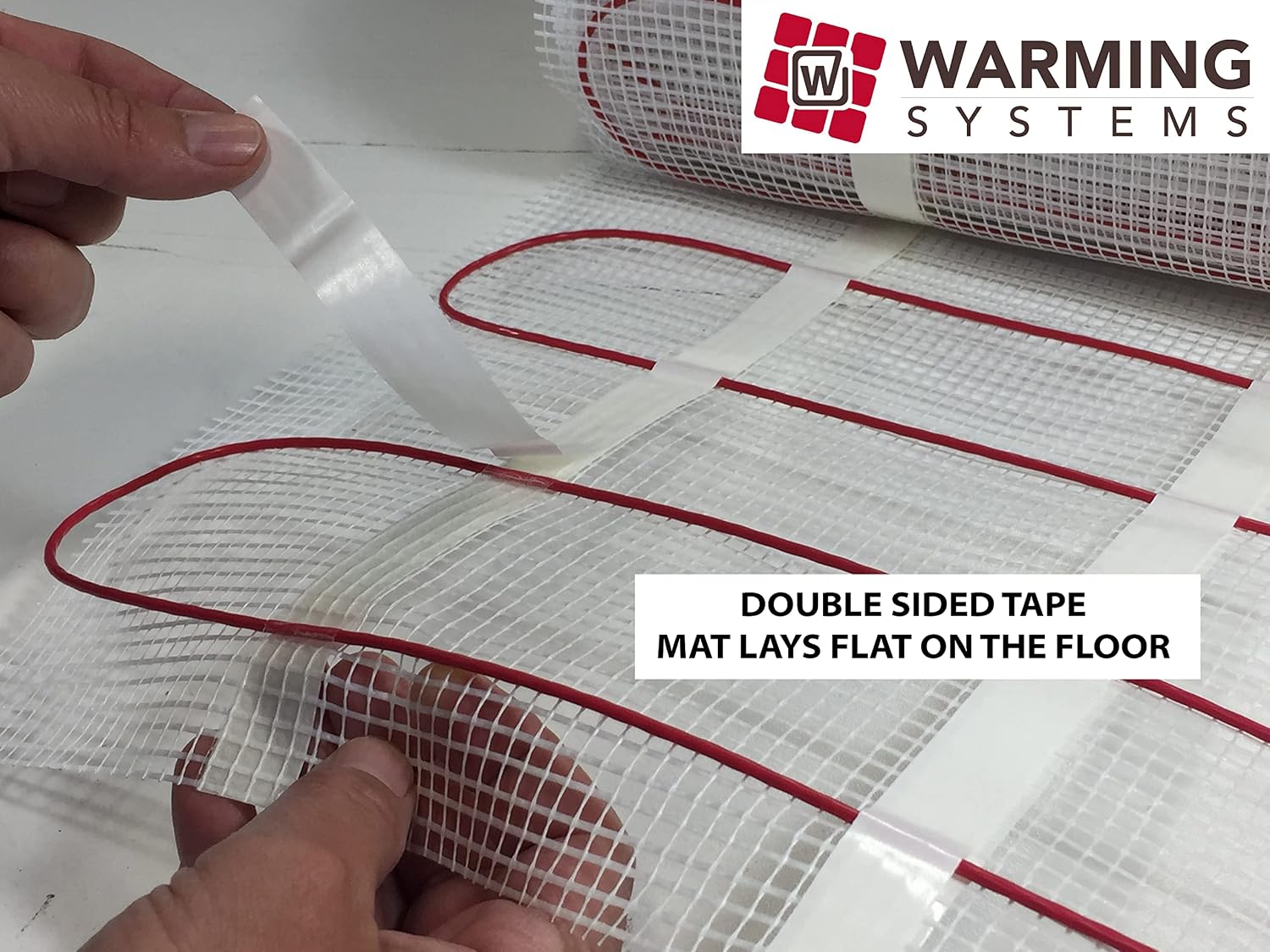

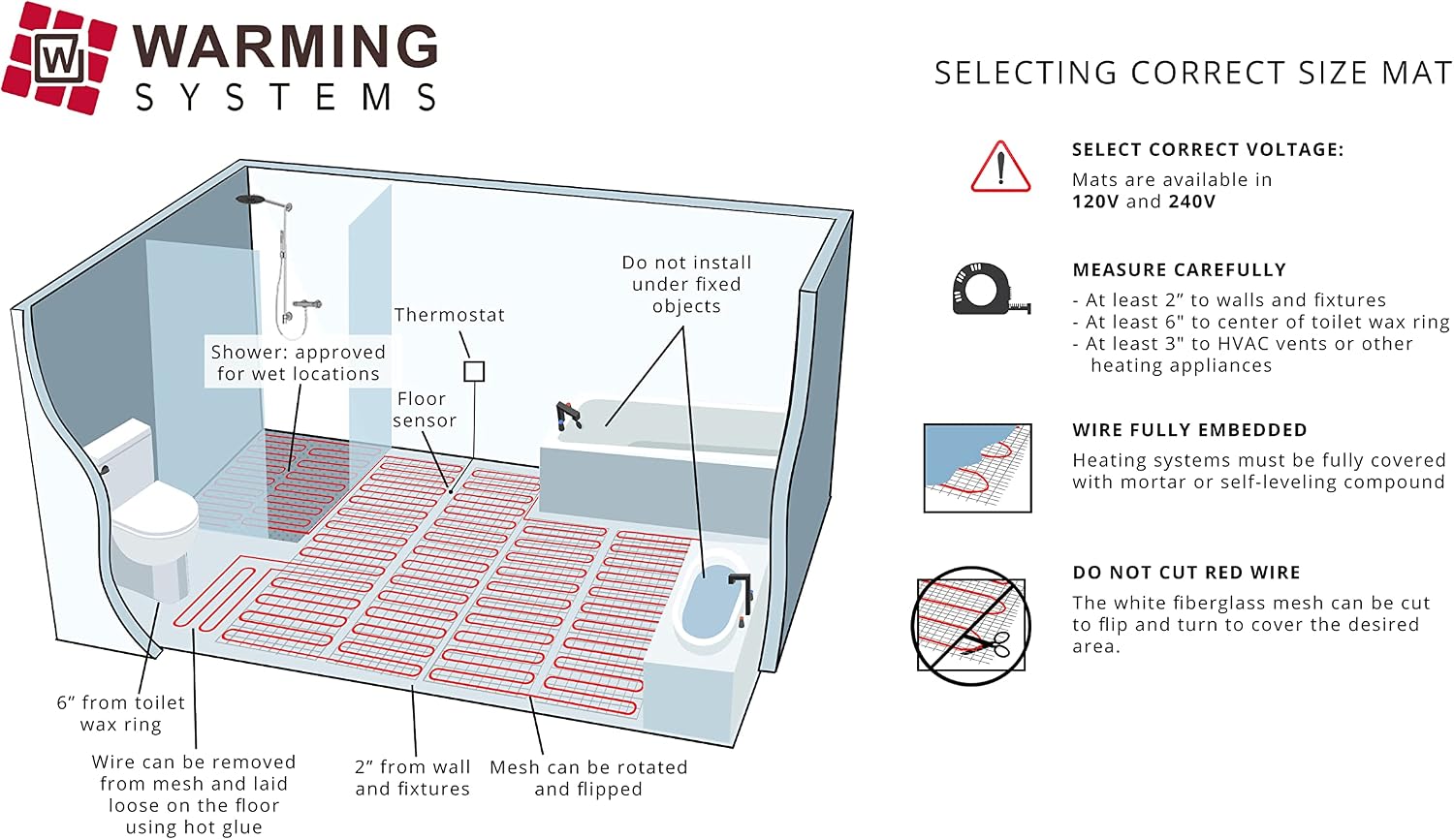

The Electric Floor Heating Mat consists of a mat with the cable heating elements pre-spaced 3" within the mat. Simply unroll the floor heating mat with the cold lead running up the wall to the electrical box. These heating systems are ideal for rectangular or square areas with right angles. You can manipulate the mat to fit the desired heating area by using the turning techniques shown below. The white fiberglass mesh may be cut to flip and turn the mat. The RED HEATING ELEMENT CAN NOT BE CUT, so be sure to accurately measure the space you are heating.

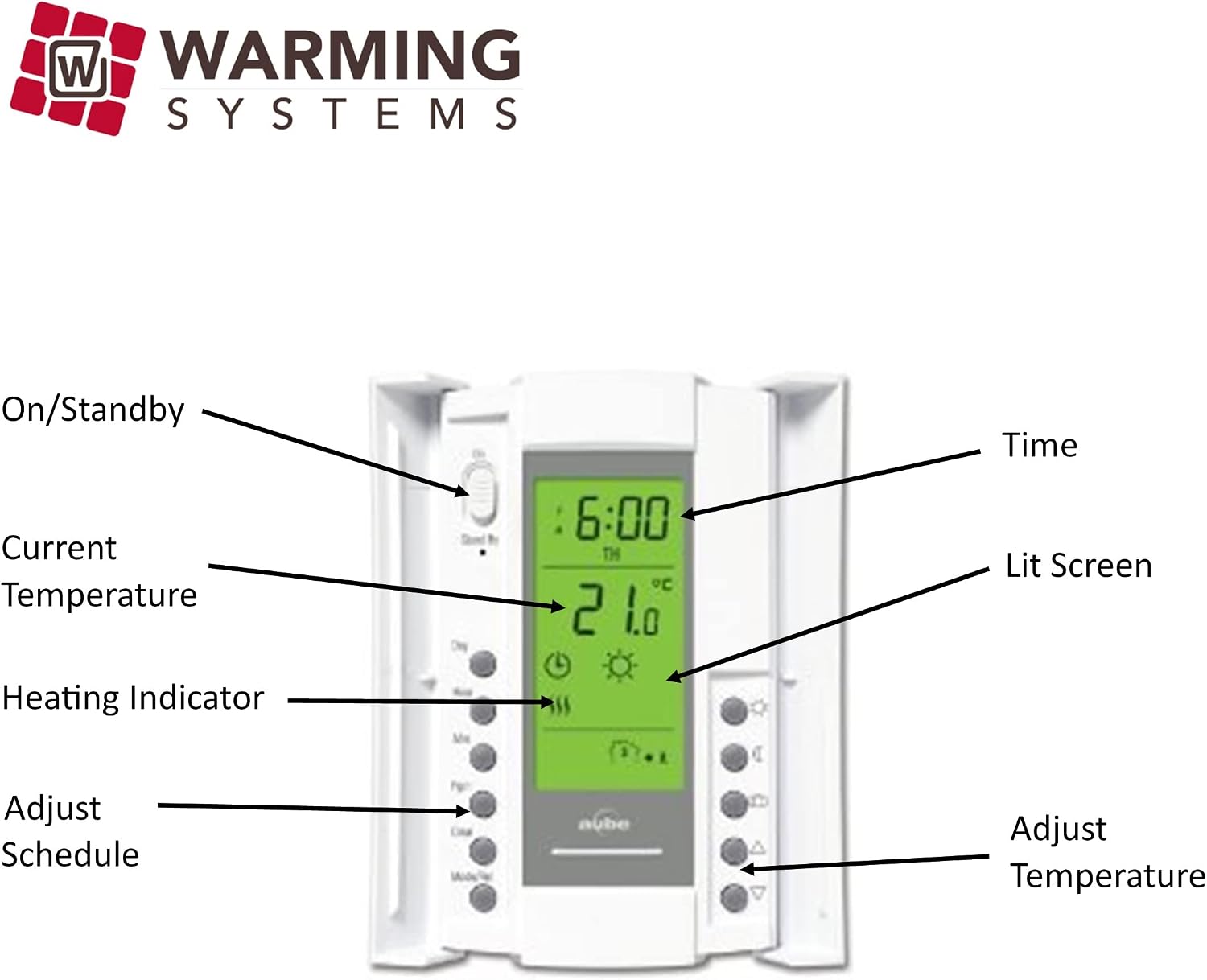

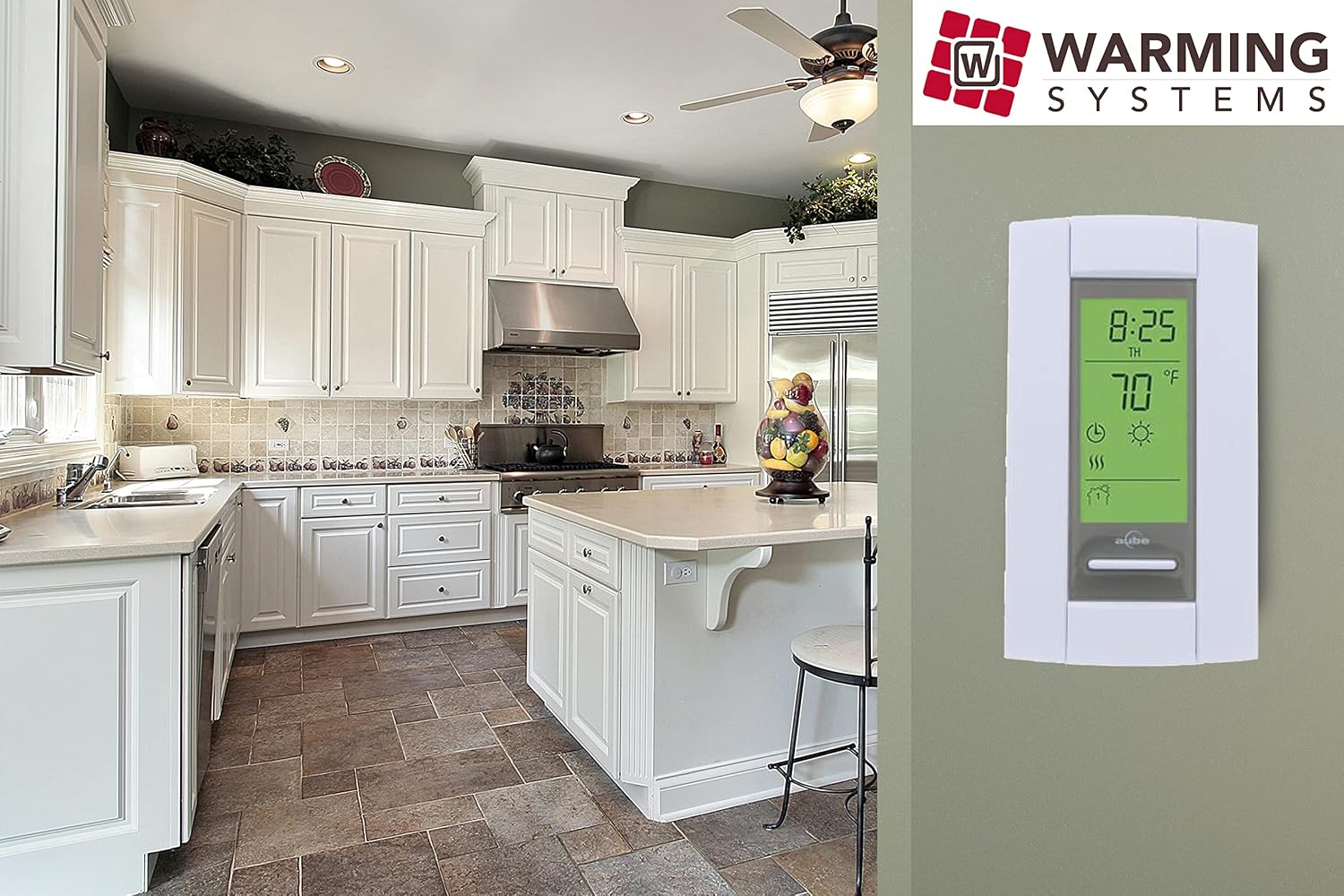

Digital Thermostat Model # TH115-AF-120S
This programmable floor sensing thermostat with floor sensor is designed to work with electric floor heating systems. It gives you the ability to accurately control the floor temperature for maximum comfort and energy savings.
The thermostat features high-tech precision with straight forward, user friendly interface and contemporary design with backlit display. This floor sensing thermostat is DIGITAL, PROGRAMMABLE, and includes the FLOOR SENSOR.
USER FRIENDLY-Easy to operate. This thermostat is 120 volts, rated for 16 amps, easily switching between F and C temperature scales. This thermostat is not GFCI protected. Fits into a standard 2" x 4" square electrical box.
THERMOSTAT FEATURES
The Installation Monitor measures continuity of the heating system during installation and will alarm if the heating system gets damaged. It will give you peace of mind while installing the floor warming system. Connect the system leads to the monitor prior to installation. The monitor will "scream" a warning in the event the heating element is cut or damaged allowing you to make any necessary repairs before the heating system is embedded in mortar. If the alarm sounds, stop work and consult the operation manual. We still recommend checking the ohms of the floor heating system with a multimeter before, during, and after installation.
Thermostat floor sensor is included. The sensor wire runs down the wall and into the heated area to give an accurate floor temperature reading. The sensor probe is installed in between the heating elements.
The thermostat also has a built in "Ambient" temperature sensor that allows for dual temperature control.
REASONS TO PURCHASE FROM WARMING SYSTEMS INC.
Installation:

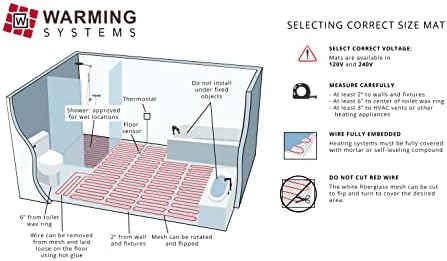

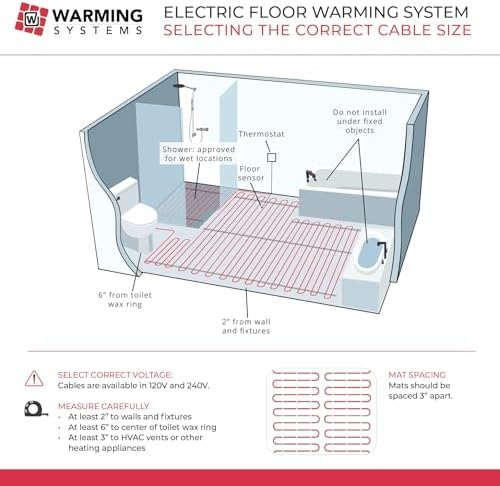

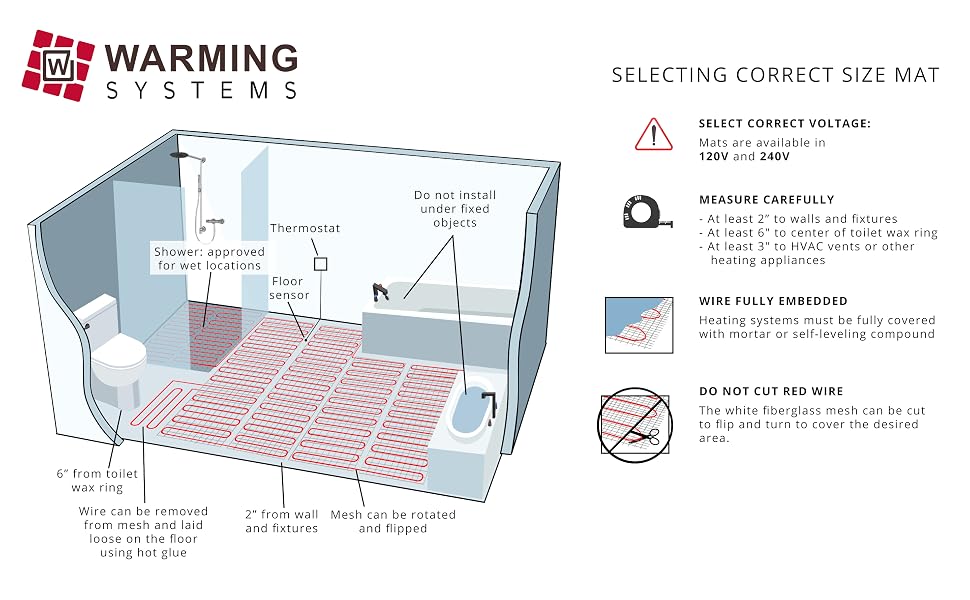

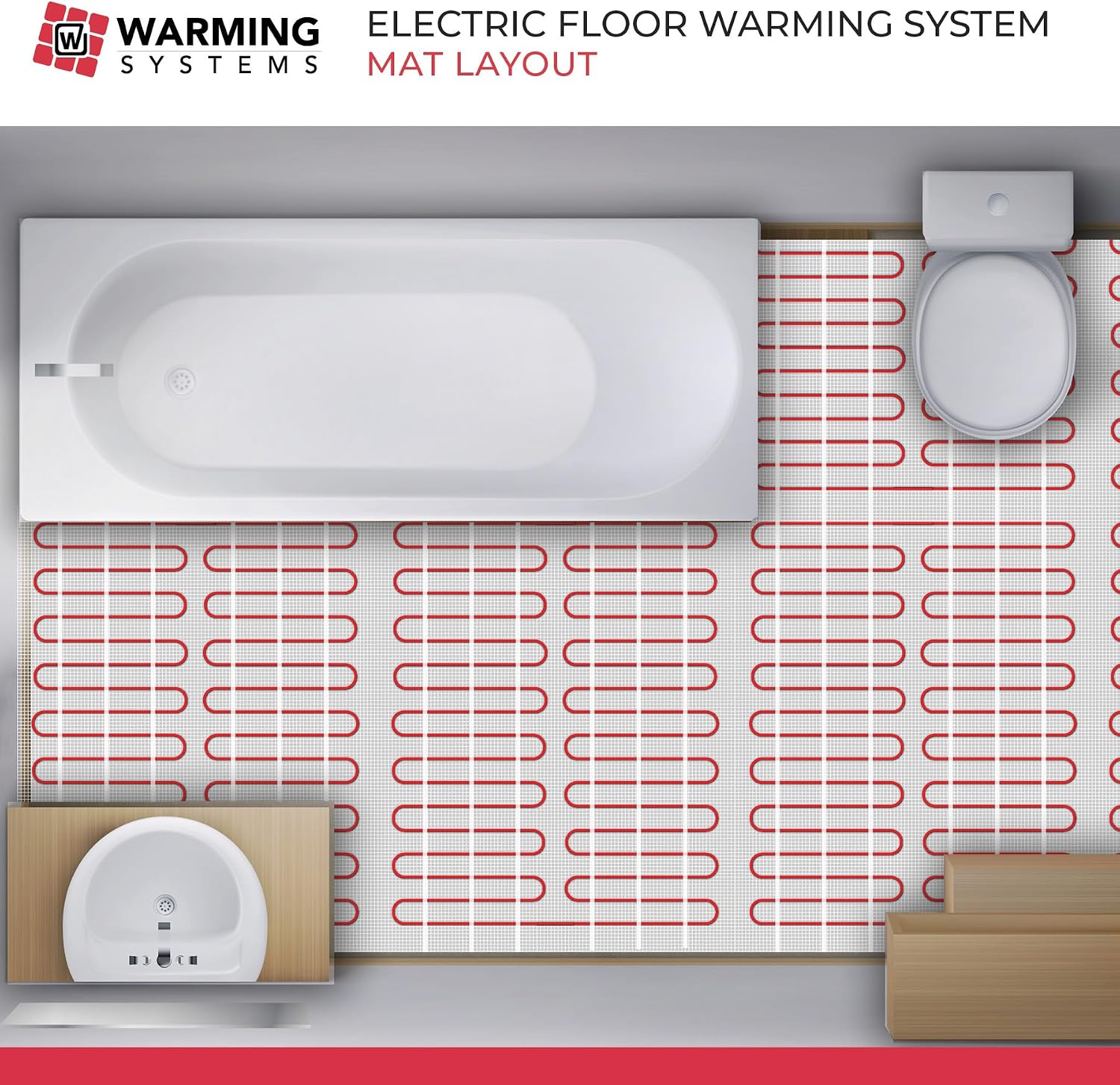

Techniques used to layout around corners, angles, and built-ins.
Techniques used to layout around corners, angles, and built-ins.
Techniques used to layout around corners, angles, and built-ins.
Techniques used to layout around corners, angles, and built-ins.

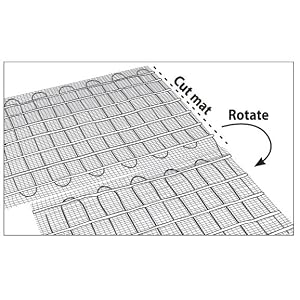

Back-to-Back Turn

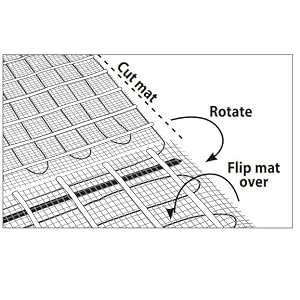

Flip Turn

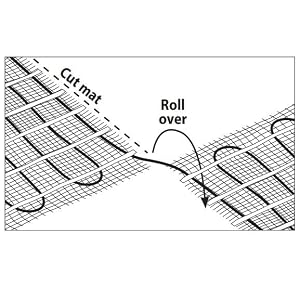

Roll-over Turn

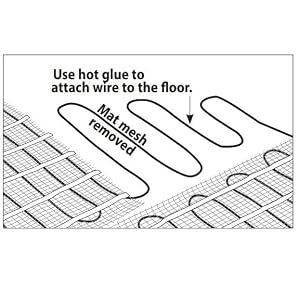

Fill-in Technique
Warming Systems electric radiant floor heat needs to be felt to appreciate the luxurious feeling it offers. Imagine stepping onto a warm comfortable bathroom floor in the morning rather than an unpleasant chilly tile floor. As soon as you step on a floor with electric floor heat you will immediately feel the warmth. Since radiant heat rises from the electric floor heating system, it warms the objects in the room making the entire room comfortably warm for you and your family to enjoy.
