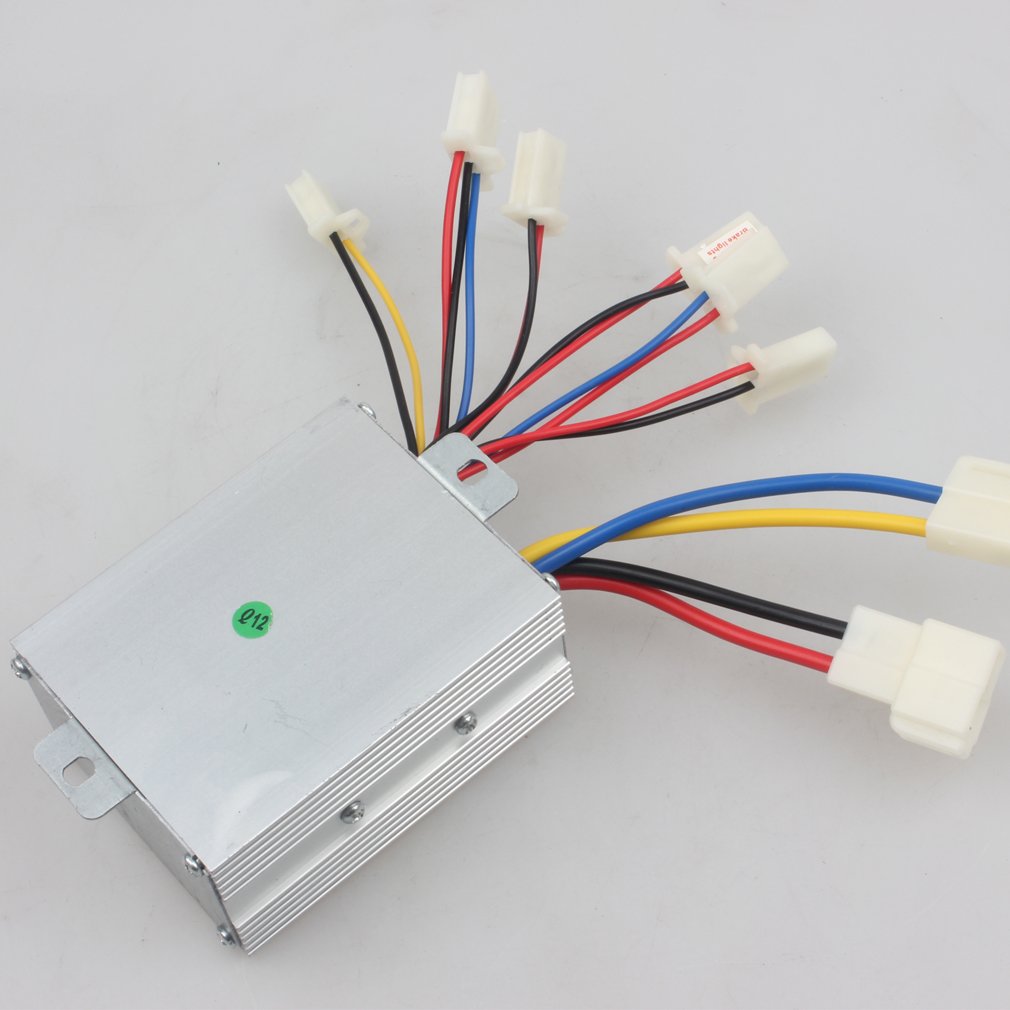

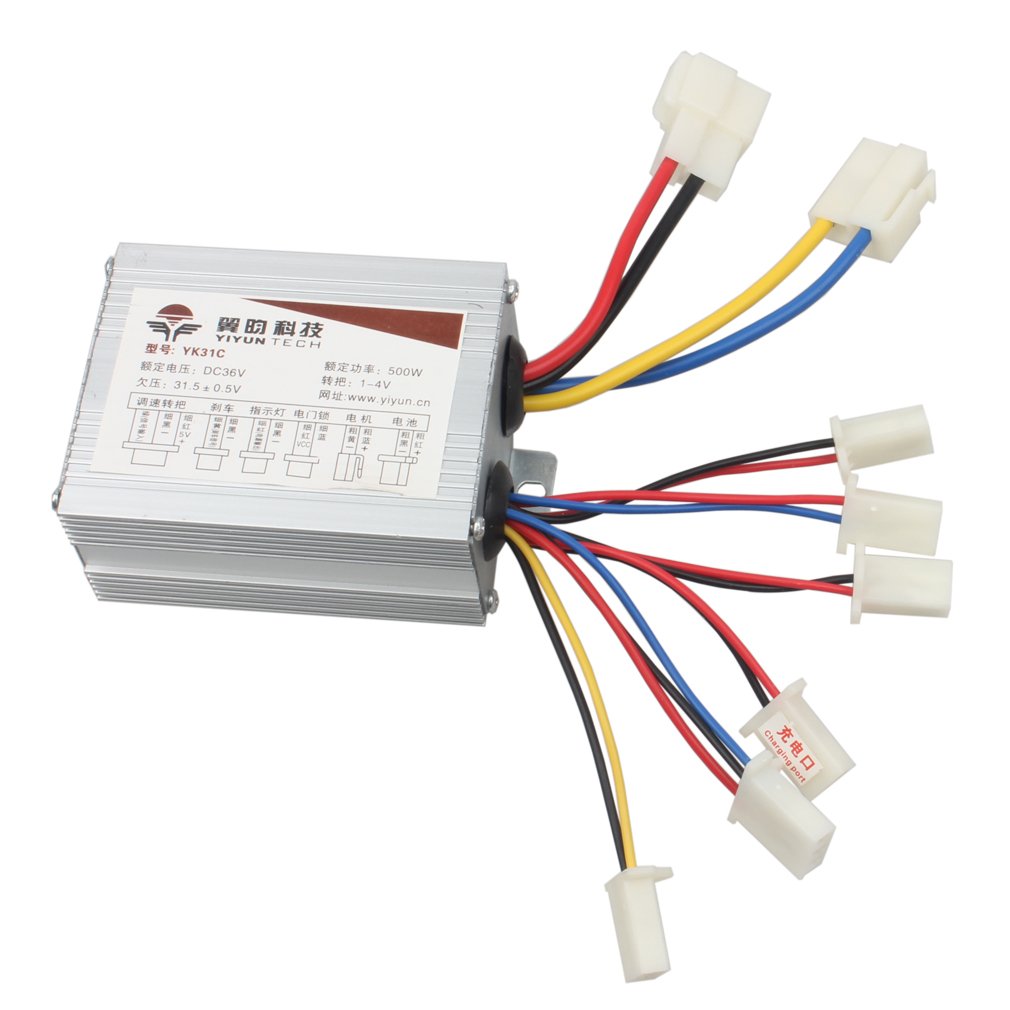

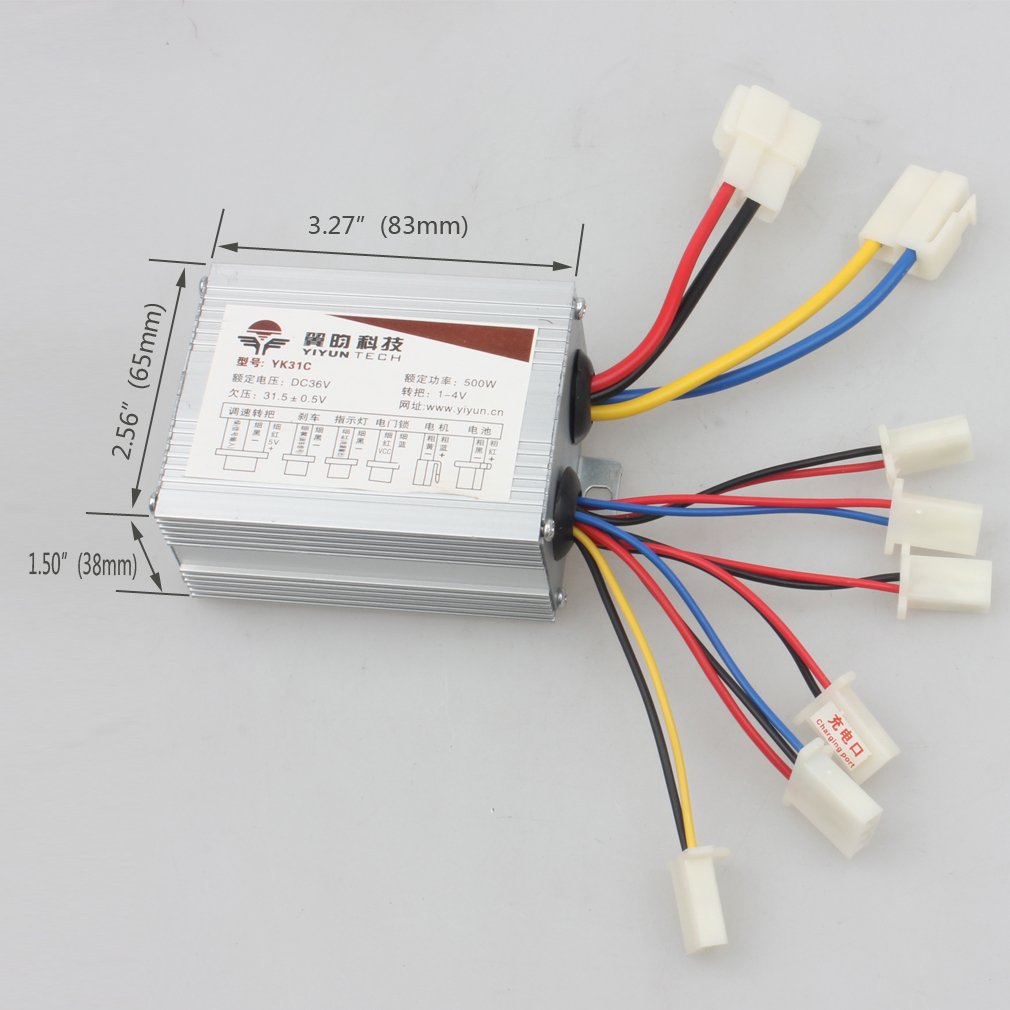

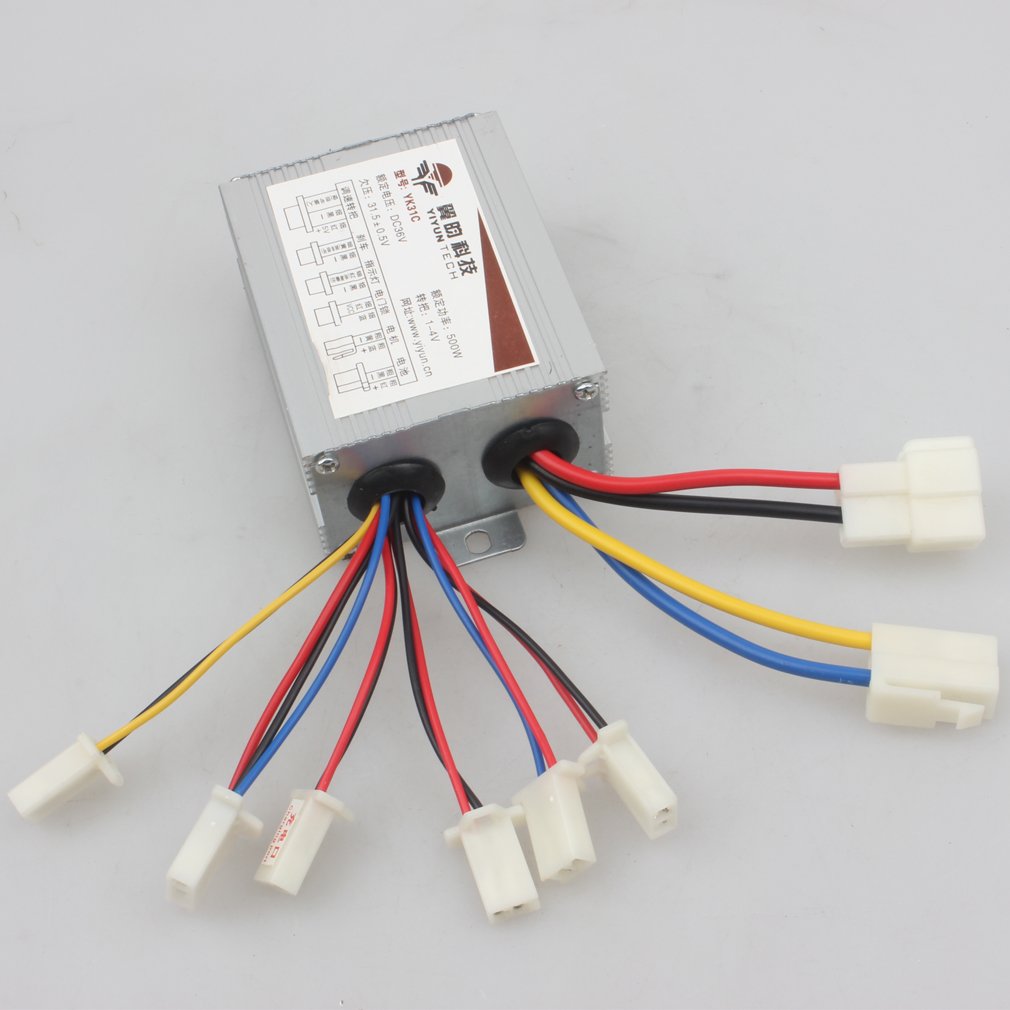

36v 500w Motor Speed Controller for Brushed Motor | for E-Bikes E-Tricycles E-Moto E-Scooter, Rugged Aluminum Housing Withintegrated Cooling Fins

$7.20 USD

Shipping fees will be calculated at checkout.

36V 500W Controller - This 36V motor speed controller is suitable for electrical scooter E-Bike Bicycle Tricycle; This is a brush motor controller (not fit brushless motor )
36V Brush Motor Controller Parameters - Work Voltage: 36Volts; Matching Motor: DC brushed motor; Rated Motor Power: 500 Watts; Under Voltage Protection: 31.5V±0.5V; Speed governor 1-4 V(Throttle); Usable Motor: 36V 500 Watts

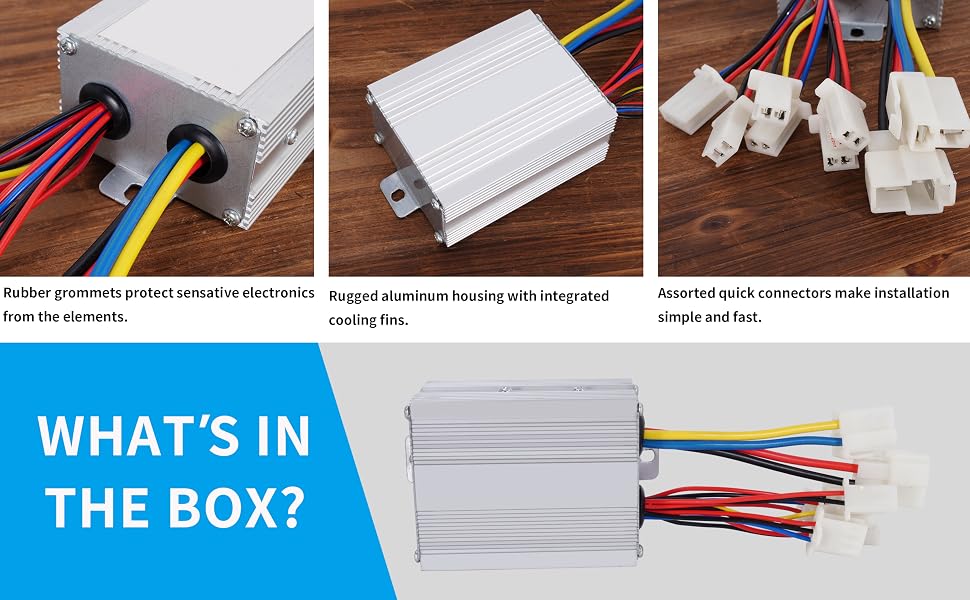

Sturdy and durable - Rubbergrommets protectsensative electronics from the elements; Ruggedaluminum housing withintegrated cooling fins.
Easy to install - Various types of quick connectors for 36v 500w motor controller make installation easy and fast; Brushed motor controller providing steady and sensitive control of speed
NOTE - Please read the instructions and plug instructions carefully. We have attached an explanation video for you to understand our 36V 500W Controller. Please note do not take the wrong power cord, or will burn. If you have any questions about 36V 500W Controller adaptation, installation, quality, etc., please contact us in time

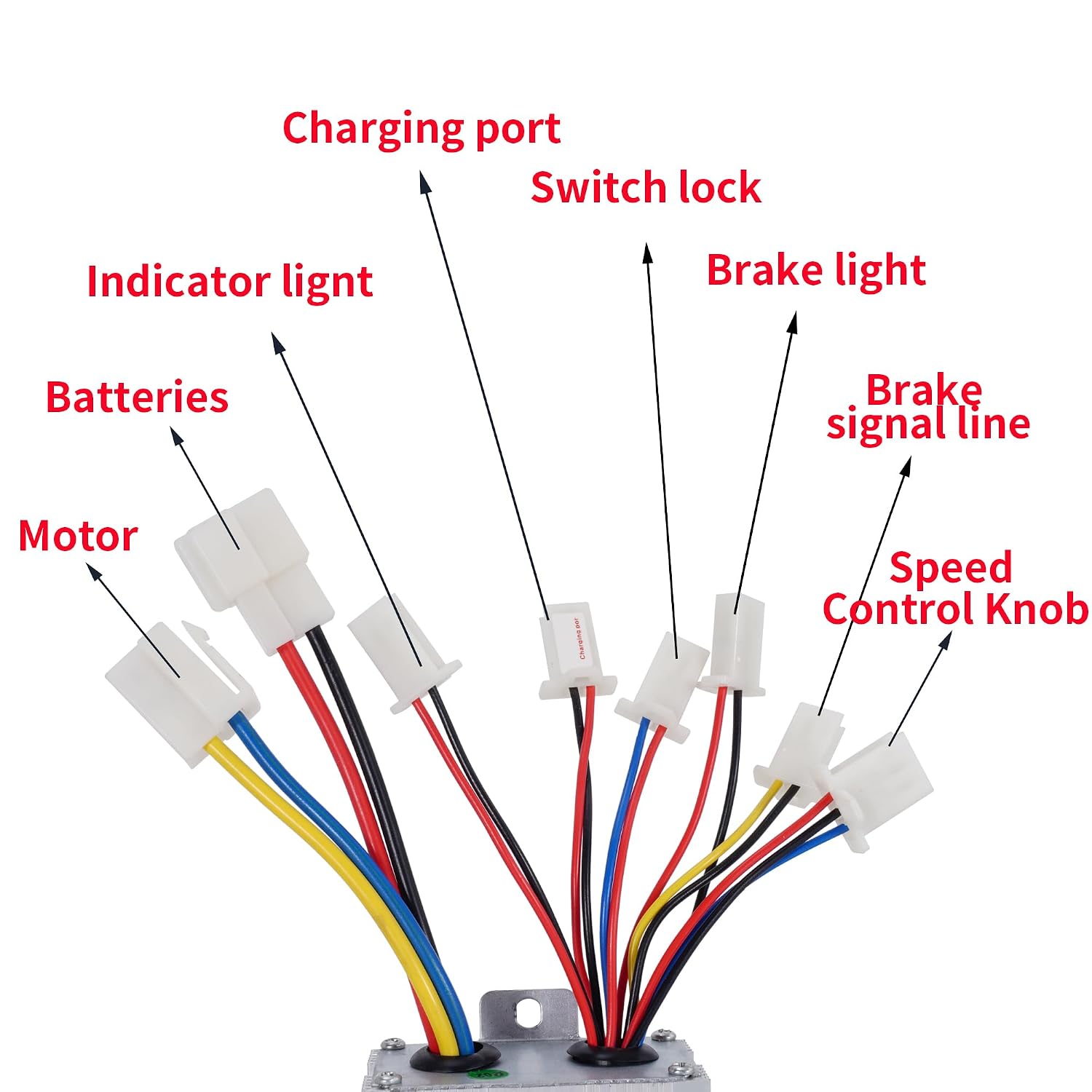

To operate the controller, at least four connectors must be connected first. First, connect the two thicker wires on the controller (blue and yellow) to the motor, with the blue wire connecting to the motor's red wire and the white wire connecting to the motor's black wire. Next, connect the two thicker wires on the controller (red and black) to the battery, with the red wire to the positive terminal and the black wire to the negative terminal. Third, connect the throttle connector (the throttle has three wires; ensure red wire to red and black wire to black). Finally, connect the ignition switch, turn it on, and the motor will start running

Model Name	CT04-CA
Model	CT04-CA
Manufacturer	WEIYINGSI
UPC	614070524962 757233430868
Included Components	Lock
Part Number	CT04
Voltage	36 volts
Horsepower	500 watts
Wattage	500 watts
