| Size | 10 Sq Ft |
|---|---|
| Color | Red |
| Shape | Rectangular |
| Usage | Electric Baseboard Heater |
| Voltage | 120 volts_of_alternating_current |
| Wattage | 120 watts |
| Material | Plastic |
| Item Weight | 2.68 pounds |
| Manufacturer | Warming Systems Inc |
| Power Source | Corded Electric |
| Display Style | Digital |
| Mounting Type | Floor Mount |
| Special Features | Easy to Install, Programmable, Under Tile Floor Heat |
| Item model number | 120cablespoolaube |
| Package Dimensions | 20 x 5.2 x 4.29 inches |

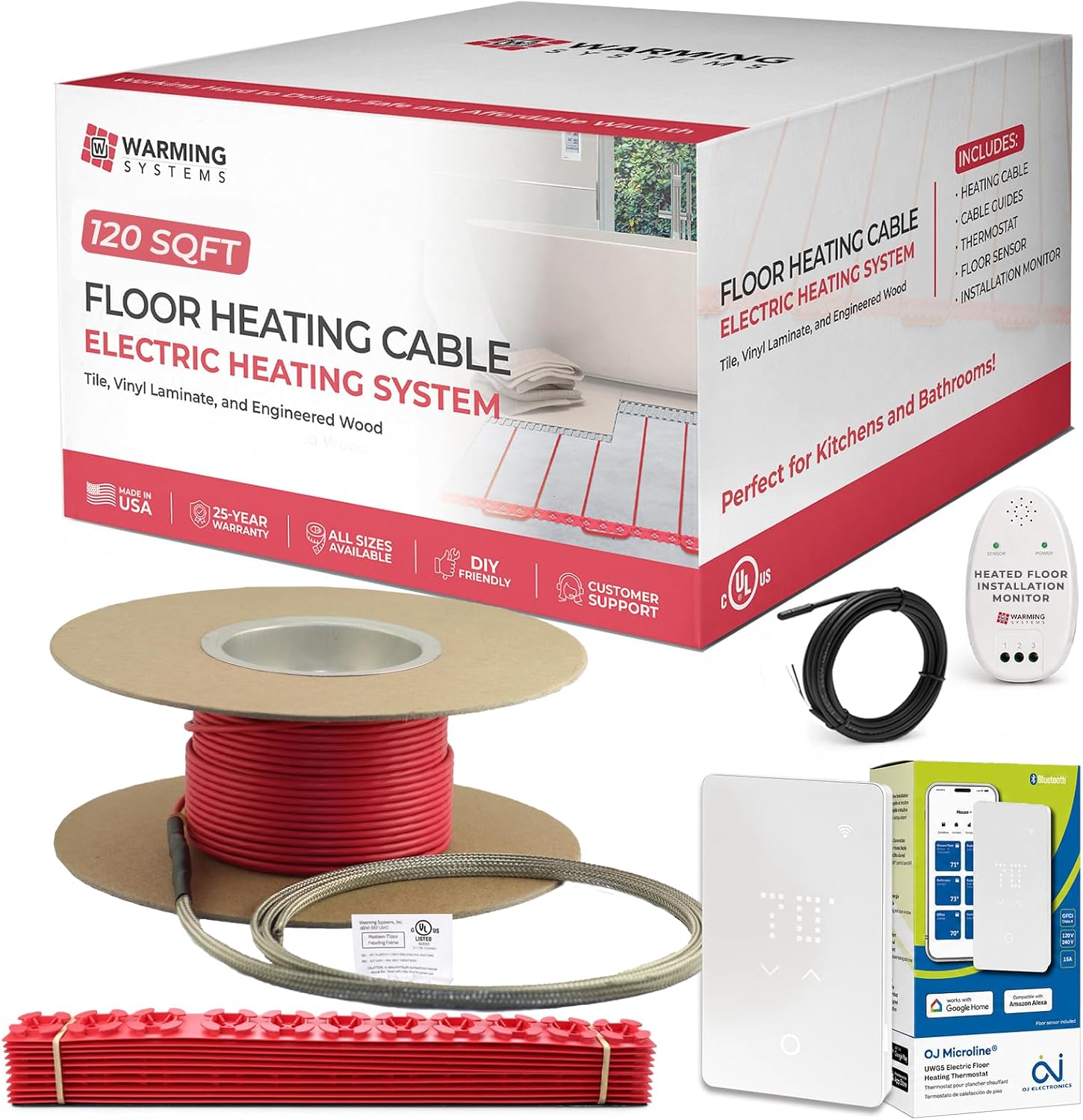

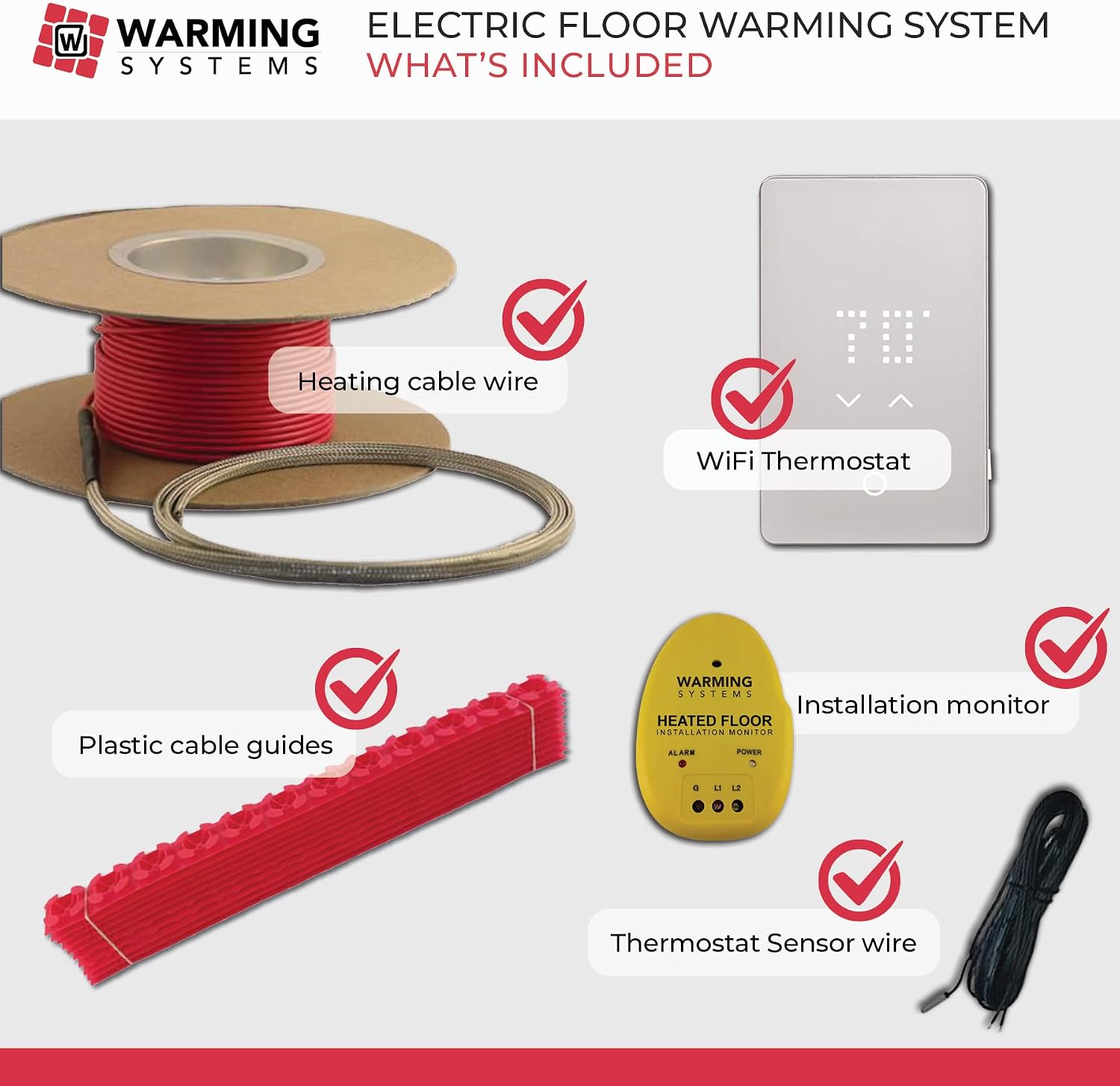

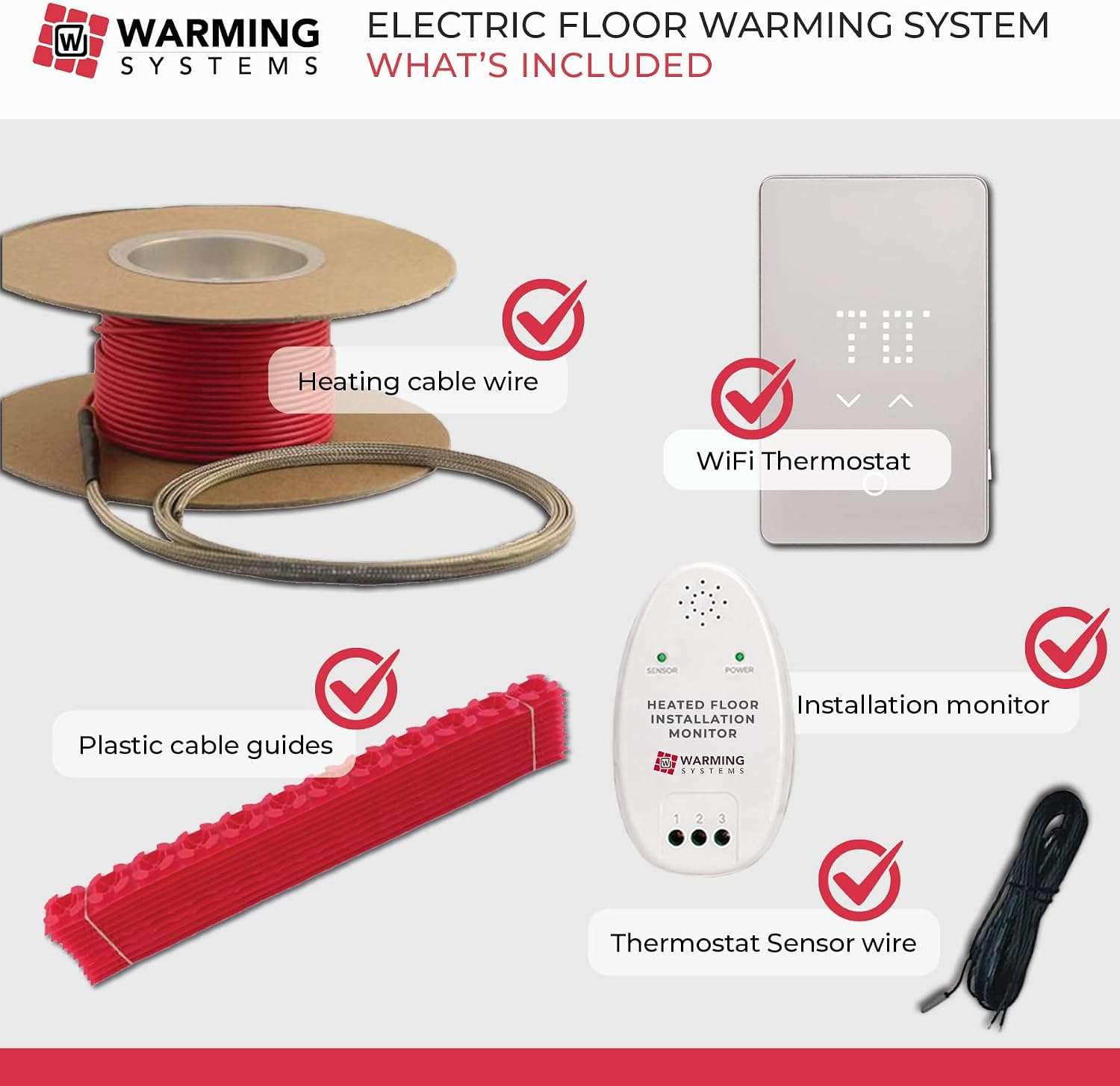

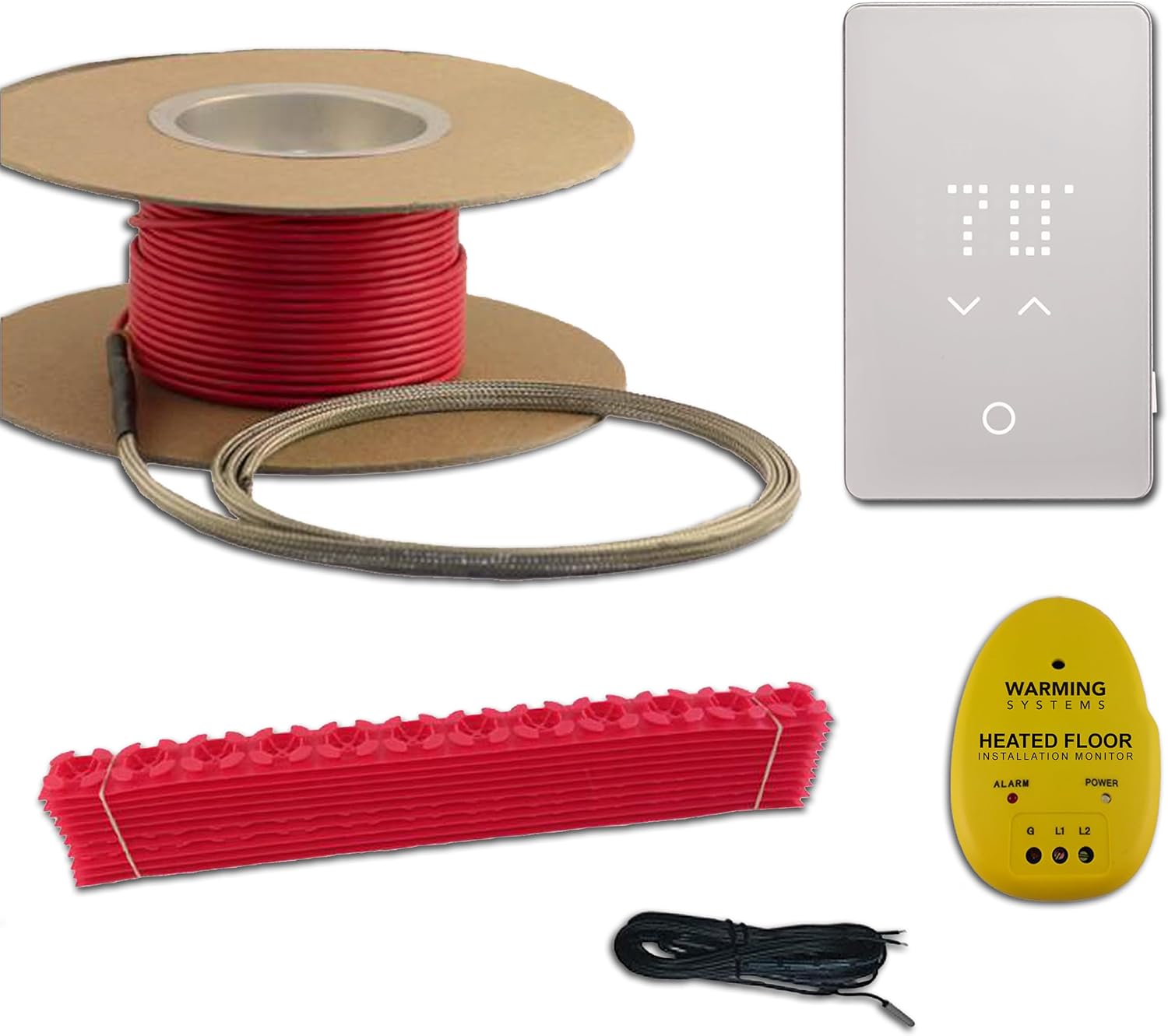

| Included Components | Engineering Support, Floor Heating Cable, Floor Sensor, Installation Monitor, WiFi Thermostat |
| Item Package Quantity | 1 |
ALL SIZES AND INSTALLATION TYPES ARE AVAILABLE:
Floor Heating Cable
The Electric Floor Heating Cable consists of a spool of heating cable. Simply run the cable 3" apart across the area to heat using the cable guides to secure to the floor and run the cold lead up the wall to the electrical box. These heating systems are ideal for odd shaped areas or to heat around objects. The RED HEATING ELEMENT CAN NOT BE CUT, so be sure to accurately measure the space you are heating.

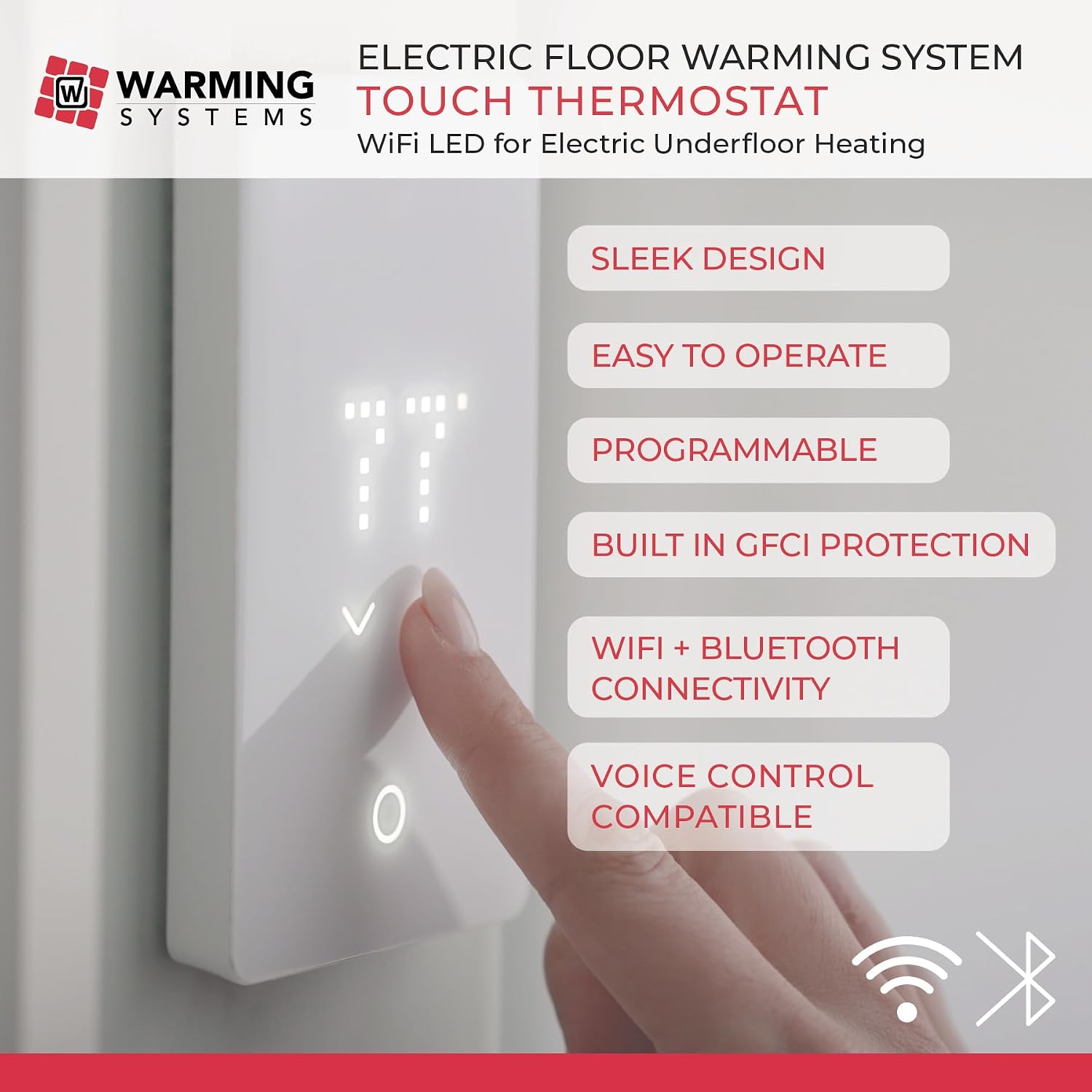

Programmable Wi-Fi LED Touch Thermostat Model # UWG5-4999
Includes: SENSOR WIRE
This programmable floor sensing thermostat with floor sensor can remotely adjust and monitor floor temperature. The thermostat can be accessed locally through Bluetooth and everywhere when connected to the OJ App cloud service through WiFi. Users can control the thermostat using just voice.
Smart Installation via App:
An intelligent WiFi thermostat makes installation, setting, and operation a lot easier. The OJ App guides the installer and end-user through the few necessary steps to ensure the correct installation and operation of the thermostat. It can also be set up without the app.
The Installation Monitor measures continuity of the heating system during installation and will alarm if the heating system gets damaged. It will give you peace of mind while installing the floor warming system. Connect the system leads to the monitor prior to installation. The monitor will "scream" a warning in the event the heating element is cut or damaged allowing you to make any necessary repairs before the heating system is embedded in mortar. If the alarm sounds, stop work and consult the operation manual. We still recommend checking the ohms of the floor heating system with a multimeter before, during, and after installation.
Designed for fast installation of the the heating cable, simply loop the floor heating cable around the guide as you lay the cable system across the subfloor.

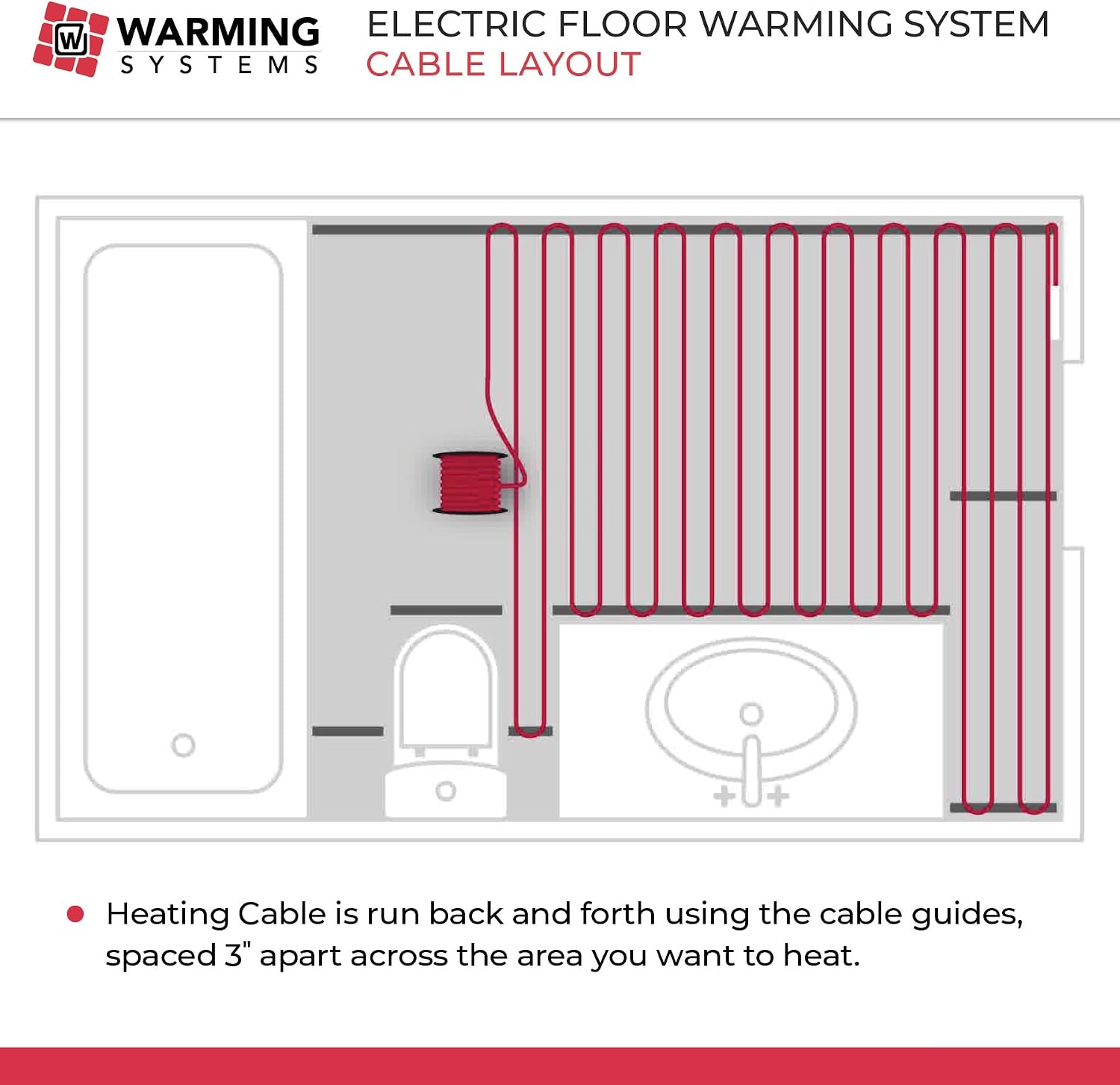

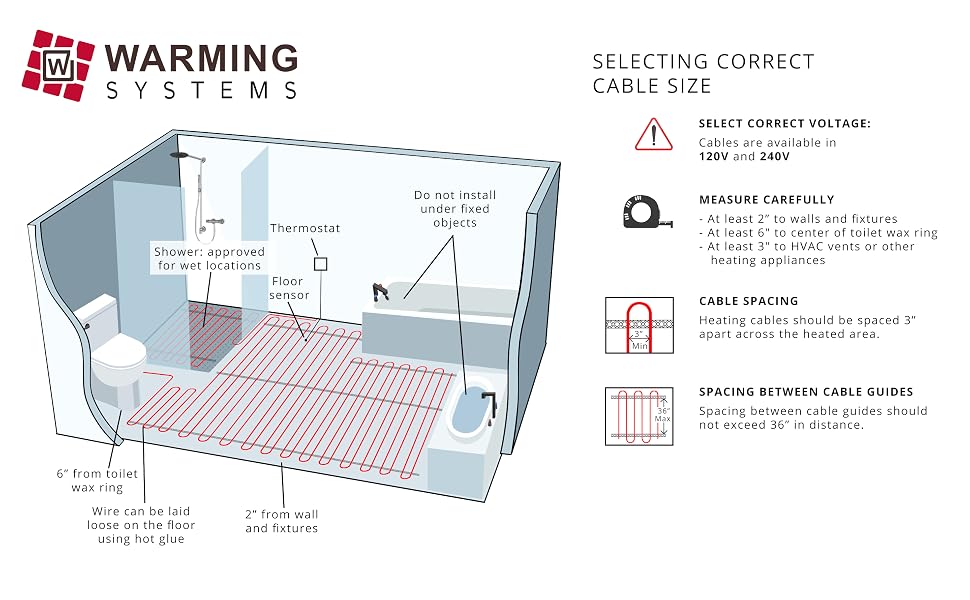

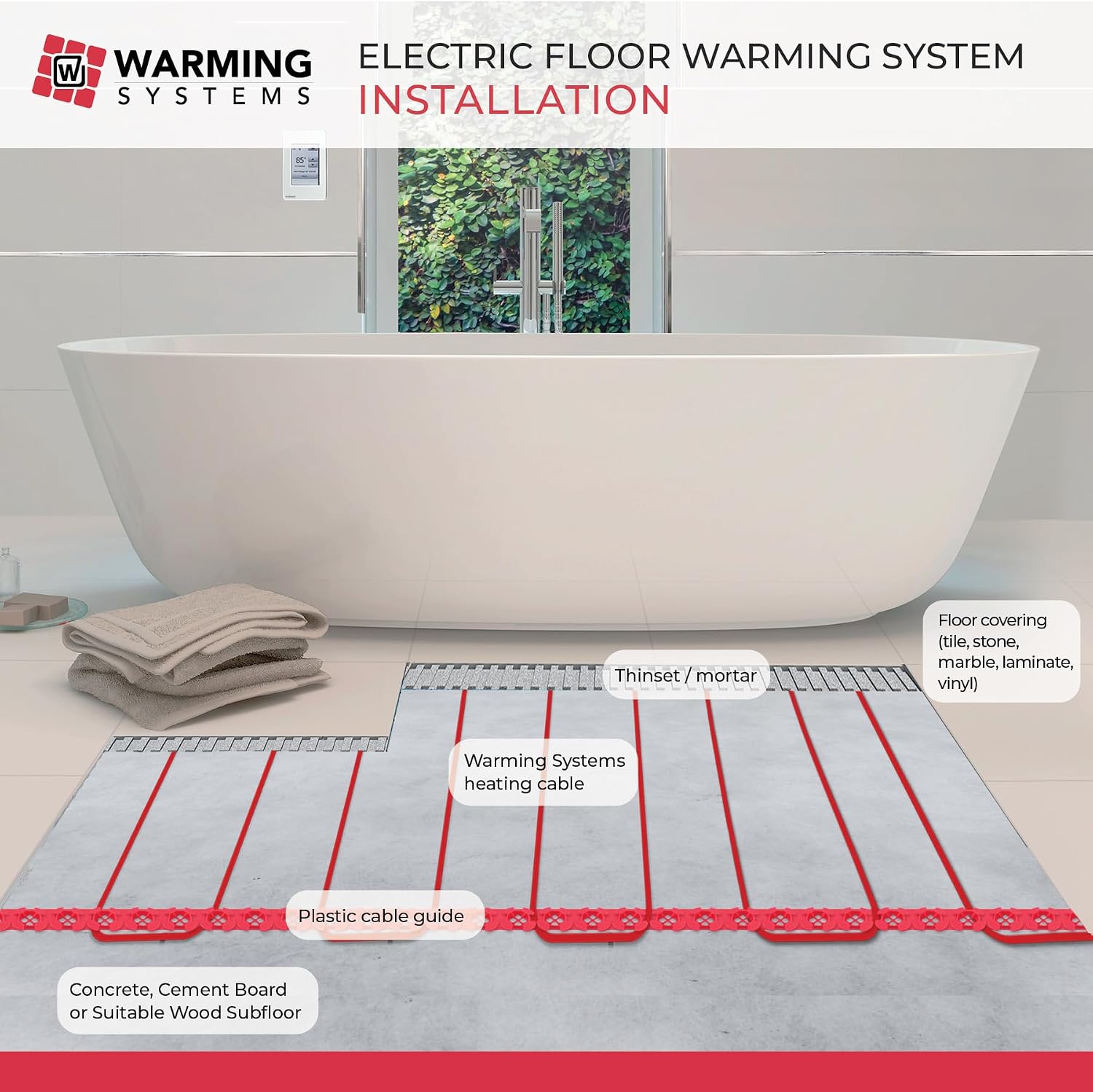

Secure the cable guides according to the planned layout using screws, nails, adhesive or glue approved for use with the given subfloor. The heating element should be spaced 3" apart across the area to be heated. Cable guides should be run perpendicular to heating cables. The heating cables should have a minimum distance of 2" from walls and objects. Spacing between cable guides should not exceed 36" in distance. Secure the heating element to cable guides by wrapping the wire around the stud. Maintain moderate tension of cable throughout installation. Do not twist heating element and keep the minimum bending radius of the cable to 1".
Cable guides are 12" long and can be cut to length. Includes enough cable guides for cable heating system.
REASONS TO PURCHASE FROM WARMING SYSTEMS INC.
Installation:
Warming Systems electric radiant floor heat needs to be felt to appreciate the luxurious feeling it offers. Imagine stepping onto a warm comfortable bathroom floor in the morning rather than an unpleasant chilly tile floor. As soon as you step on a floor with electric floor heat you will immediately feel the warmth. Since radiant heat rises from the electric floor heating system, it warms the objects in the room making the entire room comfortably warm for you and your family to enjoy.
