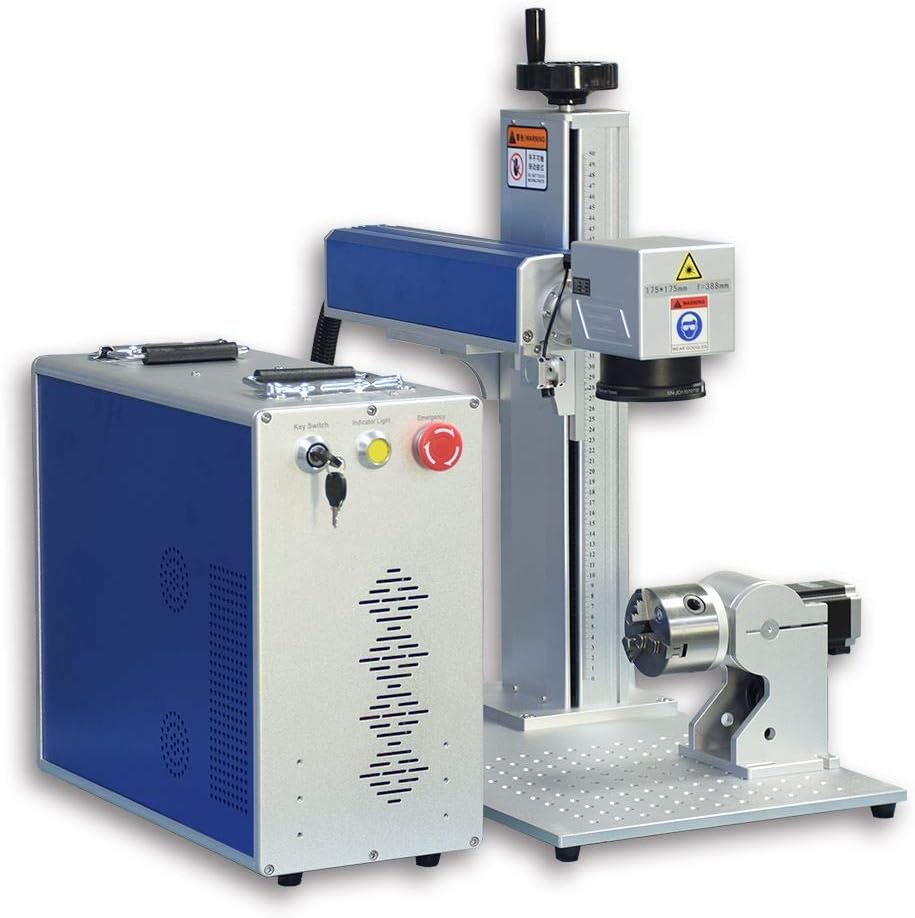

100W Fiber Laser Marking Machine for Metal Engraving Machine 100W 300×300mm with 80mm Rotary Device JPT MOPA Fiber Laser Engraver Rotary Class 1

1 / 15

100W Fiber Laser Marking Machine for Metal Engraving Machine 100W 300×300mm with 80mm Rotary Device JPT MOPA Fiber Laser Engraver Rotary Class 1

$349.95 USD

Shipping fees will be calculated at checkout.

Laser Power: 100W, Class 1 Laser Output Power 0.39mW, Laser Marking Area: 300×300mm.Maximum Material Thickness:250mm(9.8in).
Laser Source: MOPA JPT M7+; Repetition Rate Frequency : 1-4000kHZ; Pulse Duration: 2-500ns Program : EZCAD Stable performance and high reliability. 100W Fiber Laser Marking Machine can Compatible with Windows XP/Vista/7/8/10.
Advantages:Strip the anode from the surface of the thin aluminium oxide plate.Anodized alumina blackened.Electronic, semiconductor, ITO precision processing applications.Color marking on stainless steel.
Applicable material: Fiber laser marking machine can work on all metals such as aluminum,stainless steel, brass, copper etc. and some of nonmetal such as nylon ,light button, ABS , PVC ,PES etc.

Light Source Type	Fiber Laser
Light Source Wattage	100 watts
Light Source Special Features	Color marking on stainless steel, metal deep engraving, metal surface processing, high-frequency line processing, anodized alumina blackening, electronic and semiconductor precision processing applications
Number of Light Sources	1
Wattage	100 watts
Shade Material	Metal
Color	Green
Shape	Rectangular
Finish Types	Brushed
Style Name	Modern
Number of Packs	1
Set Name	Rotary
Number of Items	1
Unit Count	1 Count
Manufacturer Part Number	SFX
Item Shape	Rectangular
Finish Type	Brushed
Light Source	Fiber Laser
Shade	Metal

MOPA Fiber Laser Engraver Advantages

- Color Marking on Stainless Steel
- Metal Deep Engraving
- Metal Surface Processing
- High Frequency Line Processing
- Anodized Alumina Blackened.
- Strip the Anode from the Surface of the Thin Aluminium Oxide Plate.
- Electronic, Semiconductor, Ito Precision Processing Applications.
F-theta Scan Lens.typically Distortion Less Than 1%, Air-spaced Design and High Efficiency Ar Coatings Excellent Throughput and Durability.
Mopa Fiber Lasers with Excellent Laser Performance and Good Pulse Shaping Controllability.

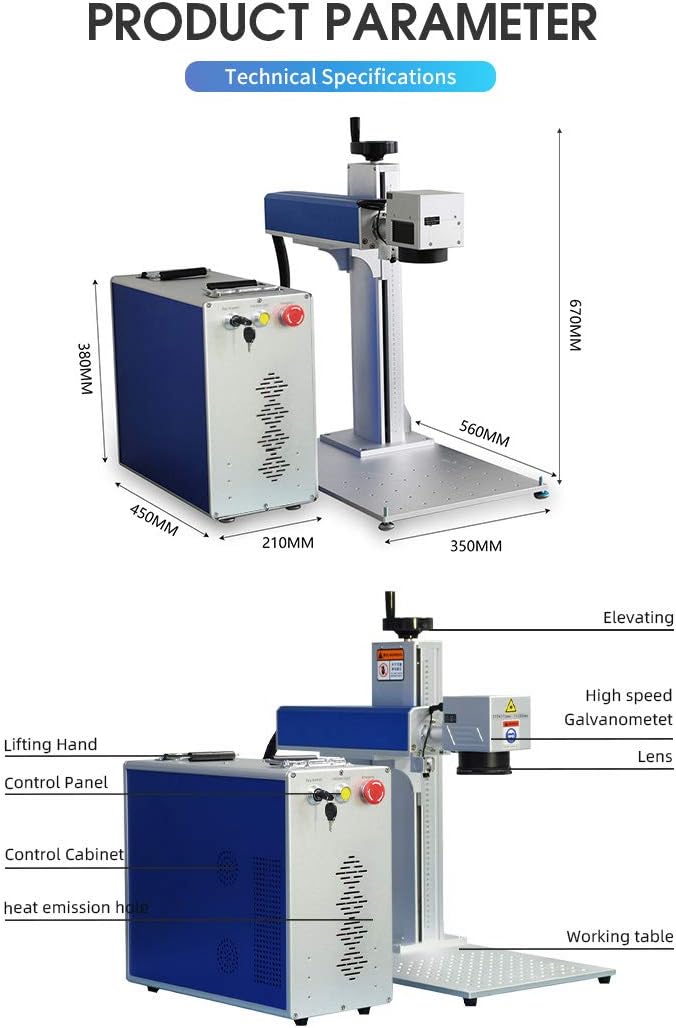

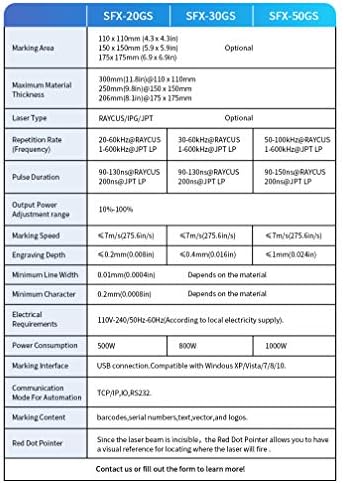

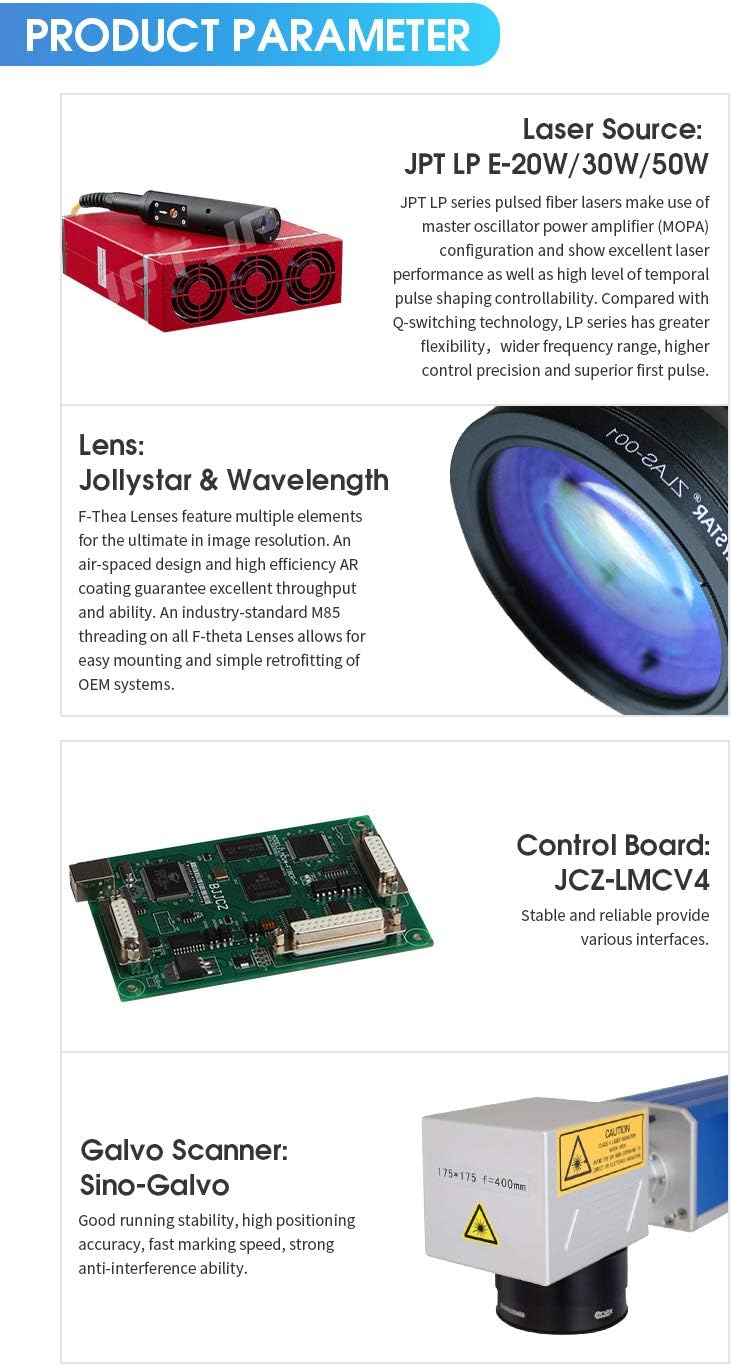

MOPA Fiber Laser Marking Machine Parameters

Marking Area	A Type.110×110mm(4.3×4.3in) // B Type. 150×150mm(5.9×5.9in) // C Type.175×175mm (6.9×6.9in)
Laster Type	JPT MOPA M7 Laser Source
Repetition Rate(Frequency)	1-4000kHZ
Pulse Duration	20W/30W MOPA is 2-350ns. 60W/80W/100W is 2-500ns.
Control Board	BJ JCZ Board(Original)
Software	Ezcad 2.14.7 /Lite(Compatible with Windows XP/Vista/7/8/10)

Output Power Adjustment Range	10%-100%
Laser Wavelength	1064nm
Marking Speed	≤7000mm/s(275.6in/s)
Minimum Line Width	0.01mm (0.0004in) Depends on the Material
Minimum Character	0.2mm(0.008in) Depends on the Material
Marking Content	Text,Pattern,Date Bar Code,Barcodes,vector,etc

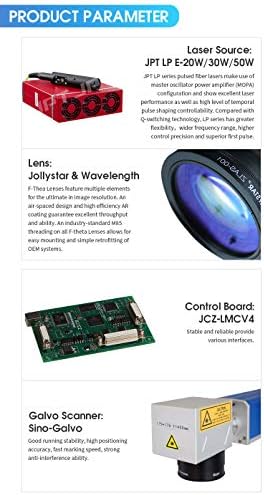

MOPA Fiber laser

JPT MOPA M7 Laser Source

JPT M7 Series High Power Pulsed Fiber Lasers Make Use of Master Oscillator Power Amplifier (MOPA) Configuration, and Show Excellent Laser Performance As Well As High Level of Temporal Pulse Shaping Controllability.

Fiber Laser Engraver

Galvanometer

Sino-galvo Galvanometer Scanner is Famous Brand Which Has Good Running Stability, High Positioning Accuracy, Fast Marking Speed and Strong Anti-interference Ability.

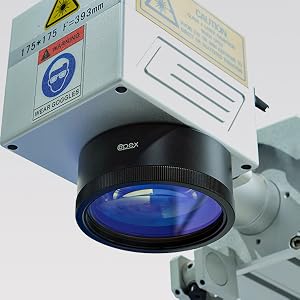

Fiber Laser Lens

F-theta Scan Lens

Opex or JollyStar 1064nm F-theta Lens

Scan Field:70/110/150/175/220/300mm

SL-Q Series F-Theta Lens is Developed for Ultrafast Lasers with Short Pulse Width and High Pulse Energy Laser Applications. These Lenses Are Made with Low Dispersion with Optical Design to Avoid Back Reflection and Ghost Image.

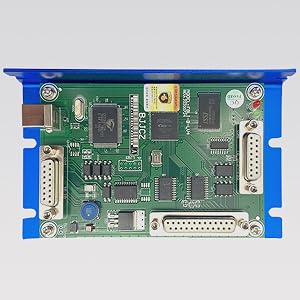

Fiber Laser control card

BJJCZ Control Card

Hardware:LMC Controller FBLI-B-LV4、SZLI-B-LV4
Vector File:PLT,DXF,AI,DST,SVG,GBR,NC,JPC,BOT
Bitmap. File:BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFF
Variable Texts:fixed text, date, time, keyboard, jump number, file, dynamic file, EXCEL table, TXT file, serial communication, and network communication

Fiber Laser Engraver

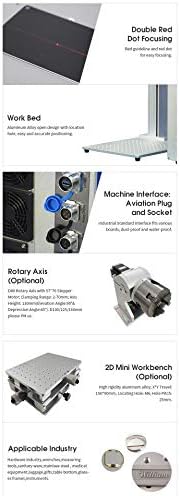

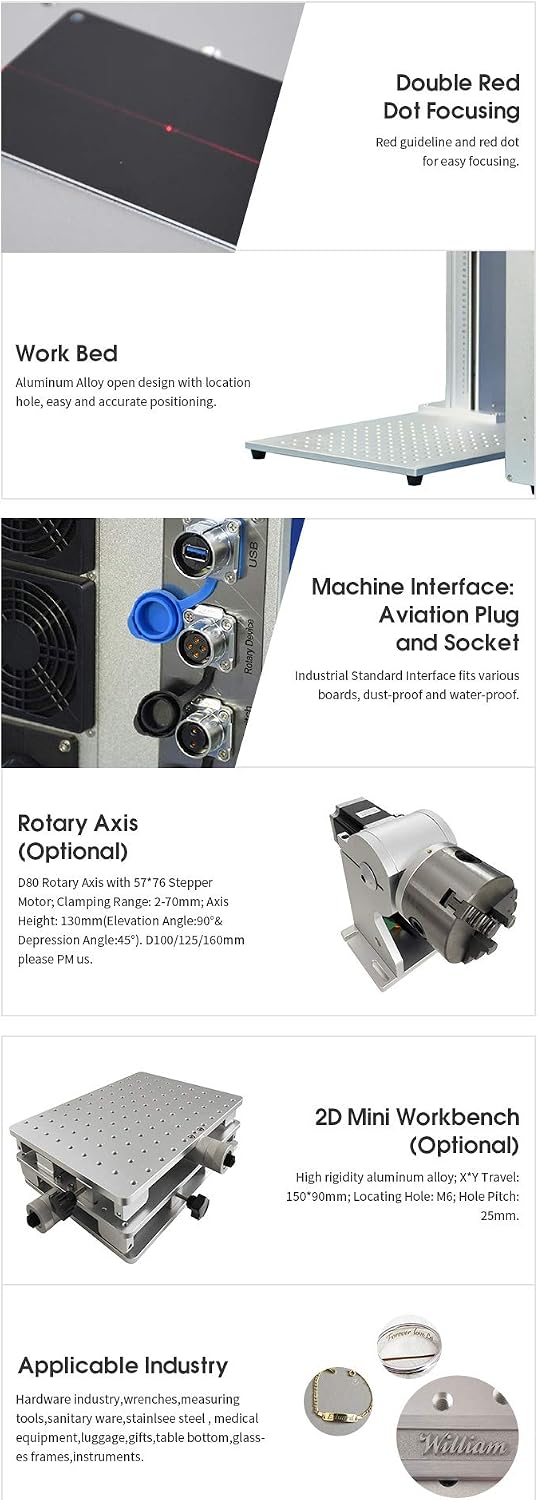

Accurate Dual Red Dot Pointer

The red dot pointer and redline for easy focusing.
Intelligently find the focal length quickly.
The dot and line overlap is the best focal length.
Red box preview makes the operation simple.

Fiber Laser Engraver

EZCAD Stable performance and high reliability

Compatible with Windows XP/Vista/7/8/10/11
Support Coredraw, AutoCAD, Photoshop;PLT,PCX,DXF,BMP,etc
Support SHX, TTF fonts and Automatic encoding, printing serial number, batch number, date, barcode, QR code, automatic jump number, etc.

Fiber Laser Engraver

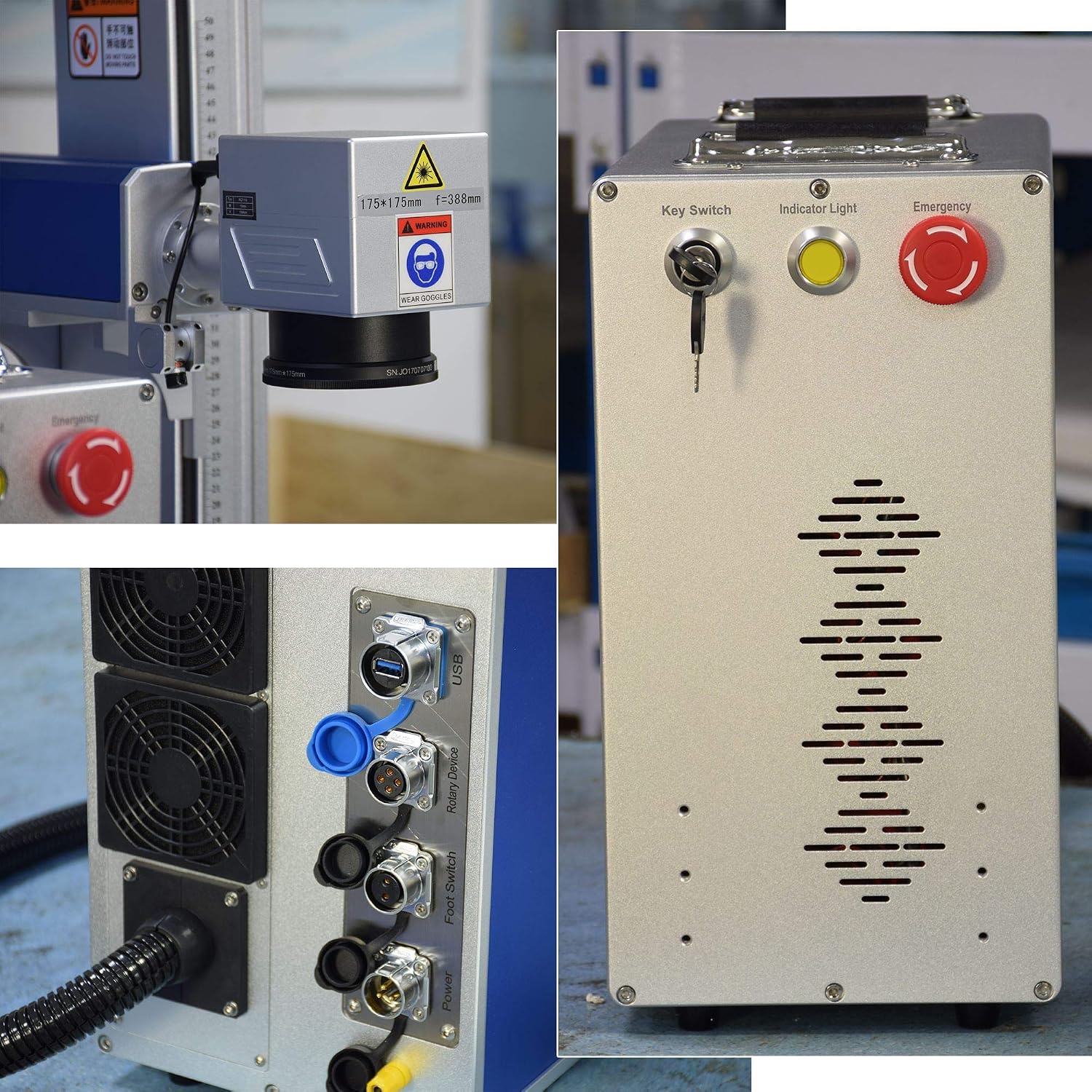

Key Switch & Emergency Button

Key switch ON-OFF for security consideration.
Emergency button can make sure the personnel security of user.
High quality sheet metal work and professional heat emmision hole.

Fiber Laser Marking Machine

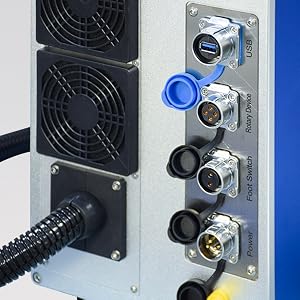

Industrial Connection Port

Industrial Standard connection port,waterproof and dustproof

USB Port
Rotary Port
Foot Switch Port
Power Port
GND

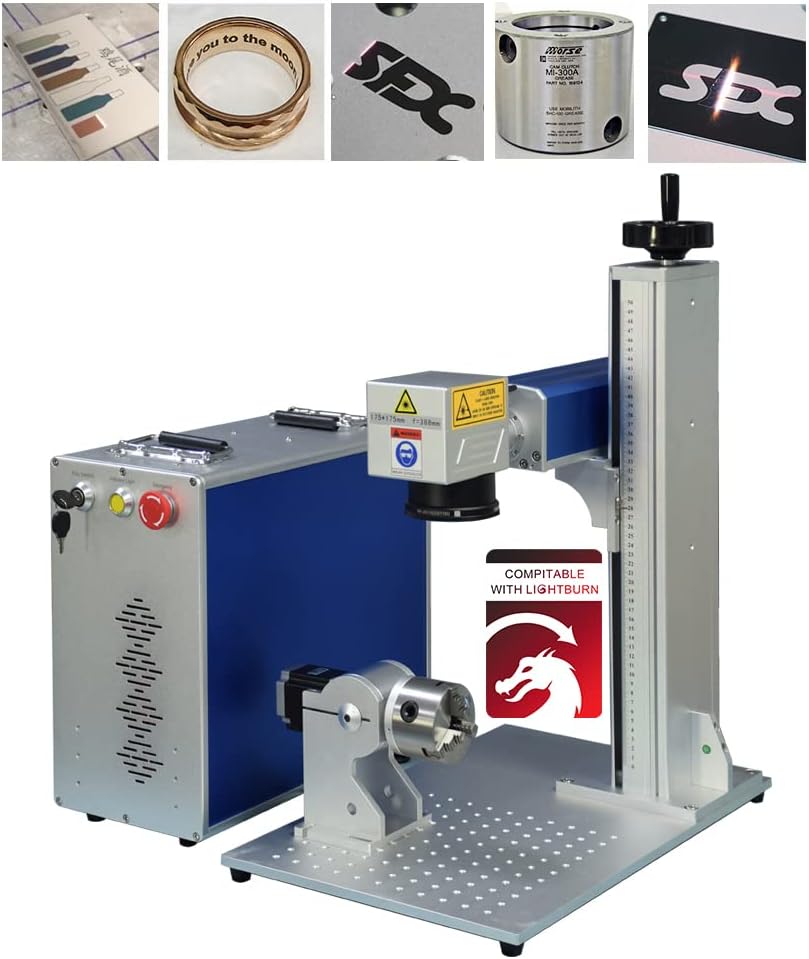

Fiber Laser rotary device

D80 Rotary Device

Stainless Steel Chuck can Quick Clamping
Elevation Angle: 0-90°
Clamping Range: 2-80mm

The Function of Marking Software is Powerful.

Strip the Anode from the Surface of the Thin Aluminium Oxide Plate.anodized Alumina Blackened.electronic, Semiconductor, Ito Precision Processing Applications.color Marking on Stainless Steel.

Applicable Material.

Aluminum,stainless Steel, Brass, Copper Etc.also Some of Nonmetal Such As Nylon ,Light button, ABS,PVC,PES etc.

Applicable Industry:

Hardware Industry,Wrenches,Measuring Tools,Jewelry,Stainlsee Steel,Luggagegifts,Table Bottom, Glasses Frames.
