Wide Applications: TDRFORCE water pressure booster pump for home provides high efficiency of pressure boosting, being suitable for household, irrigation and water transfer. It's your ideal lawn sprinkler pump , garden hose pressure booster , shallow well jet pump and self priming irrigation pump.
Powerful Functions: TDRFORCE 1/2 hp 370W booster pump has a max head of 108ft and 14 GPM ( 840 GPH ) max flow, boostering water pressure to 4 bar at max (working at rated output water pressure of 1.5 bar).
Automatically electric control: With rated data set by manufacturer, the electric controller will start the pump automatically when water runs and shut off when dry pumping. Pressure screw behind the controller can be used to adjust the pressure.
Fast installation: With 1'' inlet and outlet, the self priming water transfer pump can be easily connected to garden hose and home water systems. Powered by 110V ac, standard US plug with 6.5ft cord.
Choose TDRFORCE for Warranty: As a professional manufacturer in home water pump field, TDRFORCE offers presale and after sale services and 180 days warranty. Please contact us if you have any question.
Power Source
Corded Electric
Flow Rate
14.5 gpm
Maximum Lifting Height
108 feet
Voltage
115 volts
Horsepower
0.5 hp
Color
Yellow
Product Style
1/2 hp
Material Type
Stainless Steel
Model Number
1/2 HP
Manufacturer
TDRFORCE
Manufacturer Warranty Description
180-day warranty
Unit Count
1 Count
Specific Uses For Product
lawn irrigation, gardening, home improvement project
Included Components
check valve*1, handle*1, Teflon tape*1
Item Type Name
well pump
Manufacturer Part Number
TDR-Boost Pump-1/2HP
Material
Stainless Steel
Style
1/2 hp
Power Source Type
Corded Electric
Maximum Flow Rate
14.5 gpm

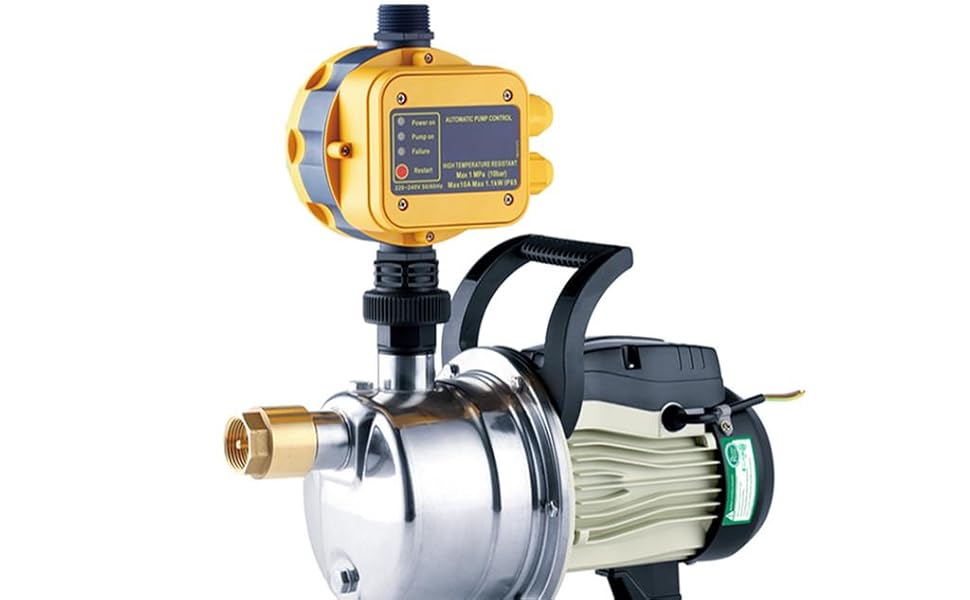

TDRFORCE Pressure Booster Pump

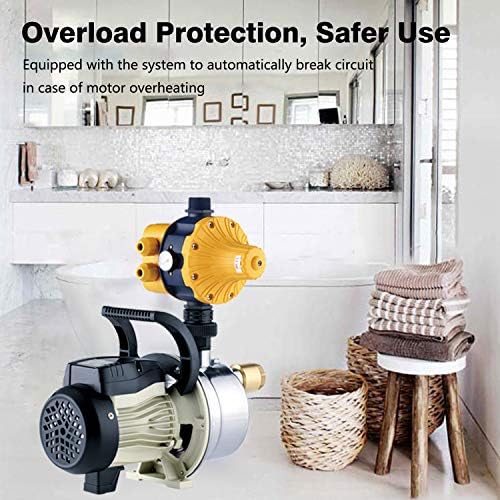

Was designed and intended to boost home water pressure or as a shallow well jet pump with an electronic control. Whether you're in the shower or using the faucet, this powerful pressure booster will keep your water pressure going strong. Besides, it is also applied in irrigation for farmlands and garden, domestic well and water tower, as well as providing water for solar at high floors. Easy to carry with a handle; easy to install and use.The integrated electronic control which maintains pressure and flow can protect the pump from running dry.
Recommended for household water supply, water supply system, cooling system and boost system.
If you find that the water pump connection will leak, please wrap Teflon tape around the leak
JETS-60
Body Materials: Stainless steel, PPO
Voltage: 115V Current: 5.4A
Power: 370W(1/2Hp) Max Pressure: 44PSI
Frequency: 60Hz Speed: 2850rpm
Capacitor: 20UF
Pipe Size: 1”×1”
Max.Head: 32m(104ft)
Product Weight: 9.1kg/20lb
Max Flow(Liters/Min): 55L/Min(14.5GPM)
CE, IP45 Protection, Insulation Class B
JETS-80
Body Materials: Stainless steel, PPO
Voltage: 115V Current: 6.8A
Power: 550W(3/4Hp) Max Pressure: 52PSI
Frequency: 60Hz Speed: 2850rpm
Capacitor: 30UF
Pipe Size: 1”×1”
Max.Head: 34m(111ft)
Product Weight: 12.05kg/26.56lb
Max Flow(Liters/Min): 65L/Min(17GPM)
CE, IP45 Protection, Insulation Class B

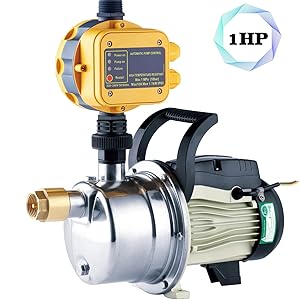

JETS-100
Body Materials: Stainless steel, PPO
Voltage: 115V Current: 9.2A
Power: 750W(1 Hp) Max Pressure: 60PSI
Frequency: 60Hz Speed: 2850rpm
Capacitor: 30UF
Pipe Size: 1”×1”
Max.Head: 42m(137ft)
Product Weight: 13.1kg/28.8lb
Max Flow(Liters/Min): 65L/Min(17GPM)
CE, IP45 Protection, Insulation Class B
CAUTION:
Liquid Requirements: Clean liquids without suspended solids, non-aggressive (Liquid temperature: -20℃~+40℃). Not recommended for sand point applications and please avoid sand pumped into pump body.
If the pump remain unused for a long period of time, please empty it to prevent formation of deposits or increase of water volume due to frozen water, which could tear the fixing bolts or cracking the pump body.
When starting the pump again, refill it and check that the shaft runs free by introducing a screw-driver into the slot on the shaft, on the fan side.
Please carefully read over the operation manual before use for the sake of its proper application and optimum efficiency.

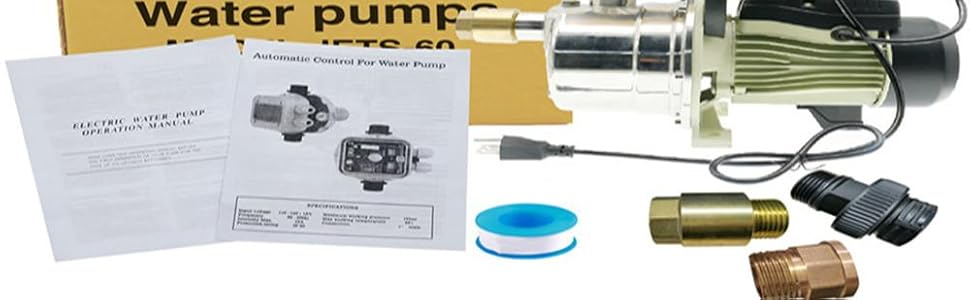

Package Content:
1 x Pressure Boost Pump with Automatic Pump Control
